A supermarket owner recently called me in panic.
“We connected 8 cameras to an 8-port PoE switch, and now none of them work. Are all your cameras defective?”
When I arrived on-site, the cameras were perfectly fine.
The real problem?
The PoE switch.
This is one of the most common mistakes in CCTV projects.
Many buyers assume:
8 PoE ports = 8 cameras.
Unfortunately, that’s not always true.
The hidden factor is something called the PoE Power Budget.
What Is a PoE Power Budget?
Every PoE switch has two important specifications:
1. Number of Ports
This tells you how many devices can be connected.
2. Total PoE Power Budget
This determines how many devices can actually receive power simultaneously.
Many low-cost 8-port PoE switches provide:
- 60W total power
- 80W total power
- 96W total power
At first glance, this seems sufficient.
But let’s calculate.
The Simple Math Most Buyers Ignore
A typical IP camera consumes:
- Fixed camera: 8W-12W
- AI camera: 10W-15W
- PTZ camera: 20W-30W
- Speed dome: 30W+
Suppose each camera consumes 15W.
8 Cameras × 15W = 120W
If the switch provides only 60W or 96W total output, the switch will become overloaded.
Usually:
- First few cameras power up
- Remaining cameras stay offline
- System becomes unstable
- Random camera disconnections occur
The cameras are not broken.
The switch simply cannot provide enough power.
Why Cheap PoE Switches Create Expensive Problems
Many budget switches advertise:
“8-Port PoE”
But hide the actual power budget in small print.
Some even exaggerate their specifications.
A switch labeled as 120W may deliver only 80W under real-world conditions.
For CCTV projects, this can lead to:
- Camera outages
- Video loss
- NVR recording interruptions
- Costly troubleshooting visits
PoE vs PoE+
Another common mistake is confusing PoE standards.
IEEE 802.3af (PoE)
Maximum power:
15.4W per port
Suitable for:
- Fixed IP cameras
- Basic indoor cameras
IEEE 802.3at (PoE+)
Maximum power:
30W per port
Suitable for:
- PTZ cameras
- AI cameras
- Dual-lens cameras
- High-performance outdoor cameras
If your camera requires 25W and your switch only supports standard PoE, the device may never start properly.
Recommended PoE Power Budget
| Number of Cameras | Recommended Minimum Power |
|---|---|
| 4 Cameras | 60W |
| 8 Cameras | 120W-150W |
| 16 Cameras | 240W-300W |
| 24 Cameras | 370W+ |
| 48 Cameras | 740W+ |
Always leave 20%-30% reserve capacity for future expansion.

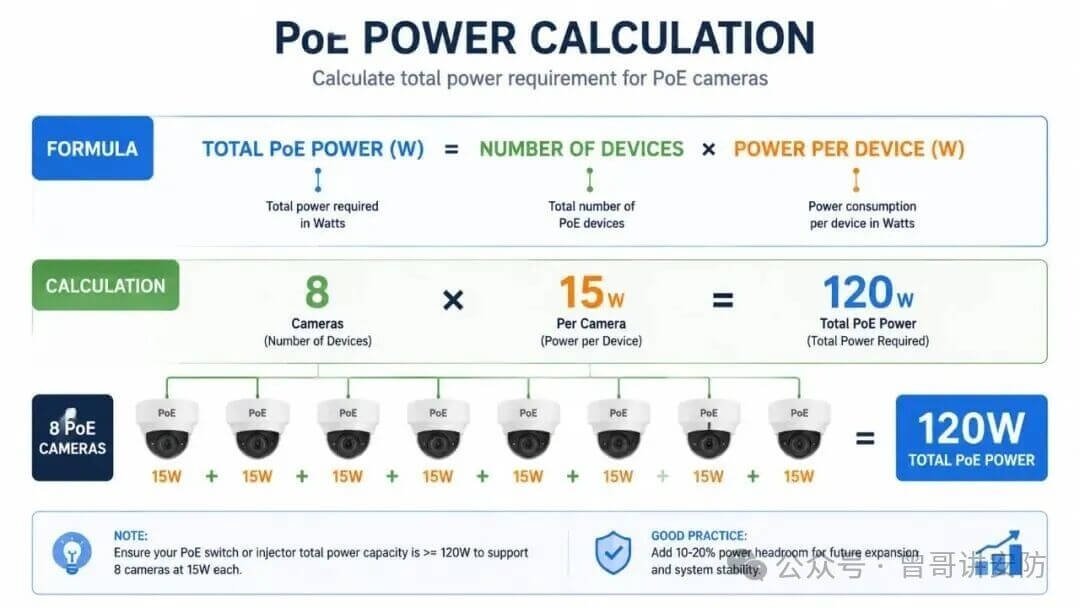

Quick Power Calculation Formula
Use this simple rule:
(Number of Cameras × Camera Wattage) × 1.2
Example:
8 Cameras × 15W × 1.2
= 144W
Recommended switch:
150W PoE budget or higher.
Additional Installation Tips
Avoid Mixing Unknown Brands
Some non-standard PoE implementations may create compatibility issues.
Check Future Expansion
If you plan to add cameras later, buy a larger switch today.
Don’t Focus Only on Price
A $30 saving on a switch can result in hundreds of dollars of troubleshooting costs later.

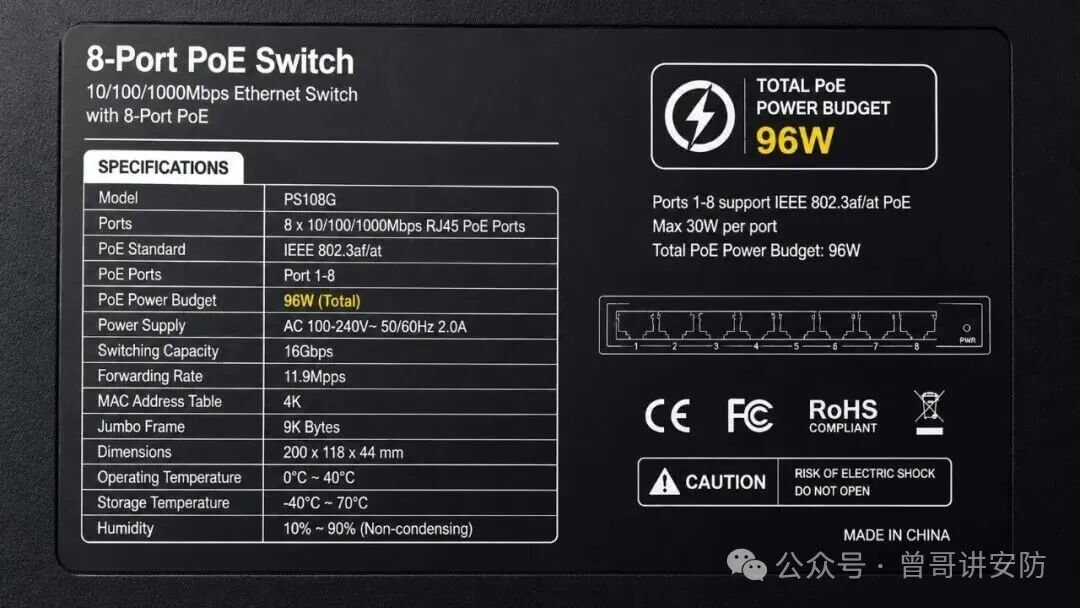

Verify Real Power Budget
Always check:
- Total PoE Budget
- Per-Port Maximum Output
- PoE Standard (802.3af / 802.3at)
Final Thoughts
In CCTV projects, the number of ports is only half the story.
The real question is:
Can your switch provide enough power to every camera simultaneously?
Before buying any PoE switch, calculate the total power requirement first.
A correctly sized PoE switch means:
✓ Stable cameras
✓ Reliable recording
✓ Fewer service calls
✓ Better customer satisfaction
And most importantly…
No more blaming perfectly good cameras for a power problem.
