Many CCTV installers focus on cameras, NVRs, and switches.
Few realize that a simple network cable can determine whether a surveillance system performs flawlessly or becomes a constant headache.
Recently, a hotel installed 32 IP cameras throughout its property.
Everything looked perfect on paper.
- New cameras
- New NVR
- New PoE switches
But after installation, the customer reported a major problem:
“Why do some cameras keep freezing?”
Several cameras showed:
- Video lag
- Frame drops
- Delayed playback
- Intermittent disconnects
The troubleshooting process began.
The cameras were fine.
The NVR was fine.
The switches were fine.
The real culprit?
The network cable.
The project used Cat5e cable for all camera runs.
Several cameras were installed more than 60 meters away from the network room.
After replacing those runs with Cat6 cable, every issue disappeared.
The lesson?
Not all Ethernet cables perform equally in surveillance systems.
Why Network Cables Matter in CCTV Systems
Every IP camera continuously transmits:
- Video streams
- Audio streams
- AI metadata
- Motion events
- Network commands
The higher the resolution, the greater the network demand.
For example:
| Resolution | Typical Bitrate |
|---|---|
| 2MP (1080P) | 2-4 Mbps |
| 4MP | 4-8 Mbps |
| 8MP (4K) | 8-16 Mbps |
| AI Dual Lens | 10-20 Mbps |
Multiply this by dozens of cameras and cable quality becomes critical.

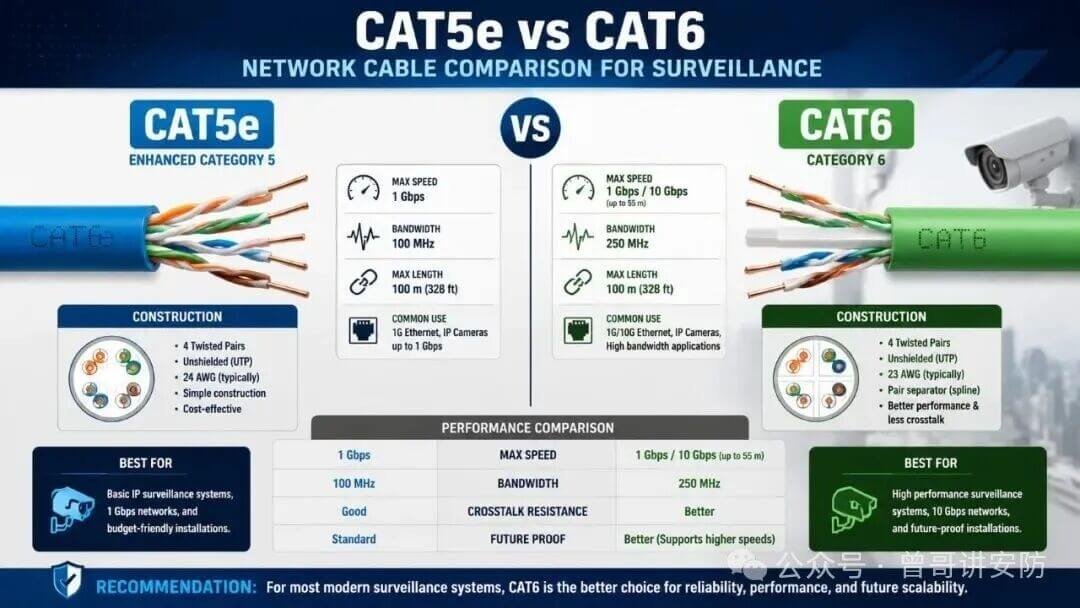

Cat5e vs Cat6: What’s the Difference?
Cat5e Cable
Specifications:
- Bandwidth: 100 MHz
- Speed: Up to 1 Gbps
- Distance: Up to 100 meters
- Lower cost
Advantages:
✔ Cost-effective
✔ Easy to install
✔ Suitable for small surveillance systems
Limitations:
❌ More susceptible to interference
❌ Less stable on long-distance runs
❌ Lower future-proofing capability
Cat6 Cable
Specifications:
- Bandwidth: 250 MHz
- Speed: Up to 10 Gbps (short distances)
- Distance: Up to 100 meters
- Internal cross separator design
Advantages:
✔ Higher bandwidth
✔ Better signal stability
✔ Superior anti-interference performance
✔ Better PoE power delivery
✔ Supports future upgrades
Limitations:
❌ Approximately 20-30% higher cost
Why Cat6 Performs Better Beyond 50 Meters
Many installers believe both cables support 100 meters.
Technically true.
But real-world surveillance environments tell a different story.
When cable lengths exceed 50 meters:
- Signal attenuation increases
- Electrical interference becomes more significant
- Voltage drop affects PoE performance
Cat6’s internal separator and tighter twist design help maintain signal quality under these conditions.
The result:
- Smoother video
- Fewer dropped frames
- More stable PoE power
When Should You Always Choose Cat6?
1. High-Resolution Cameras
If your project uses:
- 4MP cameras
- 5MP cameras
- 8MP cameras
- AI cameras
Cat6 is strongly recommended.
Higher resolutions generate significantly more network traffic.
2. Long Cable Runs
If camera distance exceeds:
50 meters
Cat6 becomes the safer choice.
Especially in hotels, warehouses, factories, schools, and shopping centers.
3. High Interference Environments
Common interference sources include:
- Elevators
- Air conditioning systems
- Industrial motors
- Power distribution cabinets
Cat6 offers superior protection against electromagnetic interference.
4. PoE Surveillance Systems
Most modern IP cameras rely on PoE.
PoE simultaneously carries:
- Data
- Power
through the same cable.
Cat6 has lower resistance and provides more stable power delivery, especially for:
- PTZ cameras
- Full-color cameras
- AI cameras
- Dual-lens cameras
A Practical Selection Guide
| Scenario | Recommended Cable |
| 2MP Cameras under 50m | Cat5e |
| 4MP+ Cameras | Cat6 |
| Distances over 50m | Cat6 |
| Industrial Environments | Cat6 |
| PoE Installations | Cat6 |
| Network Backbone | Cat6 |
Don’t Focus Only on Cameras
Many projects spend thousands of dollars on:
- AI cameras
- NVRs
- Storage systems
Yet save a few dollars on network infrastructure.
That decision often leads to:
- Video lag
- Packet loss
- Camera disconnections
- Costly troubleshooting
A surveillance system is only as reliable as the infrastructure supporting it.
Final Thoughts
If your project uses:
- High-resolution cameras
- Long-distance cable runs
- PoE power delivery
- AI surveillance systems
Cat6 should be your default choice.
The additional investment is minimal compared to the long-term benefits in stability, performance, and scalability.
Remember:
A 4K camera connected through poor cabling will never deliver 4K performance.
The camera records the image.
The cable delivers the experience.
