What Is AOV Camera Technology? Why IMOU and Other Brands Are Moving Beyond PIR-Only Recording

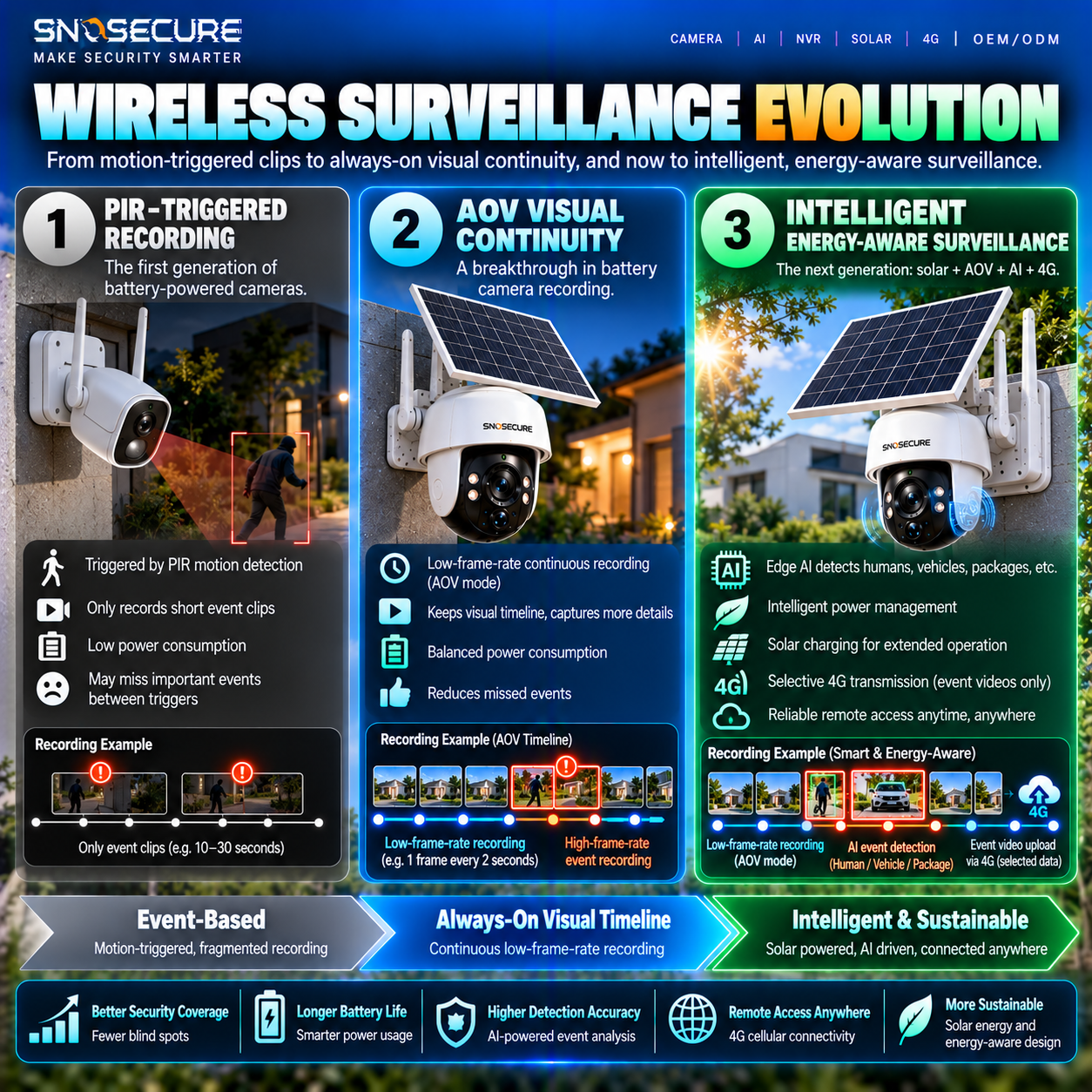

From motion-triggered clips to low-power visual awareness: how AOV, solar power, 4G connectivity, and Edge AI are changing wireless surveillance.

For years, battery-powered security cameras have faced a difficult trade-off.

Save battery power—or capture more of what happens.

Traditional battery cameras often rely on PIR (Passive Infrared) sensors to detect motion and wake the camera for recording.

This approach can be highly energy-efficient.

But it creates an important limitation.

What happens before the PIR sensor triggers?

Imagine a security camera installed at a remote construction site.

A vehicle approaches slowly.

Someone enters the monitored area.

The camera wakes up only after detecting a qualifying movement.

You receive a useful video clip—but perhaps not the complete sequence of events.

Now imagine a camera that can maintain a low-power visual timeline and automatically switch to higher-frame-rate recording when important activity is detected.

That is the idea behind AOV camera technology.

And it helps explain why manufacturers such as IMOU are introducing AOV-enabled products into their wireless security camera portfolios.

But what exactly is AOV?

How is it different from a PIR camera?

Can it replace a traditional 24/7 wired surveillance system?

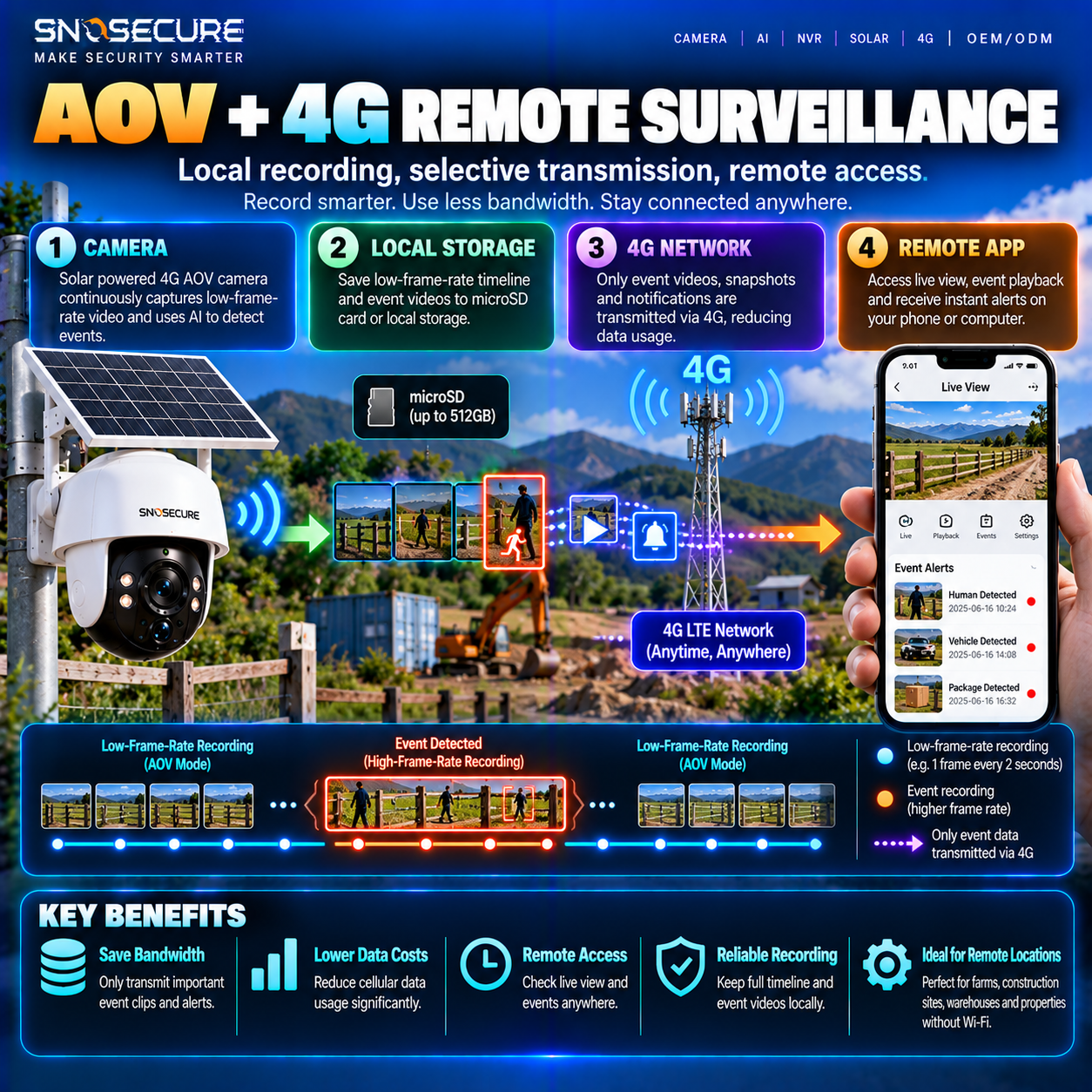

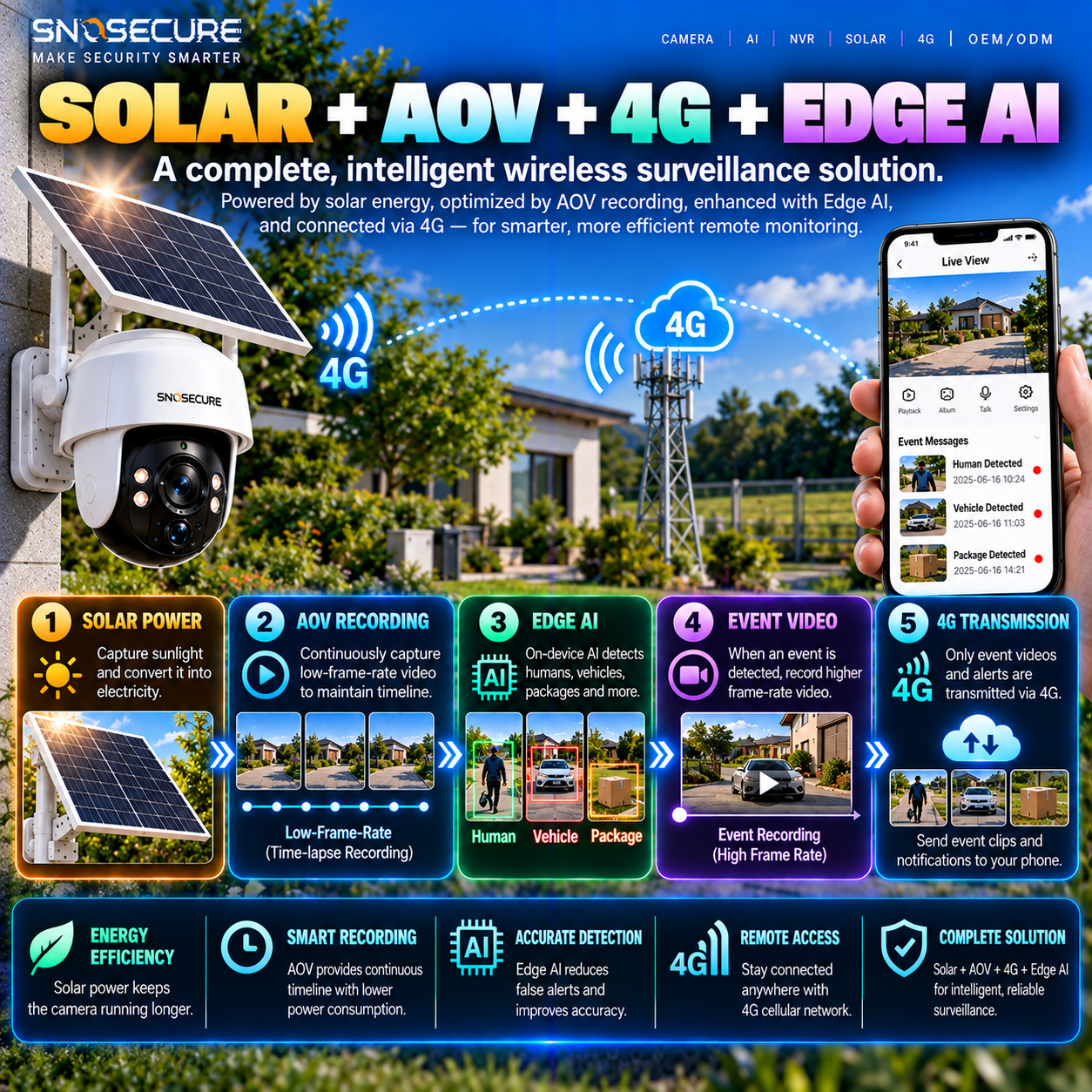

And why is the combination of Solar + AOV + 4G + Edge AI becoming especially relevant for outdoor security?

Let’s explore the technology from an engineering and B2B product development perspective.

1. What Is AOV Camera Technology?

AOV stands for Always-On Video.

In battery-powered security cameras, AOV commonly refers to a recording architecture that maintains ongoing visual capture at a reduced frame rate or sampling frequency during quiet periods, then switches to more detailed recording when relevant activity occurs.

Instead of relying exclusively on a PIR sensor to wake a sleeping camera, an AOV system can use low-power image capture and intelligent event analysis to maintain broader awareness of the monitored scene.

A simplified recording sequence looks like this:

LOW-POWER VISUAL CAPTURE → EVENT ANALYSIS → EVENT DETECTION → HIGHER-FRAME-RATE RECORDING → RETURN TO LOW-POWER MODE

The objective is to balance three competing requirements:

1. Better recording continuity
2. Lower power consumption
3. More useful event footage

Does AOV Mean Full-Frame 24/7 Recording?

Not necessarily.

This is one of the most important distinctions buyers should understand.

A traditional wired camera may record at a consistent frame rate throughout the day.

An AOV battery camera may use time-lapse recording, intermittent frame capture, or another reduced-power recording mode during periods without detected activity.

When an event occurs, it can increase its recording rate.

For example, IMOU describes certain AOV products as recording approximately one frame every two seconds when no event is detected, then switching to full-frame recording during an event.

That is different from continuously recording at 15, 20, or 25 frames per second.

AOV is designed to improve visual continuity while managing energy consumption—not to eliminate every recording trade-off.

The exact implementation varies by manufacturer and product model.

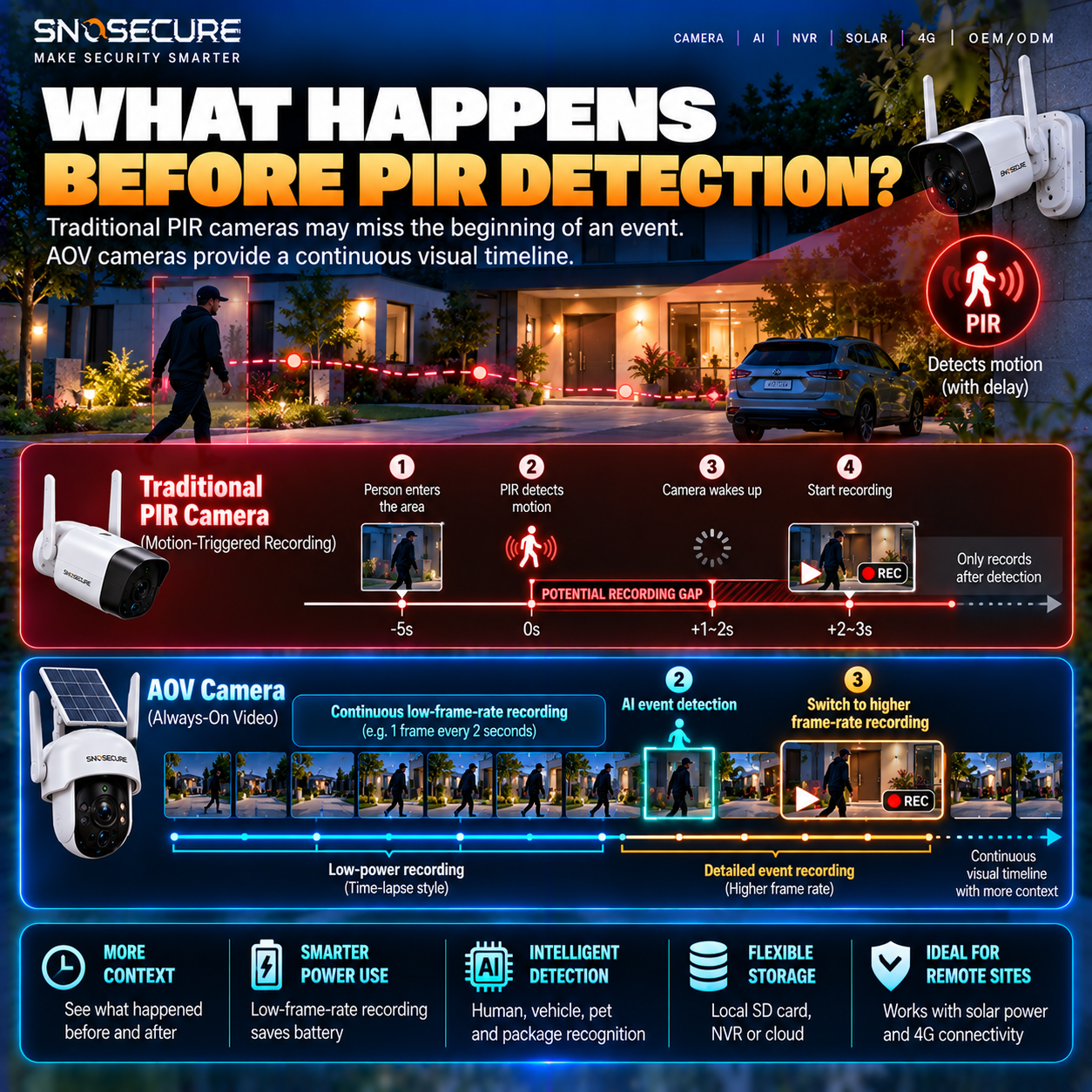

2. Why Traditional PIR Cameras Can Miss Important Context

PIR technology has played an important role in battery-powered security cameras.

A PIR sensor detects changes in infrared radiation associated with movement within its detection area.

When the detected change meets the system’s trigger conditions, the camera wakes up and records.

This allows the image sensor and processor to spend more time in a low-power state.

Why PIR Cameras Are Popular

Traditional PIR-triggered cameras can offer:

• Low standby power consumption
• Longer battery operation between charging cycles
• Relatively simple event-triggered recording
• Reduced storage requirements
• Fewer unnecessary recording hours

For many applications, these are real advantages.

A small residential camera monitoring occasional activity may not need a continuous visual timeline.

Where PIR-Only Recording Can Be Limited

However, PIR-triggered systems can encounter several challenges.

1. Events may begin before recording starts.

A camera needs time to detect motion, wake its electronics, and begin capturing useful footage.

2. Detection depends on the sensor’s operating conditions.

Movement direction, distance, temperature contrast, and installation angle can affect PIR performance.

3. The recording timeline may contain gaps.

The camera may not preserve what happened during its sleep periods.

4. Some slow or distant activity may be harder to detect.

PIR sensitivity varies with the sensor design and environmental conditions.

5. Event context may be incomplete.

The recording might show a person near a vehicle without showing how that person arrived.

These limitations do not make PIR obsolete.

They explain why different recording architectures are valuable.

PIR is an effective power-saving detection method. AOV is an approach to improving visual continuity under power constraints.

Some camera designs may combine PIR with image-based detection rather than choosing only one method.

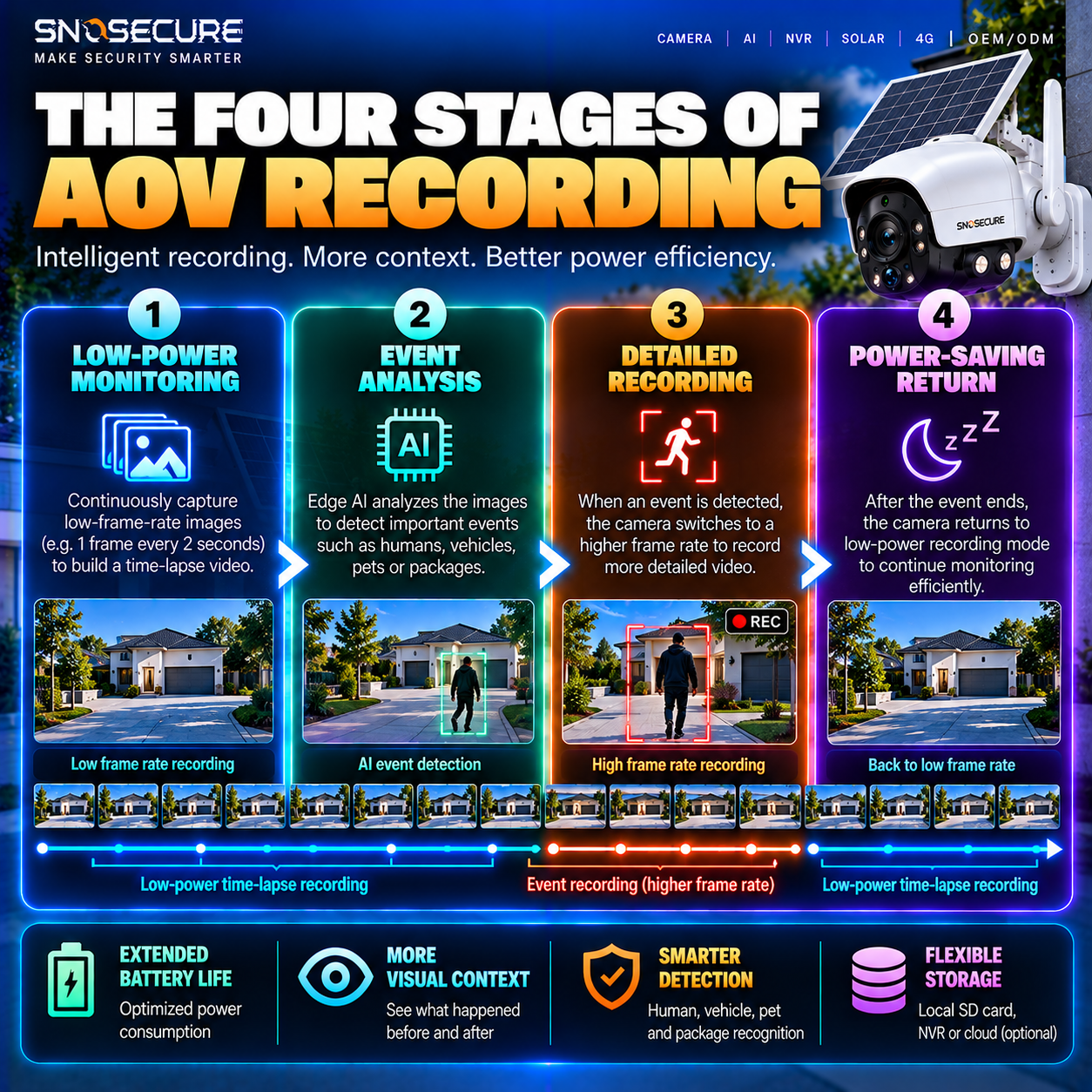

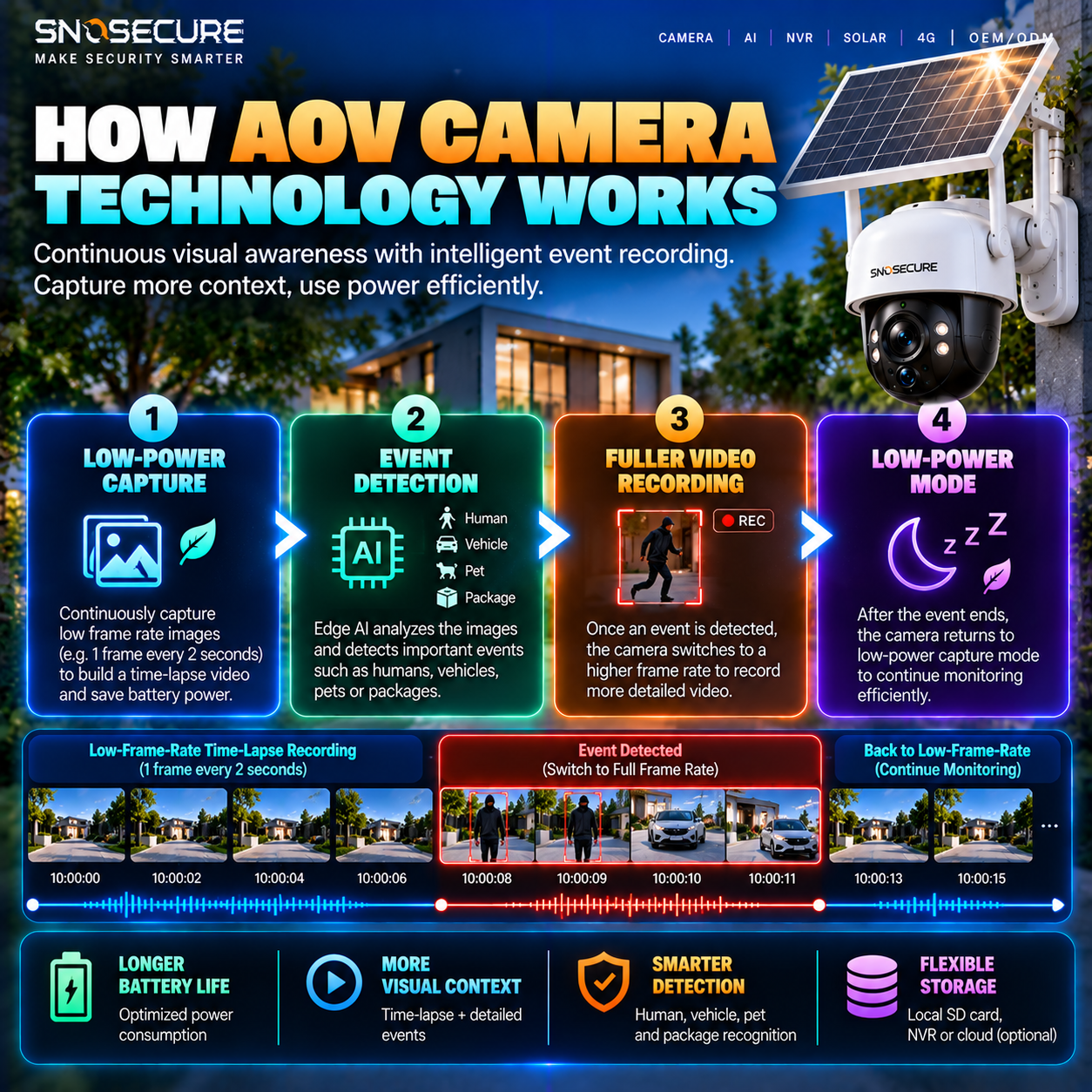

3. How Does an AOV Camera Work?

Although implementations vary, many low-power AOV cameras use several operating states.

Stage 1: Low-Power Visual Monitoring

During periods without significant activity, the camera captures frames at a reduced rate.

This creates a time-lapse-style record of the monitored scene.

The objective is to preserve some visual history without the energy demand of conventional high-frame-rate recording.

Stage 2: Intelligent Event Analysis

The camera evaluates images or motion-related signals to identify potentially important activity.

Depending on the hardware and firmware, this may involve:

• Image-based motion detection
• Human detection
• Vehicle detection
• Defined monitoring regions
• AI event classification

Not every AOV camera uses the same detection algorithms.

And not every AOV product offers the same level of Edge AI.

Stage 3: Higher-Frame-Rate Event Recording

When a relevant event is detected, the camera switches to a more detailed recording mode.

This may include:

• Increased frame rate
• Higher-quality video recording
• Event notifications
• Local video storage
• Optional remote access or cloud functions

Stage 4: Return to Power-Saving Operation

After the event ends, the camera returns to its lower-power monitoring state.

The transition rules can significantly affect real-world performance.

For example:

How quickly does the camera increase its frame rate?

How long does event recording continue?

Can it record before the detection point?

What happens when multiple events occur close together?

These are essential questions for OEM/ODM buyers.

A Simple Example

Consider a camera that captures one frame every two seconds during quiet periods.

That provides a low-frame-rate visual timeline.

When a person enters the scene, the camera may switch to a higher frame rate to record the activity in more detail.

This can preserve more context than a camera that records nothing until a wake-up trigger.

However, rapid movements between sampled frames may still be missed.

AOV improves the balance between recording coverage and energy efficiency. It does not make detection infallible.

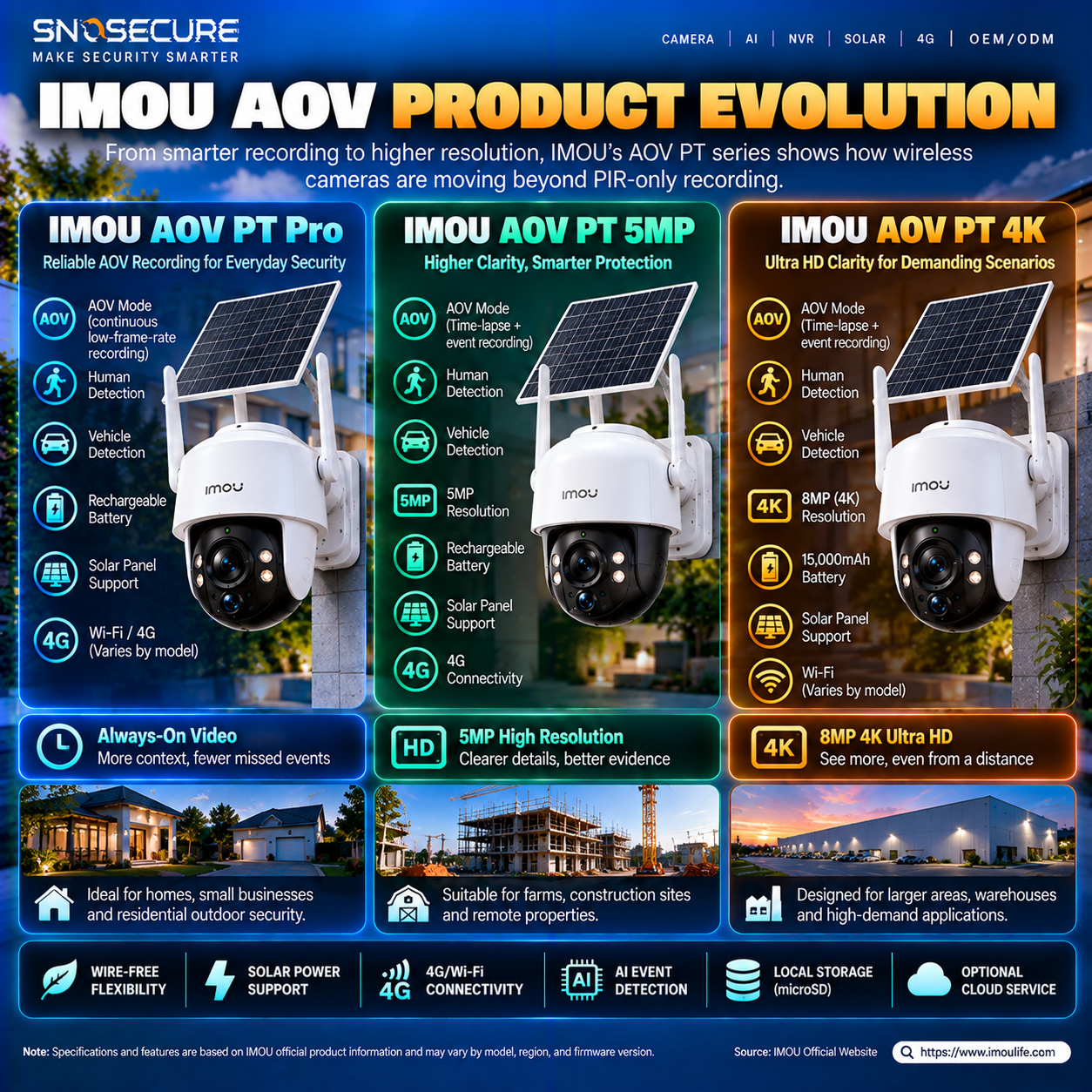

4. Why IMOU Is an Interesting AOV Camera Example

IMOU provides a useful real-world example of how AOV is entering mainstream wireless camera product development.

Its product portfolio includes models such as:

• AOV PT Pro
• AOV PT 5MP
• AOV PT 4K

These products demonstrate different combinations of resolution, battery capacity, connectivity, solar charging, and intelligent event recording.

IMOU AOV PT 5MP

IMOU‘s published specifications describe an AOV recording mode that continuously generates time-lapse video at a configurable interval.

When an alarm is triggered, the camera switches to full-frame video recording.

This illustrates the central AOV design concept:

Lower recording demand when nothing important is happening. More detailed recording when something matters.

The published model information also includes a rechargeable battery, local microSD storage, and 4G/Wi-Fi connectivity options for relevant variants.

IMOU AOV PT Pro

The AOV PT Pro demonstrates a similar direction.

IMOU describes a reduced-rate recording mode during quiet periods, with higher-frame-rate event recording.

The product also combines a rechargeable battery, solar-panel support, and intelligent human/vehicle detection.

This reflects a broader industry effort to improve the usefulness of wireless cameras without relying exclusively on short PIR-triggered clips.

IMOU AOV PT 4K

The AOV PT 4K illustrates how higher image resolution is entering the category.

Its published specifications list an 8MP sensor, a 15,000mAh rechargeable battery, solar-panel power support, and AOV Mode.

But higher resolution introduces an important engineering consideration.

More image data can increase processing, storage, and transmission demands.

That makes power management and recording strategy especially important.

What Should Buyers Learn From IMOU?

The most interesting lesson is not that every camera needs AOV.

It is that manufacturers are exploring ways to make battery-powered surveillance more continuous, intelligent, and practical.

For brands developing competing products, this creates an opportunity to evaluate how recording architecture—not only resolution—can differentiate a camera.

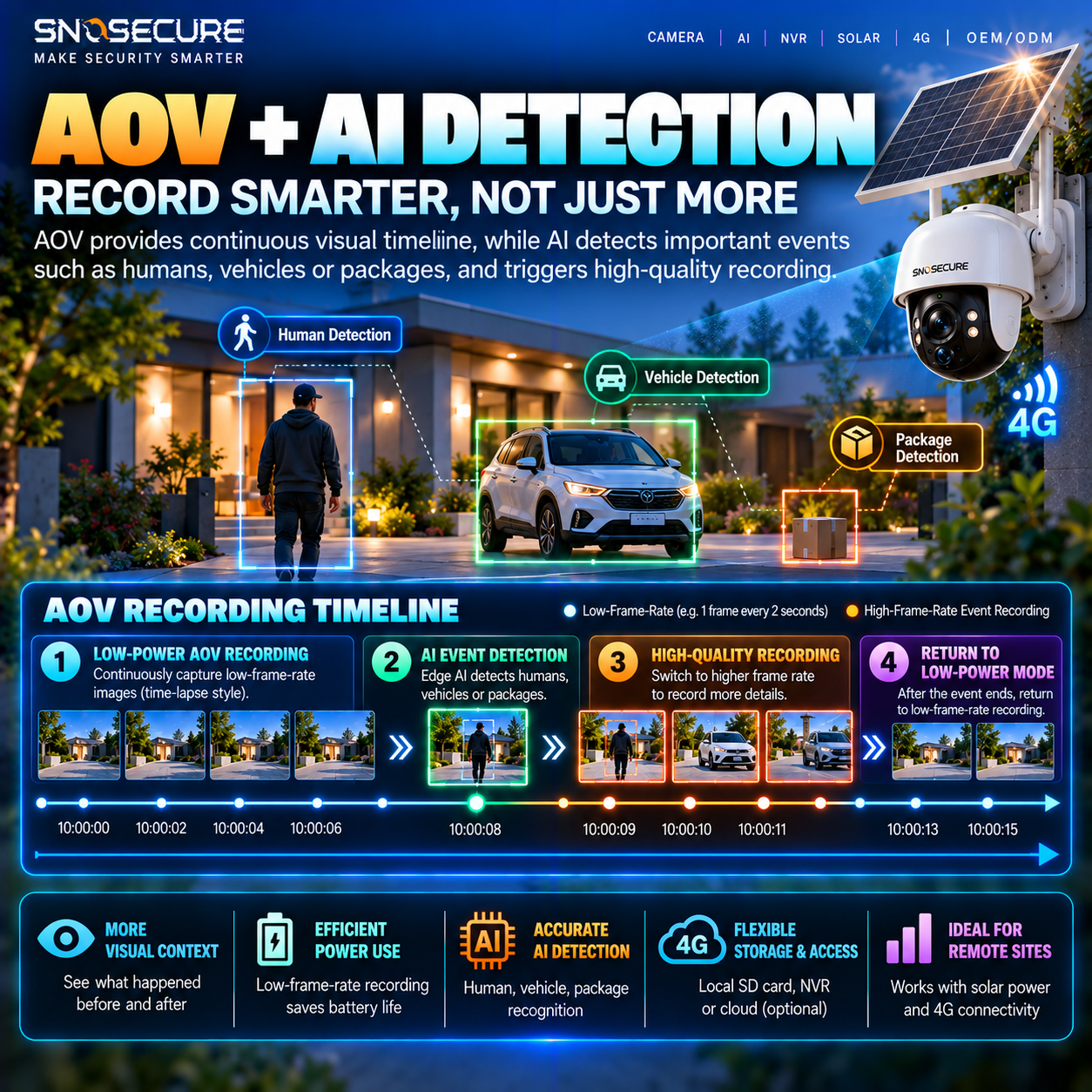

5. IMOU SENSE: Why AI Detection Matters for AOV

AOV technology and AI detection are related, but they are not identical.

AOV describes a recording and power-management approach.

AI detection describes how a system analyzes activity and classifies events.

The combination can be valuable.

If a camera records continuously at a reduced rate, it still needs to determine when higher-quality event recording is justified.

Intelligent analysis may help distinguish relevant activity from unimportant scene changes.

IMOU’s broader IMOU SENSE technology illustrates the industry’s focus on improving AI-assisted detection.

For example, IMOU describes IMOU SENSE capabilities on products such as Cruiser Z, including human and vehicle detection.

However, Cruiser Z should not automatically be treated as an AOV camera.

Its AI capabilities are relevant as a separate example of IMOU’s detection technology.

Why Better Detection Matters

An AOV camera must make decisions about when to change operating modes.

If detection is too sensitive:

• The camera may record too many events.
• Battery consumption may increase.
• Storage usage may rise.
• Notifications may become excessive.

If detection is not sensitive enough:

• Important activity may be missed.
• Higher-frame-rate recording may start too late.
• The customer may receive incomplete evidence.

The engineering objective is not simply to maximize detection sensitivity.

It is to balance:

DETECTION ACCURACY + RESPONSE SPEED + POWER CONSUMPTION + VIDEO QUALITY

For OEM/ODM development, this balance can be more important than adding another headline AI feature.

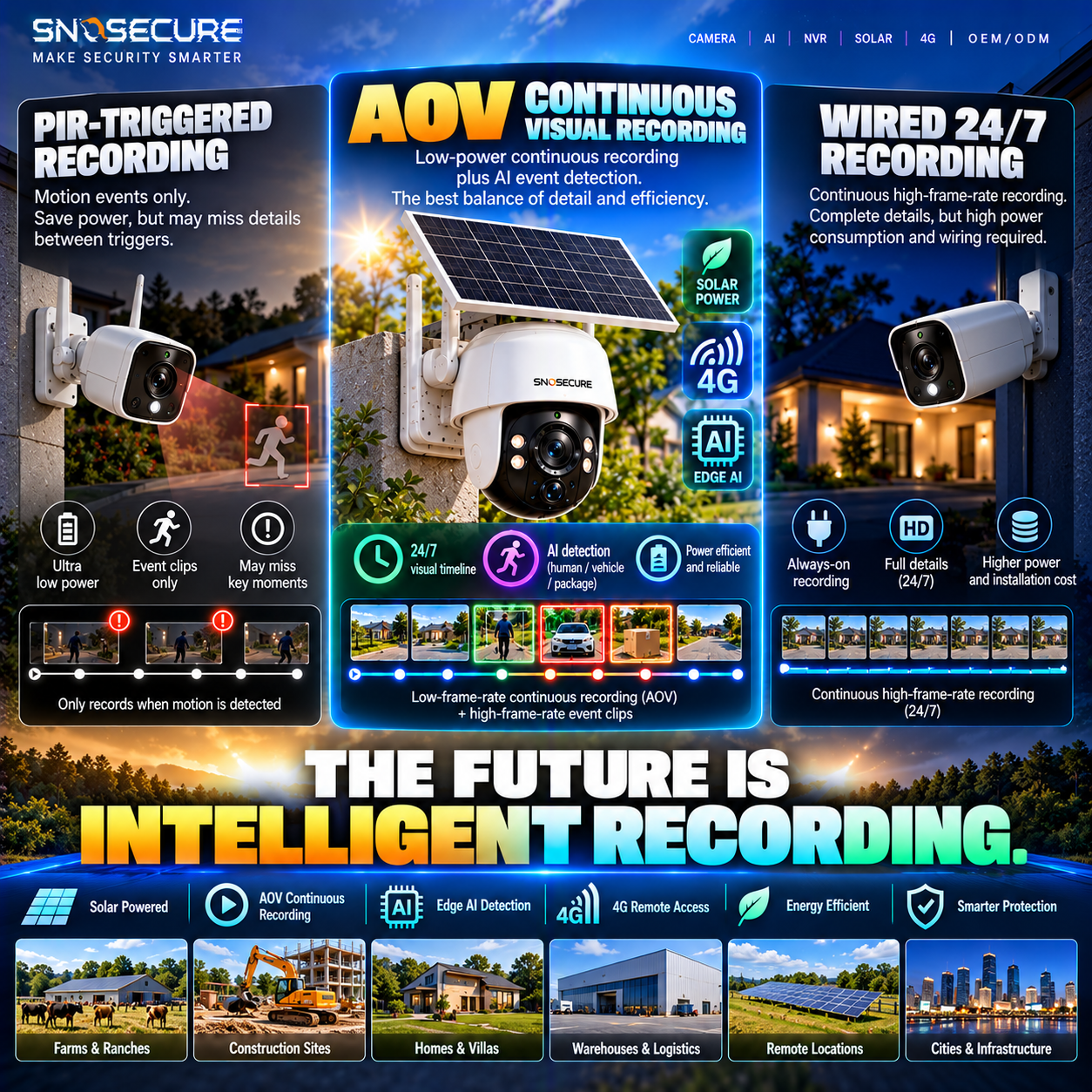

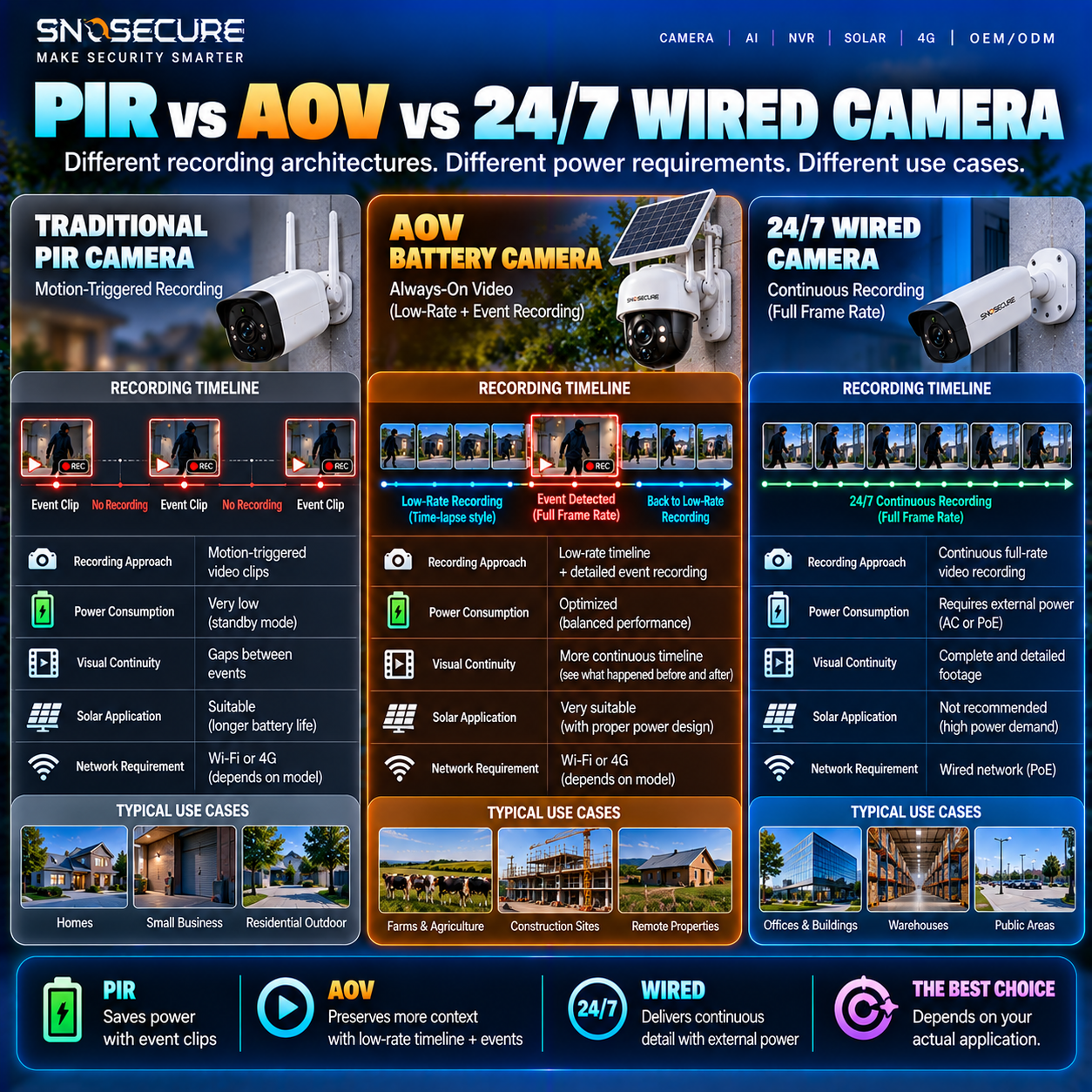

6. Traditional PIR Camera vs AOV Camera vs 24/7 Wired Camera

This is the comparison every B2B buyer should understand.

When Should YOU Choose a PIR Camera?

A PIR camera can be suitable when:

• Activity is infrequent.
• Battery life is the highest priority.
• Event clips provide sufficient evidence.
• Storage and bandwidth need to be minimized.
• A continuous timeline is not essential.

When Should YOU Choose an AOV Camera?

An AOV camera may be suitable when:

• A broader recording timeline is useful.
• The installation has limited power.
• Solar charging is available.
• Events need more visual context.
• The customer wants a balance between coverage and energy efficiency.

When Should YOU Choose a 24/7 Wired Camera?

A wired system is often preferable when:

• Continuous detailed footage is mandatory.
• Reliable mains or PoE power is available.
• The installation requires high-frame-rate recording.
• Multiple cameras need centralized recording.
• Storage infrastructure can support continuous video.

The best recording architecture is the one that matches the application’s evidence requirements and power budget.

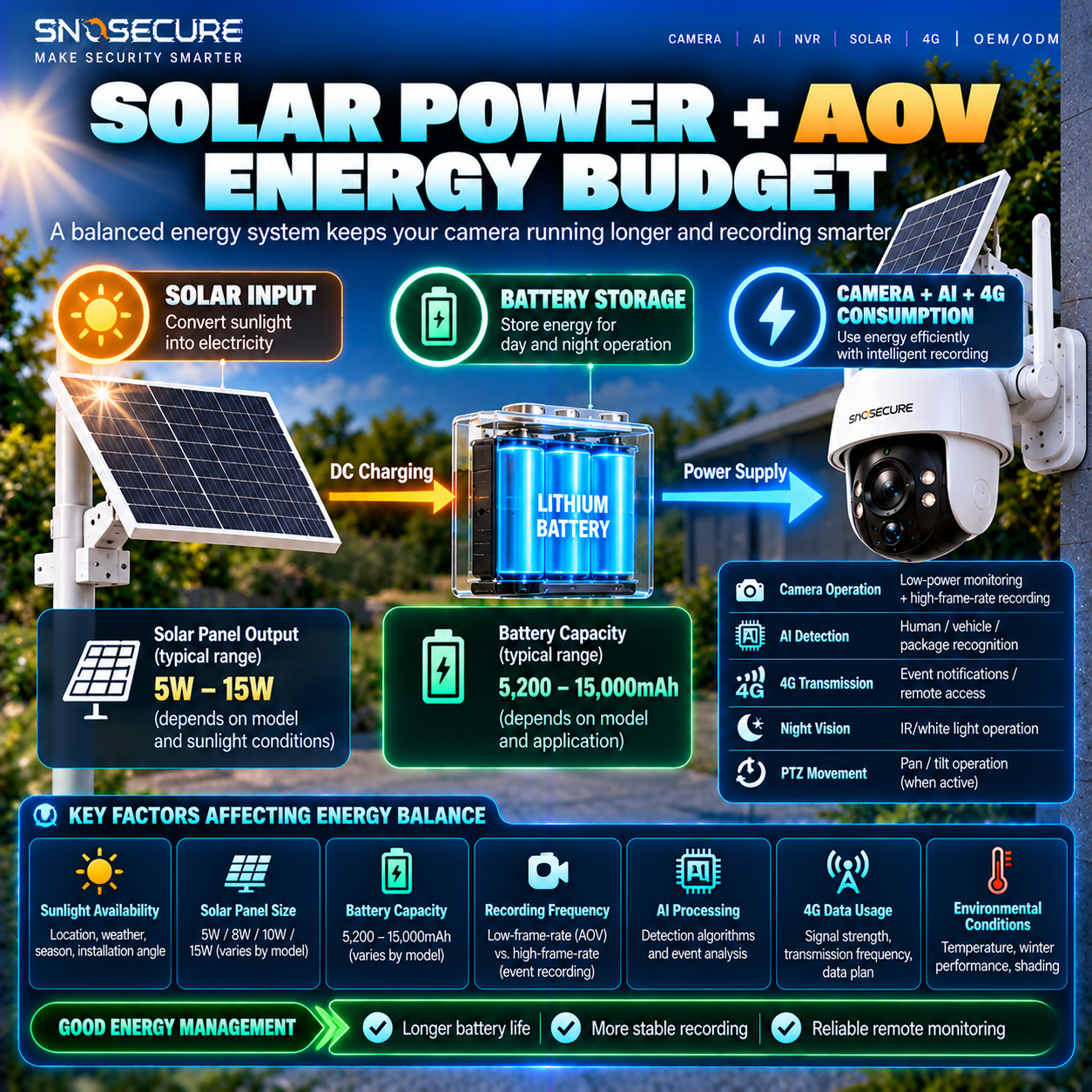

7. Why Solar Power Changes the AOV Equation

AOV is particularly interesting when combined with solar charging.

A traditional battery camera may achieve long standby life by spending most of its time asleep.

An AOV camera may consume more energy because it performs ongoing visual capture and event analysis.

Solar charging can help replenish that energy.

But it introduces another engineering equation.

ENERGY GENERATED ≥ ENERGY CONSUMED

At least over the relevant operating period, accounting for battery reserve, charging losses, weather, and seasonal variation.

The Main Energy Consumers

A solar AOV camera may consume power through:

• Image sensor operation
• Video processing and encoding
• AI detection
• Wireless communication
• Night vision illumination
• Pan-and-tilt motors
• Local storage
• System standby functions

The total depends on the camera’s operating modes and usage patterns.

Why Solar Panel Size Matters

A larger panel may generate more energy under suitable sunlight conditions.

But panel wattage alone does not determine whether a camera can operate sustainably.

Real-world results depend on:

• Daily sunlight exposure
• Weather and season
• Panel orientation
• Charging efficiency
• Battery capacity
• Temperature
• Event frequency
• Nighttime activity
• Wireless signal conditions

A claim such as “unlimited battery life” should always be understood within its published test assumptions.

Why Battery Capacity Matters

Battery capacity provides an energy reserve.

But a large battery cannot compensate indefinitely for a persistent energy deficit.

AOV products should therefore be evaluated using a realistic energy budget—not only advertised battery capacity.

SOLAR POWER MAKES AOV MORE PRACTICAL, BUT GOOD POWER ENGINEERING MAKES IT RELIABLE.

8. Why 4G Connectivity Makes AOV Valuable for Remote Security

Wi-Fi cameras are practical when reliable local networking is available.

But many surveillance applications are located far from existing network infrastructure.

Consider:

Construction sites.

Farms.

Ranches.

Remote warehouses.

Temporary project locations.

Telecommunications infrastructure.

Utility installations.

In these environments, 4G connectivity can provide remote access without requiring an existing wired internet connection.

Combining AOV with 4G introduces several benefits—and several engineering challenges.

Potential Benefits

Broader visual context

AOV may preserve a low-rate timeline between important events.

Remote monitoring

4G connectivity can support alerts, live viewing, and playback where service is available.

Reduced infrastructure requirements

Solar charging and cellular connectivity can reduce the need for wired power and networking.

Flexible deployment

Suitable products can be moved or installed at temporary locations.

The Bandwidth Challenge

AOV does not automatically mean that every recorded frame is continuously uploaded over 4G.

A well-designed system may record locally and transmit only selected event data, alerts, or user-requested video.

That can reduce cellular data consumption.

However, actual usage depends on:

• Live-view duration
• Playback frequency
• Video bitrate
• Event frequency
• Cloud settings
• Remote access behavior

The Power Challenge

Cellular transmission consumes energy.

Weak signal conditions and repeated network reconnection can increase power demand.

Therefore, the AOV recording strategy, cellular communication policy, and solar power budget should be developed together.

THE REAL OPPORTUNITY IS NOT SIMPLY AOV + 4G.

IT IS INTELLIGENT RECORDING + RESPONSIBLE DATA TRANSMISSION + RELIABLE OFF-GRID POWER.

9. Solar + AOV + 4G + Edge AI: A More Intelligent Architecture

For remote surveillance, these technologies become especially interesting when designed as one system.

SOLAR — Energy Supply

The solar panel replenishes the battery under suitable conditions.

The battery provides energy when sunlight is unavailable.

AOV — Recording Continuity

The camera maintains a reduced-power visual timeline during quiet periods and switches recording behavior when events occur.

4G — Remote Connectivity

The cellular network supports remote access, notifications, and selected data transmission.

EDGE AI — Intelligent Event Processing

On-device analysis helps identify relevant activity and can support decisions about recording and transmission.

A conceptual workflow looks like this:

SOLAR POWER → LOW-POWER AOV RECORDING → EDGE AI EVENT ANALYSIS → DETAILED EVENT RECORDING → SELECTIVE 4G TRANSMISSION

This architecture aims to optimize four resources:

POWER

STORAGE

BANDWIDTH

USEFUL VIDEO EVIDENCE

Example: Remote Farm Surveillance

A solar 4G AOV camera monitors a farm entrance.

During quiet periods, it records a low-frame-rate timeline.

When a vehicle enters the scene, the camera detects relevant activity and switches to more detailed recording.

The event is stored locally.

A notification or selected event data can be transmitted over 4G, depending on the product’s configuration.

The owner can review the footage remotely.

This approach may provide more context than a purely PIR-triggered system while consuming less energy than conventional continuous high-frame-rate recording.

But its success depends on the actual product implementation.

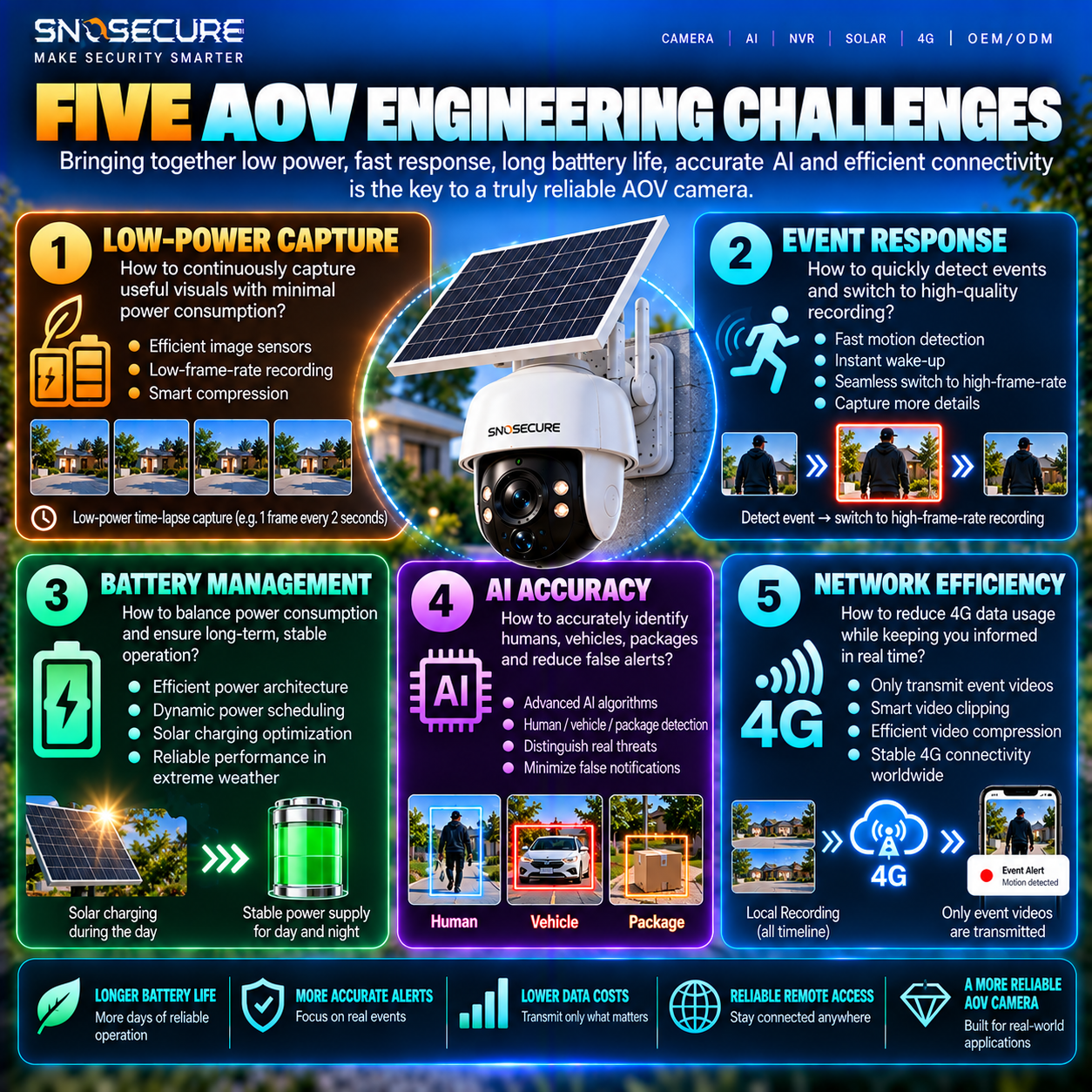

10. Five Engineering Challenges Behind a Reliable AOV Camera

AOV is not simply a firmware switch.

Developing a dependable product requires careful coordination between hardware, software, and system design.

Challenge 1: Low-Power Image Capture

The camera must maintain useful visual awareness without excessive energy consumption.

This involves image sensor operating modes, processor efficiency, and firmware scheduling.

Challenge 2: Fast Event Response

The system must switch to detailed recording quickly enough to capture meaningful events.

Response latency and event transitions should be measured.

Challenge 3: Battery and Solar Management

Charging, discharge protection, thermal behavior, and low-battery policies affect long-term operation.

Challenge 4: AI Detection Performance

Human and vehicle detection must be evaluated under real installation conditions.

These include low light, weather, distance, movement direction, and environmental interference.

Challenge 5: Storage and Network Efficiency

The system needs to manage time-lapse data, event footage, retention, playback, and cellular communication.

These requirements are interconnected.

For example, increasing AI processing frequency may improve event response but increase energy demand.

Increasing event recording duration may preserve more context but consume more storage.

AOV PRODUCT DEVELOPMENT IS AN OPTIMIZATION PROBLEM, NOT JUST A FEATURE CHECKLIST.

11. What B2B Buyers Should Ask Before Choosing an AOV Camera Manufacturer

If YOU are sourcing AOV cameras for your brand, these questions can help evaluate a product beyond marketing claims.

Recording Architecture

1. What is the quiet-period capture interval or frame rate?

2. What frame rate is used during event recording?

3. How quickly does the camera switch between recording modes?

4. Is pre-event recording supported, and under what conditions?

Power and Solar

5. What is the average power consumption in each operating mode?

6. What battery capacity and solar panel specifications are recommended?

7. What assumptions support advertised battery-life claims?

8. How does the camera behave during several consecutive cloudy days?

AI Detection

9. Does the camera use PIR, image-based AI, or a combination?

10. Which event categories can it detect?

11. How is detection accuracy validated in real environments?

Storage and Connectivity

12. Does the camera store the low-frame-rate timeline locally?

13. What is the expected 4G data usage under defined viewing and event conditions?

14. Can the camera continue recording when cellular connectivity is unavailable?

OEM/ODM Development

15. Which recording parameters can be customized?

16. Can the product integrate with the buyer’s app, platform, or cloud services?

17. What firmware update and after-sales support processes are available?

18. What product-level testing and validation reports can the manufacturer provide?

These questions help buyers understand the actual product architecture.

They also create a more productive conversation between the brand owner and manufacturer.

12. What IMOU’s AOV Direction Means for the Security Camera Industry

IMOU’s AOV portfolio reflects a wider shift in wireless surveillance.

For years, the central selling point of battery cameras was convenience.

No power cable.

Easy installation.

Long standby life.

Now the industry is also asking:

Can a battery camera preserve more recording context?

Can AI improve event selection?

Can solar charging support more active monitoring?

Can cellular connectivity make the system practical at remote locations?

These questions are changing the competitive landscape.

The opportunity is not limited to consumer smart home cameras.

It extends to professional and semi-professional applications where power and network infrastructure are limited.

For manufacturers, the next stage of competition may involve:

• More efficient image processing
• Better event-transition logic
• Improved solar energy management
• Lower cellular data consumption
• More practical Edge AI
• Clearer recording-mode specifications
• More transparent battery-life testing

THE FUTURE OF WIRELESS SURVEILLANCE IS ABOUT DOING MORE WITH LIMITED ENERGY.

13. Where SNOSECURE Sees the Opportunity

At SNOSECURE, our focus includes solar-powered cameras, 4G/Wi-Fi surveillance products, and AOV camera solutions for global B2B customers.

We see strong potential in combining:

SOLAR + AOV + 4G + EDGE AI

But we also believe that product performance should be evaluated as a complete system.

For a distributor, the right camera needs to match customer expectations and local market conditions.

For a security brand, recording behavior and battery performance influence product reputation.

For an importer, consistent specifications and reliable manufacturing are essential.

For a system integrator, installation conditions and remote connectivity can determine whether a project succeeds.

And for an OEM/ODM manufacturer, these considerations need to be addressed during product development.

The most productive discussion is not simply:

“Do you have an AOV camera?”

It is:

“What recording behavior, battery performance, connectivity, and event detection does YOUR market actually need?”

With 20 years of manufacturing experience, six production lines, and a 12,000 m² factory, SNOSECURE works with global B2B customers on surveillance camera manufacturing and product development.

We welcome discussions about the practical requirements behind your next solar, 4G, or AOV camera project.

Final Thought: AOV Is Changing the Definition of Battery-Powered Surveillance

Traditional PIR cameras remain valuable for low-power, event-triggered monitoring.

Wired 24/7 cameras remain important when continuous high-frame-rate recording is essential.

AOV introduces another option.

It aims to provide broader visual continuity without the energy demand of conventional full-rate recording.

IMOU’s AOV product portfolio illustrates how this approach is moving into mainstream wireless security cameras.

But the real industry opportunity goes beyond any single brand.

PIR HELPS SAVE POWER.

AOV HELPS PRESERVE MORE CONTEXT.

WIRED 24/7 HELPS DELIVER CONTINUOUS DETAIL.

The right choice depends on the application.

And for remote installations, the combination of solar charging, AOV recording, 4G connectivity, and Edge AI offers a compelling direction for future product development.

THE NEXT GENERATION OF WIRELESS CAMERAS WON’T JUST RECORD MORE.

THEY WILL NEED TO RECORD MORE INTELLIGENTLY.

About SNOSECURE

SNOSECURE is a surveillance camera OEM/ODM manufacturer supporting global B2B customers with solar-powered cameras, 4G/Wi-Fi cameras, AOV solutions, and intelligent surveillance systems.

20 years of manufacturing experience | 6 production lines | 12,000 m² factory

If YOU are developing a private-label AOV solar camera or evaluating a new 4G surveillance product, let’s discuss your recording, power, connectivity, and customization requirements.

Website: https://camhiprocam.com/
Email: simple@camhiprocam.com
WhatsApp: +86-185-6568-6066

SNOSECURE — MAKE SECURITY SMARTER.

Editorial note: This article is an independent technology analysis based on publicly documented product information. It is not affiliated with or endorsed by IMOU. Specifications, AOV recording modes, AI capabilities, connectivity, battery performance, and solar charging results vary by model, configuration, region, and environmental conditions. SNOSECURE-specific product capabilities should be confirmed against the relevant model’s technical documentation.
