Why Smart Cameras Are Bringing Back the Physical Privacy Shutter

Xiaomi, Tapo, Ring, and Google Nest reveal four important directions in smart camera privacy—and why physical lens protection is becoming relevant again.

For years, the smart security camera industry has focused on making cameras see more.

Higher resolution.

Wider viewing angles.

Better night vision.

Smarter AI detection.

More cloud features.

But there’s a new question that deserves just as much attention.

What happens when your customer DOESN’T want the camera to see anything?

Imagine a smart camera installed in a living room.

It can recognize movement, send notifications, record video, and connect to a smartphone.

Those capabilities make the product useful.

But they also create a fundamental concern.

When the family is home, how can they be confident that the camera is no longer watching?

A software privacy setting may help.

An account security feature may help.

Encryption may protect video data.

But a physical privacy shutter introduces something different.

A visible barrier between the lens and the room.

Xiaomi’s Smart Camera C301 provides a useful example. Its physical lens blocking feature allows the camera lens to retract upward into the body when privacy protection is activated.

Meanwhile, brands such as Tapo, Ring, and Google Nest highlight different combinations of recording controls, privacy zones, encryption, account security, and AI data management.

Together, these developments reveal a bigger industry shift.

CAMERA PRIVACY IS NO LONGER ONLY ABOUT PROTECTING RECORDED VIDEO.

IT’S ALSO ABOUT GIVING USERS CONFIDENCE IN WHAT THE CAMERA CAN SEE, RECORD, PROCESS, AND SHARE.

For security camera brands, distributors, and OEM/ODM buyers, this is becoming an important product design conversation.

1. Why Physical Privacy Shutters Matter Again

Physical camera covers are not a new invention.

Laptop webcams have used mechanical shutters and sliding covers for years.

But smart home cameras create a different privacy challenge.

Unlike a laptop webcam, an indoor security camera may remain connected and powered throughout the day.

It may also have:

• A wide-angle lens
• Pan-and-tilt movement
• A microphone
• Motion tracking
• Cloud recording
• AI-powered event recognition
• Shared access through an app

These capabilities make indoor cameras useful for home monitoring.

They also make privacy controls more important.

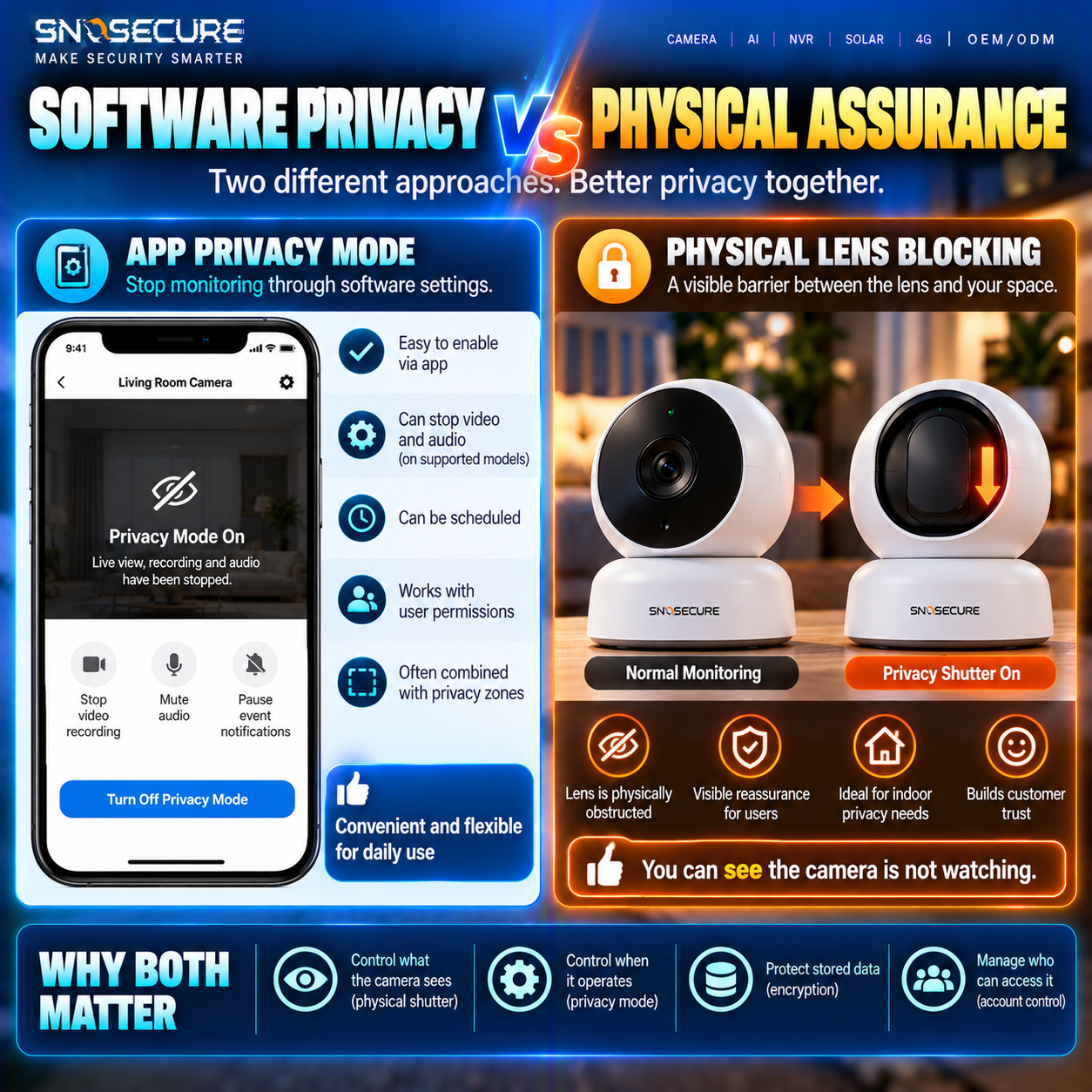

The Difference Between Digital Trust and Physical Assurance

Imagine two cameras.

Camera A displays a message saying Privacy Mode is enabled.

Camera B physically blocks or retracts its lens.

Both approaches may protect privacy when correctly implemented.

But Camera B provides an additional, visible indication that the lens cannot observe the room in its covered position.

That physical reassurance can be valuable.

However, an important distinction remains:

Blocking the lens does not automatically prove that the microphone, wireless connection, or every data-processing function has stopped.

Those functions require their own controls and verification.

A strong privacy design therefore combines physical protection with clear software behavior.

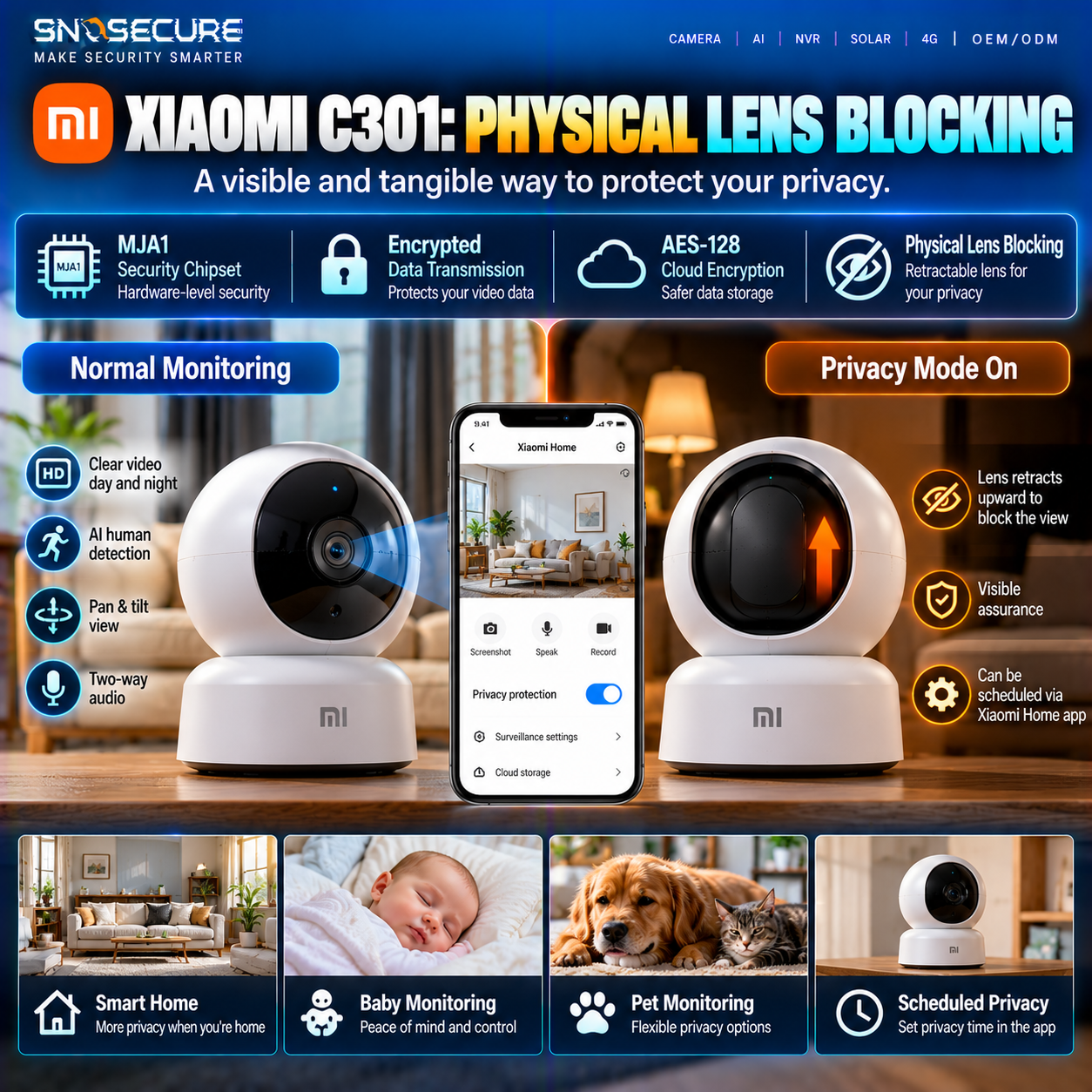

2. Xiaomi Smart Camera C301: Physical Lens Blocking as a User Experience

Xiaomi’s Smart Camera C301 is an interesting example because its privacy feature is integrated into the camera’s mechanical design.

According to Xiaomi’s official support documentation, the C301 includes:

• An MJA1 security chipset
• Encrypted data transmission
• AES-128 encryption for cloud data, as described by Xiaomi
• A physical lens blocking function

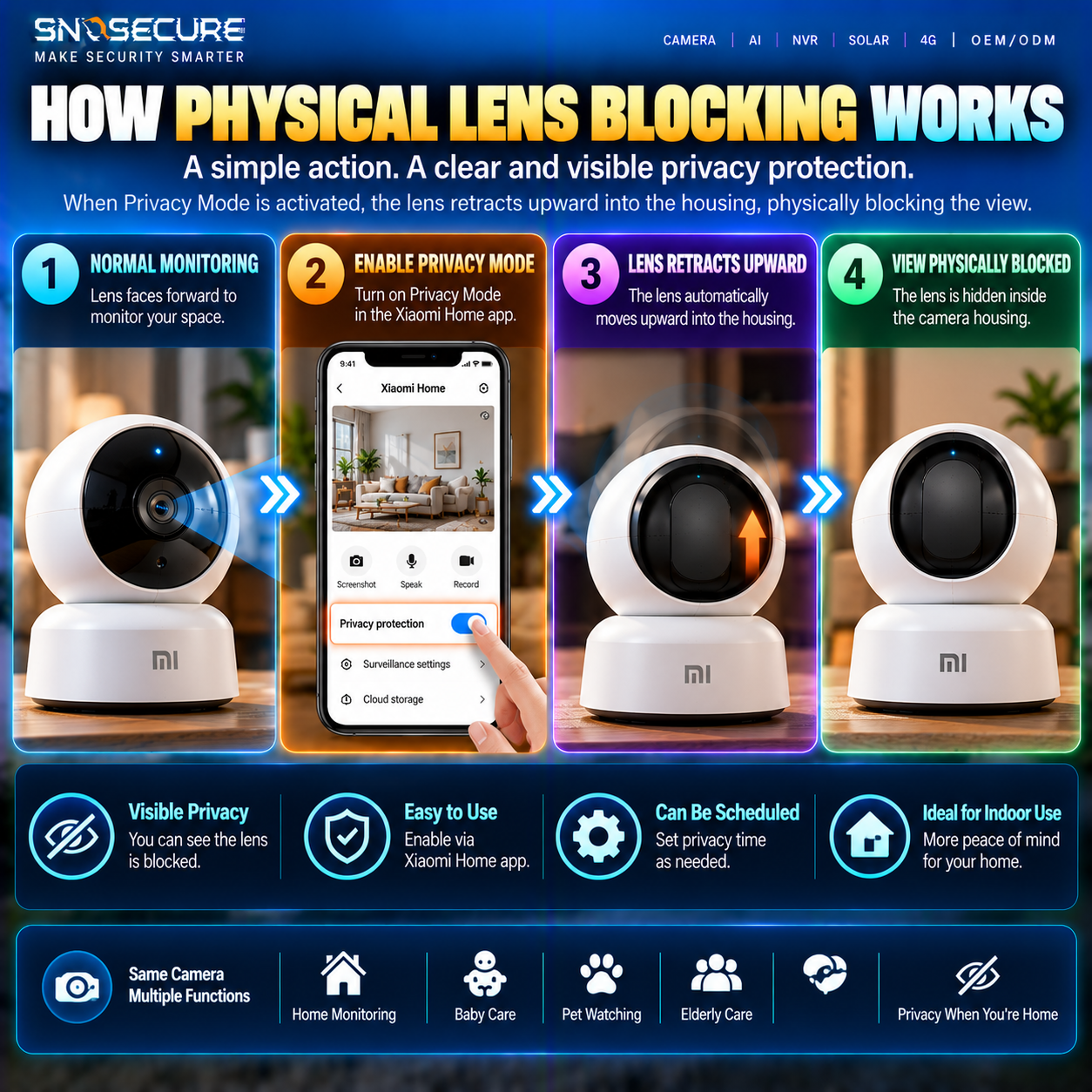

Through the Xiaomi Home app, users can activate the lens-blocking mode.

The camera retracts its lens upward into the housing, physically obstructing its view.

Xiaomi also documents scheduling options for physical lens blocking.

Why This Design Matters

Consider a customer who uses an indoor camera to monitor pets while away.

During working hours, the camera is useful.

When the customer returns home, they may prefer greater privacy.

A retractable lens can make the transition easier to understand.

Instead of relying only on a status icon, the customer can see that the camera has moved into its privacy position.

The OEM/ODM Lesson

For manufacturers, physical lens blocking is not simply a cosmetic feature.

It creates engineering requirements.

The mechanism must operate reliably.

The camera must enter the correct position.

The application must accurately reflect the privacy state.

The design should address what happens after a restart, power interruption, or mechanical obstruction.

The product should also clearly explain whether audio recording stops.

THE VALUE OF A PHYSICAL PRIVACY SHUTTER IS NOT JUST THAT IT BLOCKS THE LENS.

IT MAKES PRIVACY MORE TANGIBLE TO THE USER.

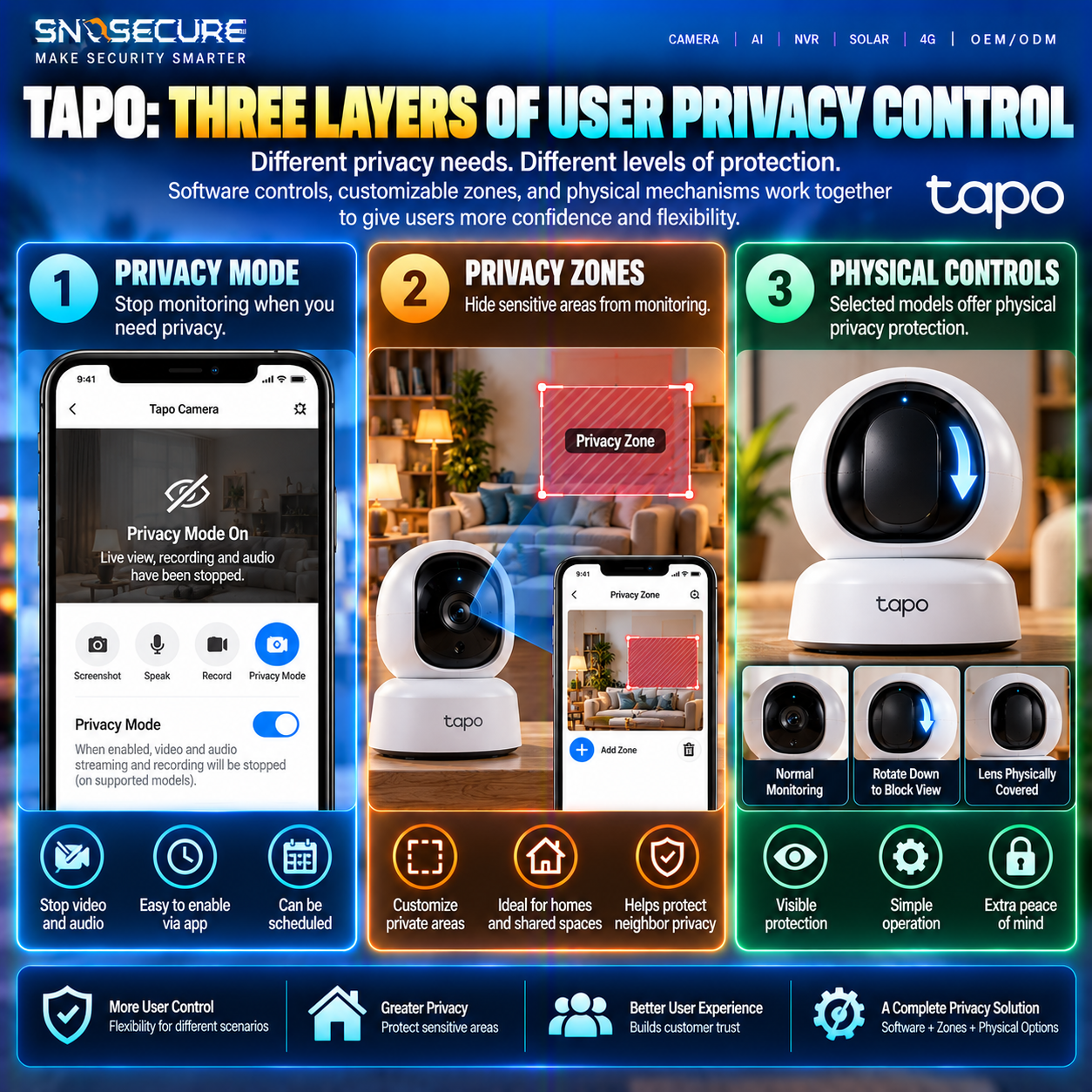

3. Tapo: Privacy Mode, Privacy Zones, and Physical Controls

Tapo demonstrates another important direction in smart camera privacy.

Its product ecosystem includes software-based privacy controls, and selected models also provide physical privacy mechanisms.

Privacy Mode

On supported Tapo cameras, Privacy Mode stops video and audio streaming and recording.

Users can activate it through the application.

Selected models also offer physical privacy buttons or mechanisms.

This is different from merely hiding a camera’s live view.

The purpose is to stop monitoring activity while the mode is active.

Privacy Zones

Privacy Zones address a different problem.

Imagine an outdoor camera monitoring a driveway.

The camera also sees part of a neighbor’s property.

A Privacy Zone can exclude selected areas from monitoring or recording, depending on the product’s implementation.

This can help reduce unnecessary capture of sensitive areas.

Physical Privacy Protection

Selected Tapo models, including models documented by TP-Link, support mechanisms that physically shield the lens or rotate it away.

That makes the comparison more nuanced.

Tapo is not exclusively a software-privacy brand.

Its product portfolio demonstrates that software controls and physical protection can coexist.

The Product Design Lesson

Privacy Mode, Privacy Zones, and physical lens blocking solve different problems.

A camera may need more than one.

For OEM buyers, the important question is whether the product’s privacy controls match the customer’s installation environment.

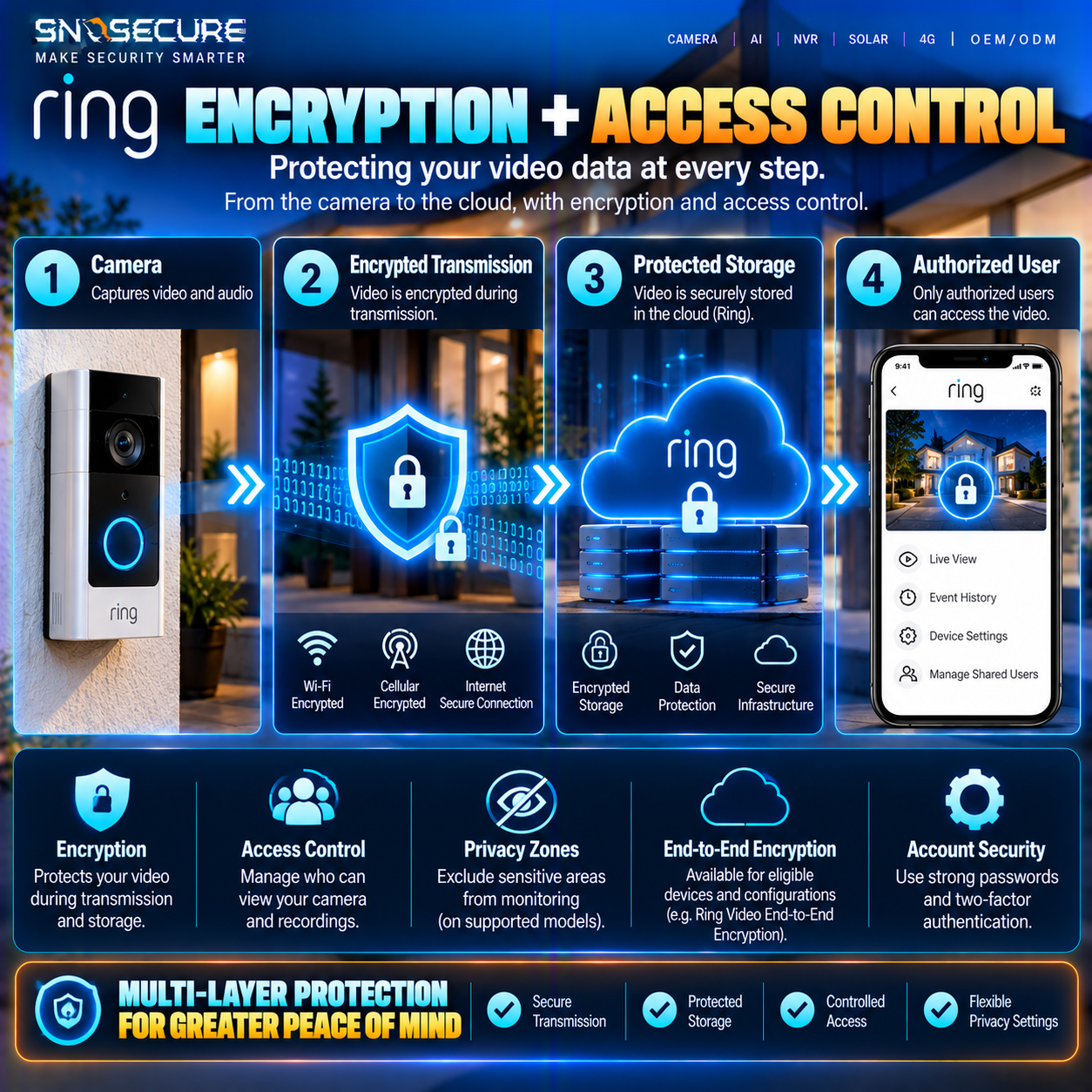

4. Ring: Encryption and Control Over Video Access

Ring provides a useful example of privacy protection focused on recorded video, user accounts, and access controls.

Its documented privacy and security features include combinations of:

• Video encryption
• Account protection
• Privacy Zones
• User access management
• End-to-end encryption options for eligible devices and configurations

These features address a different part of the privacy problem.

A physical shutter can prevent the lens from seeing a scene.

Encryption helps protect data that has already been captured.

Account controls help determine who can access that data.

Privacy Zones can limit parts of the image that are monitored or recorded.

Why Encryption Matters

Security cameras frequently transmit video over networks.

They may also store recordings remotely.

Encryption is therefore an important part of protecting video confidentiality.

But not all encryption architectures are equivalent.

Transport encryption, encryption at rest, and end-to-end encryption provide different protections.

A buyer should not assume that every encrypted camera provides end-to-end encryption.

The OEM/ODM Lesson

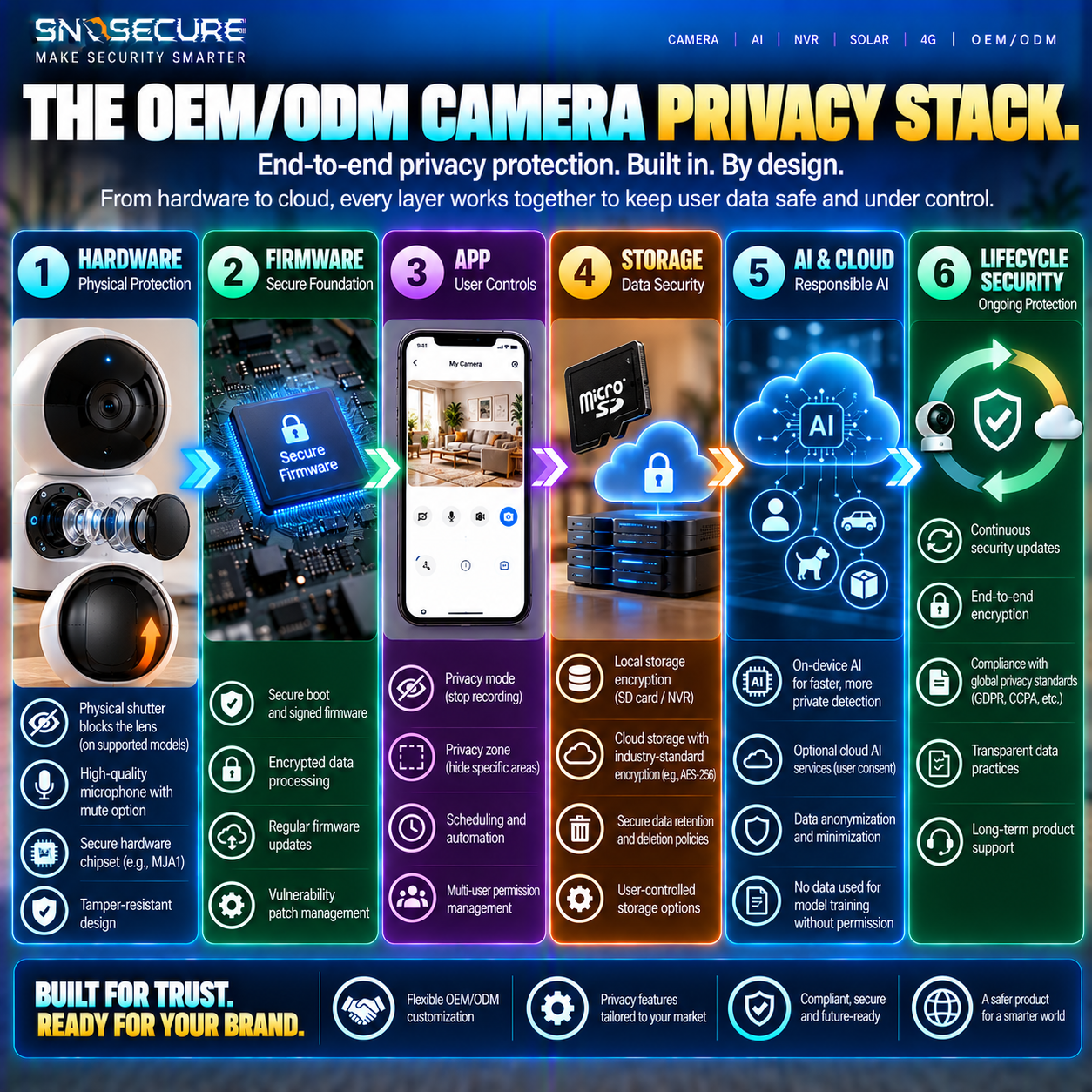

A privacy-conscious camera needs a secure data architecture.

This includes:

• Device authentication
• Secure communication
• Account protection
• Access permissions
• Storage security
• Firmware maintenance

PHYSICAL PRIVACY CONTROLS PROTECT WHAT THE CAMERA CAN SEE.

ENCRYPTION AND ACCESS CONTROLS HELP PROTECT WHAT THE CAMERA HAS ALREADY CAPTURED.

Both matter.

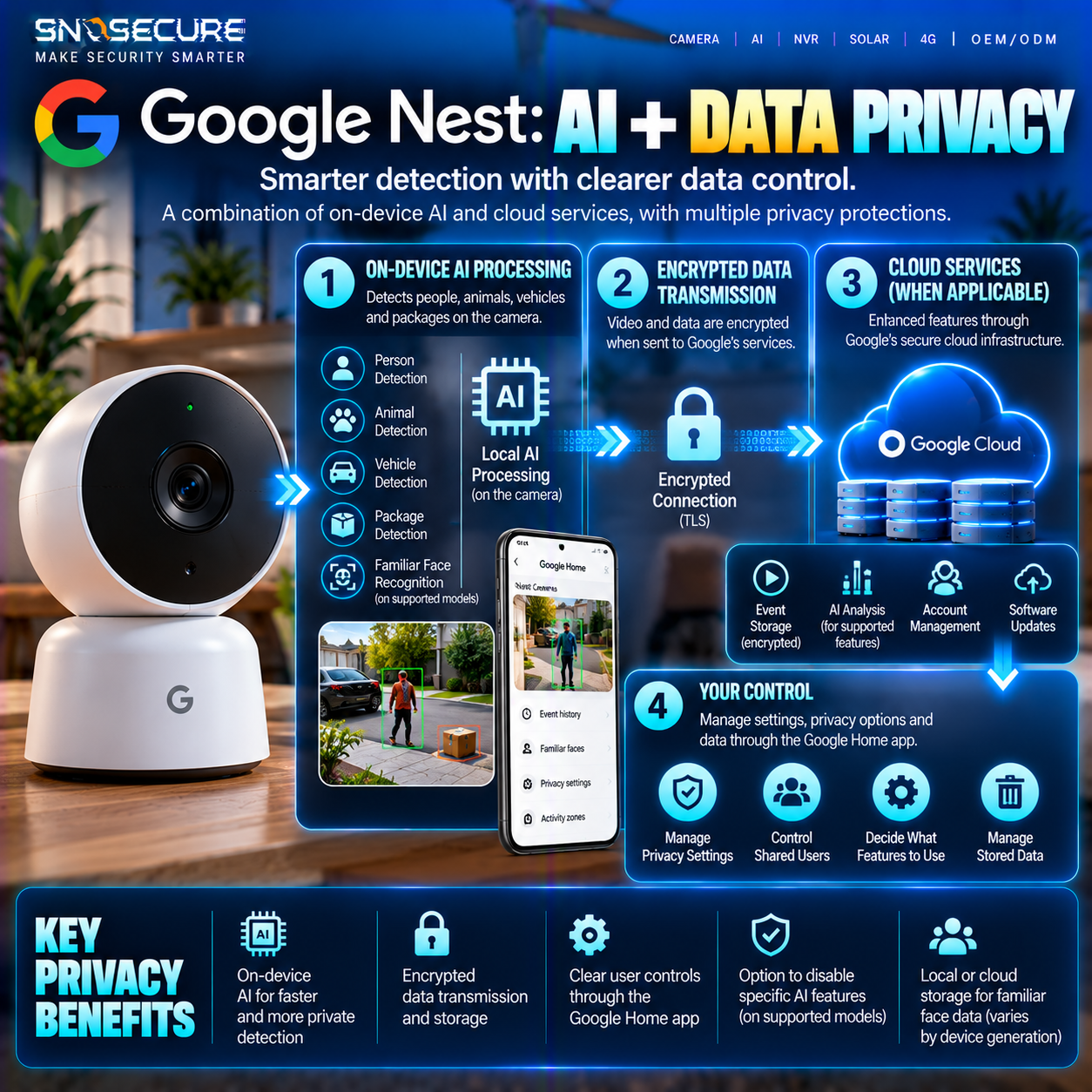

5. Google Nest: AI Features Make Privacy Architecture More Important

Google Nest illustrates how camera privacy becomes more complex when AI and connected cloud services are involved.

Modern cameras can do much more than record video.

Depending on the model and service configuration, they may identify:

• People
• Animals
• Vehicles
• Packages
• Familiar faces

These features can make notifications more useful.

But they also create questions about how images and related data are processed and stored.

Where Does AI Processing Happen?

Not every AI camera uses the same architecture.

Some analysis can happen on the camera.

Some features may depend on cloud services.

Some systems combine local processing with remote services.

Google’s official documentation provides an important example: newer Nest cameras configured through the Google Home app store familiar-face data locally in encrypted internal memory, while older supported devices configured through the Nest app use encrypted cloud storage for that data.

This demonstrates why buyers should avoid assuming that all AI features are cloud-based.

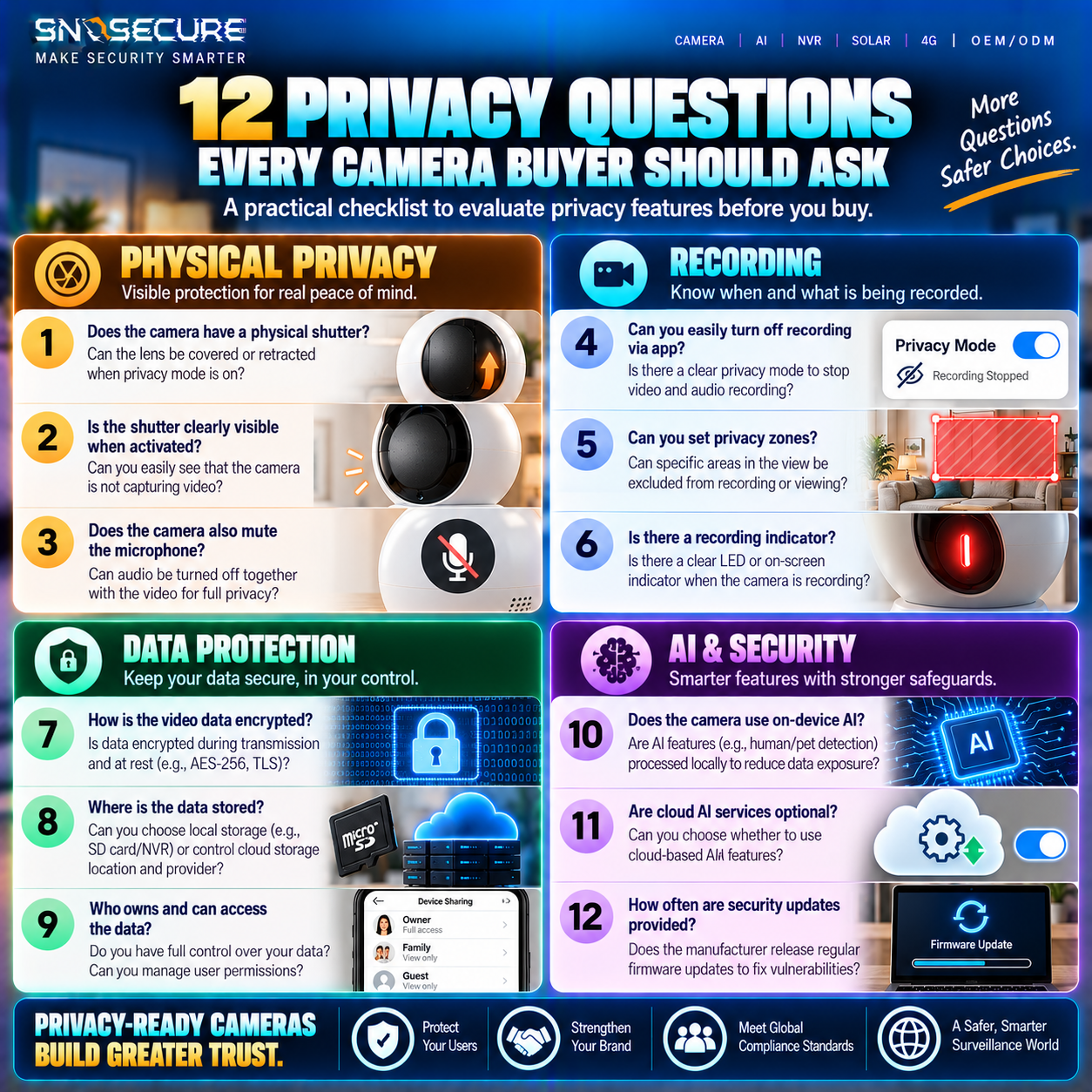

AI Privacy Questions Buyers Should Ask

Where does recognition happen?

What data is stored?

Can users disable the feature?

Who can manage the recognition library?

What permissions apply to shared users?

Does the feature require a subscription?

Are there regional restrictions?

For OEM/ODM development, these are product architecture questions—not merely app interface questions.

THE MORE INTELLIGENT A CAMERA BECOMES, THE MORE IMPORTANT IT IS TO EXPLAIN HOW ITS INTELLIGENCE HANDLES DATA.

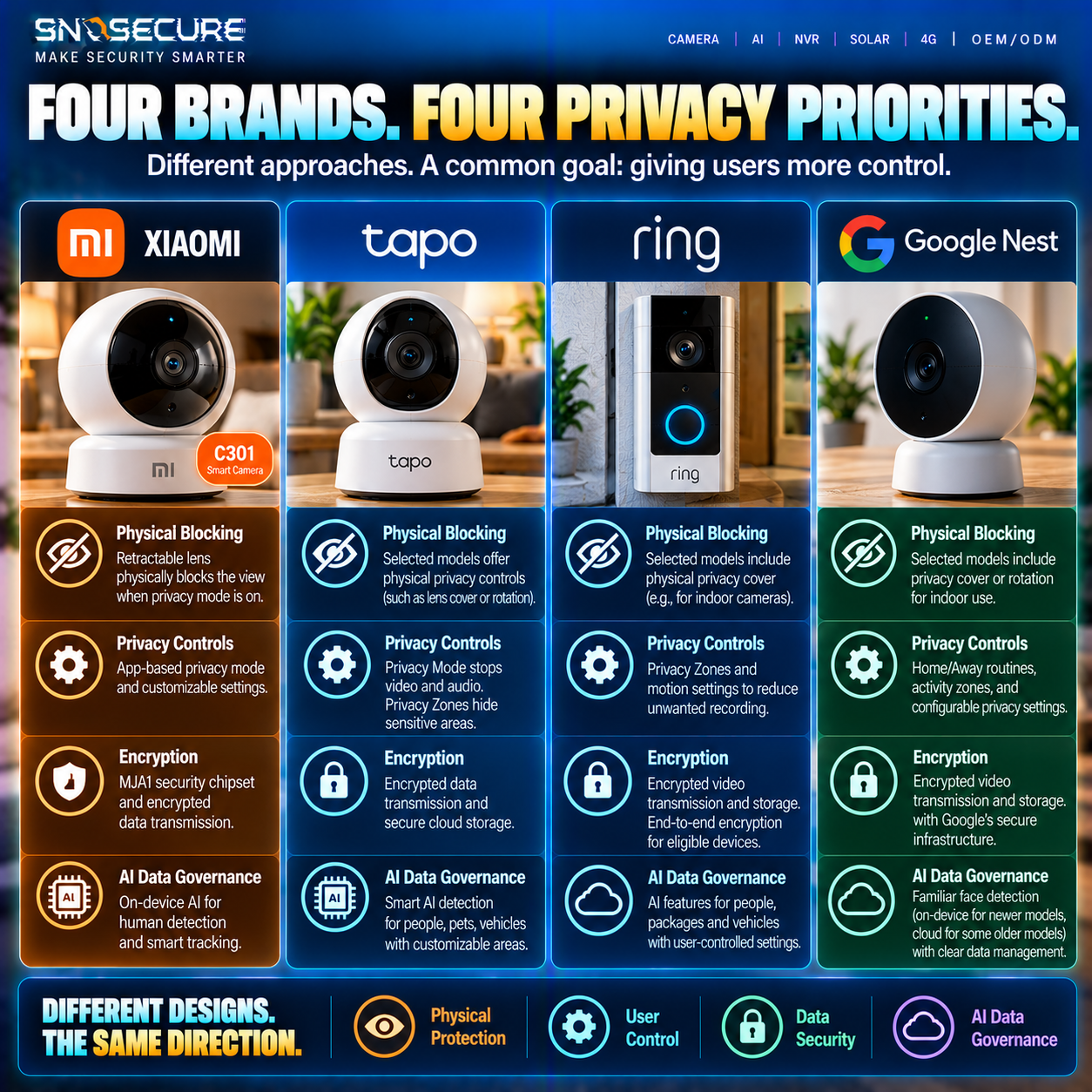

6. Xiaomi vs Tapo vs Ring vs Google: Four Privacy Design Priorities

These brands should not be ranked solely by one privacy feature.

Instead, they illustrate different aspects of a complete privacy strategy.

This table is not a cybersecurity ranking.

It is a comparison of product design priorities.

Each brand offers multiple features, and actual capabilities vary by model, region, software version, and subscription.

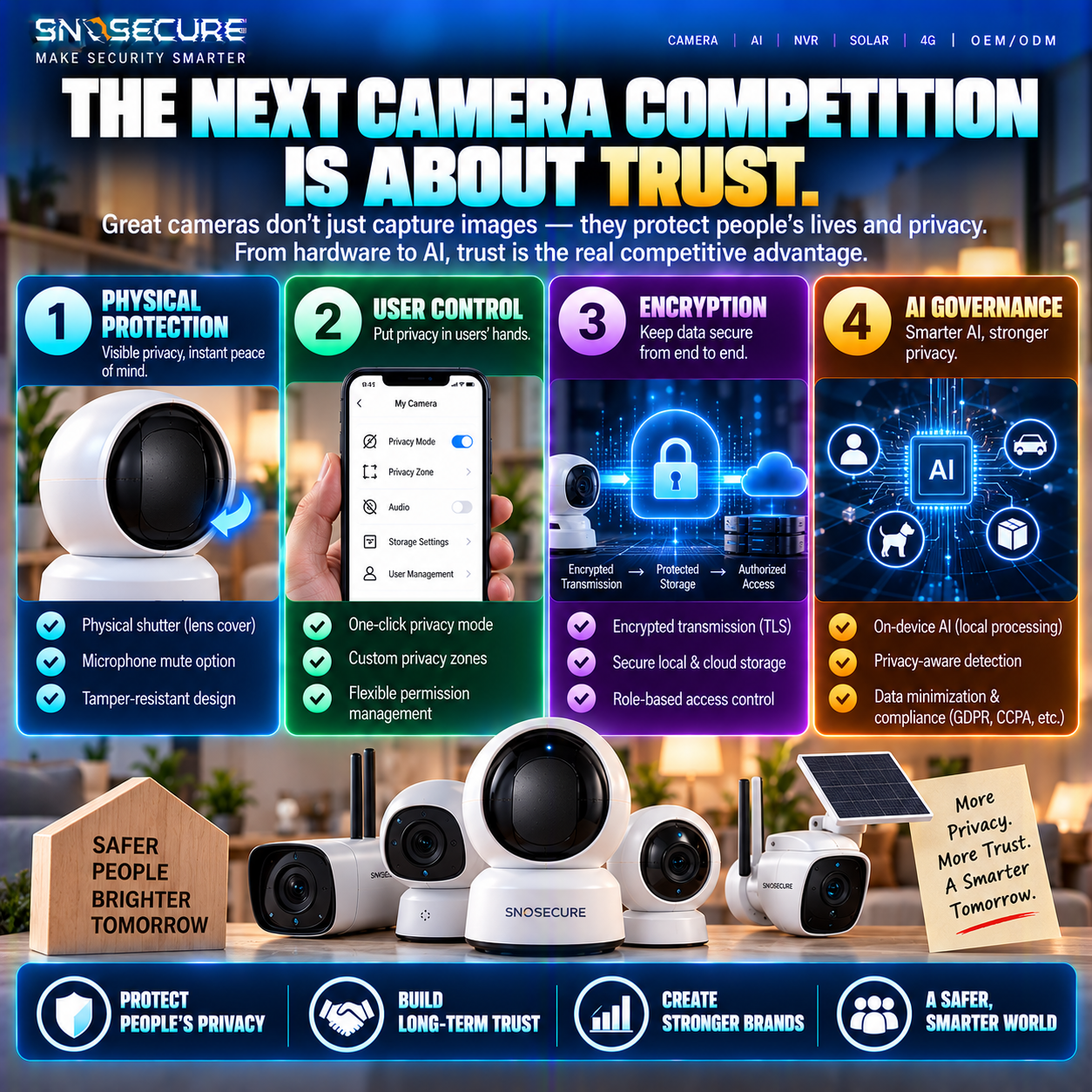

The Bigger Lesson

Privacy is becoming a multi-layered product requirement.

A customer may need:

A physical barrier when they want to stop visual monitoring.

A Privacy Zone when only part of the scene should be excluded.

Encryption when video is transmitted or stored.

Access controls when multiple users share a camera.

AI controls when the product analyzes people or events.

THE FUTURE OF CAMERA PRIVACY IS NOT ONE FEATURE.

IT IS A COORDINATED SYSTEM OF CONTROLS.

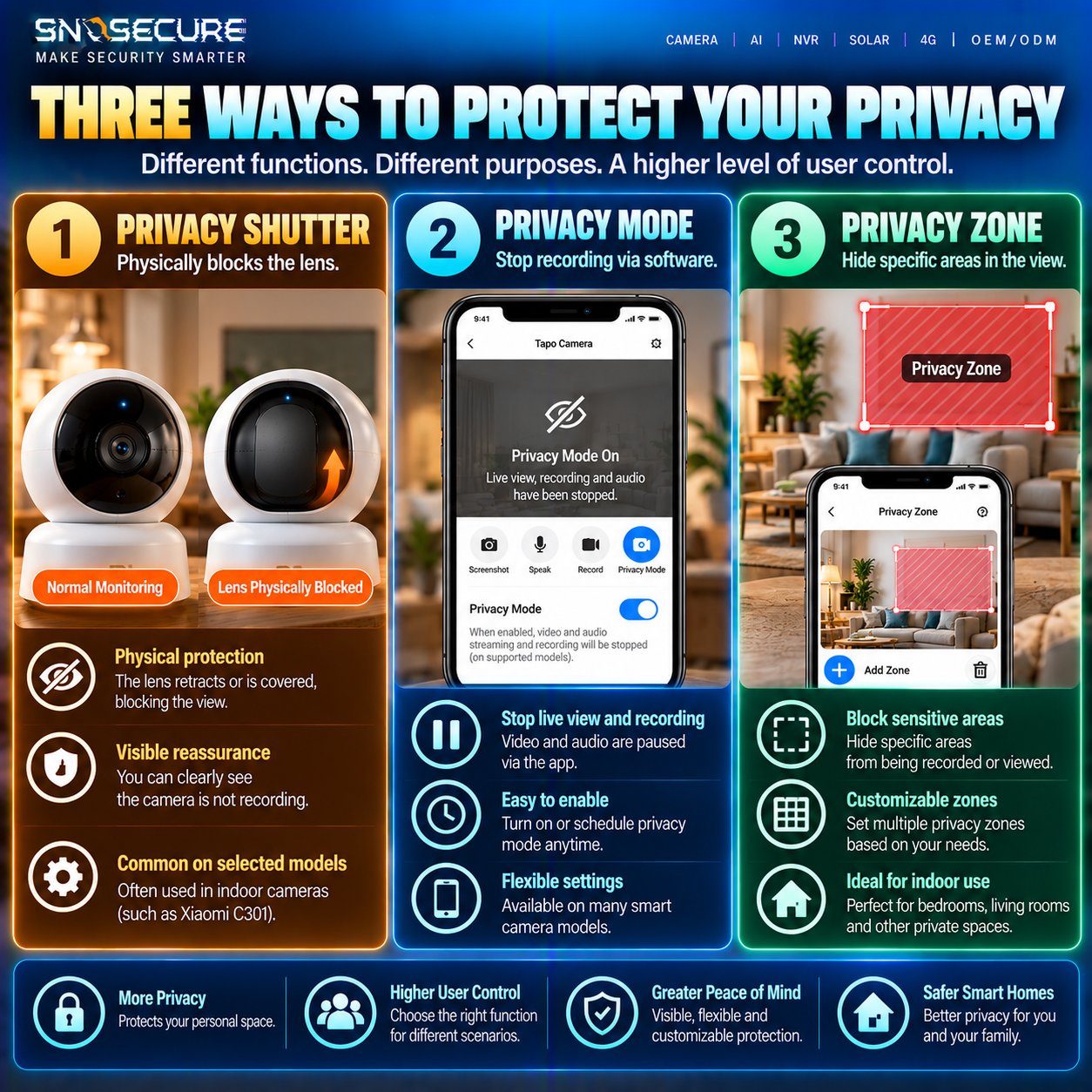

7. Physical Privacy Shutter vs Privacy Mode vs Privacy Zone

These terms are often discussed together.

But they are not interchangeable.

Physical Privacy Shutter

Primary purpose: Physically obstruct the lens.

Examples include a sliding cover, mechanical shield, or retractable lens mechanism.

Main advantage: The user can see that the camera’s optical view is blocked.

Limitation: It does not necessarily disable audio or connectivity.

Privacy Mode

Primary purpose: Stop selected monitoring, recording, or streaming functions.

The exact behavior depends on the manufacturer.

Main advantage: It can provide convenient app-based privacy control.

Limitation: Users depend on correct software and device behavior.

Privacy Zone

Primary purpose: Exclude defined areas from monitoring or recording.

Main advantage: It can protect specific regions without disabling the entire camera.

Limitation: It does not provide whole-room privacy and may require careful configuration, especially on moving cameras.

Which One Should Your Product Include?

For an indoor baby or pet camera, a physical lens barrier may be valuable.

For a shared living room, a reliable Privacy Mode may be essential.

For an outdoor PTZ camera, Privacy Zones may be more relevant.

For a cloud-connected camera, encryption and account security remain important regardless of physical privacy controls.

DIFFERENT CONTROLS. DIFFERENT PRIVACY NEEDS.

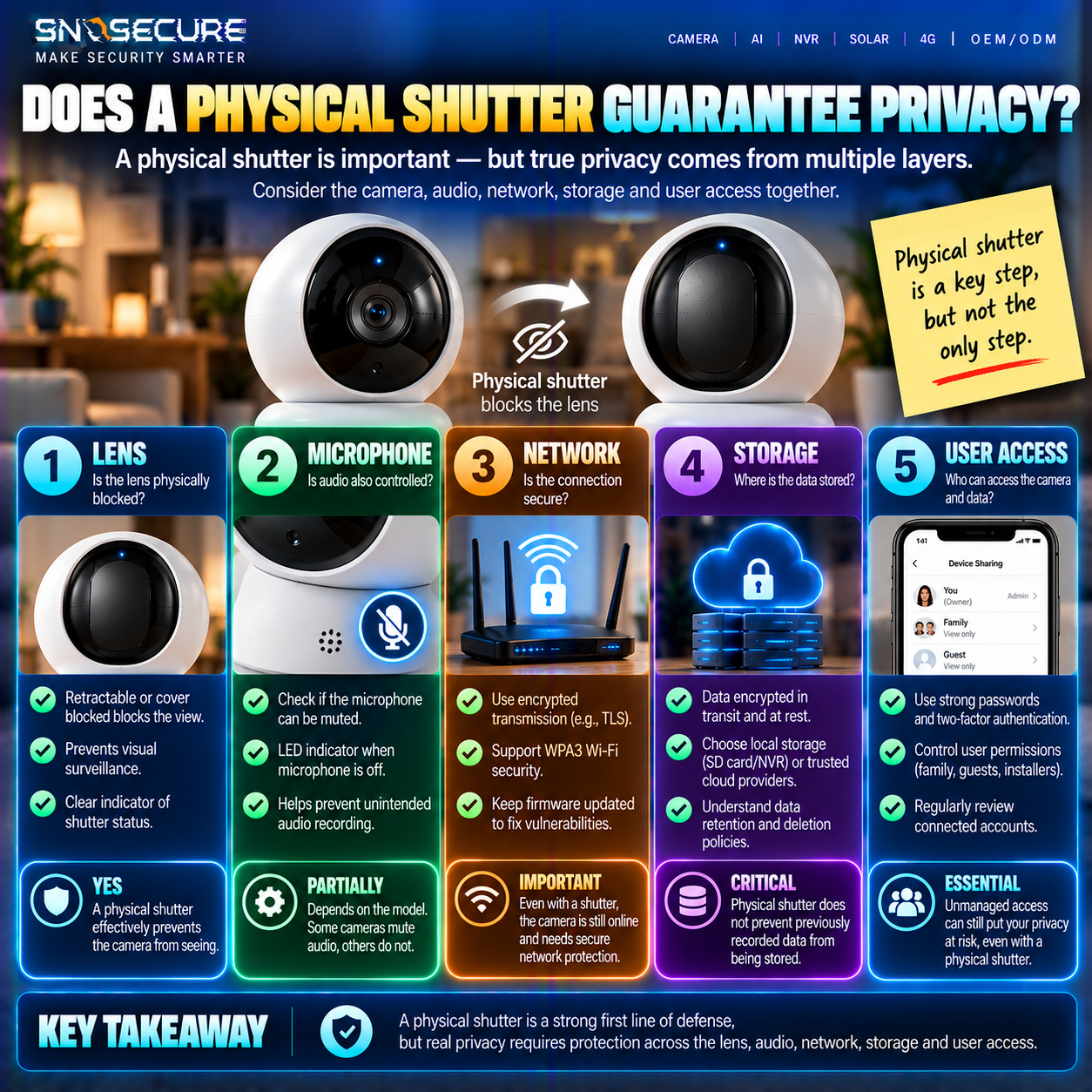

8. Does a Physical Shutter Make a Camera Completely Private?

No.

A physical shutter is useful, but it is not a complete security architecture.

Consider five separate questions.

1. Is the lens physically blocked?

Can the user verify that the camera cannot see the monitored space?

2. Is the microphone still active?

A covered lens does not automatically disable audio capture.

3. Can the camera still communicate with the cloud?

A physical barrier does not necessarily disconnect the device from the network.

4. What happens to existing recordings?

Previously stored video may remain available locally or remotely.

5. Can another user change the privacy state?

Shared accounts, permissions, and remote controls can affect user expectations.

For manufacturers, these details need clear documentation.

For buyers, they should be part of product testing.

A PHYSICAL SHUTTER IS ONE LAYER OF PRIVACY ASSURANCE—NOT A SUBSTITUTE FOR SECURITY ENGINEERING.

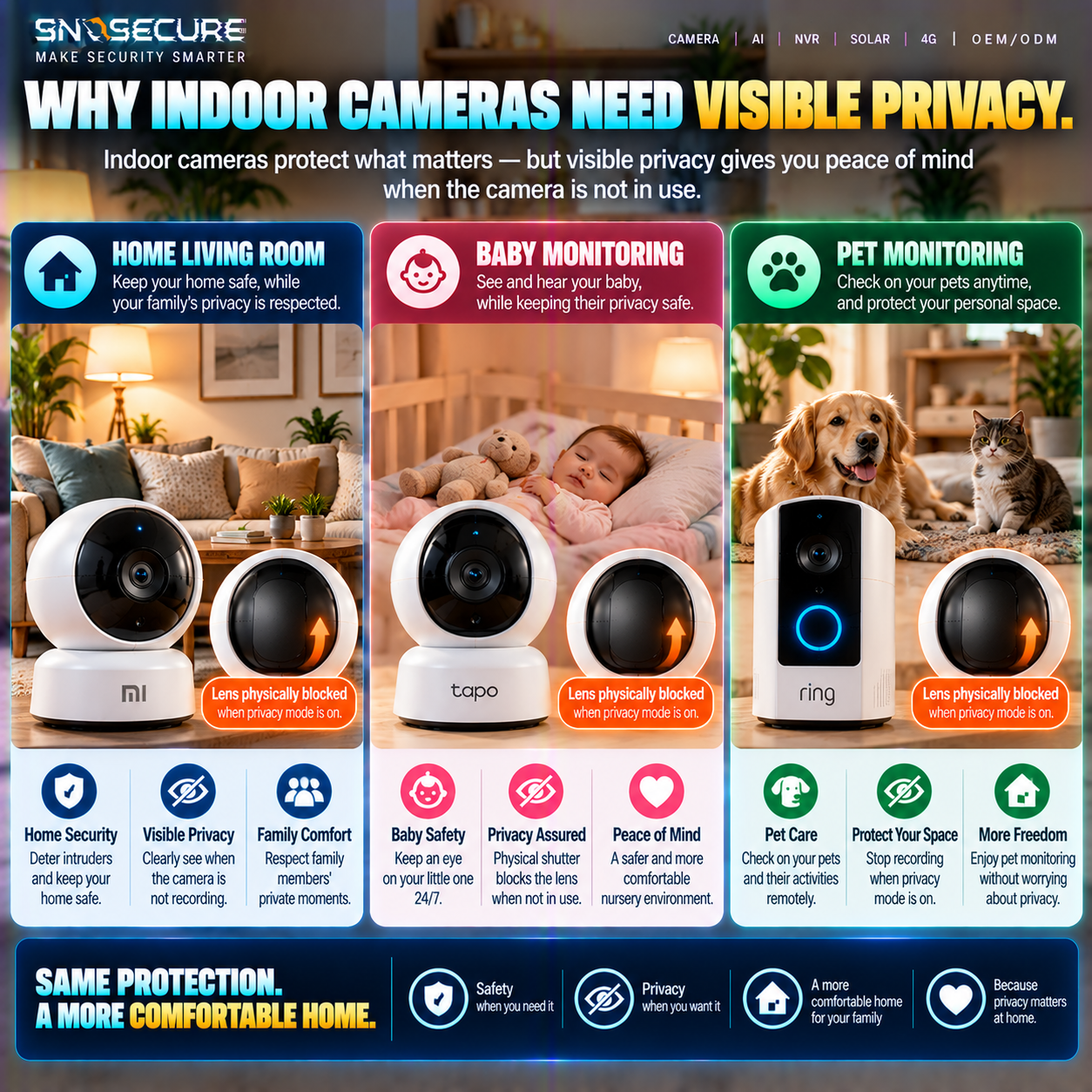

9. Why Physical Privacy Design Matters for Indoor Cameras

Indoor cameras are different from many outdoor surveillance products.

An outdoor camera may primarily monitor entrances, driveways, or business premises.

An indoor camera may observe a family’s private living space.

This changes the user’s expectations.

Consider three applications.

Smart Home Monitoring

Customers may want the camera active while they are away and visibly inactive while they are home.

Baby Monitoring

Parents may want reliable monitoring, but they also need confidence in account security, audio controls, and who can access the feed.

Pet Monitoring

Users may appreciate a convenient way to disable recording when monitoring is unnecessary.

In these applications, privacy can influence purchasing decisions alongside image quality, AI features, and price.

For camera brands, this creates an opportunity for product differentiation.

But the feature must be implemented reliably.

A physical shutter that frequently jams or reports the wrong state could damage customer trust rather than strengthen it.

10. What This Means for Security Camera OEM/ODM Manufacturers

For years, many camera OEM inquiries have focused on:

Resolution.

Image sensors.

Night vision.

Wi-Fi connectivity.

AI detection.

Housing design.

Battery capacity.

MOQ.

Price.

These requirements remain important.

But privacy-conscious buyers may increasingly ask different questions.

Hardware

Does the product need a physical privacy mechanism?

Can the lens be fully obstructed?

How durable is the mechanism?

Firmware

How is Privacy Mode implemented?

Does the camera restore the correct privacy state after restarting?

Are privacy settings protected against unauthorized changes?

Application

Can users clearly understand when monitoring is active?

Can privacy functions be scheduled?

How are permissions managed?

Storage

Where is video stored?

How is it protected?

Can users manage retention and deletion?

AI and Cloud

Where does video analysis occur?

What data leaves the device?

Can AI features be disabled?

Lifecycle Security

How are vulnerabilities addressed?

How are firmware updates delivered?

What support is available after the product launches?

PRIVACY IS MOVING FROM A FEATURE CHECKLIST TO A PRODUCT DEVELOPMENT REQUIREMENT.

That creates an opportunity for manufacturers who can discuss hardware, firmware, applications, and system architecture together.

11. Twelve Privacy Questions Every B2B Camera Buyer Should Ask

If YOU are developing a private-label camera, use these questions during supplier evaluation.

Physical Privacy

1. Does the camera offer a mechanical privacy shutter or retractable lens?

2. Can the user visually confirm the privacy state?

3. What happens if the mechanism fails or the camera loses power?

Recording and User Controls

4. Does Privacy Mode stop both audio and video?

5. Are Privacy Zones supported, and how do they behave during PTZ movement?

6. Can users schedule privacy functions?

Data Protection

7. How is video encrypted during transmission and storage?

8. What account authentication and access controls are available?

9. Can users manage stored recordings and retention?

AI and Lifecycle Security

10. Where are AI features processed, and what data is transmitted?

11. How are firmware updates and security vulnerabilities handled?

12. What testing evidence can the supplier provide for privacy functions?

These questions help buyers evaluate the actual system—not just the marketing description.

12. Privacy by Design: Where SNOSECURE Sees the Opportunity

At SNOSECURE, we believe the next stage of camera product development will require more attention to the relationship between hardware, firmware, applications, and data management.

Our manufacturing focus includes Wi-Fi cameras, 4G cameras, solar-powered surveillance solutions, AOV cameras, and OEM/ODM product development.

Different applications require different privacy priorities.

For indoor smart cameras, buyers may prioritize physical lens protection, audio controls, and account permissions.

For outdoor PTZ cameras, Privacy Zones and user access management may be more important.

For solar 4G cameras, local recording, cellular data handling, and remote access security deserve particular attention.

For Edge AI products, buyers should understand where data is processed and how detection information is retained.

Not every product needs every feature.

But privacy requirements should be discussed before hardware and firmware designs are finalized.

With 20 years of manufacturing experience, six production lines, and a 12,000 m² factory, SNOSECURE supports global B2B customers in surveillance camera manufacturing and product development.

If YOU are evaluating a new smart camera concept, the conversation should include more than resolution and price.

It should also include what your customers expect the camera to see, record, process, and protect.

Final Thought: The Next Camera Competition Is About Visible Trust

Xiaomi’s physical lens blocking design illustrates an important principle.

Sometimes, the most reassuring camera feature is not a smarter detection algorithm.

It is a clear way to stop monitoring.

Tapo demonstrates the value of practical user controls.

Ring highlights the importance of protecting video and managing access.

Google Nest illustrates how AI features introduce additional questions about data processing and storage.

These approaches are not mutually exclusive.

Together, they point toward a more complete definition of camera privacy.

PHYSICAL PROTECTION.

USER CONTROL.

ENCRYPTION.

AI DATA GOVERNANCE.

SECURE SYSTEM ARCHITECTURE.

The future of smart cameras is not simply about seeing more.

It is about giving users meaningful control over when cameras see, what they record, and how the information is handled.

THE NEXT SECURITY CAMERA COMPETITION WON’T BE WON BY IMAGE QUALITY ALONE.

IT WILL ALSO BE WON BY WHO EARNS THE CUSTOMER’S TRUST.

About SNOSECURE

SNOSECURE is a surveillance camera OEM/ODM manufacturer supporting global B2B customers with Wi-Fi cameras, solar-powered cameras, 4G cameras, AOV solutions, and intelligent surveillance systems.

20 Years Manufacturing Experience | 6 Production Lines | 12,000 m² Factory

If YOU are planning a new private-label smart camera or exploring privacy-aware camera product design, let’s discuss your hardware, firmware, connectivity, and customization requirements.

Website: https://camhiprocam.com/

Email: simple@camhiprocam.com

WhatsApp: +86-185-6568-6066

SNOSECURE — MAKE SECURITY SMARTER.

Editorial note: This article is an independent analysis of publicly documented product features. SNOSECURE is not affiliated with or endorsed by Xiaomi, TP-Link Tapo, Ring, or Google. Privacy capabilities vary by model, region, firmware, and subscription. Examples of possible OEM/ODM privacy features are design considerations, not claims that every SNOSECURE model currently supports them.
