Why Are Security Cameras Moving From One Lens to Three? EZVIZ, Reolink and the Multi-Lens Camera Trend
For decades, the basic architecture of a security camera was simple:
ONE CAMERA → ONE LENS → ONE VIEW
That architecture worked.
But it also created a fundamental compromise.
If YOU want to see a wider area, you usually sacrifice detail.
If YOU zoom in for detail, you see less of the overall scene.
If YOU use a PT camera to follow a moving target, another part of the scene may no longer be watched.
Now the industry is beginning to approach this problem differently.
Instead of asking:
How much can one lens do?
manufacturers are increasingly asking:
What if different lenses perform different visual jobs?
That shift is becoming visible in new products from brands such as EZVIZ and Reolink.
And it may represent something much bigger than adding another lens.
It could signal the evolution of the security camera from a single-view imaging device into a coordinated multi-view visual system.

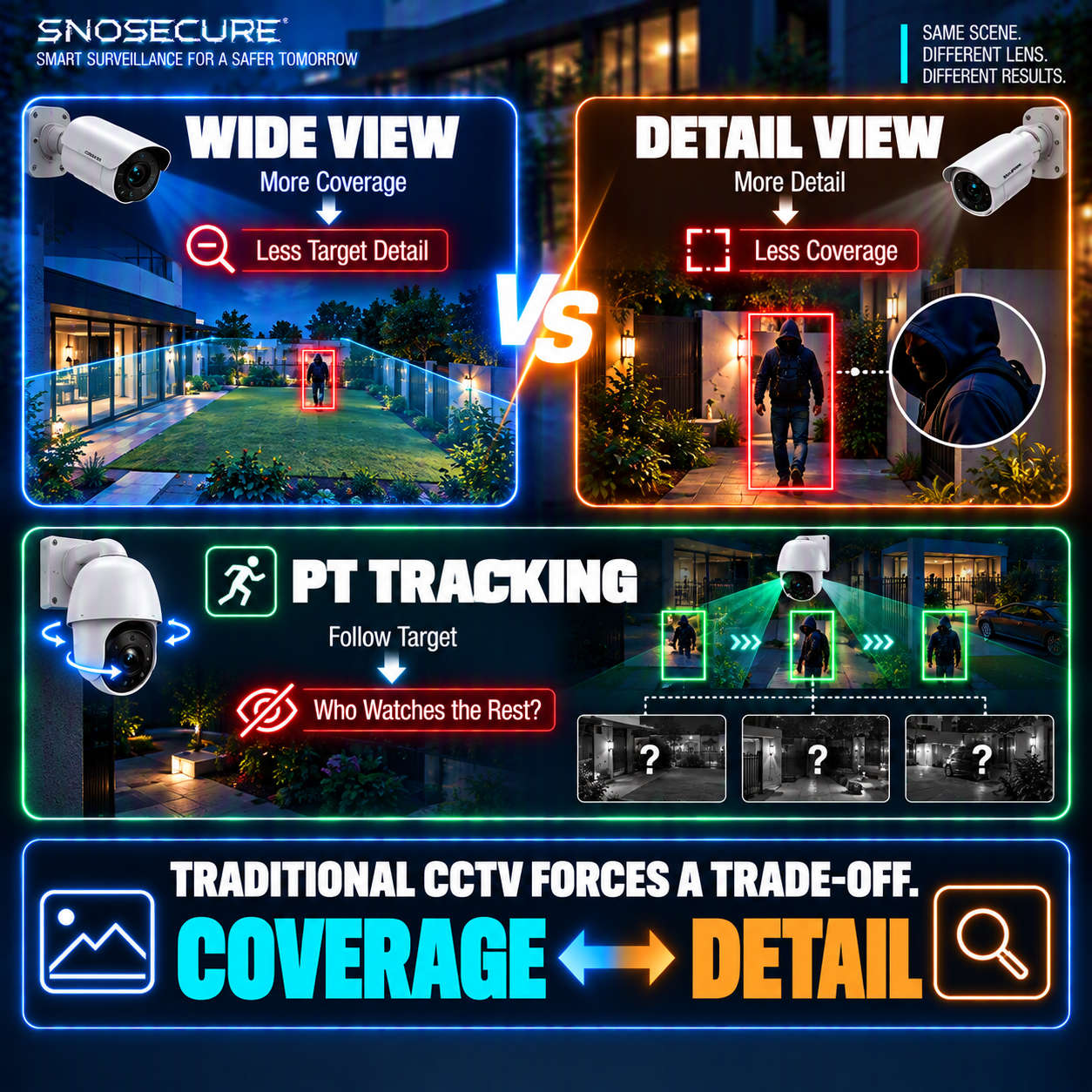

1. The Traditional CCTV Problem: Coverage vs Detail
Every surveillance system has to balance two competing requirements:
COVERAGE
How much of the scene can YOU see?
and:
DETAIL
How clearly can YOU identify what is happening?
A wide-angle camera can monitor a large area.
But a person or vehicle far away may occupy only a small part of the image.
A telephoto or zoom camera can capture better detail.
But its field of view becomes narrower.
A PTZ camera can move between areas.
But while it is looking in one direction, something may happen somewhere else.
This creates one of the oldest compromises in video surveillance:
WIDE VIEW ←→ DETAIL VIEW
Multi-lens cameras are trying to reduce that compromise.
2. Why Are Manufacturers Adding More Lenses?
Because different lenses can perform different jobs.

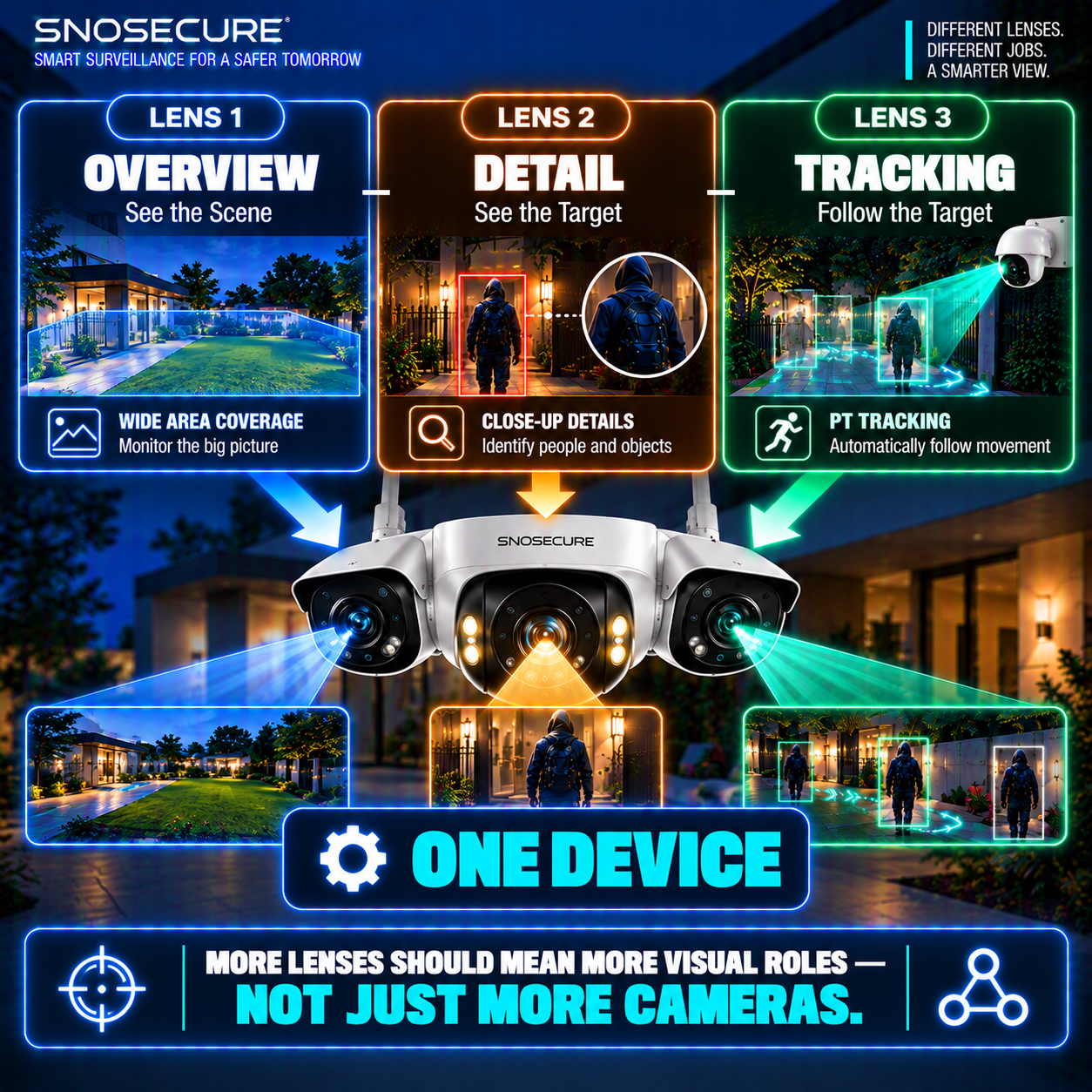

Imagine a security camera with three visual roles:
LENS 1 — OVERVIEW
Monitor the entire scene.
LENS 2 — DETAIL
Capture closer visual information.
LENS 3 — TRACKING
Follow a moving person or vehicle.
Now the architecture changes from:
ONE CAMERA → ONE VIEW
to:
ONE DEVICE → MULTIPLE VISUAL ROLES
That is a much more important change than simply saying:
“This camera has three lenses.”
The real question is:
What does each lens do?
And even more importantly:
How well do those lenses work together?

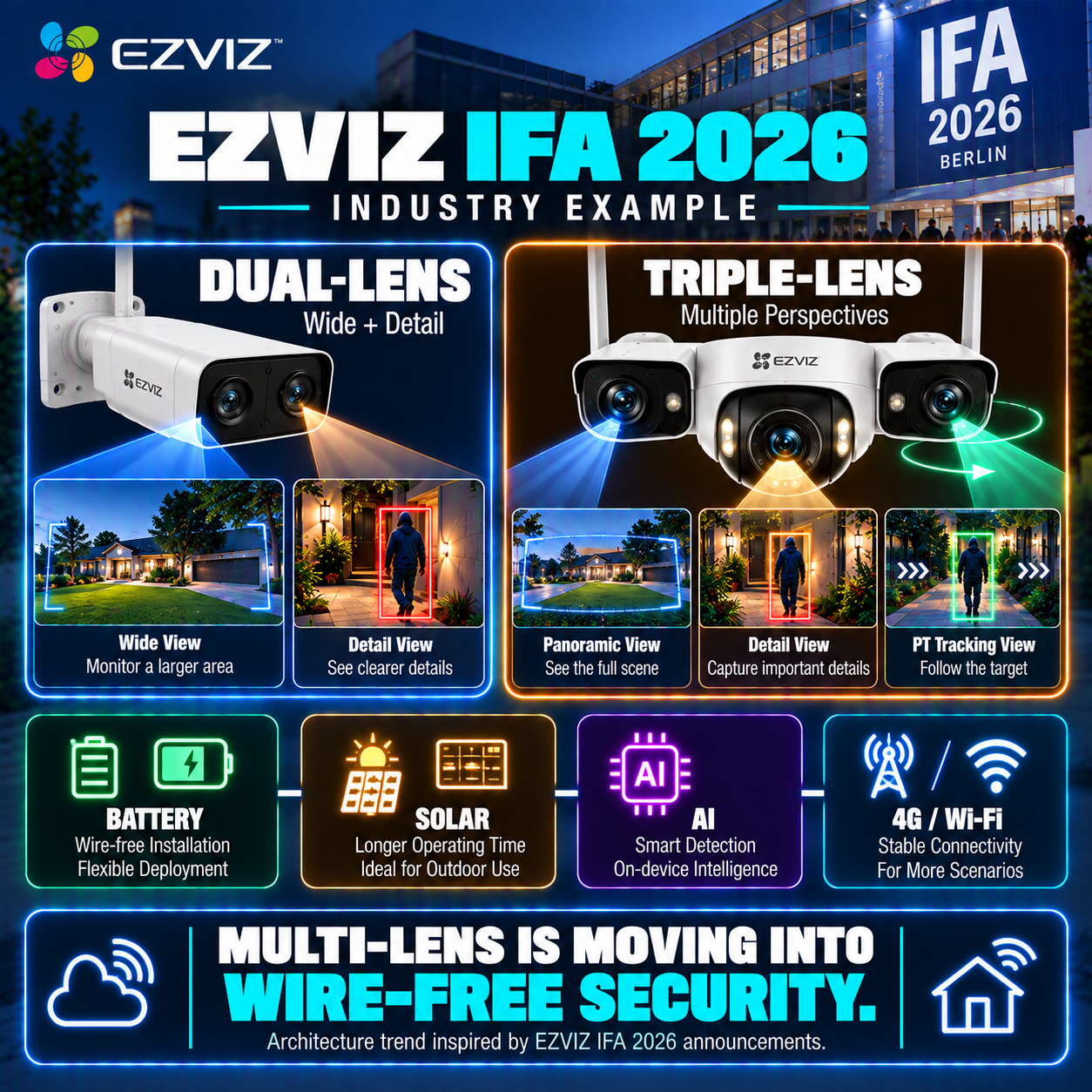

3. EZVIZ Is Pushing Multi-Lens Into Battery Cameras
One of the clearest examples appeared at IFA 2026.
EZVIZ introduced a new generation of battery-powered security cameras using dual- and triple-lens architectures.
This matters because multi-lens design becomes much more difficult when the camera is wire-free.
A wired camera can draw continuous power.
A battery camera cannot.
Every additional component may consume energy:
Image Sensor
Video Processing
AI Detection
PT Motor
Night Vision
Wireless Connectivity
Recording
And now:
Multiple Lenses
So the engineering challenge becomes:
MORE VISION
without automatically creating:
MORE POWER CONSUMPTION
This is where the multi-lens trend starts connecting with another major CCTV trend:
LOW-POWER AI.

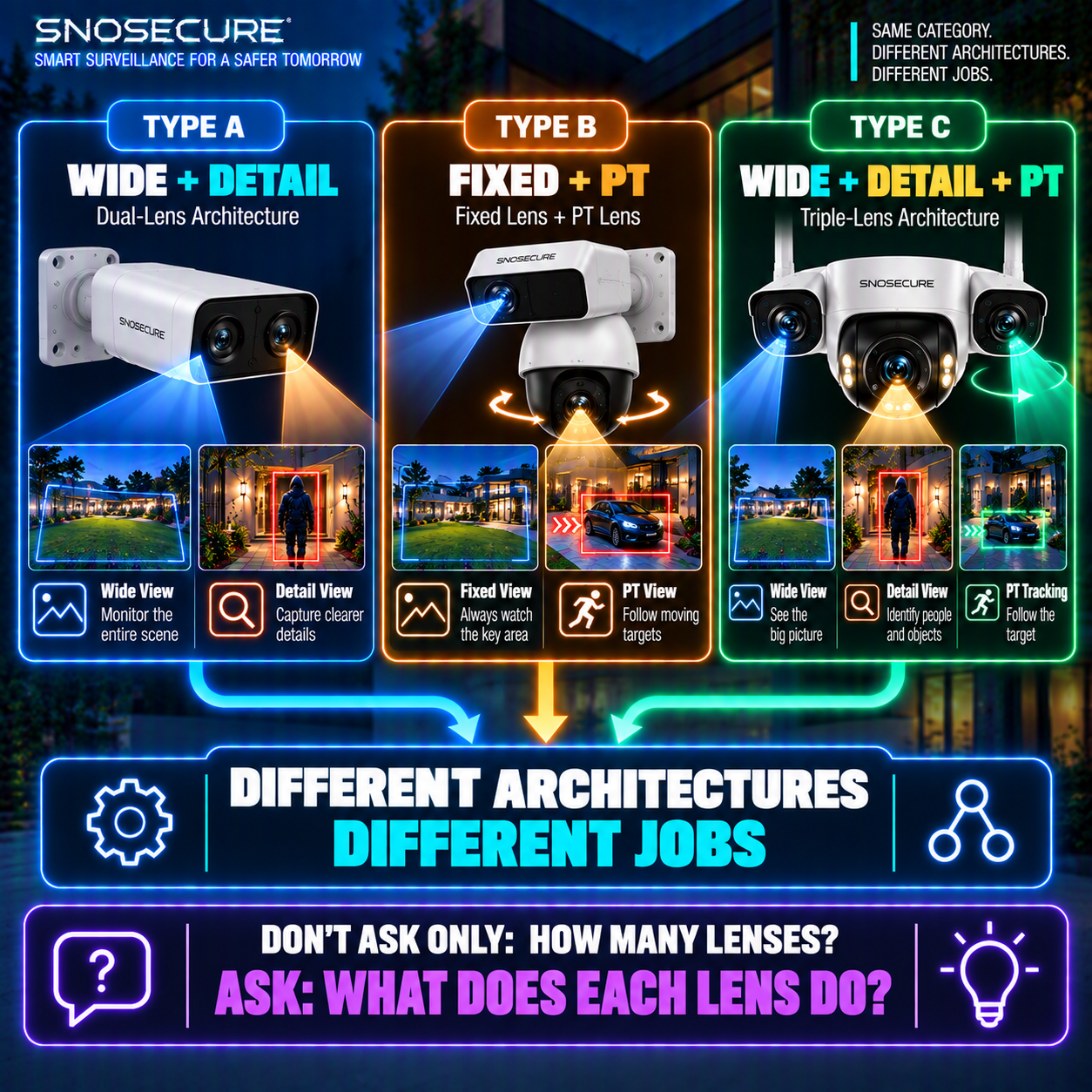

4. EZVIZ Shows That Different Multi-Lens Architectures Can Serve Different Jobs
The interesting point is that “multi-lens” does not describe one architecture.
Different products can use multiple lenses for different purposes.
A dual-lens camera might use:
WIDE VIEW + DETAIL VIEW
Another might use:
FIXED VIEW + PT VIEW
A triple-lens architecture could extend this further:
PANORAMIC VIEW + DETAIL VIEW + TRACKING VIEW
The important trend is not the number itself.
It is the separation of visual responsibilities.
Instead of forcing one sensor and one lens to solve every surveillance problem, the camera can assign different tasks to different imaging systems.
That changes how YOU should evaluate the product.
Don’t just ask:
How many lenses?
Ask:
What job does each lens perform?

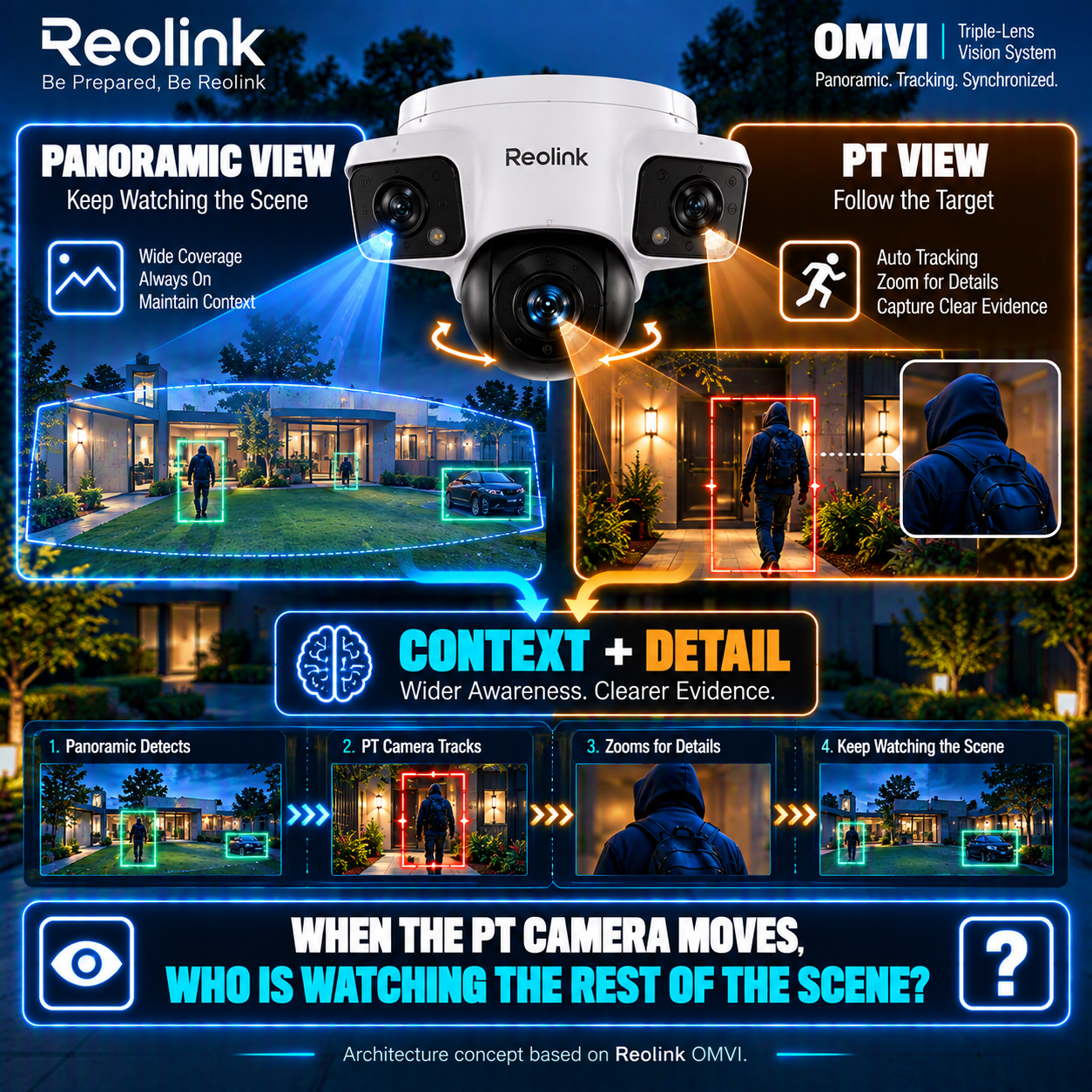

5. Reolink OMVI Shows the Same Trend From Another Direction
Reolink’s OMVI architecture provides another useful example.
Its multi-lens approach combines panoramic monitoring with a separate PT tracking view.
Conceptually, this solves a classic PTZ problem.
A conventional PTZ camera may follow a target.
But when the camera turns:
Who is watching the rest of the scene?
With coordinated multi-view architecture, one imaging system can maintain situational awareness while another focuses on the target.
That gives us an important new CCTV concept:
CONTEXT + DETAIL
One view understands the overall scene.
Another view follows what matters.

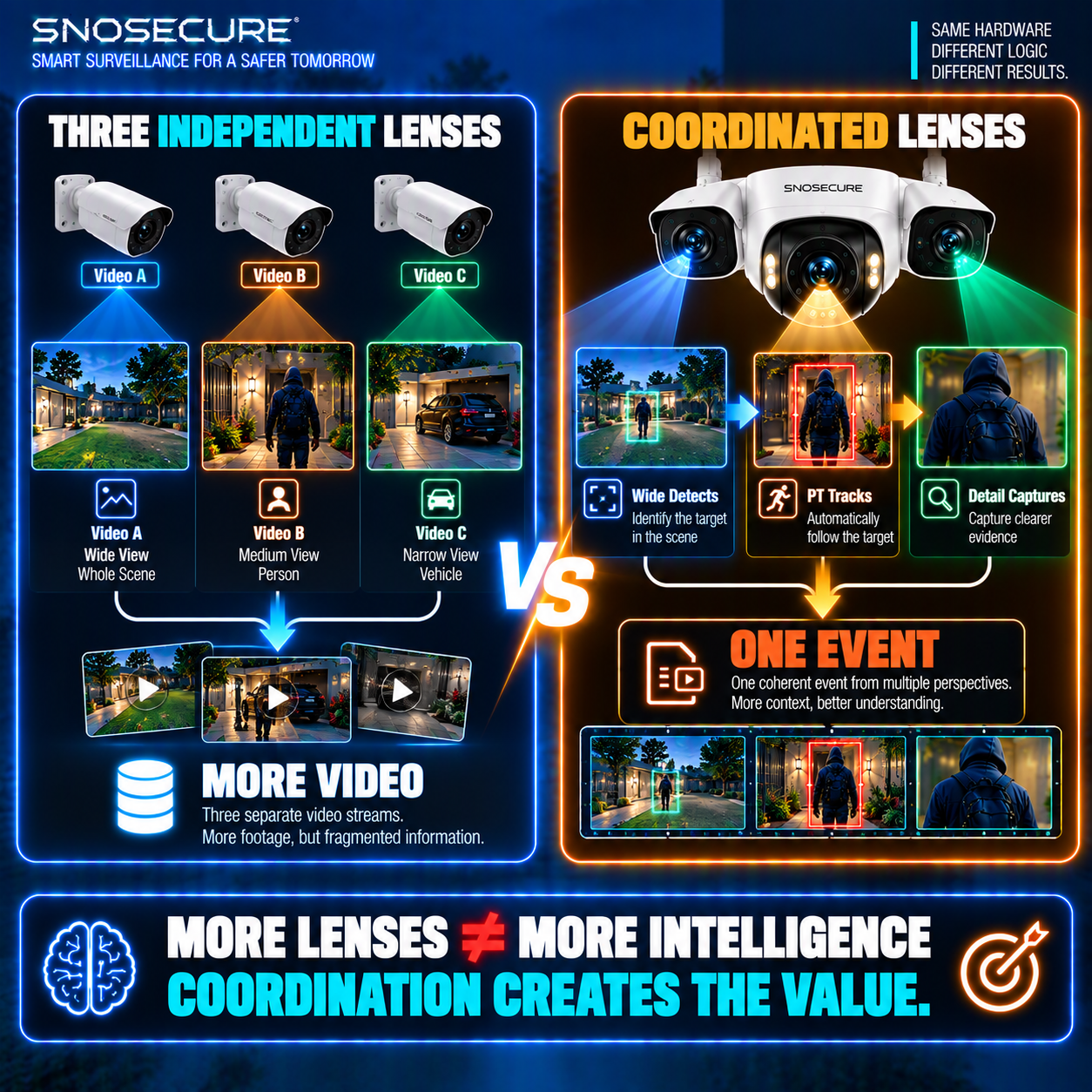

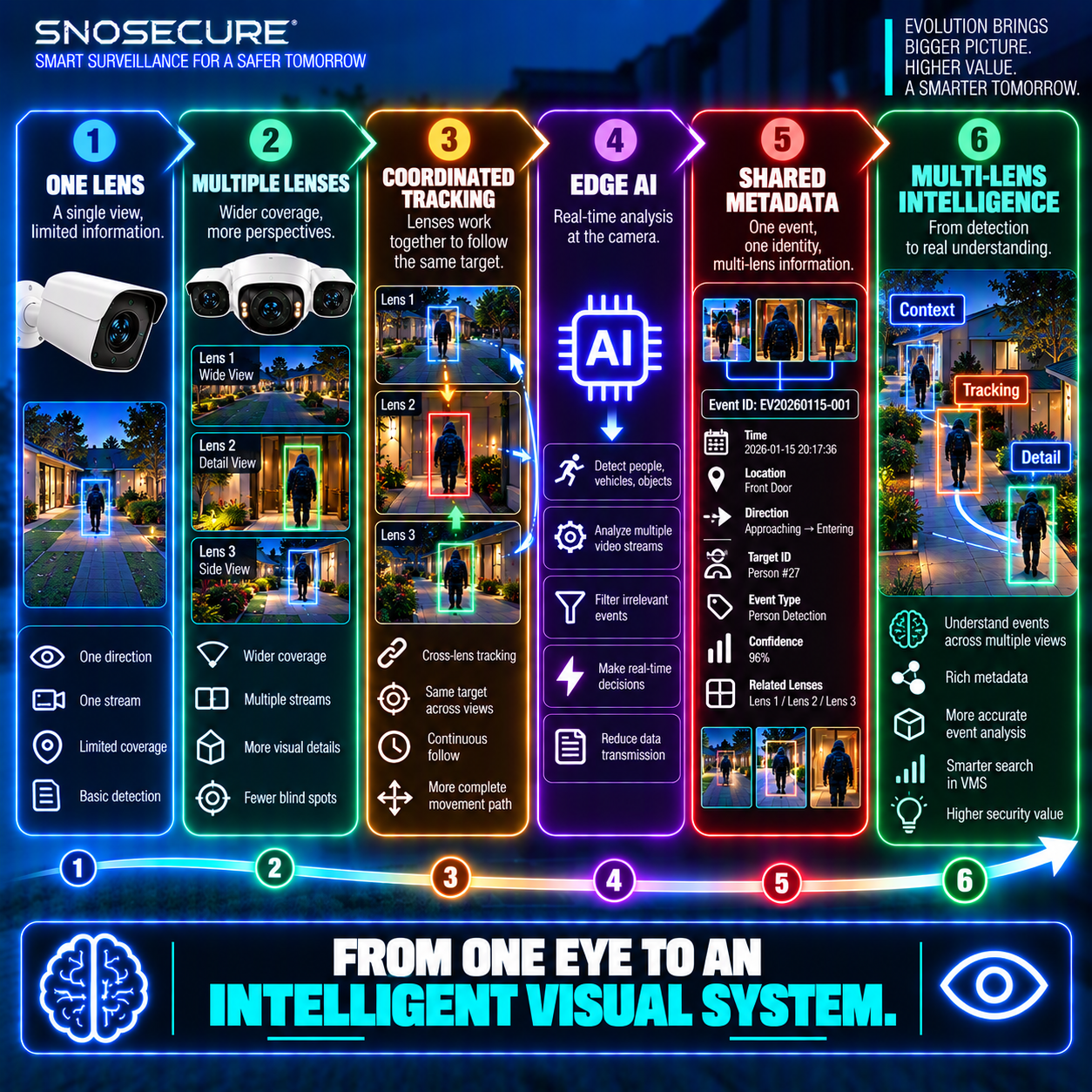

6. Multi-Lens Is Moving From Hardware to Coordination
This is where the discussion becomes much more interesting.
Putting three independent lenses inside one housing is relatively easy to understand.
Making them operate as one intelligent system is harder.
Imagine this workflow:
WIDE VIEW
↓
Person Detected
↓
Target Location Identified
↓
TRACKING VIEW ACTIVATED
↓
PT Camera Follows Target
↓
DETAIL VIEW
↓
Closer Visual Information
↓
ONE EVENT
Now the value does not come from three lenses.
It comes from:
COORDINATION.
The lenses need to understand that they are observing the same event.
That requires software.
And increasingly, it requires AI.

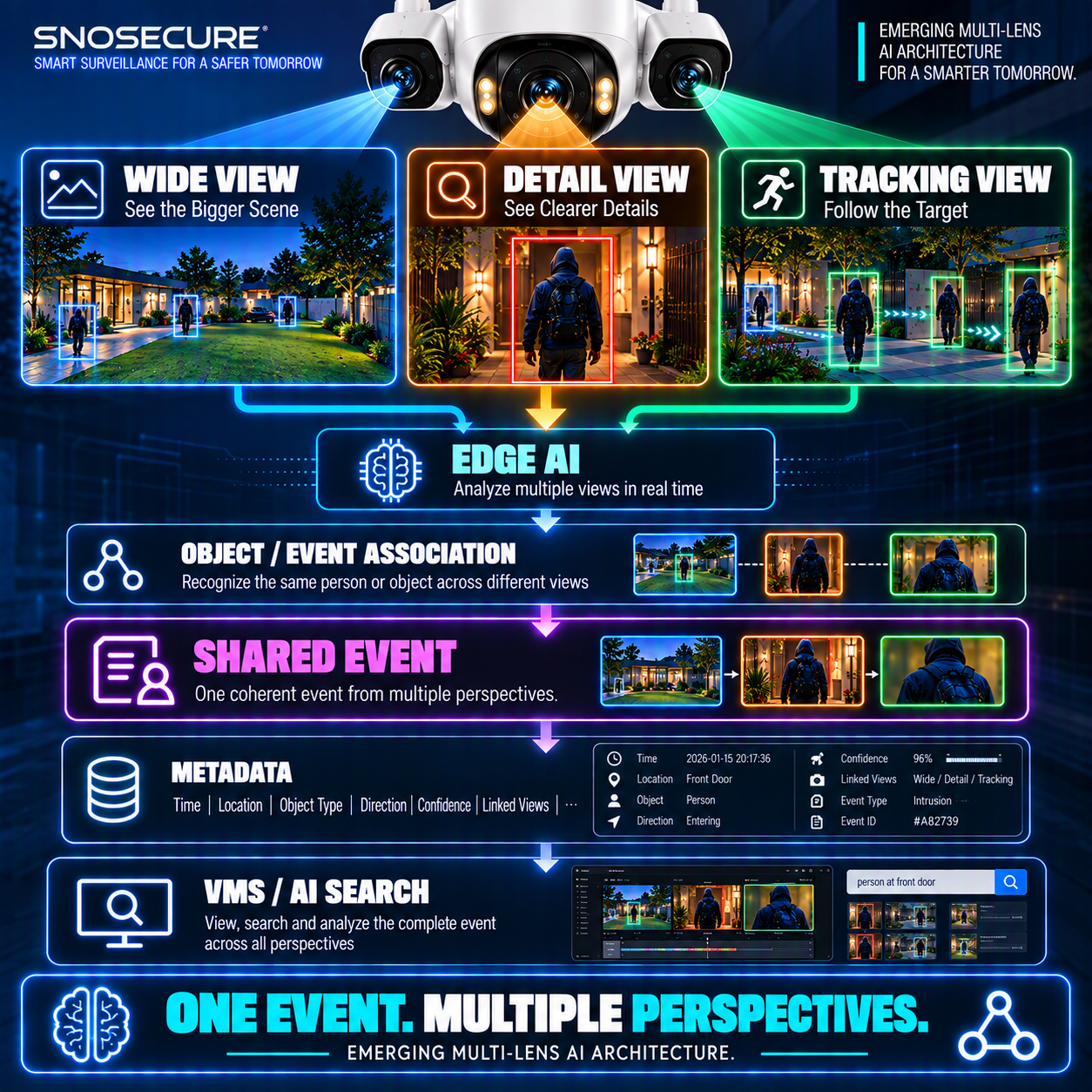

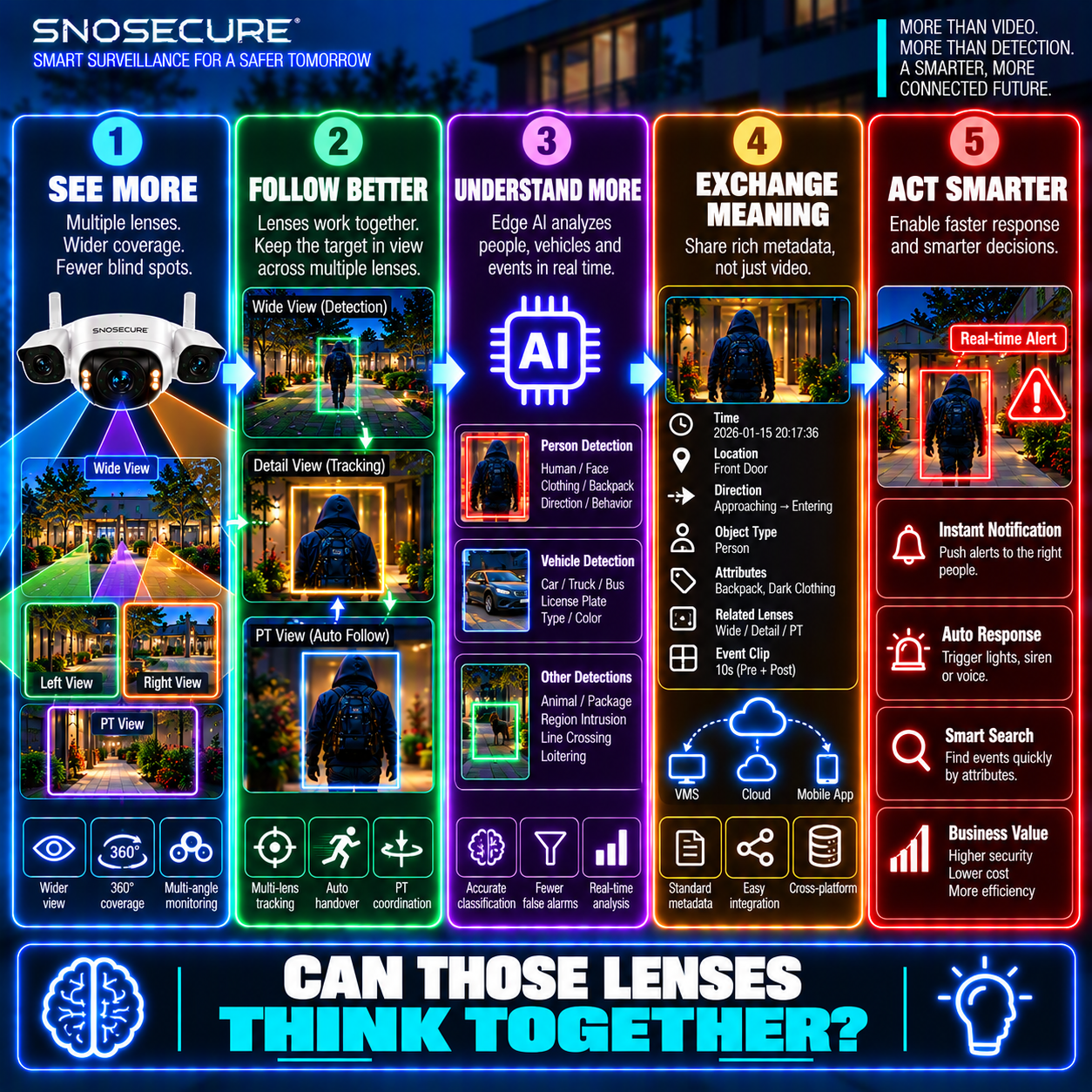

7. The Next Step Could Be Cross-Lens Intelligence
This is where multi-lens cameras may evolve next.
Consider three views:
WIDE VIEW
DETAIL VIEW
TRACKING VIEW
If each operates independently, YOU have three video streams.
Useful—but fragmented.
Now imagine the system can associate them:
Person #27 detected in wide view
↓
Person #27 selected for tracking
↓
Person #27 appears in detail view
↓
SHARED EVENT ID
↓
Metadata
↓
VMS
↓
AI Search
Now YOU no longer have three unrelated videos.
YOU have:
ONE EVENT FROM MULTIPLE PERSPECTIVES.
That is potentially much more powerful.
Importantly, this should be viewed as an industry architecture direction, not as a claim that every current EZVIZ or Reolink multi-lens camera already provides universal cross-lens identity association.
But the hardware is creating the foundation for that future.

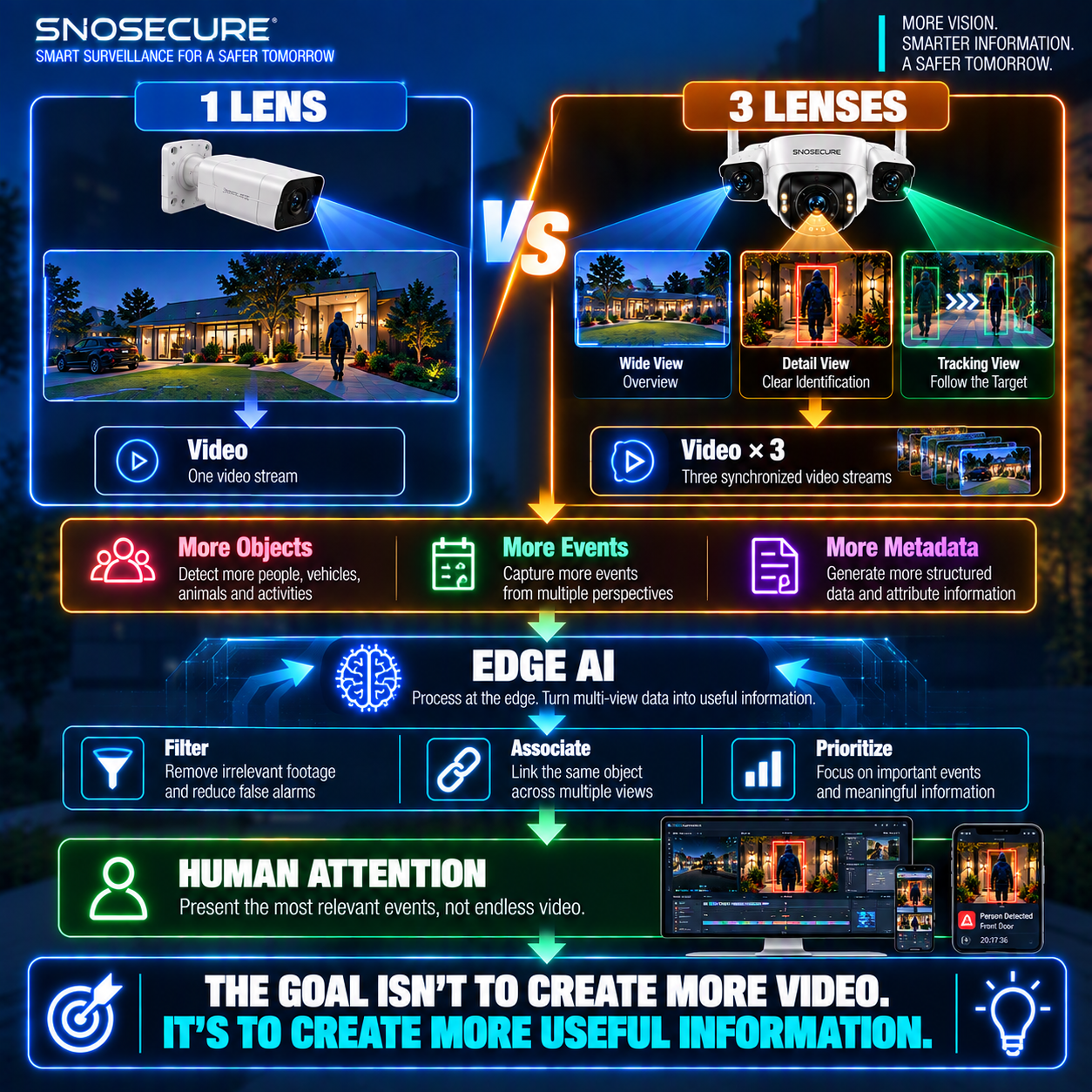

8. AI Becomes More Important as Lens Count Increases
More lenses create more information.
More information creates another problem:
WHO WATCHES IT?
Suppose one camera produces three simultaneous video streams.
Multiply that by:
10 cameras
100 cameras
or:
1,000 cameras
More visual coverage can quickly become more operator workload.
This means multi-lens CCTV cannot scale through hardware alone.
AI becomes increasingly important for:
Detection
Classification
Tracking
Event Association
Metadata Generation
Search
Prioritization
The architecture becomes:
MULTIPLE LENSES
↓
EDGE AI
↓
EVENT METADATA
↓
VMS / AI PLATFORM
↓
HUMAN ATTENTION
The objective isn’t simply to create more video.
It is to create more useful information.

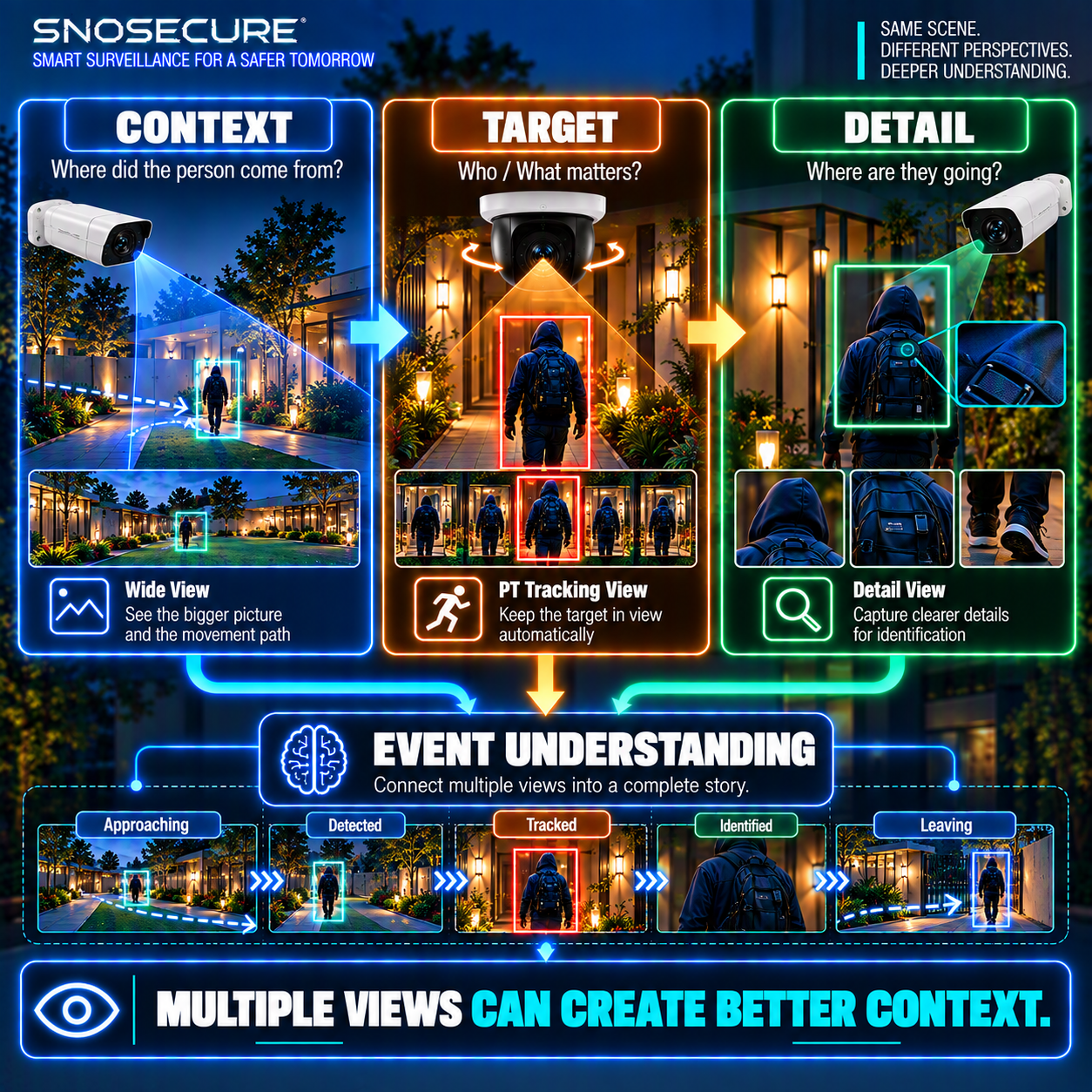

9. Multi-Lens Cameras Could Produce Better Event Context
Imagine a person entering a restricted industrial site.
One lens sees:
WHERE THE PERSON CAME FROM.
Another sees:
WHAT THE PERSON IS DOING.
Another tracks:
WHERE THE PERSON IS GOING.
Together, those perspectives may create better context than one camera angle alone.
This matters because AI security is evolving beyond:
OBJECT DETECTION
toward:
EVENT UNDERSTANDING
A person is an object.
A person moving through a restricted area after hours is a situation.
Multi-view information could help AI understand that difference.

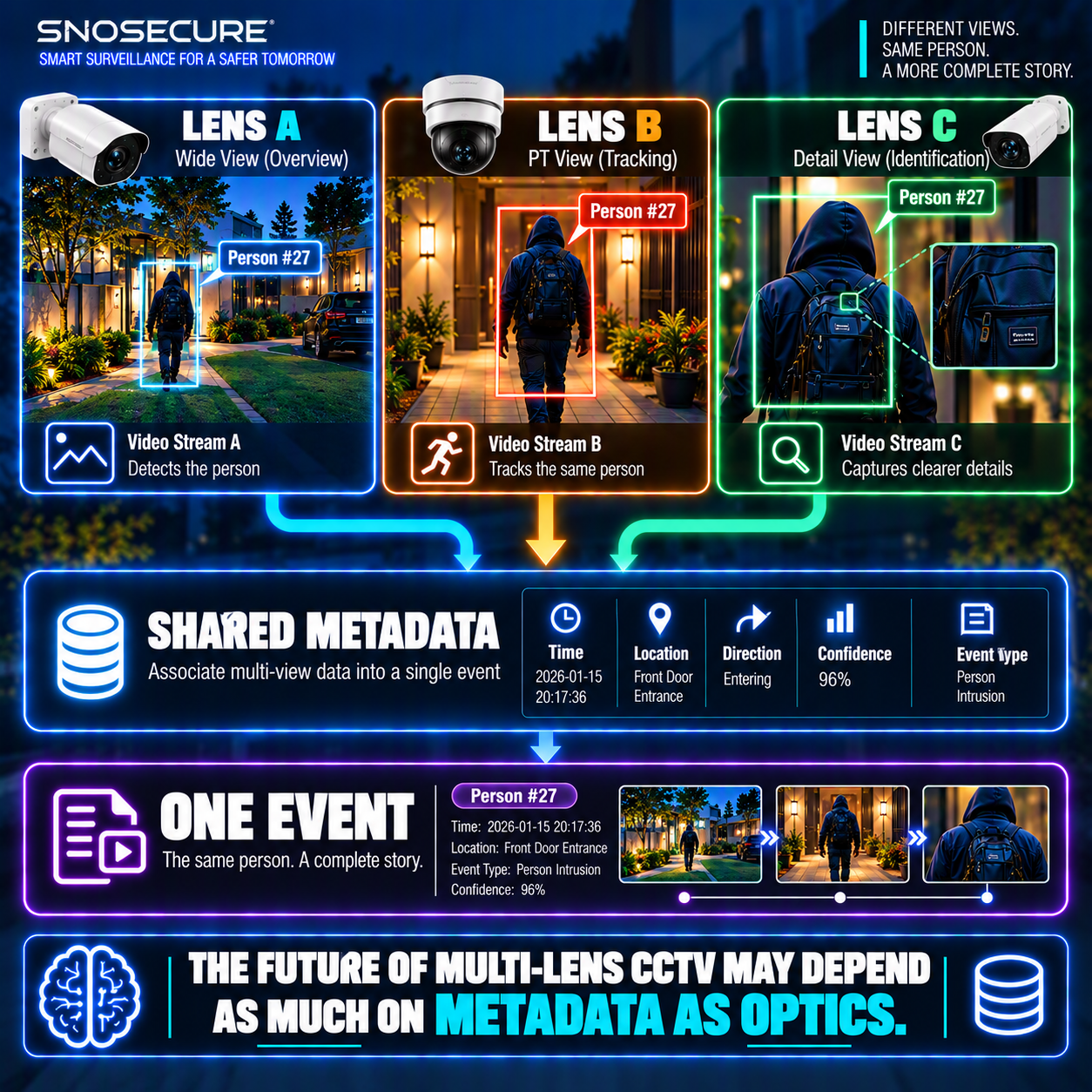

10. Metadata May Become the Bridge Between Multiple Lenses
Video is useful for humans.
Metadata is useful for machines.
For example:
Object: Person
Object ID: #27
Time: 02:17:36
Location: Rear Entrance
Direction: East
Confidence: 96%
Camera View: Wide
Now another lens sees the same target.
Instead of treating that footage as a completely separate event, the system could potentially associate it with the same object or event.
Conceptually:
LENS A
↓
Person #27
LENS B
↓
Person #27
LENS C
↓
Person #27
↓
SHARED METADATA
↓
ONE EVENT
This is why the future of multi-lens surveillance may depend as much on metadata architecture as optical architecture.

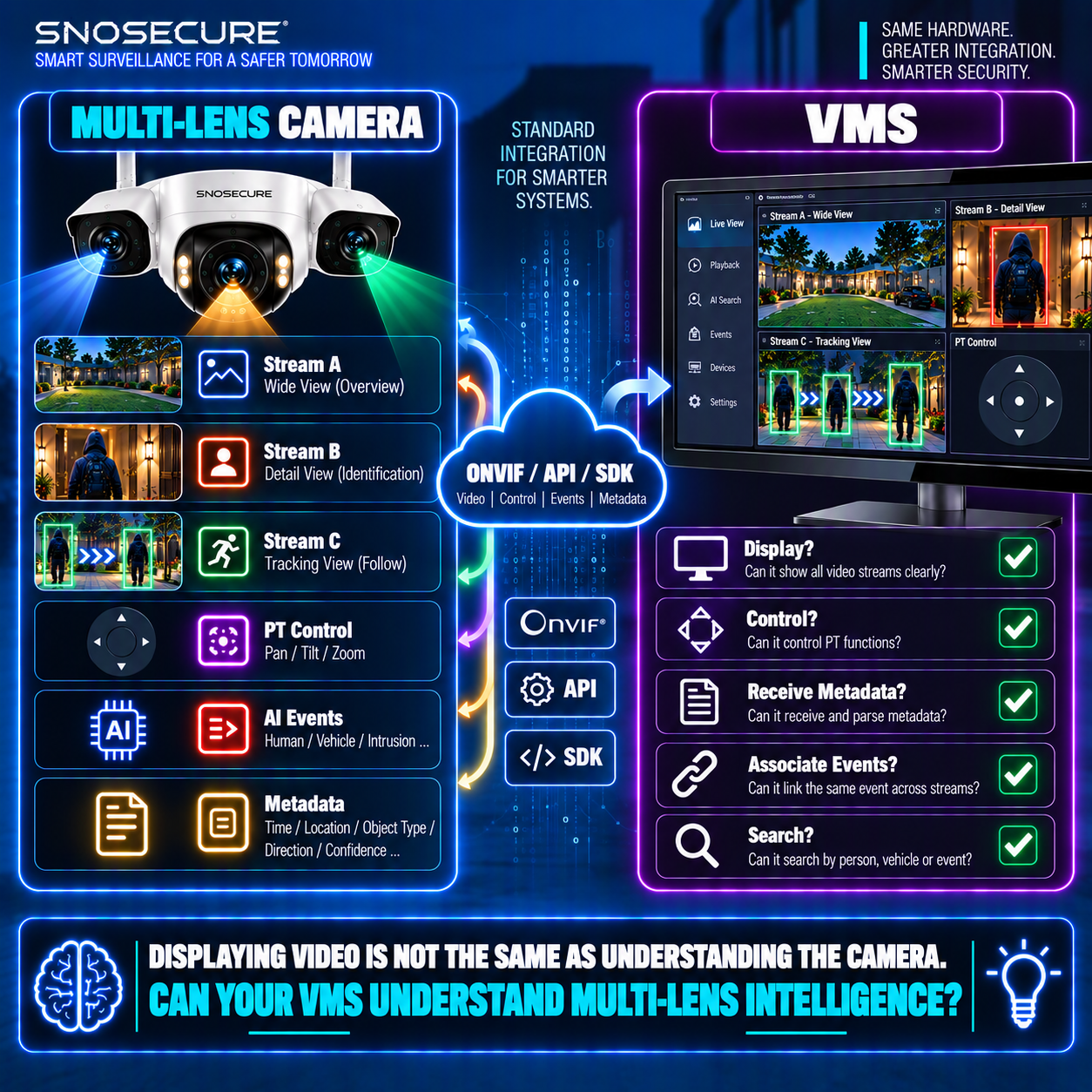

11. Multi-Lens Also Creates an Interoperability Problem
Now imagine connecting that camera to a third-party VMS.
The VMS needs to understand:
How many streams exist?
Which stream is panoramic?
Which stream is tracking?
Which lens generated the event?
Can PT control be managed?
Can analytics metadata be received?
Can events be associated?
Can different streams be searched together?
Can the system preserve object IDs?
This turns multi-lens CCTV into an interoperability question.
The challenge is no longer only:
Can the VMS display the video?
The better question becomes:
Can the VMS understand the camera?
That difference will become increasingly important as cameras generate more AI metadata.
12. More Lenses Also Mean More Bandwidth
There is another practical issue.
One camera.
Three lenses.
Potentially three streams.
Now multiply that across an installation.
More video can mean:
MORE BANDWIDTH
MORE STORAGE
MORE PROCESSING
MORE CLOUD COST
This is especially important for 4G cameras.
Continuous transmission from several high-resolution sensors may be inefficient for remote deployments.

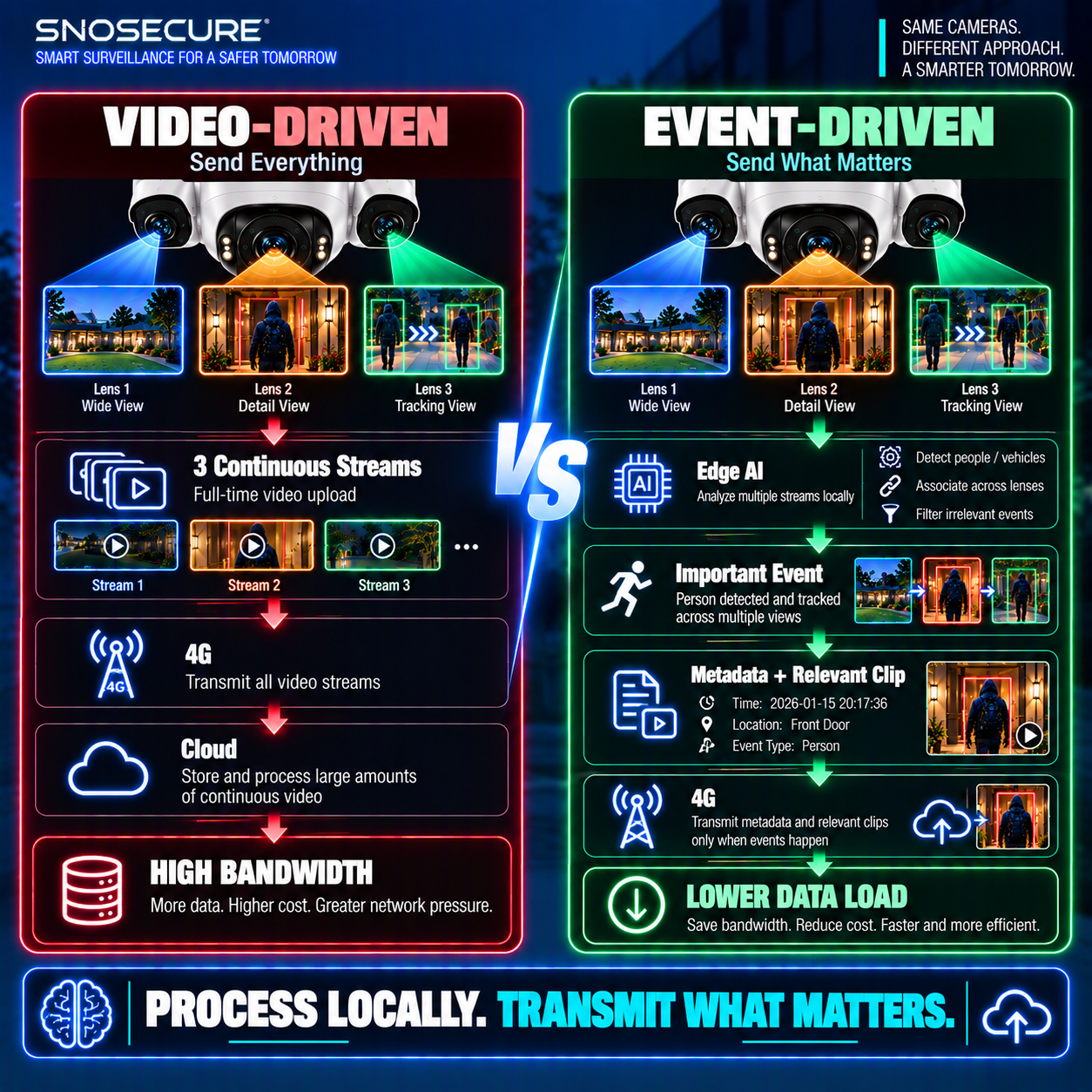

That is why multi-lens architecture may increasingly need to become:
EVENT-DRIVEN.
Instead of:
MULTIPLE CAMERAS → CONTINUOUS VIDEO → 4G → CLOUD
the architecture could become:
MULTIPLE LENSES
↓
EDGE AI
↓
Important Event?
↓
METADATA + RELEVANT VIDEO
↓
↓
VMS / CLOUD
In other words:
Process locally. Transmit what matters.

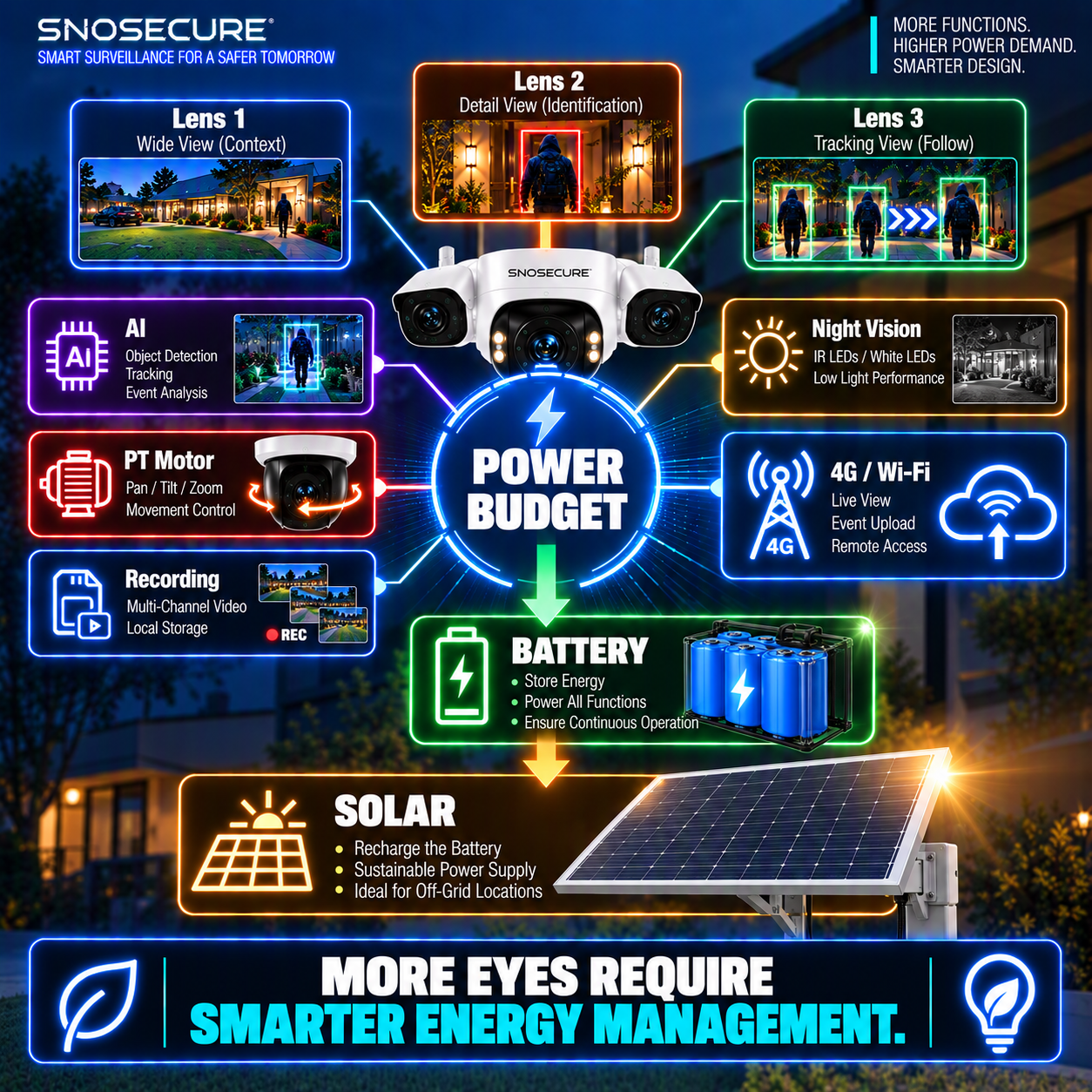

13. Battery + Solar Makes the Challenge Even Bigger
This is where EZVIZ’s IFA 2026 direction becomes particularly interesting.
Multi-lens cameras are now appearing in battery and solar-powered architectures.
That means manufacturers need to balance:
COVERAGE
DETAIL
TRACKING
CONNECTIVITY
÷
POWER BUDGET
A wired multi-lens camera mainly needs to solve processing and bandwidth.
A battery multi-lens camera also needs to solve:
ENERGY.
Should every sensor operate continuously?
Should the PT motor always remain active?
Should AI inference run constantly?
Should every event upload full video?
Should night vision operate at maximum output?
These questions lead directly to another important product trend:
INTELLIGENCE PER WATT.
For wire-free security, more lenses are useful only if the system can use them efficiently.

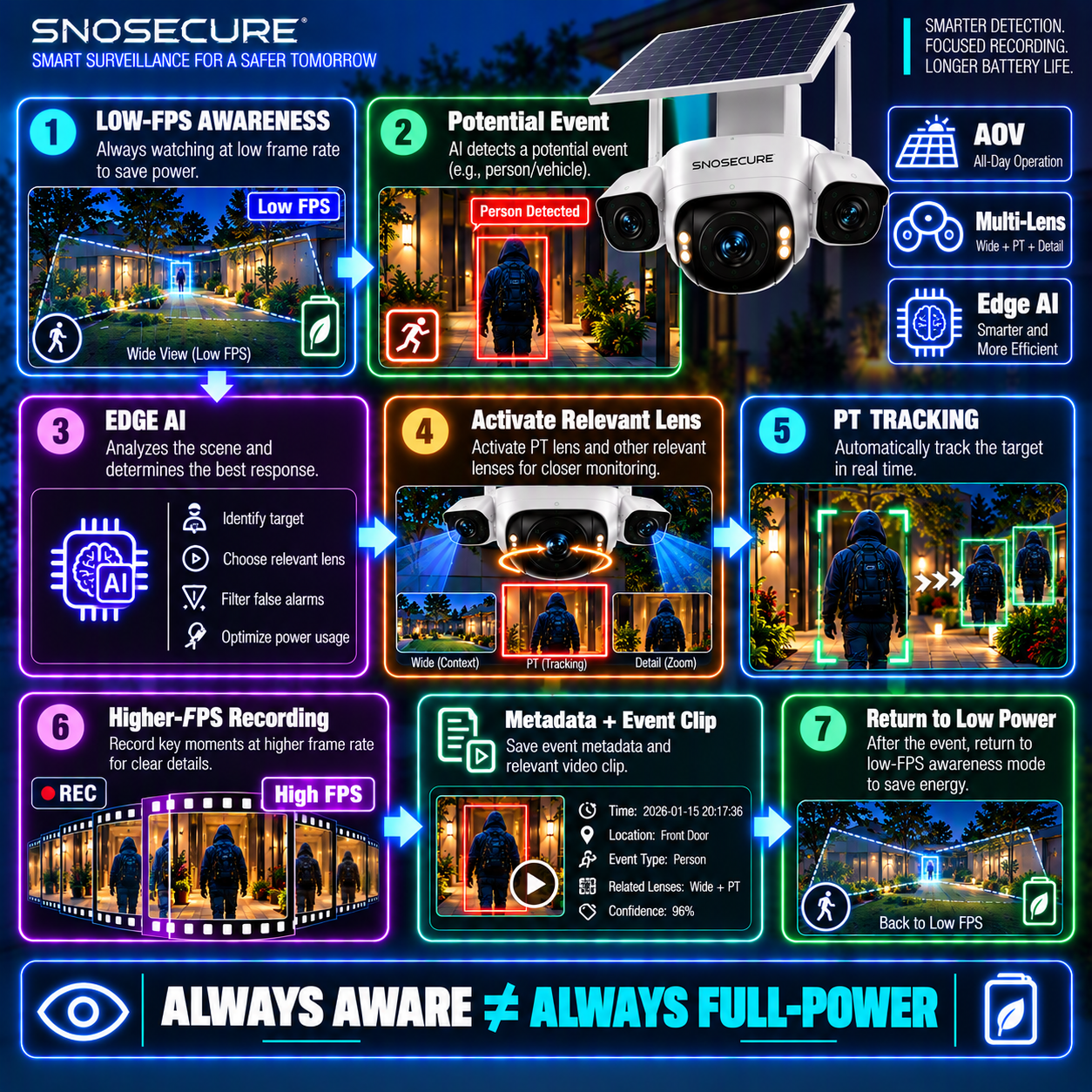

14. AOV Could Become Important for Multi-Lens Battery Cameras
Traditional battery cameras often follow:
SLEEP
↓
↓
WAKE
↓
RECORD
This saves energy.
But the event may already have started before the camera fully wakes.
AOV-style architecture creates another possibility:
LOW-FPS AWARENESS
↓
Potential Event
↓
AI ANALYSIS
↓
Activate Relevant Lens
↓
HIGHER-FPS RECORDING
↓
Tracking
↓
Event Clip
↓
Return to Low Power
This creates an interesting future architecture:
AOV + MULTI-LENS + EDGE AI
Instead of keeping every imaging system at maximum power continuously, the camera could activate different resources when they add value.
15. Multi-Lens Could Be Especially Valuable for Remote Security
Consider locations such as:
Farms
Construction Sites
Telecom Towers
Solar Farms
Warehouses
Oil & Gas Sites
Remote Roads
Installing several cameras may require:
More mounting.
More cabling.
More SIM cards.
More solar panels.
More maintenance.
More installation labor.
A well-designed multi-lens device could potentially consolidate some of those visual roles.
But there is an important warning:
ONE MULTI-LENS CAMERA DOES NOT AUTOMATICALLY REPLACE THREE CAMERAS.
Coverage geometry, redundancy, mounting position, resolution, risk level and scene layout still matter.
The better question is:
Can one coordinated device perform several visual roles efficiently enough for THIS deployment?

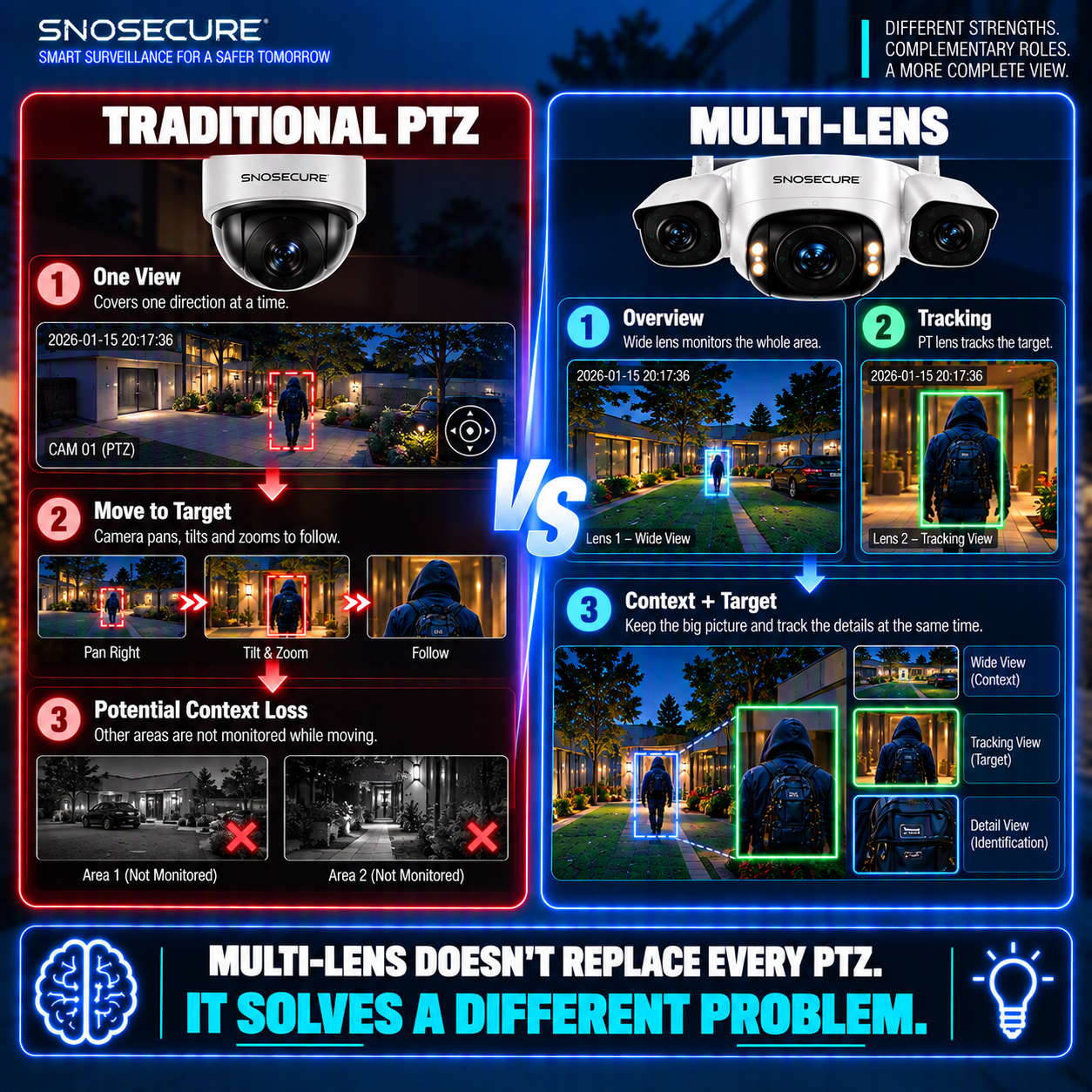

16. Will Multi-Lens Replace PTZ Cameras?
Probably not in every application.
Traditional PTZ cameras remain valuable where YOU need:
Long-range optical zoom
Active operator control
Large-area patrol
High-speed tracking
Dedicated positioning
Multi-lens cameras solve a somewhat different problem.
They try to combine:
ALWAYS-AVAILABLE CONTEXT
with:
TARGETED DETAIL
Instead of asking which architecture “wins,” B2B buyers should understand where each architecture fits.
17. The Bigger Trend: From Camera to Visual System
This is the part manufacturers should pay close attention to.
The product is evolving.
CAMERA 1.0
One Lens
↓
One Video Stream
CAMERA 2.0
Multiple Lenses
↓
Multiple Perspectives
CAMERA 3.0
Multiple Lenses
↓
Coordinated Tracking
↓
Edge AI
↓
Shared Metadata
↓
VMS / AI Search
CAMERA 4.0?
MULTI-LENS INTELLIGENCE
↓
Understand the Scene
↓
Follow the Target
↓
Associate Perspectives
↓
Prioritize Events
↓
Trigger Workflows
The camera is slowly becoming less like a single eye.
And more like a visual sensing system.

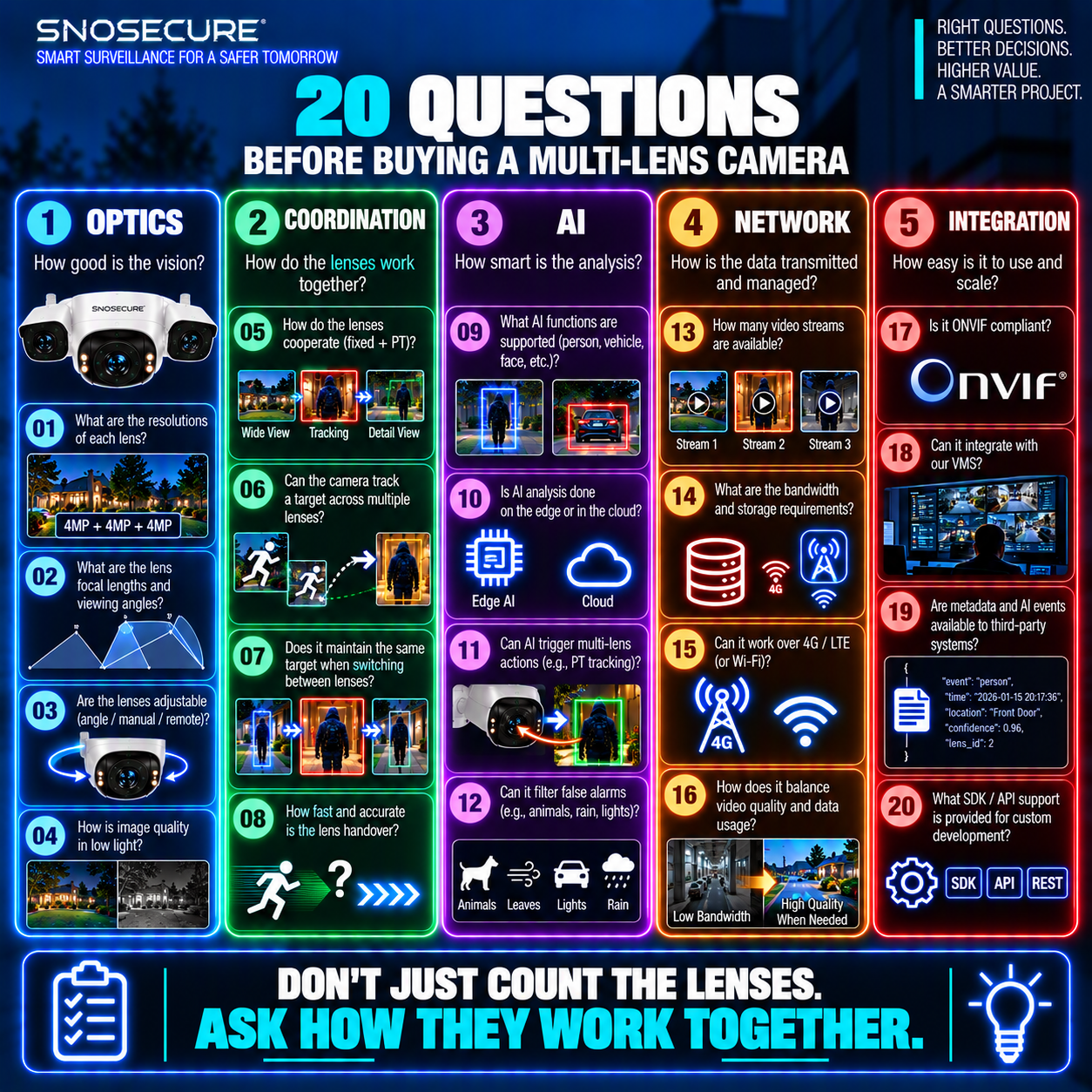

18. 20 Questions B2B Buyers Should Ask Before Buying a Multi-Lens Camera
Don’t stop at:
“How many lenses?”
Ask:
OPTICS
- What role does each lens perform?
- What is the field of view of each sensor?
- Is there overlapping coverage?
- What optical or digital zoom is available?
COORDINATION
- Do the lenses operate independently or cooperatively?
- Can one lens trigger another?
- Can panoramic detection initiate PT tracking?
- Can the system maintain scene awareness during tracking?
AI
- Where does AI processing run?
- Which streams support AI?
- Can objects be associated between views?
- What metadata is generated?
VIDEO & NETWORK
- How many simultaneous streams are produced?
- What bandwidth is required?
- Can event-driven transmission be configured?
- How is storage calculated?
INTEGRATION
- Does the camera support ONVIF?
- Is an API available?
- Is an SDK available?
- How does it integrate with third-party VMS platforms?
The specification sheet may say:
THREE LENSES.
The buyer should ask:
HOW WELL DO THOSE THREE LENSES WORK TOGETHER?

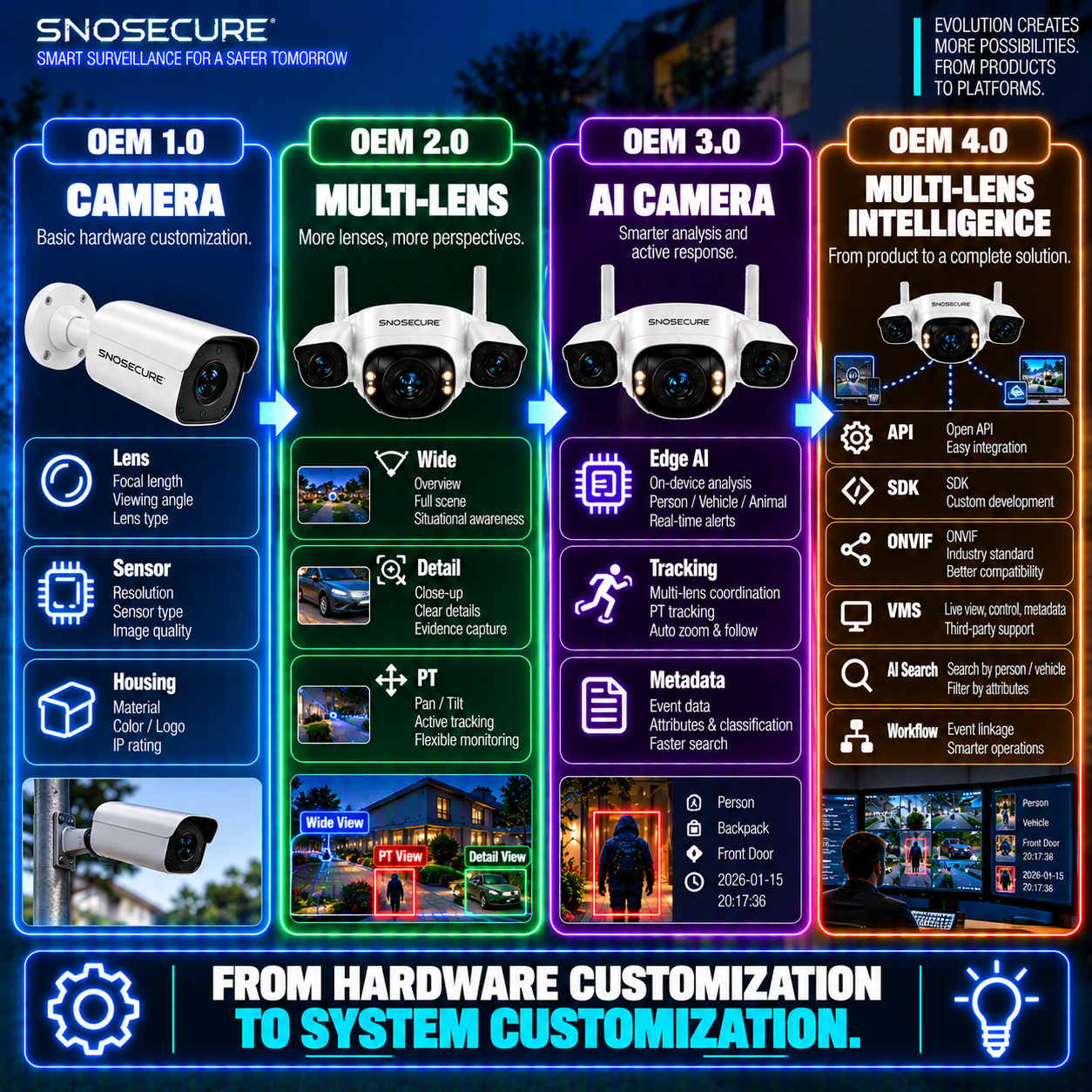

19. What Multi-Lens CCTV Means for OEM Buyers
OEM requirements are changing too.
Historically:
OEM 1.0
Logo
Color
Packaging
Housing
Then:
OEM 2.0
Sensor
Lens
Firmware
App
Cloud
Now:
OEM 3.0
MULTI-LENS ARCHITECTURE
EDGE AI
TRACKING LOGIC
METADATA
API
SDK
ONVIF
VMS INTEGRATION
POWER MANAGEMENT
AI SEARCH
The conversation is shifting from:
“Can YOU customize this camera?”
to:
“Can YOU customize how this camera works inside our system?”
That is a much bigger OEM opportunity.
20. Where SNOSECURE Sees the Opportunity
For B2B buyers, multi-lens CCTV should not be evaluated as another specification race.
More lenses do not automatically mean a better camera.
The opportunity is to combine the right architecture:
WIDE VIEW
DETAIL VIEW
PT TRACKING
EDGE AI
4G / Wi-Fi
METADATA
API / SDK
VMS INTEGRATION
into a system designed around the customer’s actual application.
At SNOSECURE, this is where we see OEM/ODM surveillance development moving:
from hardware customization
toward:
SYSTEM CUSTOMIZATION.
For distributors, security brands, integrators and solution providers, the question is increasingly not:
“Can YOU give me a three-lens camera?”
It is:
“Can YOU help me design the right multi-lens security architecture for my market?”
Final Thought
EZVIZ and Reolink are useful signals of a broader change in security camera design.
The industry started with:
ONE CAMERA → ONE LENS → ONE VIEW
It is moving toward:
ONE CAMERA → MULTIPLE LENSES → MULTIPLE PERSPECTIVES
But that probably isn’t the final destination.
The next step is:
MULTIPLE PERSPECTIVES
↓
COORDINATED AI
↓
SHARED METADATA
↓
EVENT UNDERSTANDING
↓
SYSTEM ACTION
So when YOU evaluate the next generation of CCTV, don’t just count the lenses.
Ask:
WHAT DOES EACH LENS DO?
Then ask the more important question:
CAN THOSE LENSES THINK TOGETHER?
Because the future of multi-lens CCTV may not be about adding more eyes.
It may be about building one intelligent visual system.
