Solar Panels vs Battery Storage: What Really Determines Off-Grid Camera Reliability?

A Practical Engineering Guide to Solar Camera Battery Sizing, Panel Wattage, Cloudy-Day Autonomy, and AOV Power Consumption

A solar security camera can have a powerful solar panel.

A large rechargeable battery.

A high-resolution image sensor.

And advanced AI detection.

But none of these features automatically guarantees reliable off-grid surveillance.

Imagine installing 50 solar 4G security cameras across a remote construction site, agricultural property, or utility project.

The cameras work perfectly during the first few sunny days.

Then the weather changes.

Three days of clouds.

Long winter nights.

Frequent motion events.

Increased 4G transmission.

And suddenly, some cameras start going offline.

What went wrong?

Was the solar panel too small?

Was the battery capacity insufficient?

Or was the camera consuming more electricity than expected?

THE REAL ANSWER OFTEN LIES IN THE BALANCE BETWEEN ENERGY GENERATION, ENERGY STORAGE, AND ENERGY CONSUMPTION.

For B2B camera buyers, understanding that balance is essential.

In this guide, we’ll explain how to calculate solar panel wattage, size a solar surveillance battery, estimate off-grid CCTV power consumption, and evaluate how AOV recording affects energy demand.

The goal is simple:

Help YOU choose a solar-powered security camera system that can perform reliably beyond the first sunny day.

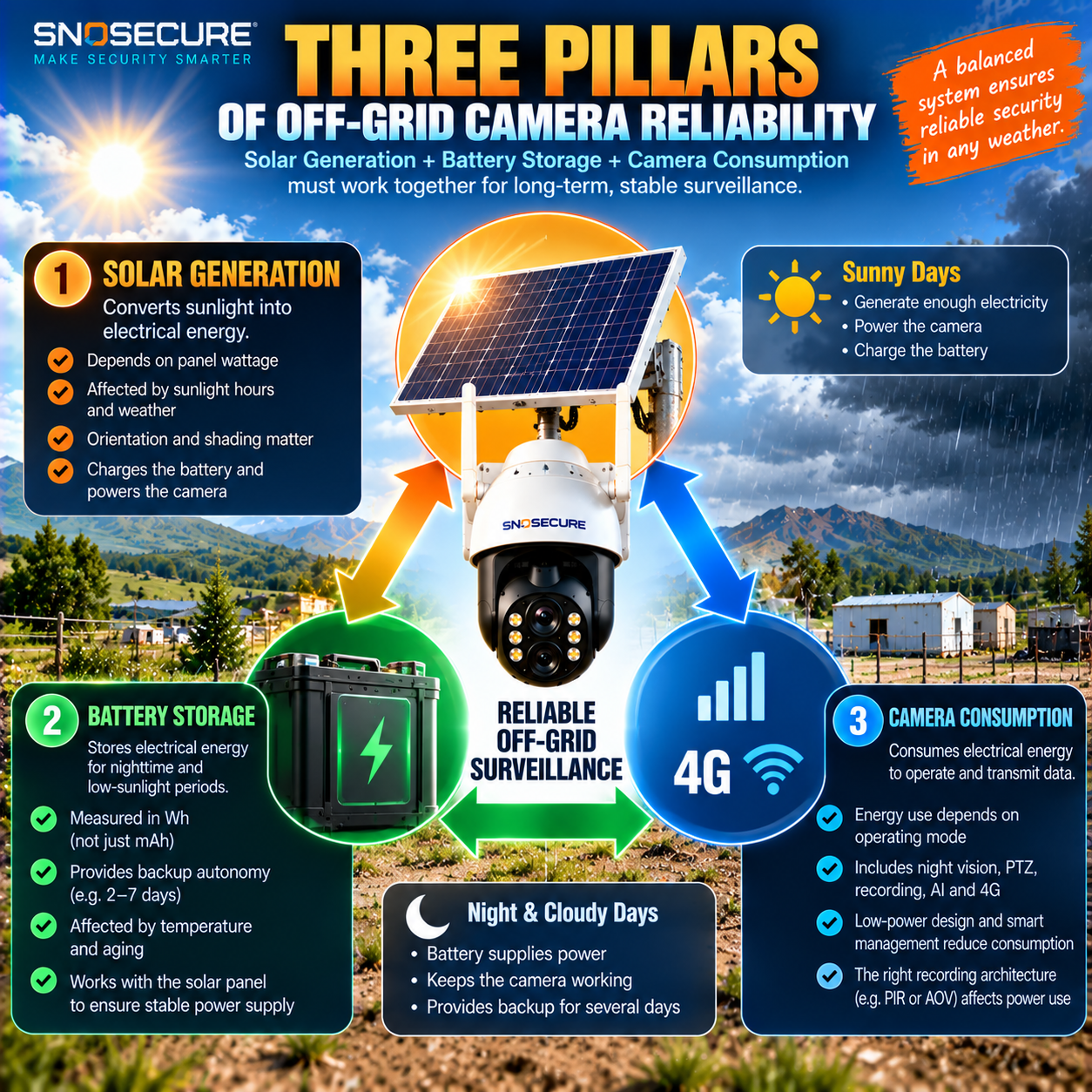

1. Solar Panel vs Battery Storage: They Solve Different Problems

One of the most common mistakes in solar camera purchasing is treating solar panel wattage and battery capacity as interchangeable specifications.

They’re not.

A solar panel generates energy.

A battery stores energy.

And a camera consumes energy.

Each component has a different role.

Solar Panel: Daily Energy Generation

Solar panels convert sunlight into electrical energy.

Their output depends on:

• Rated panel wattage
• Available solar irradiance
• Installation angle and orientation
• Seasonal sunlight
• Shading
• Dust and debris
• Temperature
• Charging-system efficiency

A 40W solar panel does not generate 40W continuously throughout the day.

Its rated output is measured under standardized test conditions.

Actual energy production varies by location and weather.

Battery: Backup Energy Storage

A rechargeable battery stores energy generated during the day.

It powers the camera at night and during periods of limited sunlight.

Battery performance depends on:

• Nominal energy capacity
• Usable depth of discharge
• Temperature
• Battery chemistry
• Age and degradation
• Discharge efficiency
• Protection-system limits

A larger battery can extend autonomy, but it cannot compensate indefinitely for insufficient solar generation.

Camera: Daily Energy Consumption

The camera determines how much energy the system must supply.

A camera’s energy demand changes with its operating mode.

For example:

A low-power standby state may consume relatively little electricity.

Night vision, PTZ movement, video processing, cellular transmission, and live streaming may require more.

SOLAR GENERATION MUST SUPPORT LONG-TERM ENERGY DEMAND.

BATTERY STORAGE MUST SUPPORT PERIODS WHEN GENERATION IS INSUFFICIENT.

Both are necessary.

Neither should be selected independently.

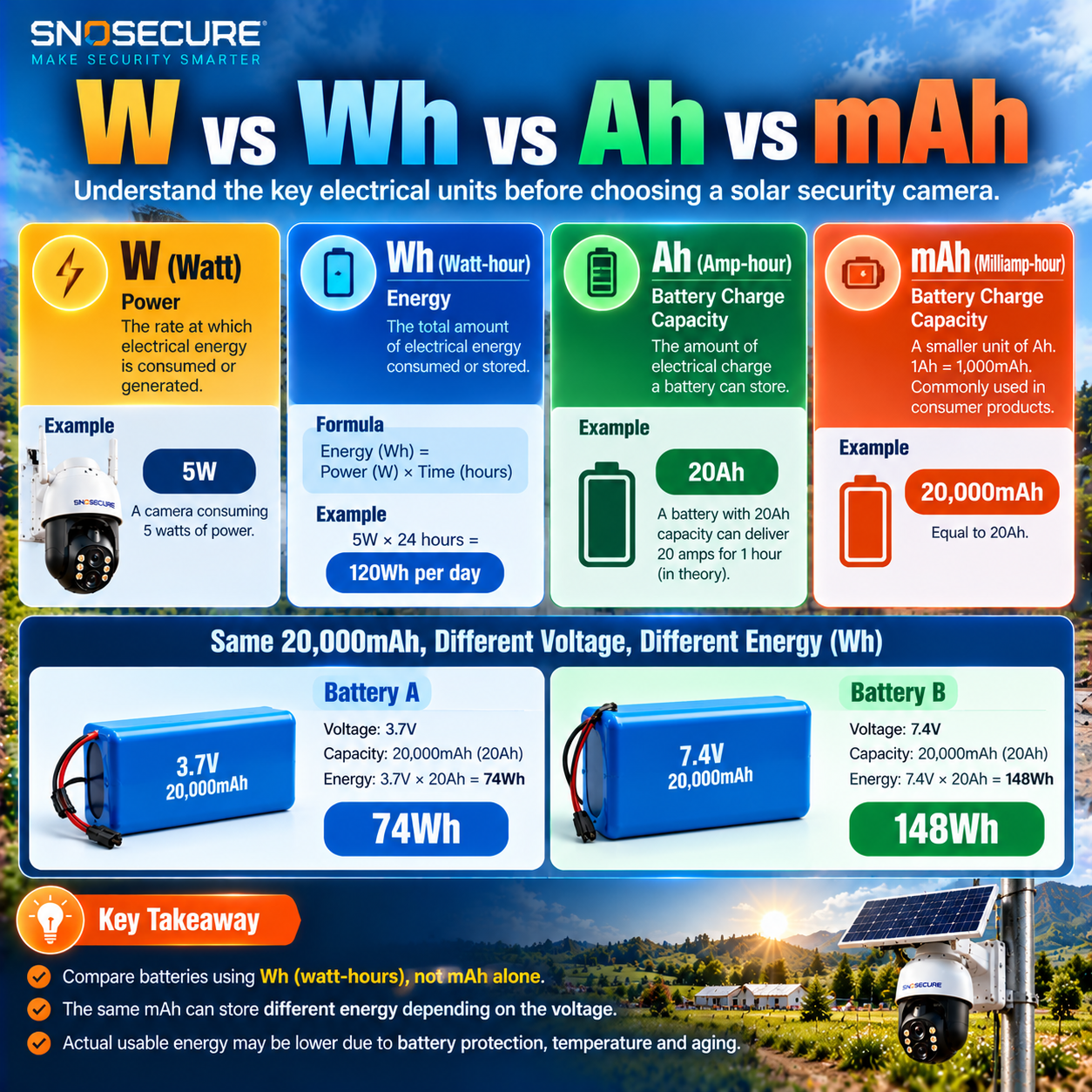

2. Understanding Solar Camera Power Consumption: W, Wh, Ah, and mAh

Before calculating solar camera battery sizing, it’s important to understand four electrical measurements.

Watts (W): Power

Watts describe the rate at which a device consumes or generates energy.

A camera drawing 5W continuously uses energy at a rate of 5 watts.

Watt-Hours (Wh): Energy

Watt-hours describe the total energy consumed or stored.

The basic formula is:

Energy (Wh) = Power (W) × Time (hours)

For example:

5W × 24 hours = 120Wh/day

This means a camera with a constant 5W load consumes 120 watt-hours in one day.

Amp-Hours (Ah): Battery Charge Capacity

Amp-hours measure electrical charge capacity.

They do not describe stored energy without considering voltage.

Milliamp-Hours (mAh): Battery Charge Capacity

Many solar camera suppliers advertise batteries using mAh.

But mAh alone can be misleading when comparing batteries with different nominal voltages.

The conversion is:

Battery Energy (Wh) = Nominal Voltage (V) × Capacity (Ah)

Or:

Battery Energy (Wh) = Voltage (V) × Capacity (mAh) ÷ 1,000

Consider two illustrative batteries:

Both batteries advertise 20,000mAh.

But Battery B stores approximately twice as much nominal energy.

That’s why professional buyers should compare Wh, not mAh alone.

Also confirm whether the advertised capacity refers to the battery pack’s actual nominal voltage or a cell-equivalent rating.

FOR SOLAR CAMERA BATTERY SIZING, WATT-HOURS ARE MORE USEFUL THAN MARKETING-LEVEL mAh FIGURES.

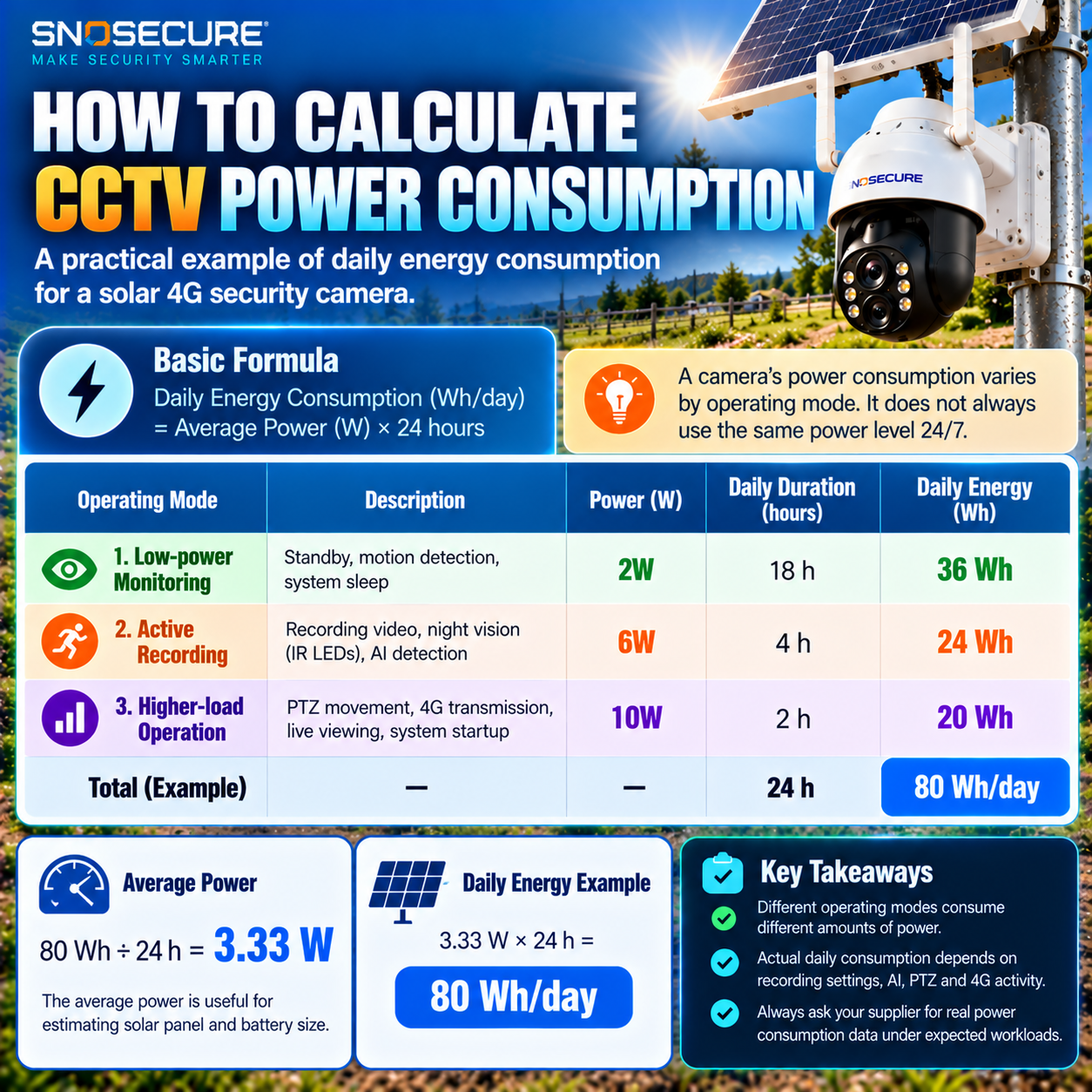

3. How to Calculate Off-Grid CCTV Power Consumption

The first step in solar system design is determining the camera’s actual daily energy requirement.

A simple formula is:

Daily Energy Consumption (Wh/day) = Average Power (W) × 24 hours

But the challenge is estimating average power correctly.

A camera rarely operates at exactly the same power level all day.

Consider a hypothetical solar 4G camera with the following operating profile.

This example produces an average load of:

80Wh ÷ 24 hours = 3.33W

The important point?

A camera advertised with a maximum power consumption of 10W does not necessarily consume 240Wh every day.

But the opposite mistake is equally dangerous.

A camera advertised as low-power may consume significantly more energy when recording, transmitting video, or operating infrared LEDs.

What Buyers Should Measure

Ask your manufacturer for power consumption data during:

1. Standby or low-power monitoring
2. Normal video recording
3. Night vision
4. PTZ movement
5. AI detection
6. 4G data transmission
7. Live viewing
8. Startup and reconnection

These states can overlap, so don’t simply add their peak wattages together.

A proper daily energy model should represent actual operating modes and how long each mode lasts.

THE MOST IMPORTANT NUMBER IS NOT MAXIMUM POWER.

IT’S REALISTIC DAILY ENERGY CONSUMPTION UNDER THE EXPECTED WORKLOAD.

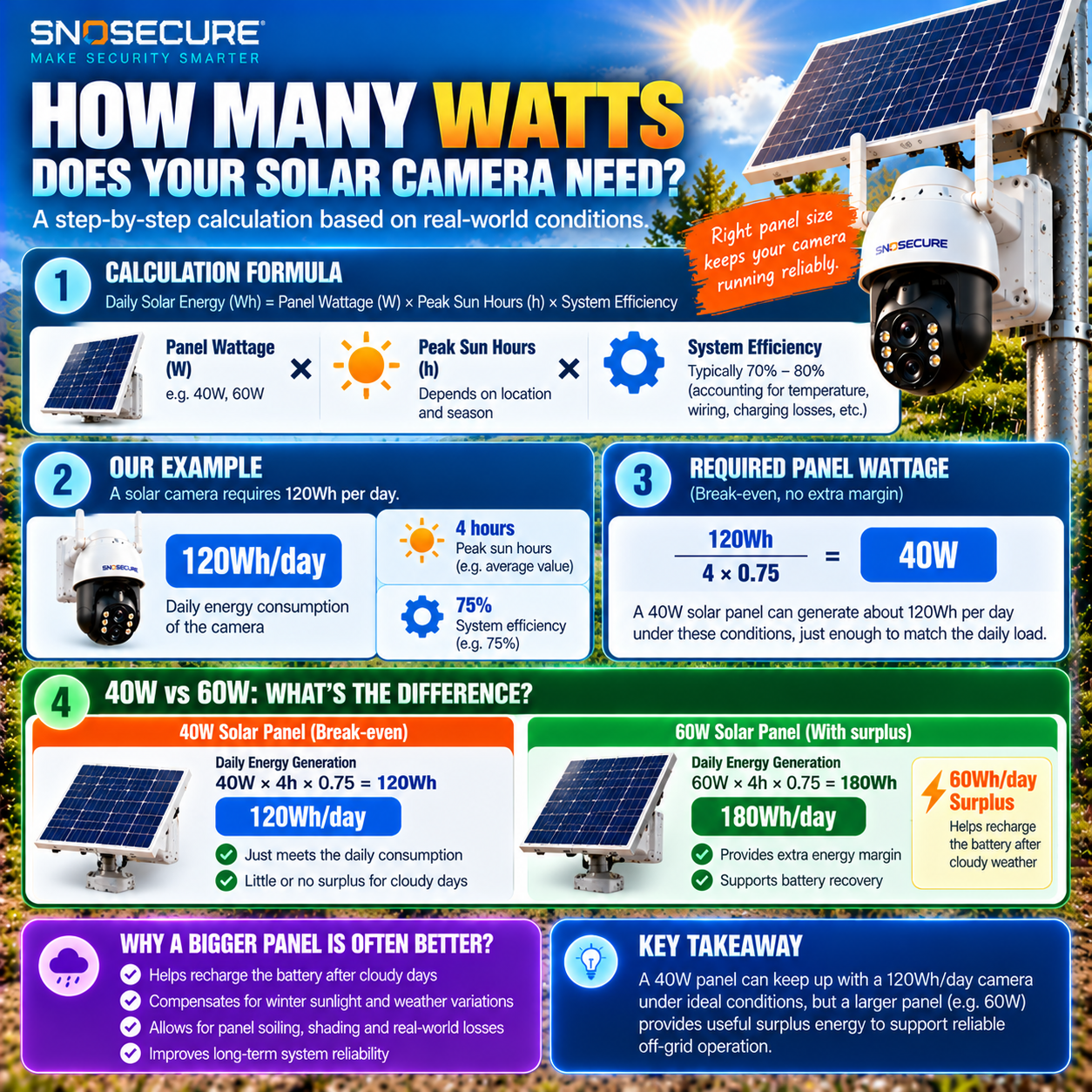

4. How Many Watts of Solar Panel Does a Security Camera Need?

Once daily consumption is known, the next step is estimating solar generation.

A simplified sizing formula is:

Daily Solar Energy (Wh) = Panel Wattage (W) × Peak Sun Hours (h) × System Efficiency Factor

The efficiency factor accounts for selected losses such as temperature effects, wiring, charging, and conversion.

Example: A Camera Consuming 120Wh per Day

Assume:

• Daily camera energy demand: 120Wh
• Equivalent peak sun hours: 4 hours
• Overall efficiency factor: 75%

Required panel wattage:

120Wh ÷ (4 × 0.75) = 40W

Under these assumptions, a 40W panel would generate approximately 120Wh per day.

But there’s a problem.

It provides almost no energy margin.

What happens when sunlight drops below the assumed level?

What happens when the panel becomes dirty?

What happens during winter?

A system designed only around average conditions may struggle during difficult weather.

Why Panel Sizing Needs a Margin

Consider a larger 60W panel under the same conditions:

60W × 4 hours × 0.75 = 180Wh/day

If the camera consumes 120Wh/day, the estimated daily surplus is:

180Wh − 120Wh = 60Wh/day

That surplus may help recharge the battery after cloudy weather.

But it doesn’t guarantee recovery.

For example, replacing a 360Wh energy deficit at an idealized 60Wh/day surplus would take six suitable days, before any additional battery-side losses or weather variation.

The lesson?

SOLAR PANEL WATTAGE MUST COVER DAILY CONSUMPTION AND PROVIDE ENOUGH SURPLUS TO RECOVER FROM LOW-SUNLIGHT PERIODS.

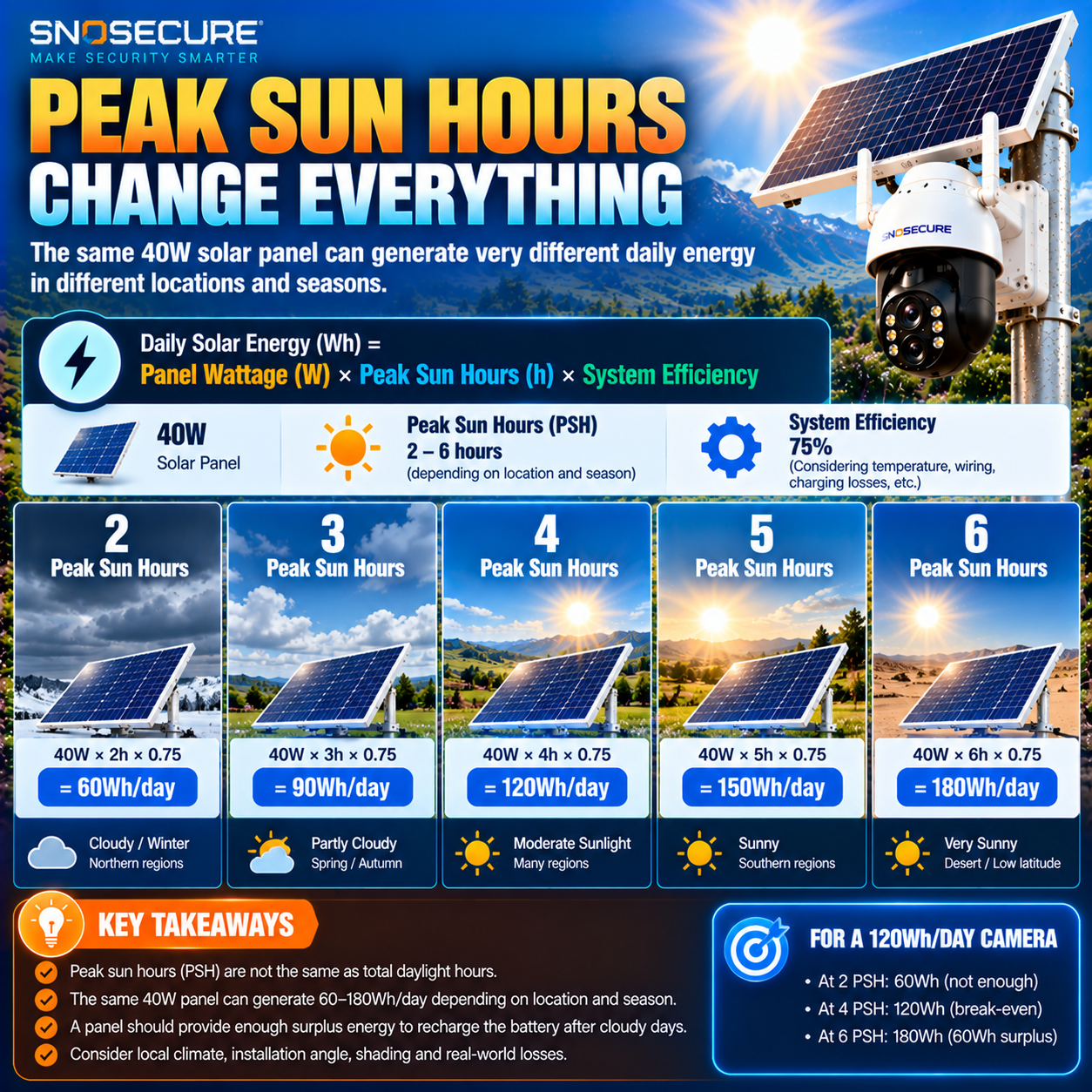

5. Peak Sun Hours: Why Location Matters More Than You Think

A 40W solar panel does not produce the same daily energy in every country.

The amount of usable sunlight changes by:

• Geographic location
• Season
• Local weather
• Panel orientation
• Nearby shading
• Mounting conditions

Peak sun hours represent an equivalent number of hours at an irradiance of 1,000W/m².

They are not simply the number of daylight hours.

For example, a location may experience ten hours of daylight but only three equivalent peak sun hours.

Illustrative Solar Generation Comparison

Assume a 40W panel and a 75% overall efficiency factor.

These values are mathematical examples, not country-specific solar-resource measurements.

For a camera consuming 120Wh/day:

• At 2 peak sun hours, generation falls short by 60Wh/day.
• At 4 peak sun hours, generation approximately matches demand.
• At 6 peak sun hours, the system has an estimated surplus of 60Wh/day.

This is why identical solar cameras can perform differently in different locations.

A system that operates reliably in a sunny region may require a larger panel or battery for a cloudier environment.

For engineering estimates, consult location-specific solar resource data rather than relying on annual sunshine averages alone.

The PVWatts calculator and System Advisor Model developed by U.S. national laboratory researchers are useful references for evaluating solar-resource and system-loss assumptions.

However, PVWatts primarily estimates photovoltaic generation; it does not independently validate the autonomy of a particular small off-grid camera system.

6. Solar Camera Battery Sizing: How Much Capacity Do You Really Need?

Battery sizing answers a different question from panel sizing.

HOW LONG MUST THE CAMERA OPERATE WITHOUT SUFFICIENT SOLAR GENERATION?

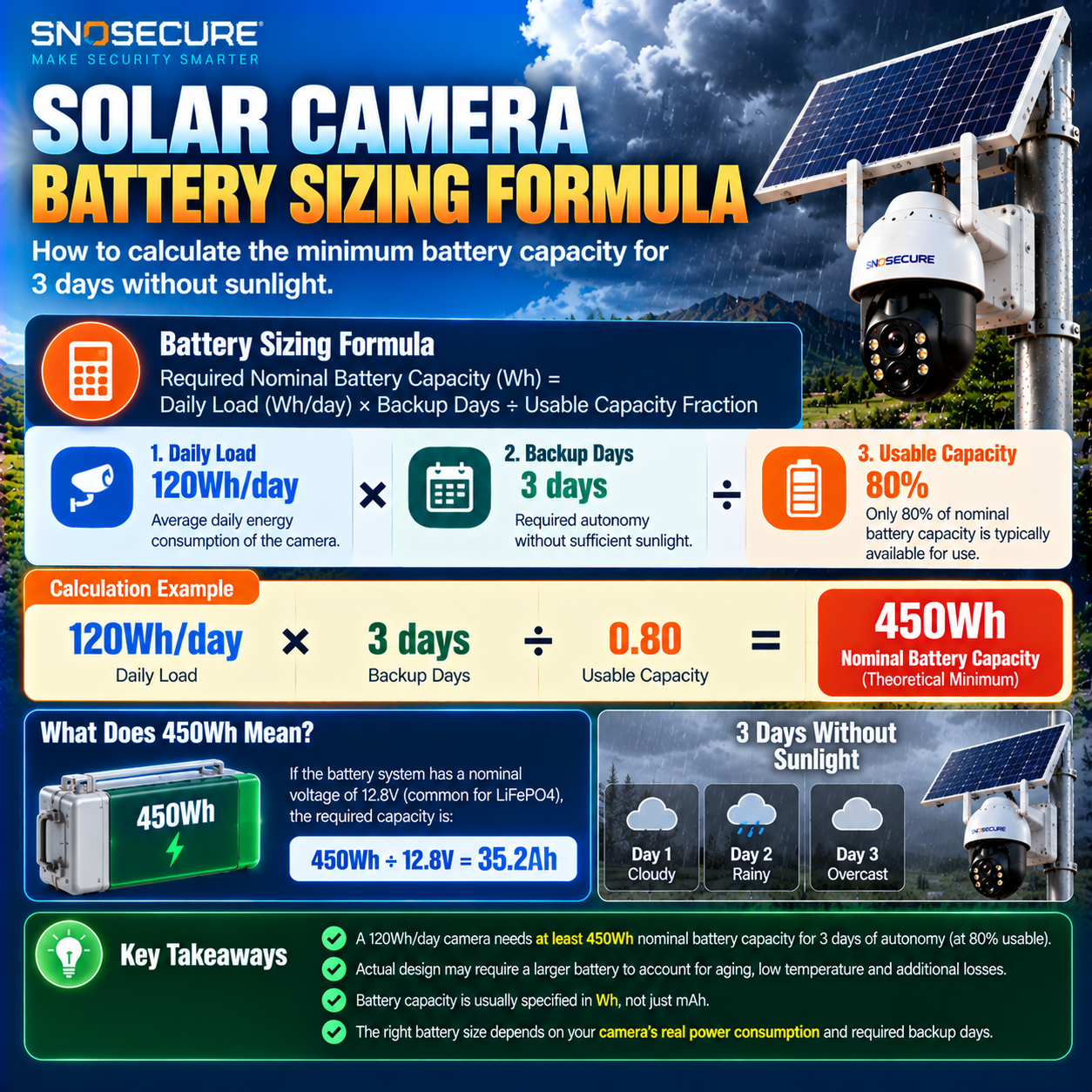

A basic battery-sizing formula is:

Required Nominal Battery Capacity (Wh) = Daily Load (Wh/day) × Backup Days ÷ Usable Capacity Fraction

This simplified formula assumes the daily load already represents energy drawn from the battery. If additional discharge-side conversion losses are not included, they must be added separately.

Example: Three Days of Backup

Assume:

• Daily energy consumption: 120Wh
• Required autonomy: 3 days
• Usable battery capacity fraction: 80%

Energy required:

120Wh × 3 = 360Wh

Nominal battery capacity:

360Wh ÷ 0.80 = 450Wh

The theoretical minimum is therefore approximately 450Wh under these assumptions.

This is not a final production recommendation.

Real-world designs may need additional allowance for battery aging, cold-weather performance, discharge losses, and manufacturing tolerances.

Converting Battery Energy to Ah

If the nominal battery voltage is 12.8V:

450Wh ÷ 12.8V = 35.2Ah

So a nominal 12.8V battery with approximately 35.2Ah capacity contains about 450Wh.

Again, usable energy will depend on the battery specification and operating conditions.

Why Battery Chemistry Matters

Different battery chemistries have different characteristics.

Lithium iron phosphate (LiFePO4), other lithium-ion chemistries, and lead-acid batteries differ in:

• Cycle life
• Weight
• Cost
• Charge temperature limits
• Depth-of-discharge recommendations
• Thermal characteristics
• Protection requirements

No single chemistry is ideal for every camera application.

For outdoor surveillance, temperature performance and the battery management system are particularly important.

A BIG BATTERY IS USEFUL ONLY IF ITS ENERGY IS ACTUALLY AVAILABLE WHEN THE CAMERA NEEDS IT.

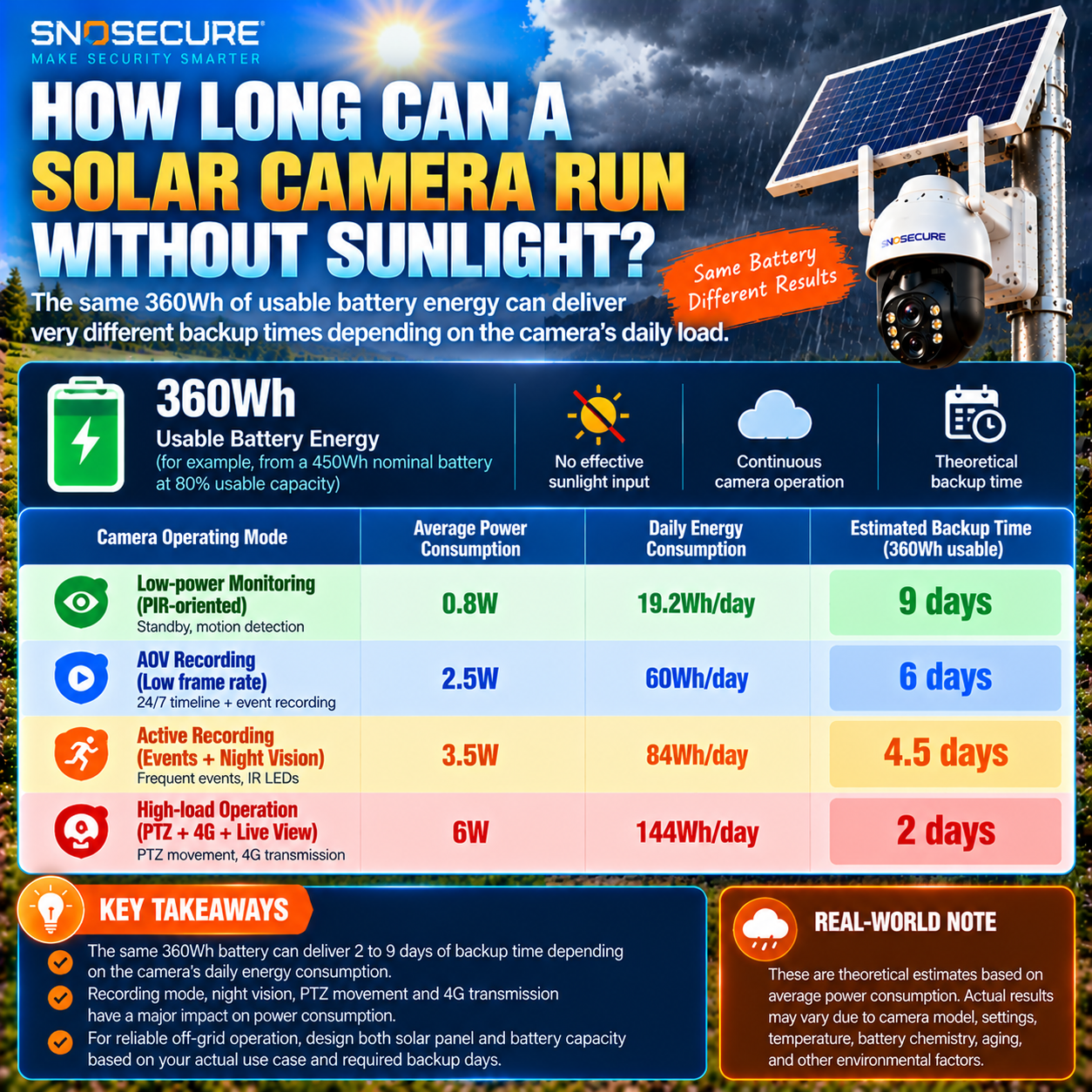

7. How Long Can a Solar Camera Work Without Sunlight?

This is one of the most important questions for distributors and installers.

Unfortunately, there’s no universal answer.

It depends on daily power consumption and usable battery energy.

A simplified formula is:

Autonomy (Days) = Usable Battery Energy (Wh) ÷ Daily Consumption (Wh/day)

Consider a battery with:

• Nominal capacity: 450Wh
• Usable fraction: 80%
• Usable energy: 360Wh

Estimated autonomy:

These figures assume no meaningful solar recharge during the period and do not separately model battery aging or additional losses.

They demonstrate why low-power architecture matters.

THE SAME BATTERY CAN DELIVER VERY DIFFERENT BACKUP TIMES DEPENDING ON CAMERA BEHAVIOR.

A manufacturer claiming “seven days of battery backup” should explain the test conditions.

Was night vision enabled?

How often was video recorded?

Was 4G connected?

How frequently did the camera transmit data?

Was the camera operating at room temperature?

Without those details, backup claims are difficult to compare.

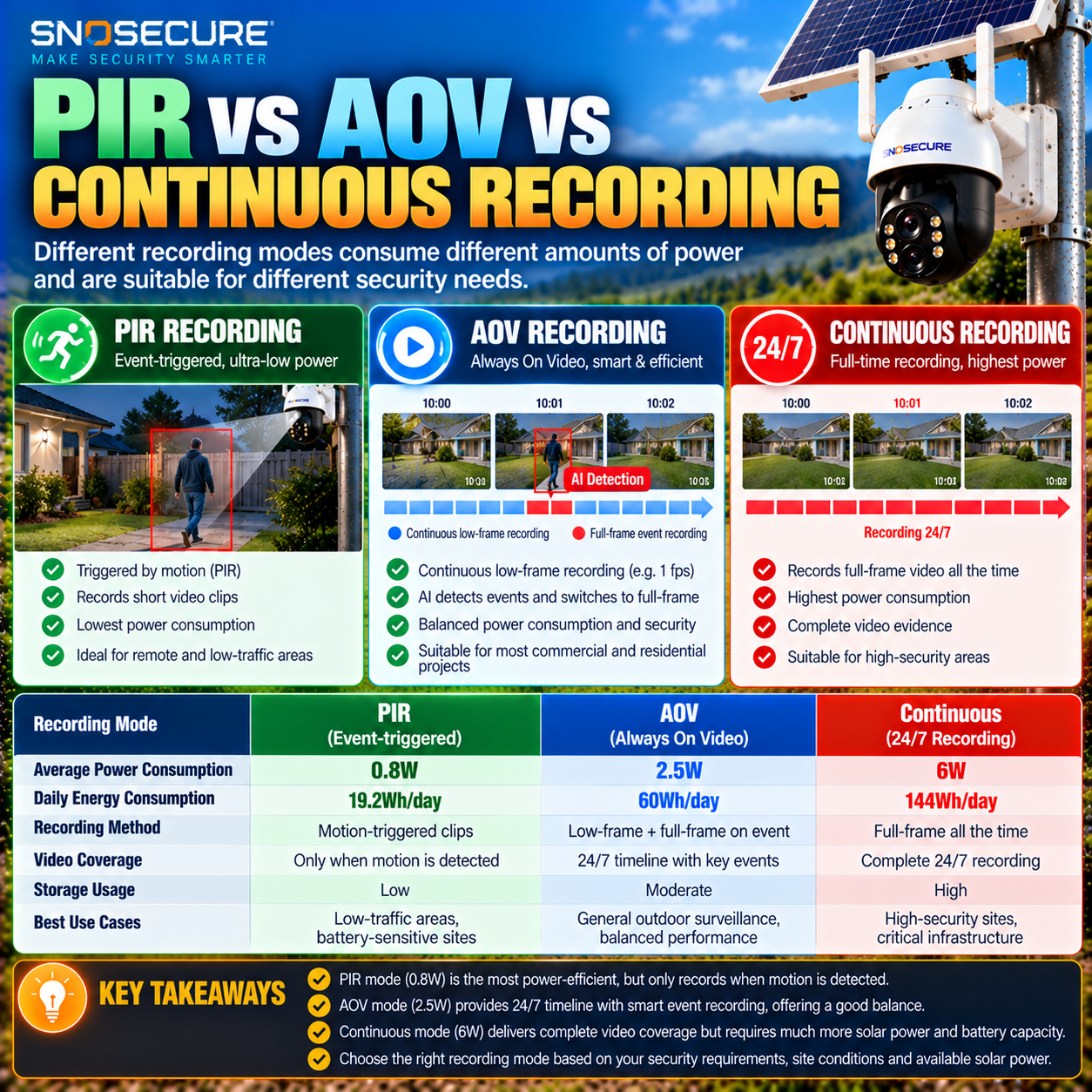

8. AOV vs PIR vs Continuous Recording: How Recording Modes Affect Battery Life

Camera recording architecture can dramatically influence energy demand.

Let’s compare three approaches.

PIR-Triggered Recording

A PIR-based battery camera can remain in a low-power state until a motion event wakes the system.

Advantages may include:

• Low standby consumption
• Reduced recording activity
• Lower battery demand

However, depending on the design, it may miss activity outside the trigger conditions or before the camera wakes.

AOV: Always-On Video

Some AOV camera architectures maintain a low-frame-rate video timeline during quieter periods.

When an event occurs, they may switch to higher-frame-rate recording.

This can provide more visual context than purely event-triggered recording.

But the implementation matters.

AOV DOES NOT AUTOMATICALLY MEAN FULL-FRAME-RATE 24/7 RECORDING.

Its energy use depends on the sensor, processor, firmware, recording frame rate, and connectivity behavior.

Continuous Full-Rate Recording

Traditional continuous recording may provide the most complete high-frame-rate video coverage.

But it can require more energy and storage, particularly when combined with frequent network transmission.

Illustrative Recording Architecture Comparison

Consider three hypothetical systems with the following average loads:

These are hypothetical workloads—not measured specifications of SNOSECURE products or industry-wide averages.

The table demonstrates a possible energy trade-off, not a universal ranking.

Using a battery with 360Wh of usable energy:

• PIR-oriented design: approximately 18.8 days
• AOV design: approximately 6 days
• Continuous recording design: approximately 2.5 days

The recording capabilities and surveillance outcomes are not equivalent.

A lower-power design may sacrifice video continuity or detail.

An AOV design may provide a useful compromise.

A continuous recording design may be required for certain professional applications.

THE RIGHT RECORDING ARCHITECTURE DEPENDS ON THE SECURITY REQUIREMENT AND AVAILABLE ENERGY BUDGET.

9. How Edge AI and 4G Connectivity Affect Solar Camera Energy Consumption

Modern solar cameras often combine AI detection with cellular connectivity.

These technologies can improve surveillance functionality.

But they also affect energy demand.

Edge AI

Edge AI can analyze selected video data locally, depending on the camera hardware and firmware.

For example, a camera may identify people or vehicles rather than sending every motion event as an alert.

This may reduce unnecessary notifications or transmissions.

However, AI processing itself consumes power.

The total energy benefit depends on the implementation.

4G Connectivity

Cellular communication allows remote monitoring without fixed broadband.

But modem power consumption varies with:

• Signal strength
• Network conditions
• Data transmission activity
• Connection management
• Firmware behavior

Weak coverage may increase power consumption and reduce communication reliability.

Local Recording vs Cloud Upload

Recording to local storage can reduce the need to transmit every video frame over 4G.

Cloud upload and frequent live viewing may increase data usage and energy demand.

The most effective design balances local processing, storage, remote access, and power consumption.

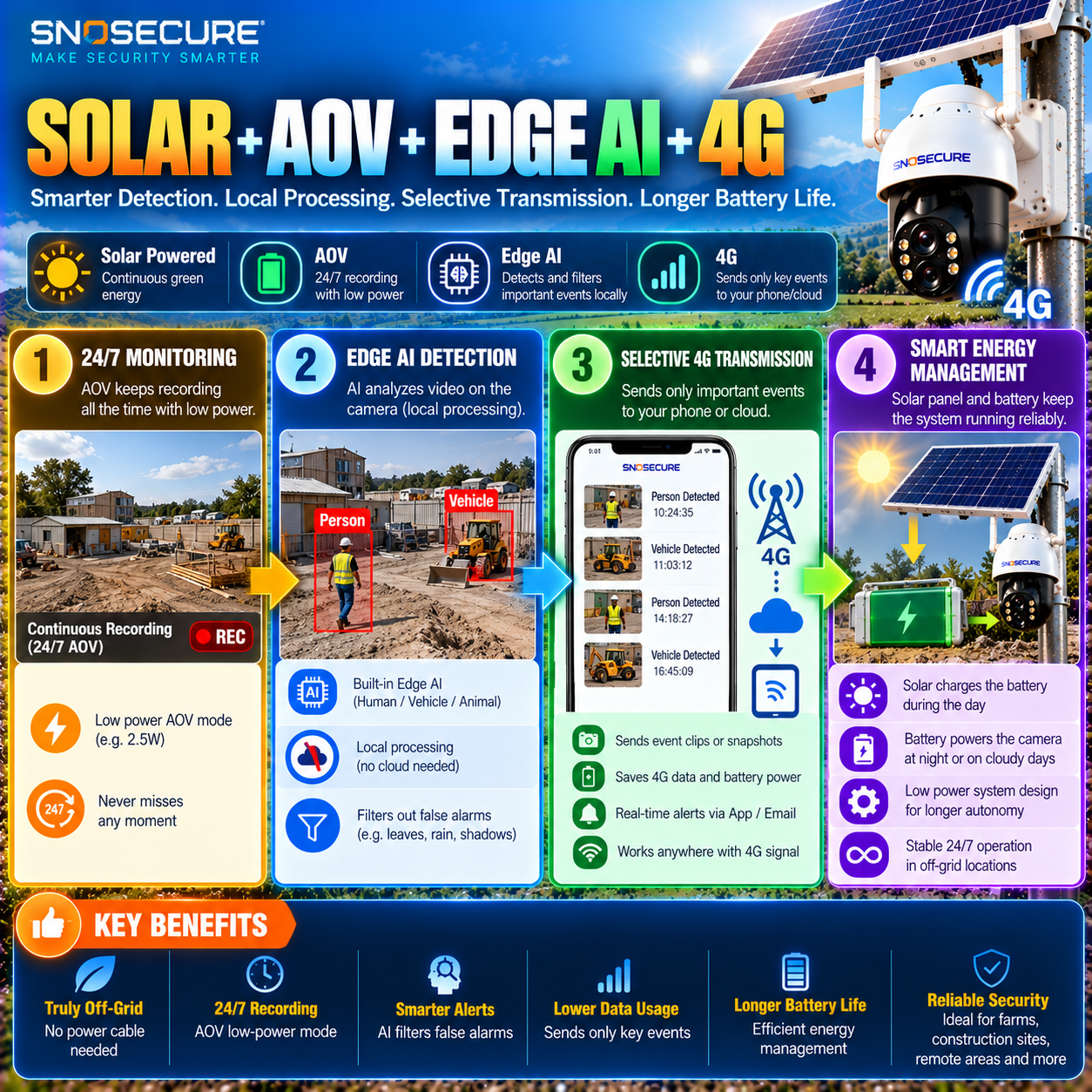

SOLAR → BATTERY → ENERGY-AWARE RECORDING → EDGE AI → SELECTIVE 4G TRANSMISSION

This architecture represents an important direction for remote surveillance engineering.

But the actual energy savings must be validated through product-level testing.

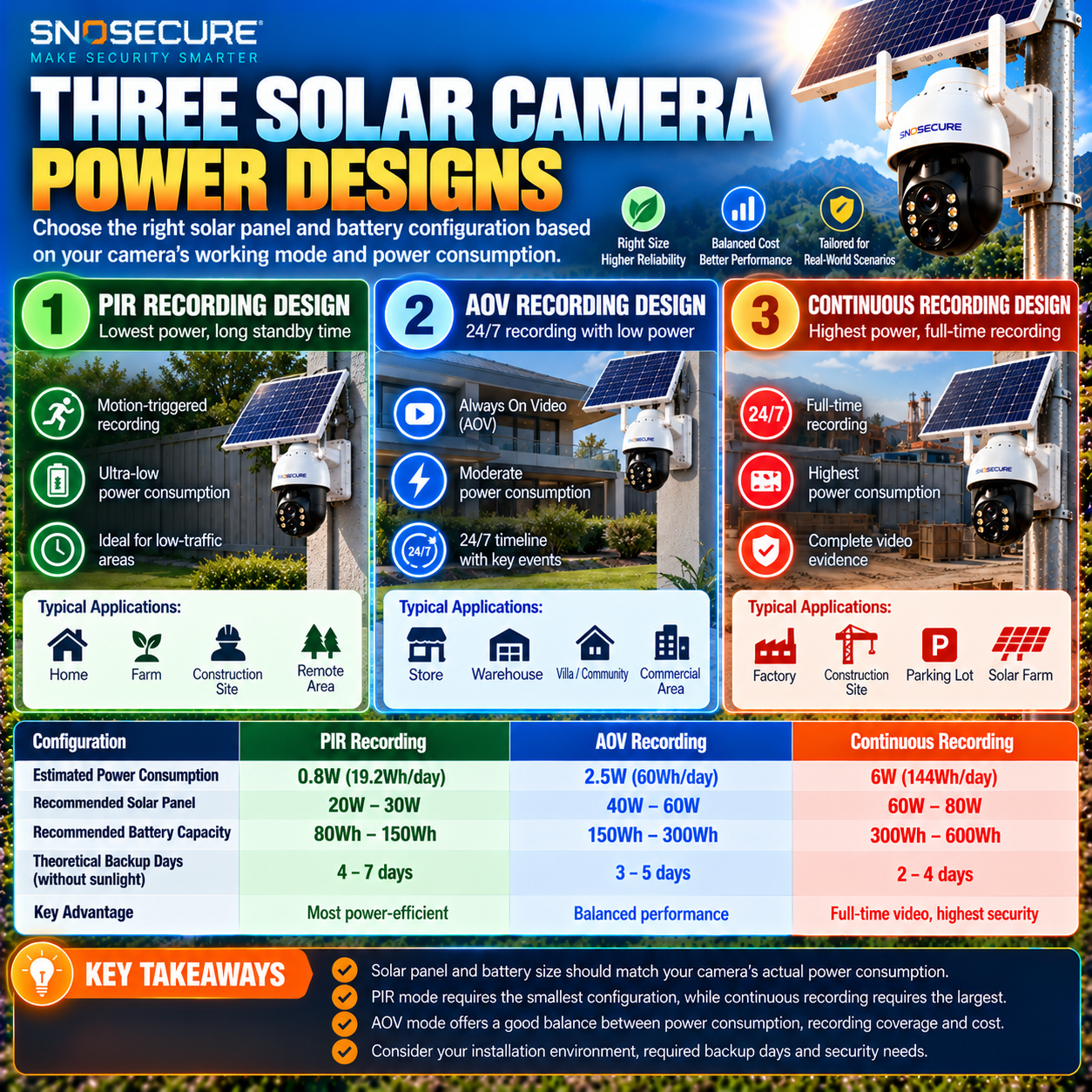

10. Three Solar Camera Design Scenarios: Which System Needs More Energy?

Let’s compare three hypothetical camera workloads.

All calculations below use:

• 4 equivalent peak sun hours per day
• 75% overall solar-generation factor
• 80% usable battery capacity
• 3 days of autonomy without meaningful solar input

These are illustrative assumptions, not product recommendations.

Scenario A: Low-Power PIR Camera

Average power: 0.8W

Daily consumption:

0.8W × 24 = 19.2Wh/day

Break-even solar panel size:

19.2 ÷ (4 × 0.75) = 6.4W

Nominal battery capacity for three days:

19.2 × 3 ÷ 0.80 = 72Wh

Scenario B: AOV Solar 4G Camera

Average power: 2.5W

Daily consumption:

2.5W × 24 = 60Wh/day

Break-even solar panel size:

60 ÷ (4 × 0.75) = 20W

Nominal battery capacity for three days:

60 × 3 ÷ 0.80 = 225Wh

Scenario C: Higher-Load Continuous Recording Camera

Average power: 6W

Daily consumption:

6W × 24 = 144Wh/day

Break-even solar panel size:

144 ÷ (4 × 0.75) = 48W

Nominal battery capacity for three days:

144 × 3 ÷ 0.80 = 540Wh

Summary Comparison

These panel sizes merely match average modeled consumption.

They do not provide a reliable recharge margin after cloudy weather.

A production design may require substantially more solar capacity.

The takeaway?

RECORDING ARCHITECTURE CAN CHANGE THE REQUIRED SOLAR PANEL AND BATTERY SIZE AS MUCH AS THE CAMERA HARDWARE ITSELF.

11. Why Solar Cameras Fail During Cloudy Weather

A solar camera may perform well during sunny conditions but struggle during extended low-light periods.

Common causes include:

Undersized Solar Panels

The panel cannot generate enough energy to cover daily consumption and recharge the battery.

Insufficient Battery Capacity

The battery does not store enough usable energy for the required backup period.

Unrealistic Sunlight Assumptions

Annual average sunshine may hide difficult winter conditions.

Higher-Than-Expected Camera Loads

Night vision, PTZ activity, frequent events, and cellular transmission may increase consumption.

Battery Temperature Effects

Cold temperatures can reduce available discharge capacity and may restrict charging.

Panel Shading or Soiling

Dust, snow, vegetation, and nearby structures can reduce generation.

Battery Aging

A system may meet its original autonomy target when new but fail to meet it after years of use.

Weak Cellular Coverage

Poor signal conditions can affect connectivity and potentially increase energy use.

The solution is not always a larger battery.

Sometimes the panel is too small.

Sometimes the camera needs better energy management.

And sometimes the installation location is unsuitable for the selected configuration.

RELIABLE OFF-GRID SURVEILLANCE REQUIRES A SYSTEM-LEVEL DIAGNOSIS.

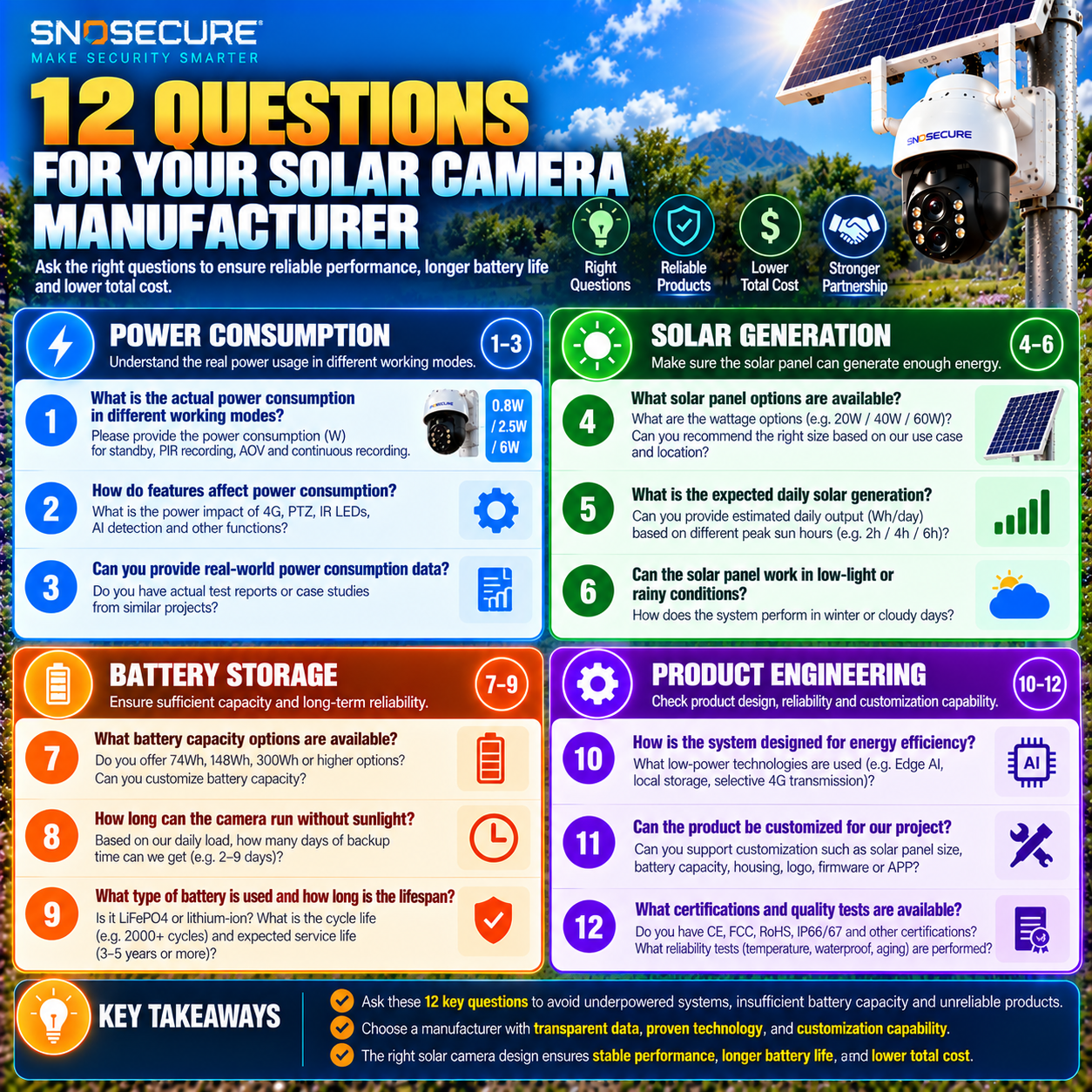

12. Twelve Questions B2B Buyers Should Ask Before Ordering Solar Cameras

Before placing a bulk OEM/ODM order, ask your supplier for the following information.

Power Consumption

1. What is the measured average power consumption under realistic recording conditions?

2. What are the standby, night vision, PTZ, AI, and 4G transmission loads?

3. Can the manufacturer provide a 24-hour energy consumption test report?

Solar Generation

4. What is the solar panel’s rated wattage and charging-system efficiency?

5. What installation orientation and sunlight assumptions are used?

6. Can the panel replenish the battery after several cloudy days?

Battery Storage

7. What is the nominal battery capacity in Wh, not just mAh?

8. What usable capacity and temperature limits apply?

9. How many days of autonomy are available under a clearly defined workload?

Product Engineering and Support

10. How do PIR, AOV, AI, and live viewing modes affect power consumption?

11. Can the manufacturer support different panel and battery configurations for different markets?

12. What validation, warranty, firmware, and after-sales support are available?

These questions help buyers move beyond promotional specifications.

They also help manufacturers and customers agree on realistic performance requirements.

A GOOD SOLAR CAMERA SUPPLIER SHOULD EXPLAIN THE ENERGY BUDGET—NOT JUST ADVERTISE A LARGE BATTERY.

13. Why Solar Camera Reliability Matters for OEM/ODM Buyers

For a distributor, an unreliable solar camera creates returns and after-sales costs.

For a brand owner, repeated battery complaints can damage customer trust.

For a system integrator, unexpected outages may require expensive site visits.

For an OEM/ODM buyer, incorrect energy sizing can affect an entire product launch.

This is why energy engineering should be considered early in product development.

The process should include:

1. Define the application.

Farm, construction site, warehouse, remote infrastructure, or residential property?

2. Define the recording requirements.

PIR-only, AOV, or continuous recording?

3. Measure real power consumption.

Use actual camera workloads rather than relying only on component datasheets.

4. Evaluate the installation environment.

Sunlight, weather, temperature, shading, and cellular coverage.

5. Size the solar panel and battery.

Include autonomy and recharge requirements.

6. Validate performance.

Test representative workloads and environmental conditions.

7. Plan long-term support.

Consider battery aging, firmware maintenance, and product lifecycle.

The objective is not to maximize every specification.

It’s to develop a system that meets its actual security and energy requirements.

14. Where SNOSECURE Sees the Opportunity

At SNOSECURE, we believe solar-powered surveillance is becoming an increasingly important area of camera product development.

Our manufacturing focus includes:

• Solar-powered security cameras
• 4G security cameras
• Wi-Fi cameras
• AOV camera solutions
• Intelligent surveillance products
• OEM/ODM camera manufacturing

For global B2B customers, different markets may require different product configurations.

A camera designed for a sunny agricultural region may need a different energy budget from one intended for northern European winters.

A PIR-oriented camera may require less storage energy than a system providing a more continuous AOV timeline.

A camera with frequent 4G transmission may need different power-management settings from one primarily using local storage.

These differences matter.

With 20 years of manufacturing experience, six production lines, and a 12,000 m² factory, SNOSECURE works with international customers on surveillance camera manufacturing and product development.

If YOU are developing a solar 4G camera product, we encourage you to begin with the real application requirements:

• Target market and installation climate
• Recording architecture
• Battery autonomy target
• Solar panel size constraints
• 4G connectivity requirements
• OEM/ODM customization needs

A reliable product begins with realistic engineering assumptions.

Conclusion: Solar Panels Generate Energy. Batteries Buy Time. Smart Design Delivers Reliability.

So, which matters more for off-grid camera reliability?

Solar panel wattage?

Or battery storage capacity?

The answer is neither one alone.

A larger solar panel improves potential energy generation.

A larger battery increases stored energy reserves.

But camera power consumption determines how quickly those reserves are used.

And local sunlight determines how quickly they can be replenished.

The real relationship is:

SOLAR GENERATION + BATTERY STORAGE + CAMERA POWER MANAGEMENT = OFF-GRID RELIABILITY

For B2B buyers, this leads to one important conclusion.

DON’T BUY A SOLAR CAMERA BASED ONLY ON PANEL WATTAGE OR BATTERY mAh.

BUY A SYSTEM THAT HAS BEEN ENGINEERED FOR YOUR ACTUAL DEPLOYMENT CONDITIONS.

Because the most important test of a solar security camera isn’t how well it works on a sunny afternoon.

IT’S HOW RELIABLY IT PERFORMS AFTER SEVERAL DIFFICULT DAYS.

Frequently Asked Questions

How many watts of solar panel do I need for a security camera?

Divide daily energy consumption in Wh by the product of equivalent peak sun hours and the assumed system efficiency factor. For example, a 120Wh/day camera with four peak sun hours and 75% efficiency requires approximately 40W just to match average consumption. Additional capacity is usually needed for recharge margin and seasonal reliability.

How do I calculate solar camera battery capacity?

Multiply daily energy consumption by the required number of backup days, then divide by the usable battery capacity fraction. A 120Wh/day system needing three days of autonomy at 80% usable capacity requires approximately 450Wh nominal battery capacity before further design margins.

How long can a solar camera run without sunlight?

Divide usable battery energy by daily camera consumption. A system with 360Wh of usable battery energy and 60Wh/day consumption has a theoretical autonomy of six days, assuming no meaningful solar recharge and no additional unmodeled losses.

Is a 20,000mAh battery enough for a solar security camera?

It depends on the battery voltage, usable capacity, and camera power consumption. A 20,000mAh battery rated at 3.7V stores approximately 74Wh nominally, while one rated at 7.4V stores approximately 148Wh. Compare batteries using Wh and verified usable energy.

Does AOV recording consume more battery than PIR recording?

It can, because some AOV architectures maintain low-frame-rate recording between events while PIR-oriented designs may spend more time in standby. However, actual power consumption depends on the hardware, firmware, recording settings, and transmission behavior. Product-level measurements are required.

Can a larger battery solve cloudy-weather problems?

A larger battery can extend backup autonomy, but it cannot solve a persistent energy deficit if solar generation remains below camera consumption. The panel, battery, and camera load must be evaluated together.

About SNOSECURE

SNOSECURE is a security camera OEM/ODM manufacturer serving global B2B customers with solar-powered cameras, 4G cameras, Wi-Fi cameras, AOV solutions, and intelligent surveillance products.

20 Years Manufacturing Experience | 6 Production Lines | 12,000 m² Factory

If YOU are evaluating solar camera battery sizing, solar panel configurations, off-grid CCTV power requirements, or private-label solar 4G camera development, let’s discuss your project.

Website: https://camhiprocam.com/

Email: simple@camhiprocam.com

WhatsApp: +86-185-6568-6066

SNOSECURE — MAKE SECURITY SMARTER.

Engineering disclaimer: All wattage, battery, autonomy, and recording-mode examples are illustrative calculations rather than verified specifications of particular SNOSECURE products. Final system design should account for site-specific weather, battery chemistry, aging, temperature, electrical losses, workload, and manufacturer test data.
