Description

Product function introduction

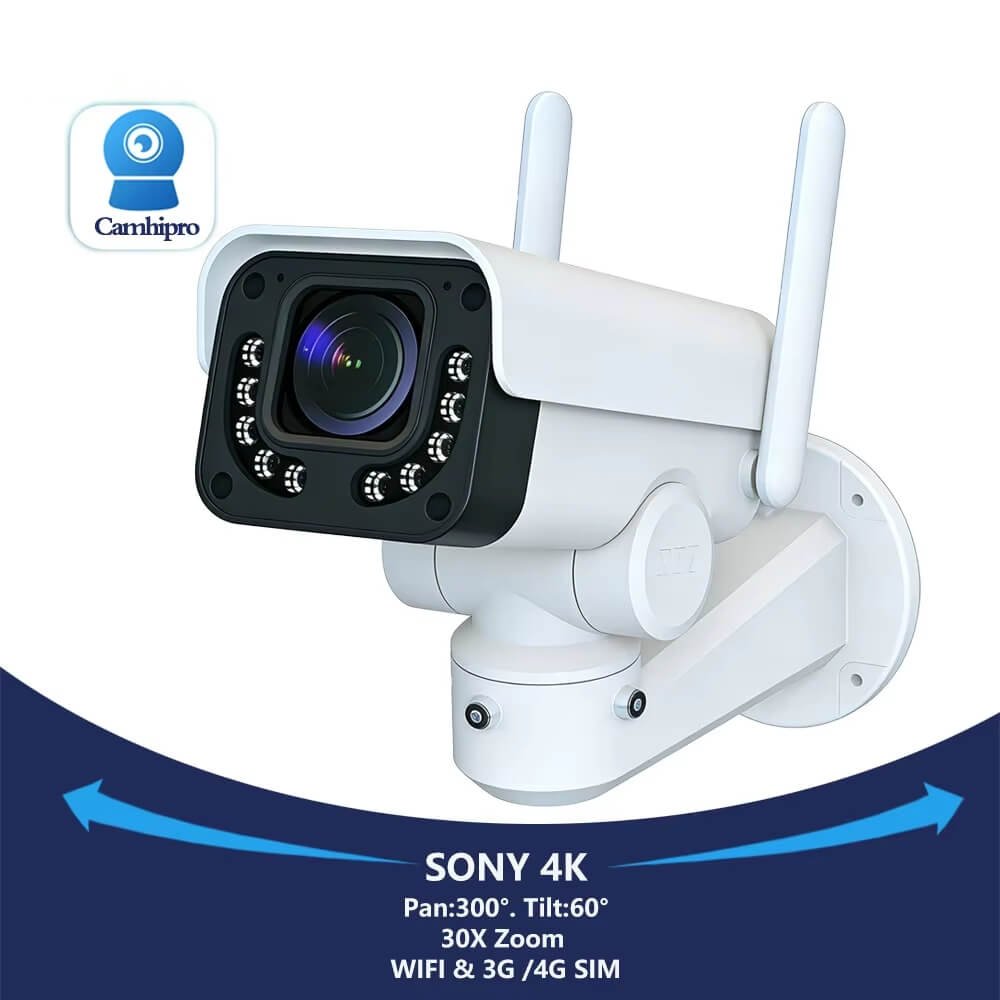

1. Bullet PTZ , Pan:300° ,Tilt:60° ；Support 5MP 1/2.8″ SONY IMX335 sensor; 8MP 4K 1/2.8″ SONY IMX415 sensor;
2. Dual light source LED.Support IR black and white night vision /Full color night vision/ IR&Color smart night vision.Support Two-way audio；
3. Support Motion detection alarm, Humanoid alarm/Vehicle movement alarm. Support micro SD/TF card slot ,Support Onvif. P2P remote connection

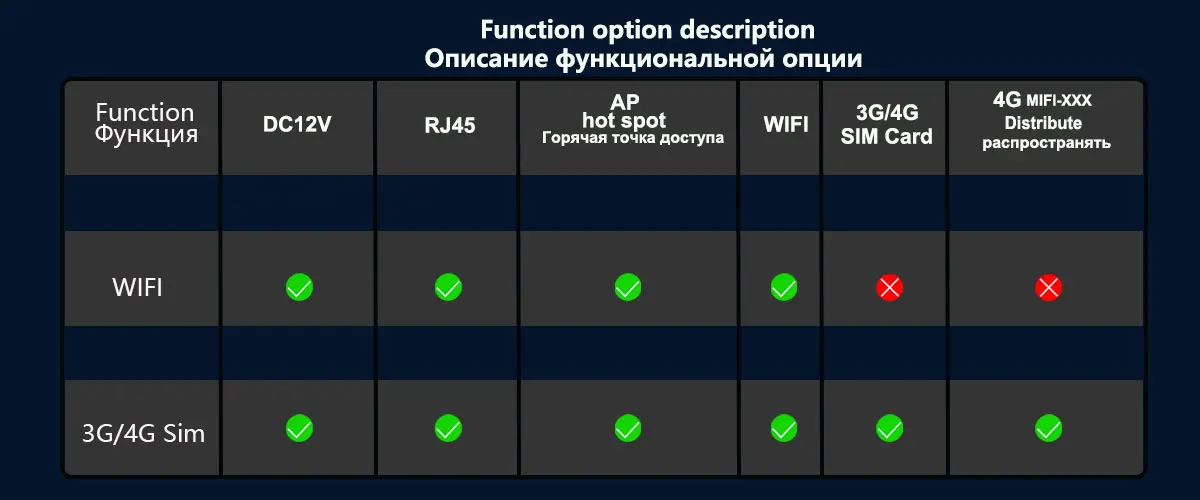

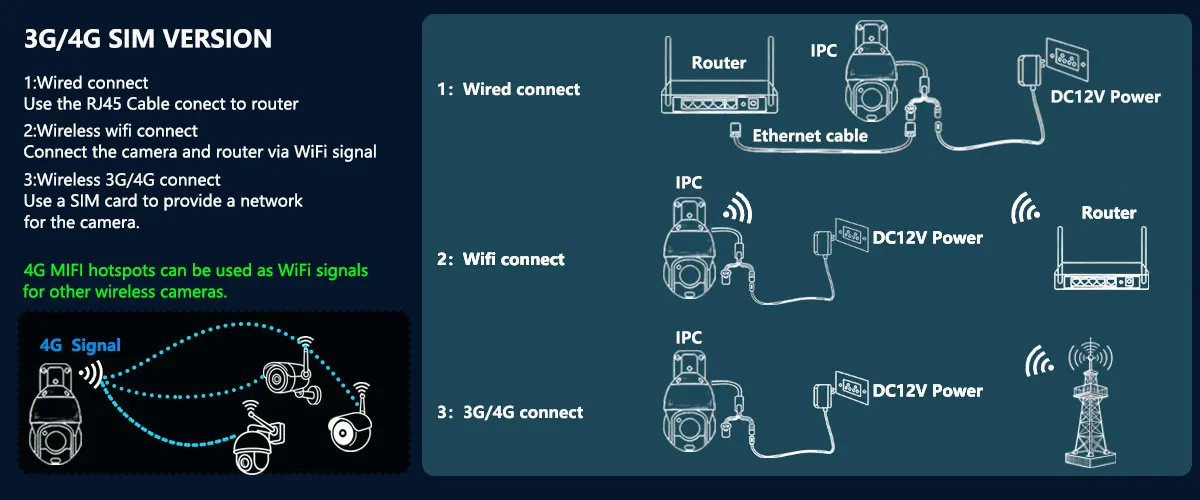

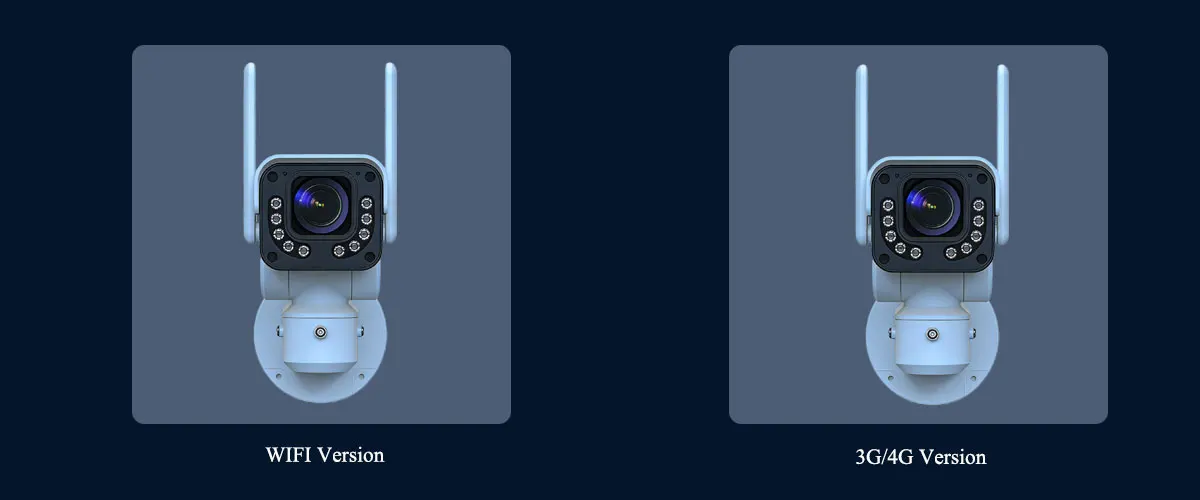

4. WIFI Version:SupportLAN+WIFI; 4G Version: support LAN+WIFI/4G . 4G MIFI signals support wireless distribution to other devices.
5. 30X auto zoom lens.Support cruise.Support automatic humanoid tracking. Automatically adjust the focal length during automatic tracking

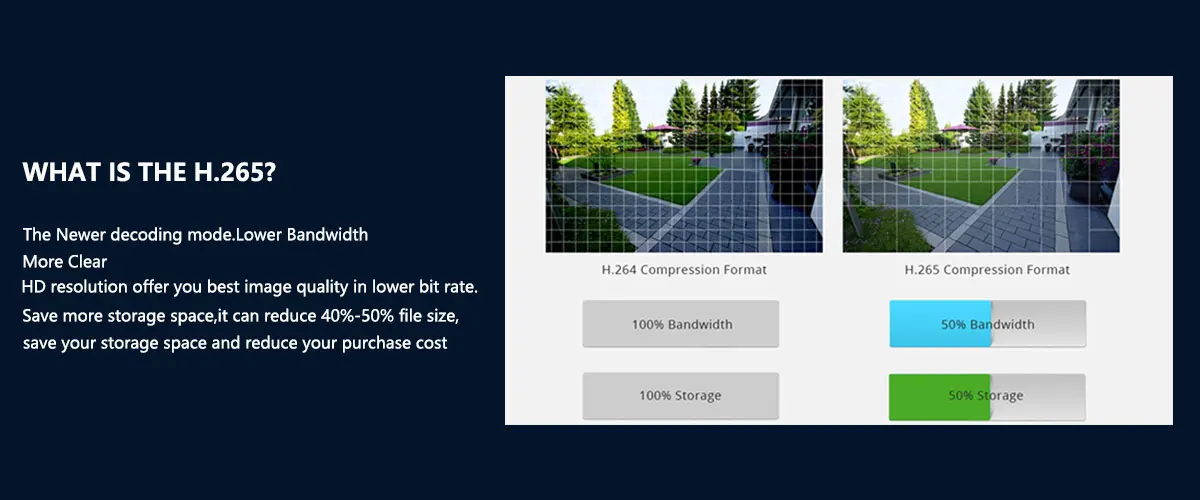

New H.265 Compression Technique

Lower Bandwidth/Less Storage Space/Better Image Quality

Two Way Audio

Built-in microphone records what people say, make it authentic with sound video recording;

Smart IR-CUT Day & Night

4pcs array infrared, 4pcs array laser, 2pcs array white light, infrared night vision range of 100 meters, white light night vision range of 30 meters;

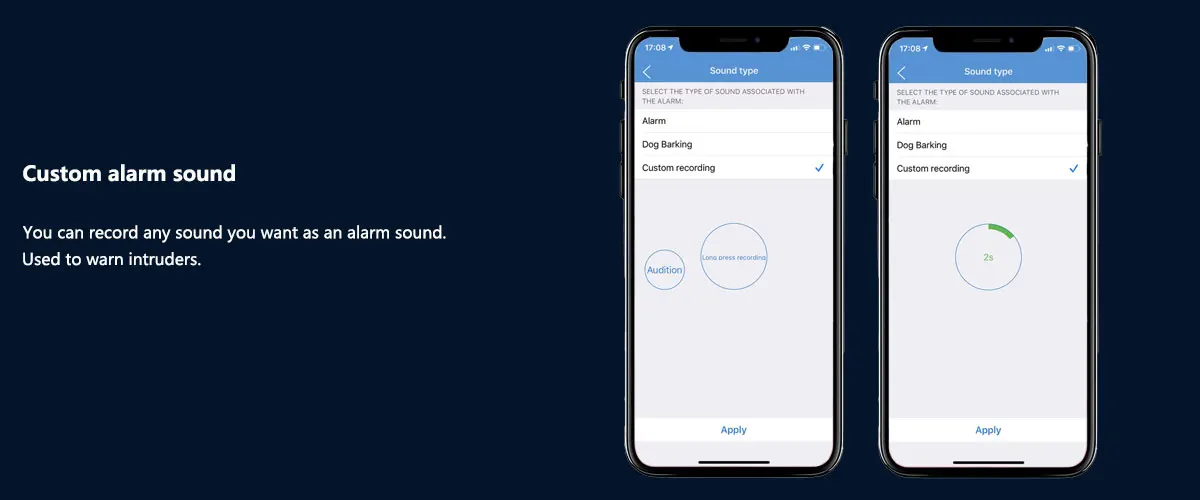

Custom sound alarm

Pan Tilt Rotation 30X Zoom

4.7-103.4mm 30X lens :20x(Optical zoom)+10x(Digital zoom）auto zoom lens

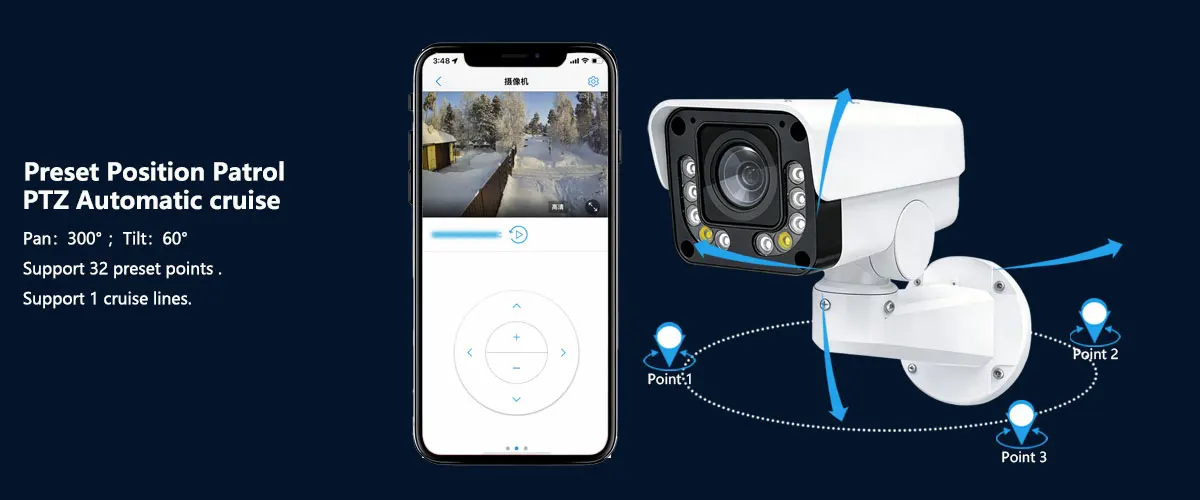

PTZ Automatic cruise /Preset Position Patrol

Support 1 cruise lines.32 preset points .

The camera will adjust the pan/tilt rotation automatically, capturing clear monitoring targets and auto-tracking moving human,and push alerts via email or notifications to your phone.

The 30Xcamera can automatically zoom in or out during the process of automatic tracking, according to the distance and proximity of the characters

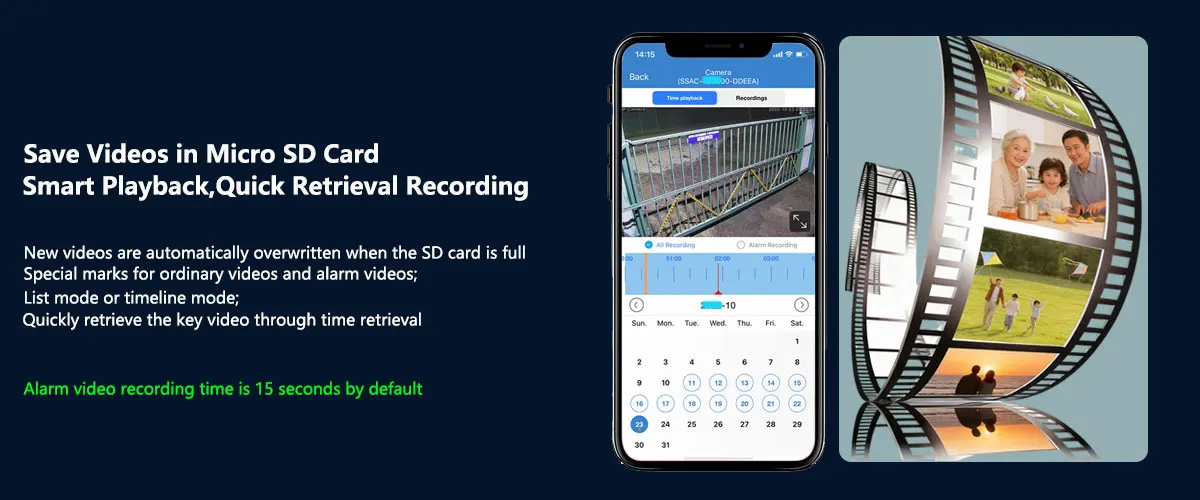

Quickly retrieve the key video through time retrieval

③ 4G standard:FDD-LTE ,3G standard:WCDMA（As shown below.)

PS：4G Signal (MIFI-XXX) can be used as WiFi signal for other wireless devices

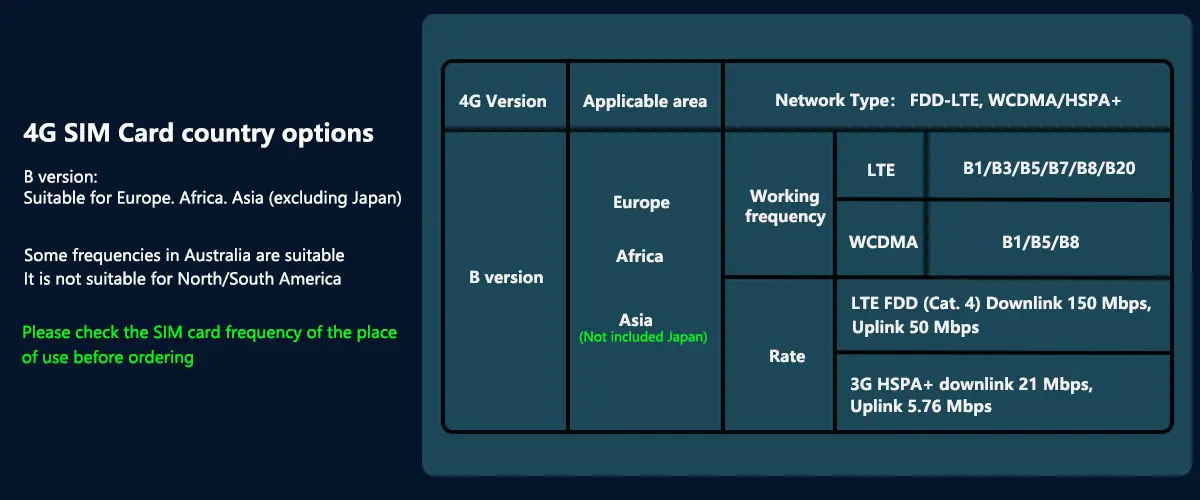

4G SIM Card country options

There are multiple versions of 4G modules. Please note the version you need

① B version:Suitable for Europe. Africa. Asia (excluding Japan)
② M version：Suitable for South America, North America
③ AO version：Suitable for Australia and neighboring countries
④ R version ：Only suitable for Japan

• We only provide B version of this product. Please note your country location.
• If you need other versions. Must contact us in advance.Other versions need to be booked in advance

• Camera username:admin ,password:admin.
• Camera hotspot:ipcam-xxx(Every camera has a different hotspot). password:01234567

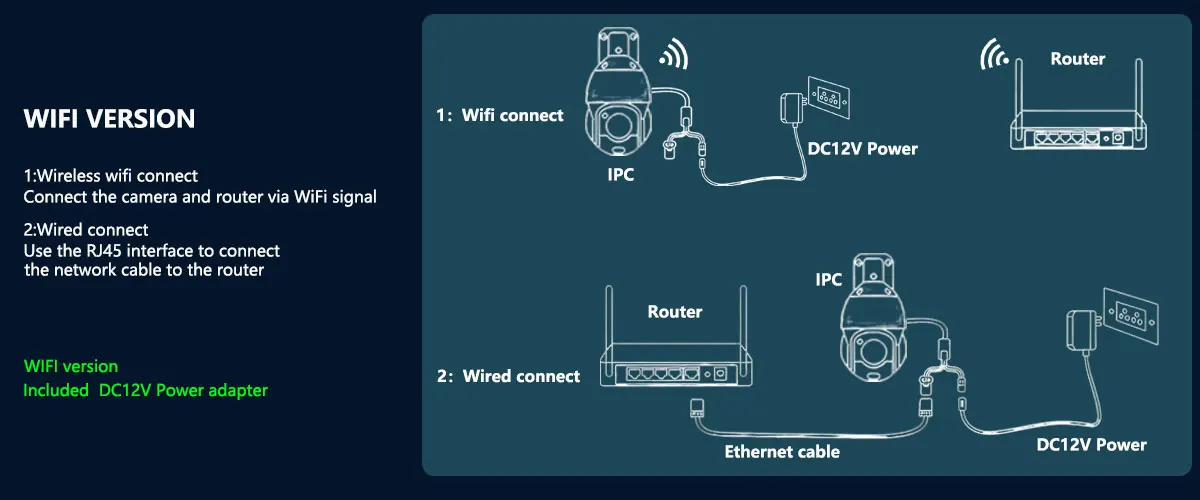

• Use the AP function. You can quickly set your camera to connect to your WiFi signal,No network cable required.
• You just need to connect your phone to the camera hotspot. Keep the camera and phone on the same LAN.
• If the camera hotspot does not appear. Please wait for a while. Or use the reset button once.

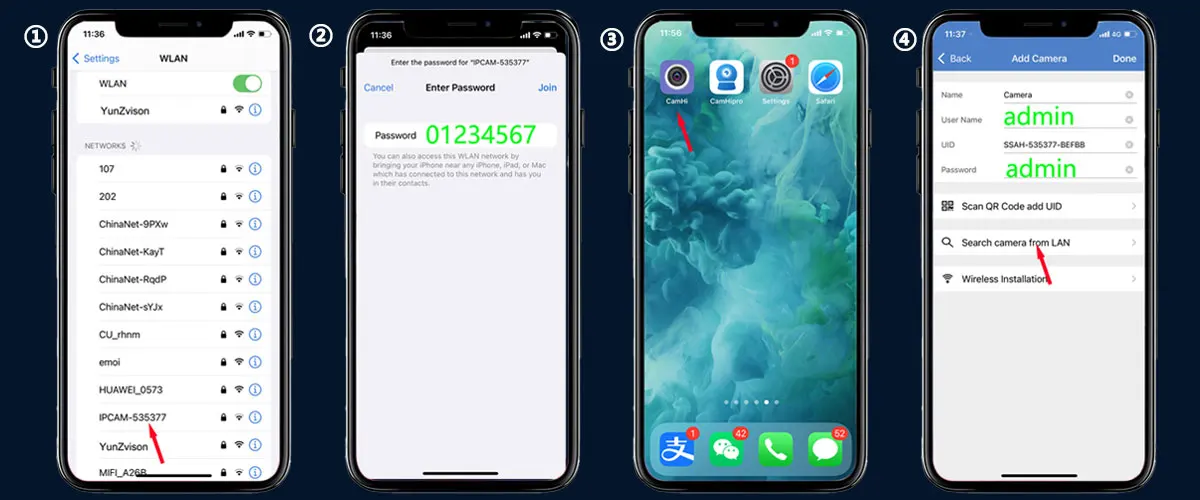

Camera will stay in AP mode by default.

1. Go to your phone “settings”–WLAN,Search WiFi signal.Choose the wifi hotspot”ipcam-xxx”,erery camera’s  hotspot is not the same.
2. Connect your phone to the camera’s IPCAM-XXX hotspot. Password 01234567.Let the phone and camera on the same LAN
3. Open the App“Camhi”or”Camhipro.Add Camera.
4. Select”Search Camera From LAN”.You will find the camera’s UID,add it  ,use name and password:admin.

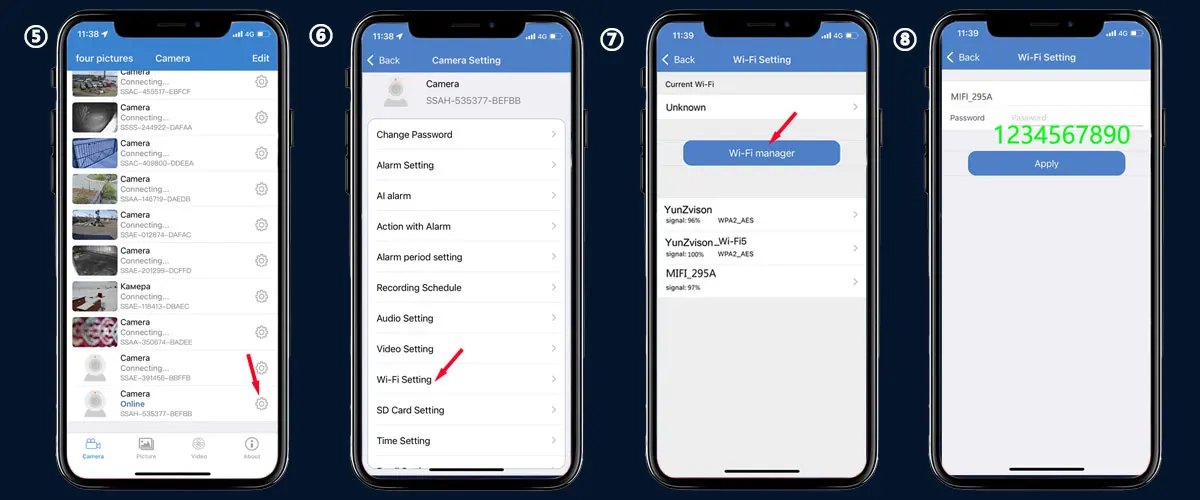

5. When the camera shows online in LAN.Click the camera setting button. Enter “WIFI setting”.
6. Click “wifi manager”. Select your wifi signal. Enter your WiFi password.

• If you need use 4G signal .choose the signal “MIFI_XXXX”,password:1234567890.Camera connection successfully !

Package Includes

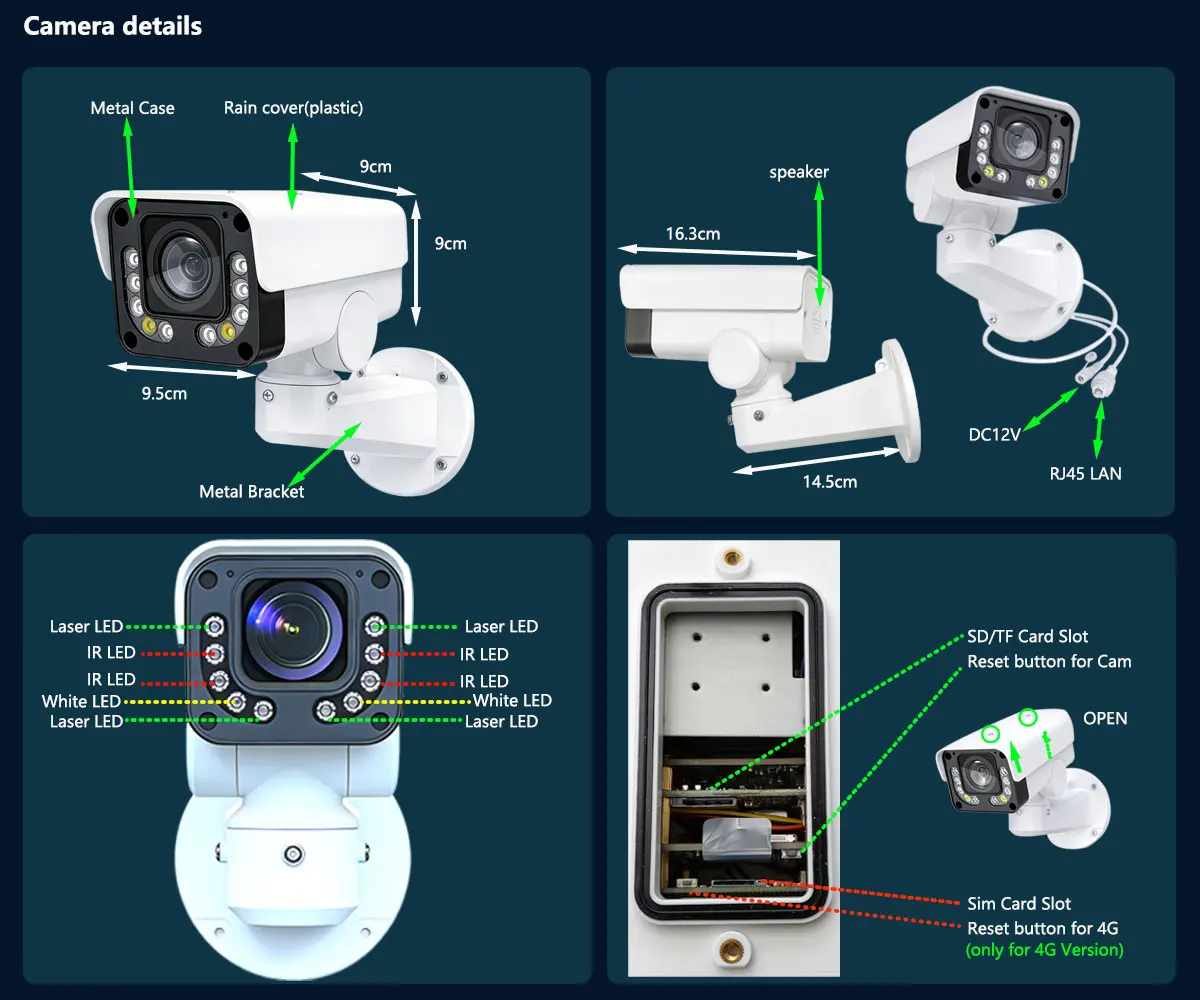

About Camera

• Signal System: PAL(50HZ) / NTSC(60HZ) automatic identification
• Day& Night:Dual IR-cut filter auto switch
• Video Codec:H.265/H.264 main profile and baseline
• Image Settings: Brightness,Saturation,Contrast,Sharpness,Exposure,Gamma,Distortion,Flip , Mirror, WDR
• OSD Settings:Time Stamp,Time show,Camera name,Name show
• Privacy Mask:4 Configurable regions
• Network Protocol: TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTSP, ect.
• Access Protocol: ONVIF2.4 , i13, P2
• Support P2P
• Support motion detection alarm (4 areas can be adjusted, the sensitivity can be adjusted)
• Support alarm picture to send E-Mail
• Support Alarm picture or video upload FTP server
• Support timed capture pictures to FTP server
• Support Micro SD card function
• Support for static IP, also supports dynamic IP (DHCP)
• Support IE, Google, Firefox browser,Recommend to use IE browser.
• Support multiple users to browse simultaneously
• ONVIF port：8080
• RTMP port:1935;address： rtmp://IP address:1935/flash/11:admin:admin
• HTTP port:80; address：http:// IP address /web/admin.html
• RTSP port:554; address：rtsp://IP address:554/11
• Network:1 * RJ45 10Base-T/100Base-TX ethernet interface
• Power:1 * Ø5.5 RCA interface
• Reset button:1*Reset button
• Audio : Audio Codec: G.726/G.711
• Audio input : Built-in microphone
• Audio output : 1*Built-in Loud Speaker
• Anti-thunder Level: Standard IEC61000-4-5
• Operating Conditions: -20 °C ~ 55 °C Humidity 95% or less (non-condensing)

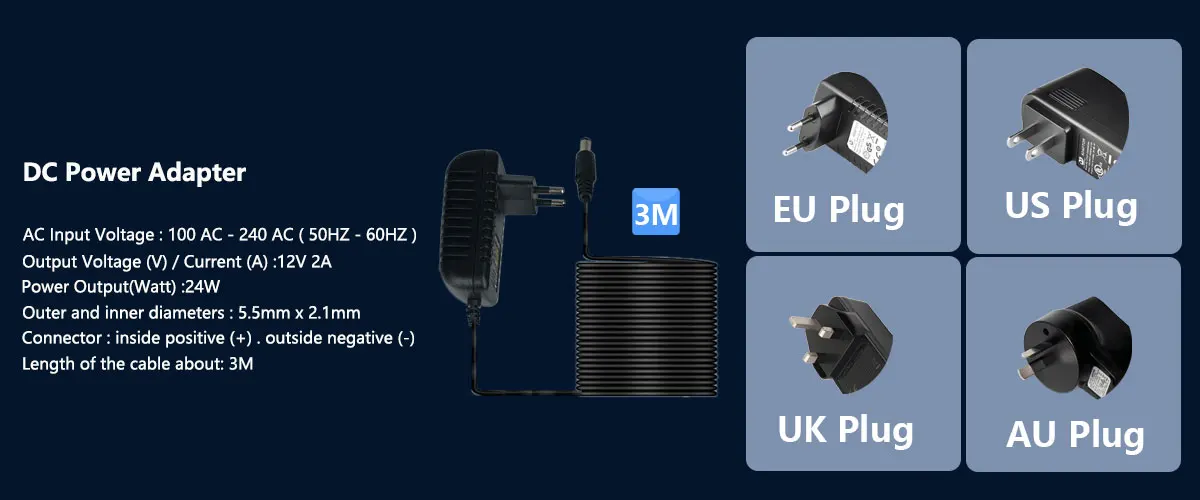

• Power Supply: DC12V 2A
• Power Consumption: 3W(daytime), 6-9W(night)
• Housing Material:Metal
• Applicable: Indoor use /Outdoor use(waterproof)
• Weight:1.3-1.5kg
