Introduction: Why Did Security Cameras Start Growing More “Eyes”?

For more than two decades, video surveillance has been trying to solve one deceptively simple problem:

How can one camera see wider without losing the detail needed to identify what happened?

A conventional camera has an unavoidable optical trade-off.

Use a wide-angle lens and you capture more of the scene—but distant targets occupy fewer pixels.

Use a longer focal length and you gain more detail on distant objects—but your field of view becomes narrower.

As surveillance moved from basic recording toward high-resolution identification, analytics and wide-area situational awareness, this trade-off became increasingly important.

The industry responded in several ways:

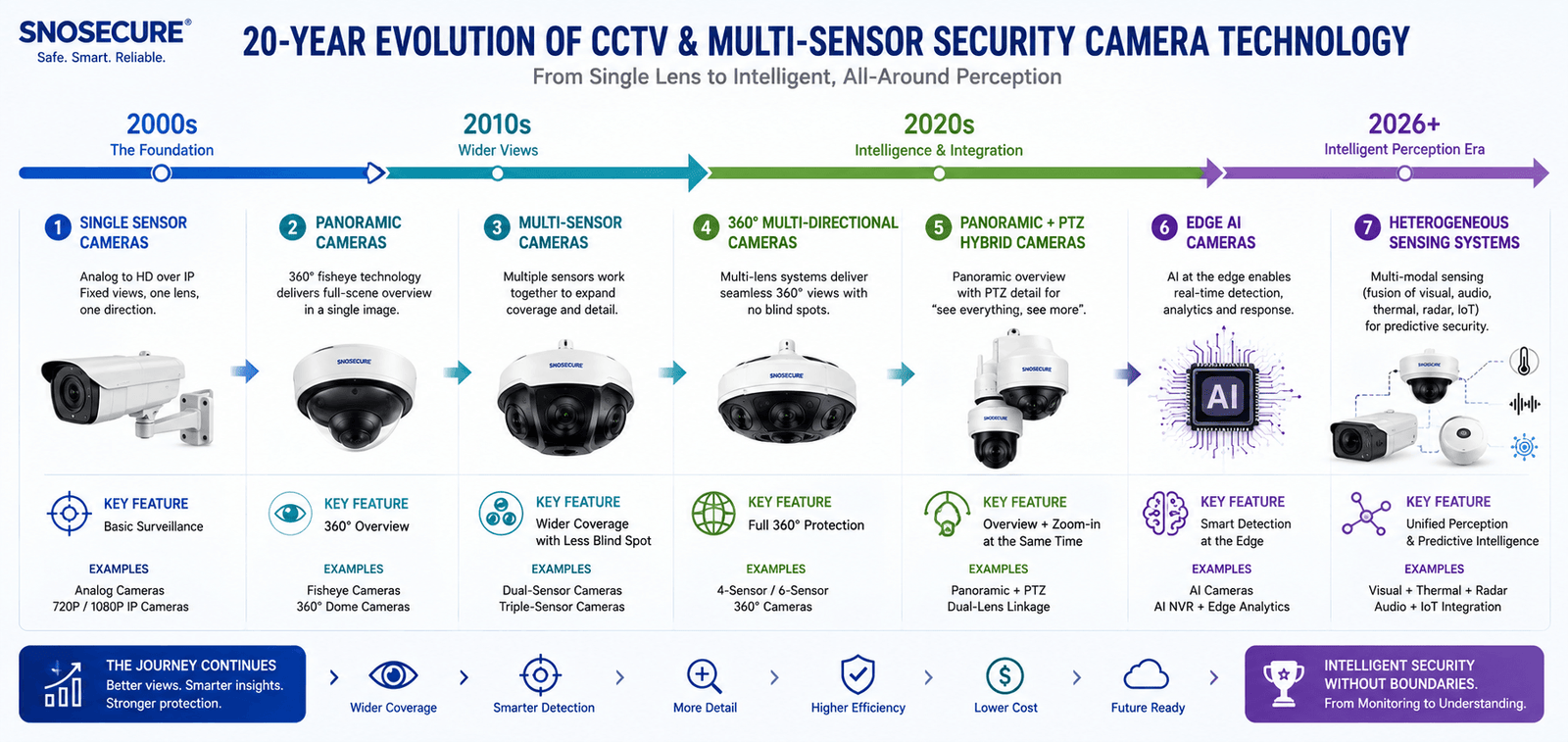

Single sensor → panoramic optics → multi-sensor imaging → 180°/360° coverage → multidirectional cameras → panoramic + PTZ → AI-assisted heterogeneous systems.

Multi-sensor design therefore isn’t simply about adding more cameras into one housing.

It is an engineering response to three competing requirements:

Field of View × Pixel Density × System Cost

Understanding that relationship helps you choose the right architecture instead of assuming that “more sensors” automatically means “better surveillance.”

1. The Single-Sensor Era: One Camera, One View

Traditional CCTV architecture was straightforward:

1 sensor + 1 lens + 1 viewing direction

For many applications, that was enough.

A 2.8 mm wide-angle camera could monitor:

• Small retail stores
• Offices
• Entrances
• Elevators
• Indoor rooms

A longer focal-length camera could monitor:

• Gates
• Roads
• Perimeters
• Parking entrances
• Distant targets

The problem was that one optical system could not maximize both coverage and target detail simultaneously.

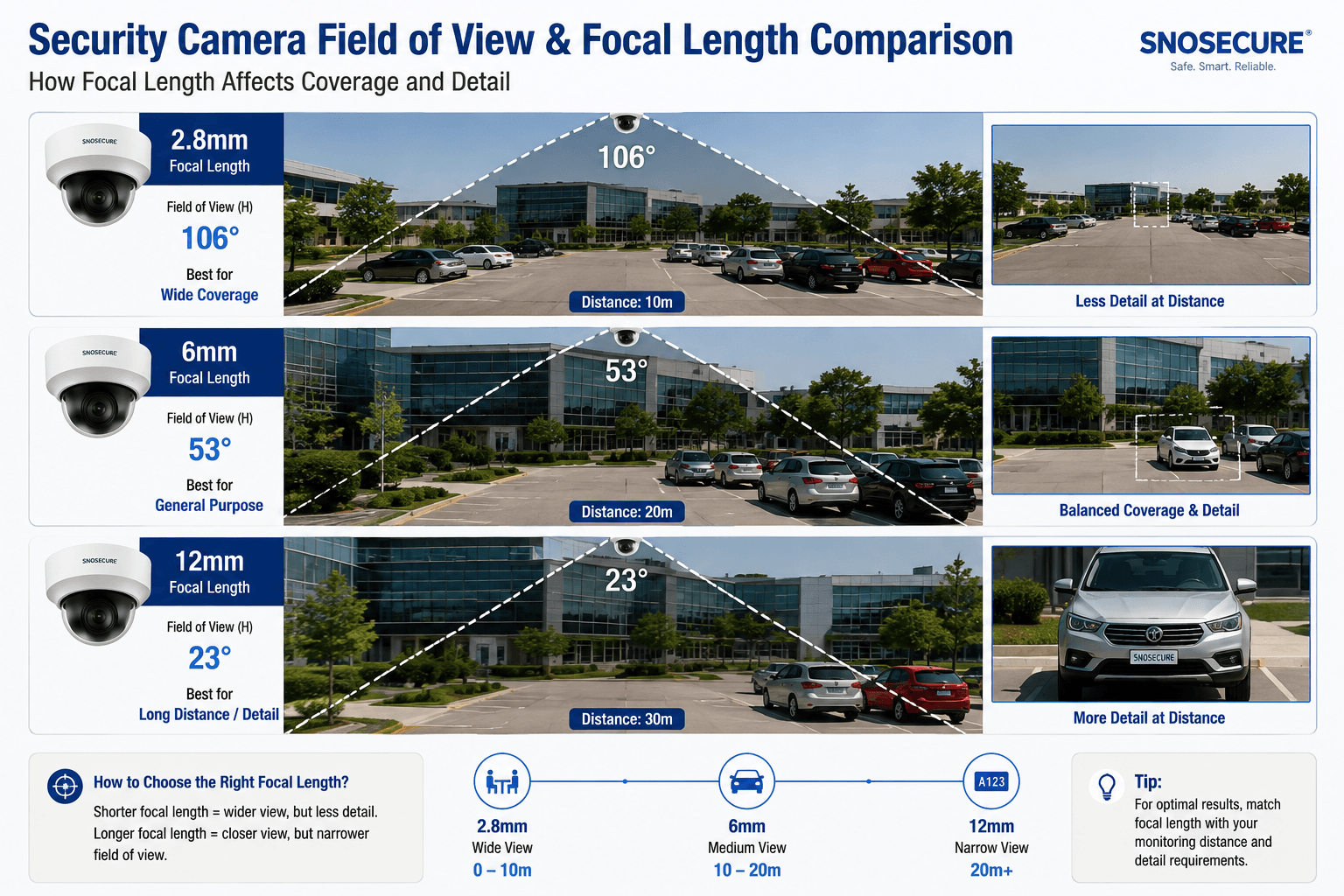

Wide Lens vs. Telephoto Lens

This explains an important principle:

Resolution and field of view must be designed together.

An 8MP camera pointed at an enormous area can still provide less useful identification detail than a lower-resolution camera focused tightly on the target.

2. Why One Sensor Wasn’t Enough

As camera resolution improved from megapixel HD toward 4MP, 8MP and beyond, customer expectations also changed.

Users increasingly wanted:

• Wider coverage
• Higher identification detail
• Fewer blind spots
• Fewer camera installation points
• Lower cabling costs
• Fewer switch ports
• Simplified VMS management

Installing more conventional cameras could solve the coverage problem.

But every additional camera could also mean another:

• Cable run
• Mounting location
• PoE port
• Configuration
• Maintenance point
• Recording stream
• VMS license, depending on the platform

This created a commercial opportunity:

What if several views could be integrated into one physical camera?

That question helped drive multi-sensor surveillance development.

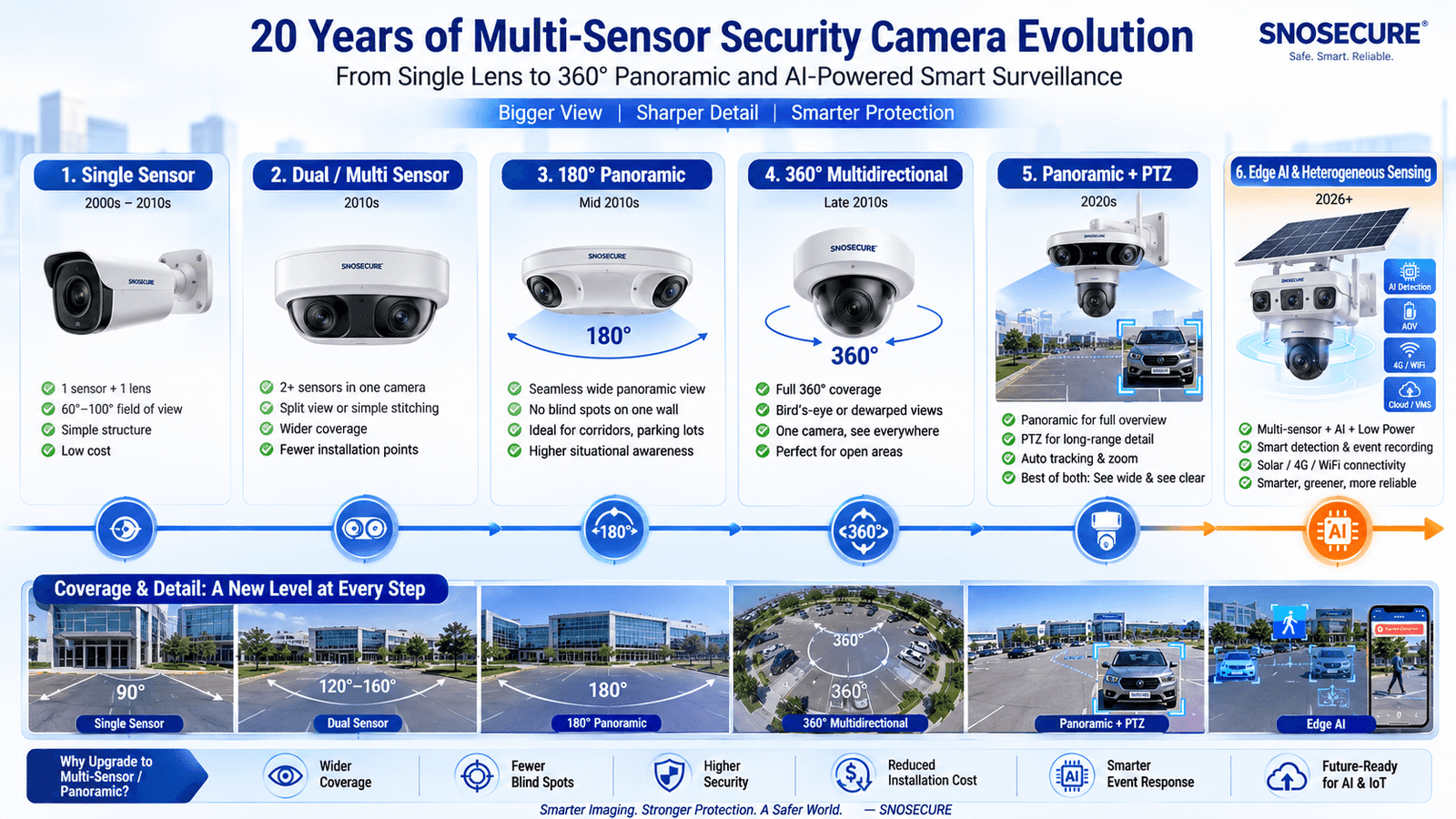

3. Multi-Sensor Panoramic Cameras Arrive

Multi-sensor panoramic surveillance is older than many people realize.

Commercial multi-sensor megapixel cameras providing 180° and 360° coverage were already appearing in the mid-2000s.

The basic concept was powerful:

Instead of forcing one lens and one sensor to cover the entire scene, use several imaging channels.

Each sensor covers part of the scene.

The camera can then:

1. Output those views independently, or
2. Combine them into a panoramic view.

This dramatically changed wide-area surveillance.

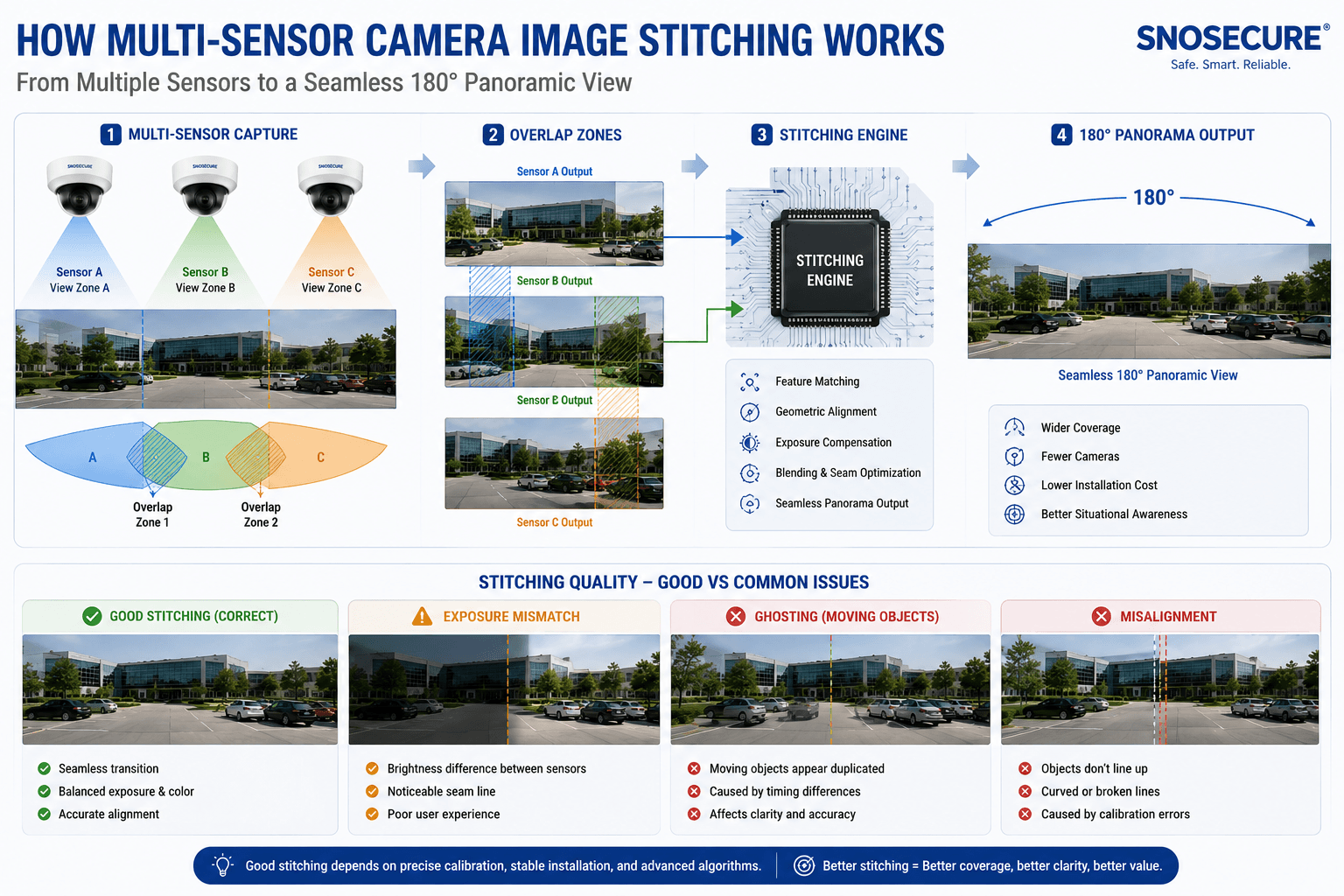

4. Image Stitching: Making Several Sensors Look Like One

One major approach to multi-sensor surveillance is image stitching.

Imagine three or four cameras looking at adjacent sections of the same scene.

Their images overlap slightly.

Software analyzes these overlapping areas and combines the individual images into a continuous panorama.

The result can feel like one ultra-wide camera.

Modern commercial multisensor cameras can provide seamless 180° panoramic views from multiple sensors while maintaining one integrated camera experience.

Why Stitching Became Attractive

It could provide:

• Wide continuous views
• Fewer blind spots
• Better situational awareness
• Fewer physical camera housings
• Easier tracking across large scenes

Applications include:

• Airports
• Railway stations
• Parking areas
• Stadiums
• Warehouses
• Campuses
• Critical infrastructure
• Large commercial buildings

But stitching introduces engineering challenges.

5. The Hidden Cost of Image Stitching

Combining multiple images sounds easy.

Doing it well is not.

Several imaging pipelines must behave as if they were one camera.

Potential problems include:

This is why good panoramic imaging is more than putting multiple sensors into the same enclosure.

The value comes from the entire imaging pipeline:

Sensor + Lens + ISP + Calibration + Synchronization + Stitching + Encoding

6. From 180° Panoramic to 360° Surveillance

A 180° panoramic camera is ideal when installed against a wall.

But open areas create a different requirement:

What happens behind the camera?

This led to greater use of 360° surveillance architectures.

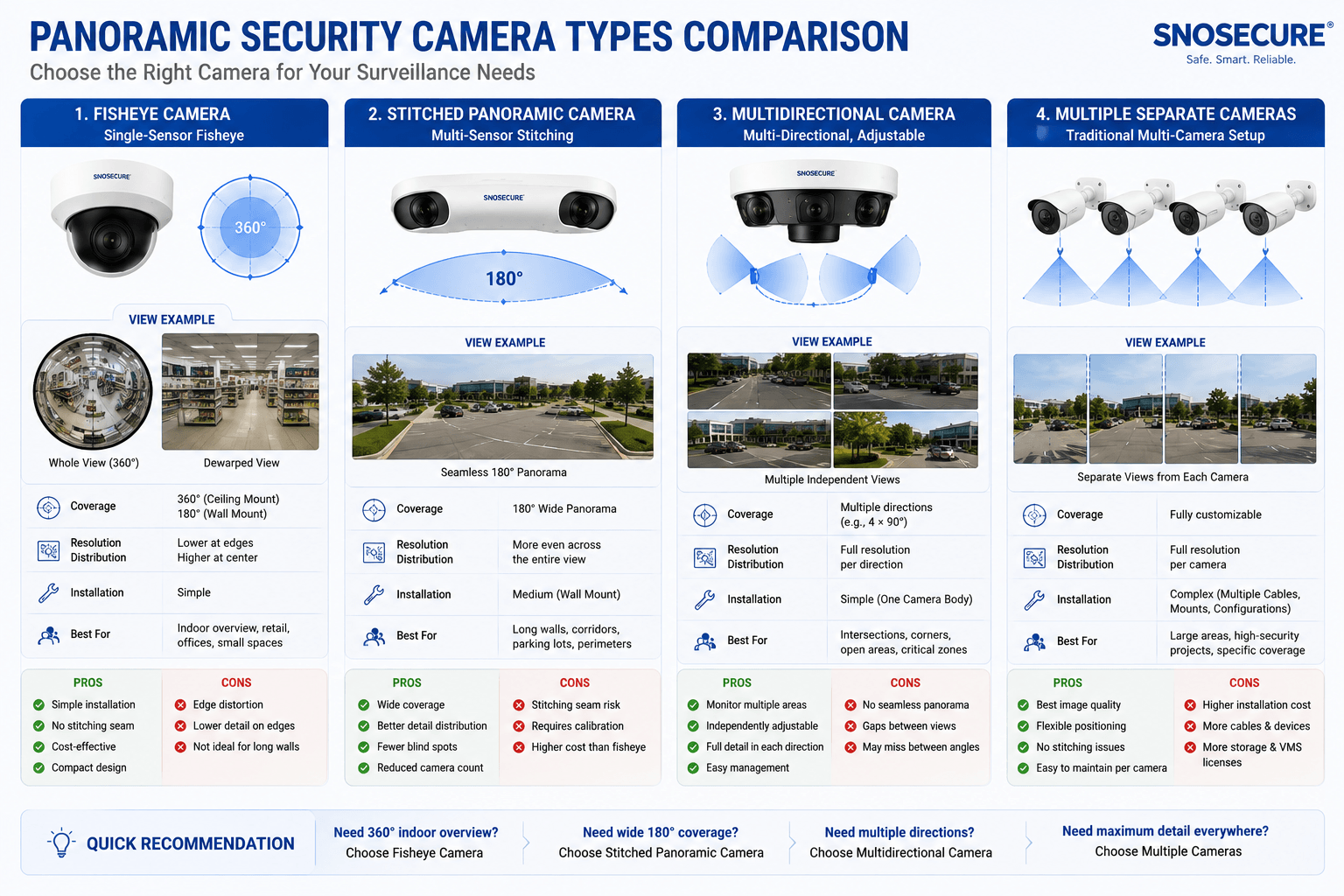

Today, panoramic surveillance can be achieved using different optical approaches.

Single-Sensor Fisheye

One high-resolution sensor uses an ultra-wide fisheye lens to capture a hemispherical scene.

Advantages:

• Compact
• No multi-sensor stitching boundary
• Simple installation
• 180°/360° coverage

Trade-offs:

• Strong optical distortion
• Dewarping required
• Pixel density decreases as the monitored area expands

Multi-Sensor / Multi-Imager

Several sensors point in different directions.

Advantages:

• Greater flexibility
• Higher combined resolution
• Better pixel density across wide areas
• Independent viewing directions possible

Trade-offs:

• More hardware
• More complex processing
• Calibration requirements
• Higher cost

Multidirectional Camera

Multiple independently adjustable camera heads share one housing.

This is particularly useful when the important areas aren’t located in one continuous panorama.

For example:

Entrance + loading bay + parking lot + perimeter

One physical camera can monitor several different directions.

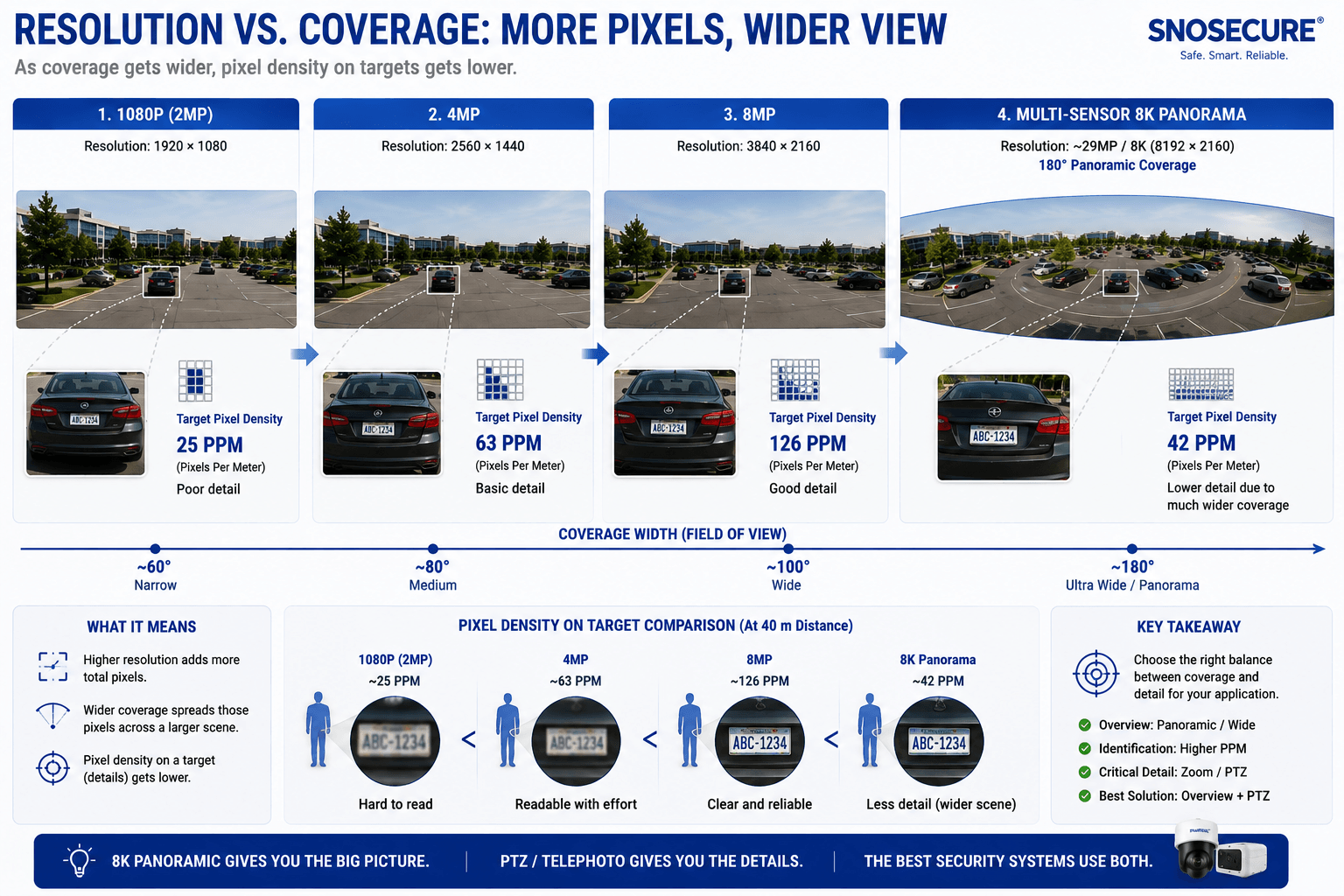

7. Why “360°” Does Not Automatically Mean “More Detail”

This is one of the most misunderstood parts of panoramic surveillance.

A camera may advertise:

12MP / 16MP / 20MP / 360°

That sounds impressive.

But the key engineering question is:

How many pixels cover the target that YOU actually need to identify?

Suppose a high-resolution system distributes its available pixels across a very wide scene.

The total resolution may be high, but the target could still occupy relatively few pixels.

This is why panoramic cameras excel at:

Situational awareness.

They help operators answer:

• Where did the person go?
• Which direction did the vehicle travel?
• Where did the incident begin?
• Is someone entering the monitored area?

But when you need facial identification, license-plate detail or another distant target, a dedicated narrow field of view may still be preferable.

This distinction can be summarized as:

Overview = See What Happened

Detail = See Exactly Who or What It Was

The next generation of multi-sensor architecture began combining both.

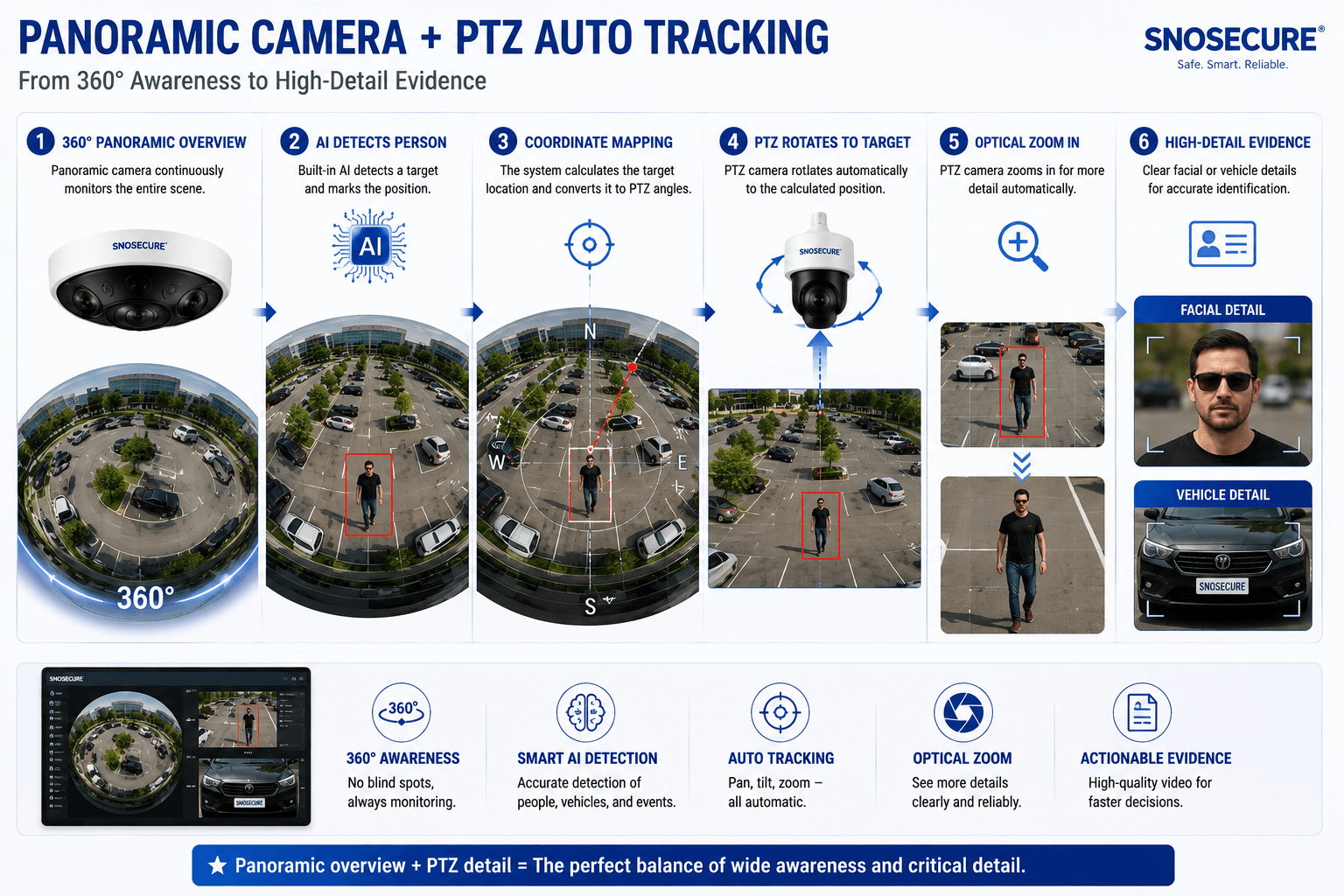

8. Panoramic + PTZ: One Camera Sees, Another Investigates

One of the most important developments in modern wide-area surveillance is the combination of:

Panoramic overview + PTZ detail

The panoramic component continuously monitors the entire scene.

The PTZ component can then zoom into an area of interest.

This solves a fundamental limitation of conventional PTZ cameras.

A PTZ camera can provide excellent detail—but while it is looking in one direction, it isn’t looking somewhere else.

A panoramic camera provides persistent overview.

Combine them, and you get:

Overview + Investigation

Current commercial multidirectional-with-PTZ systems are designed around exactly this principle: continuous 360° awareness combined with the ability to zoom into selected targets.

9. The Engineering Challenge Behind Panoramic + PTZ

This architecture solves an optical problem but creates a software and mechanical problem.

The panoramic and PTZ systems must understand each other’s coordinate systems.

When analytics detect an object at position (x,y) in the panoramic image, the system needs to translate that into something like:

Pan angle + Tilt angle + Zoom level

If calibration is inaccurate, the PTZ points next to the target instead of at it.

Three Major Challenges

1. Coordinate Mapping

Panoramic image coordinates must map accurately to physical PTZ angles.

2. Tracking Latency

The system must:

Detect → Classify → Calculate → Rotate → Zoom → Track

A fast-moving target may change position during this process.

3. Mechanical Reliability

Unlike fixed cameras, PTZ systems contain moving components.

That introduces:

• Motors
• Gears
• Bearings
• Slip rings
• Mechanical wear

Therefore, panoramic + PTZ isn’t “free performance.”

You exchange optical limitations for additional algorithmic and mechanical complexity.

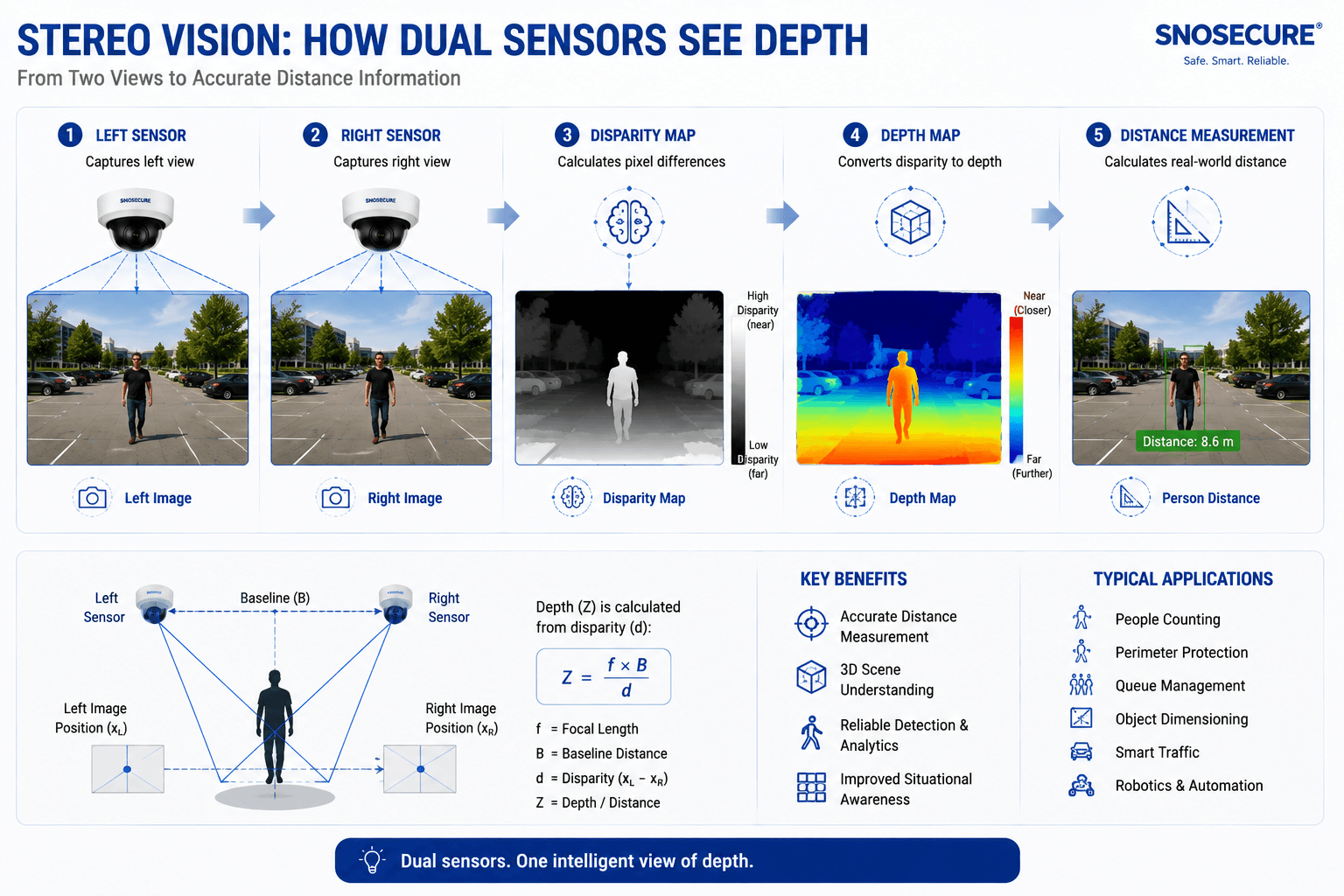

10. Another Branch: Stereo Vision and Depth

Not every dual-sensor camera exists to create a wider image.

Two sensors can also be used to estimate depth.

Stereo vision works because two cameras observe the same object from slightly different positions.

That difference—disparity—can be used to estimate distance.

Potential security applications include:

• People counting
• Queue analysis
• Perimeter analytics
• Object dimensions
• Distance estimation
• 3D scene understanding

However, stereo vision also introduces challenges.

Performance can be affected by:

• Low light
• Low-texture surfaces
• Camera baseline
• Calibration accuracy
• Temperature-induced mechanical changes
• Occlusion

For general CCTV, depth isn’t always worth the additional complexity.

This is an important lesson:

More sensors only make sense when the additional information solves a real application problem.

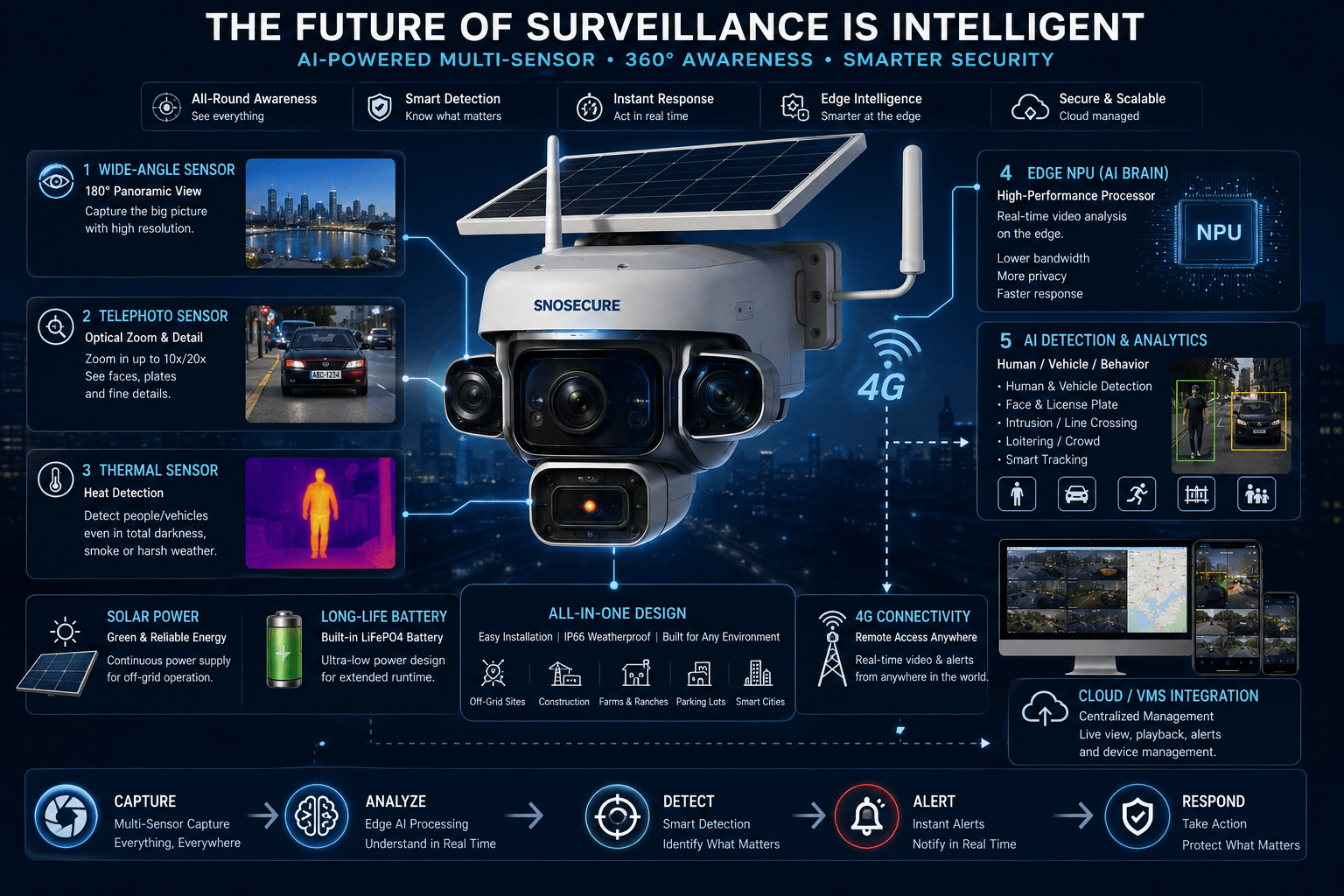

11. The Bigger Shift: From Homogeneous Sensors to Heterogeneous Sensors

Early multi-sensor systems often used several similar imaging channels.

The goal was:

More sensors = more coverage.

Modern architectures increasingly ask a different question:

Why should every sensor perform the same job?

Consider a system containing:

• One ultra-wide sensor for overview
• One telephoto sensor for identification
• One low-light sensor for night imaging
• One thermal sensor for detection
• One PTZ channel for investigation

These sensors don’t compete.

They cooperate.

This is heterogeneous sensing.

And it may be more important to the future of surveillance than simply increasing the number of camera modules.

12. “See Wide” and “See Far” Should Be Different Jobs

Think about how humans observe a large environment.

You don’t examine every object at maximum detail simultaneously.

You first notice something.

Then you focus on it.

Modern surveillance is moving toward the same architecture.

Stage 1 — Awareness

A wide-view sensor monitors the entire scene.

Stage 2 — Detection

Edge AI detects:

• Person
• Vehicle
• Animal
• Intrusion
• Movement

Stage 3 — Investigation

A high-detail sensor, ROI or PTZ focuses on the target.

Stage 4 — Classification

AI determines what the object is.

Stage 5 — Recording / Alert

The system records high-quality evidence and sends an event.

This changes the design philosophy from:

“Every sensor records everything.”

to:

“Each sensor performs the job it does best.”

13. AOV Adds Another Dimension: Power Consumption

For wired CCTV, bandwidth and storage are major constraints.

For solar and battery-powered surveillance, another constraint becomes critical:

Power.

A camera that continuously runs:

• Multiple sensors
• Multiple ISPs
• IR LEDs
• 4G communication
• AI inference
• Full-frame-rate recording

can consume significant energy.

This creates a different form of heterogeneous architecture.

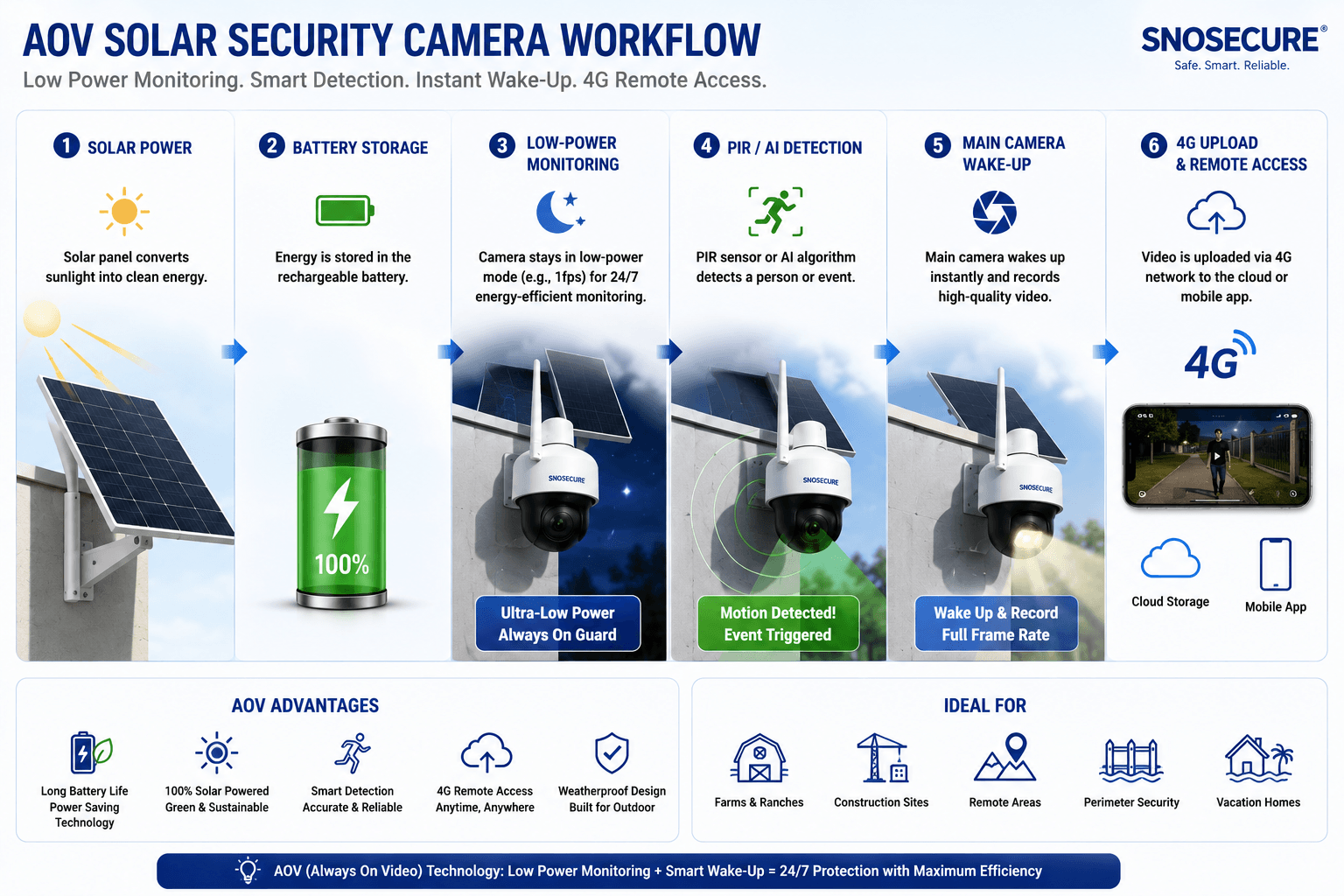

Low-Power Watch + Event Wake-Up

One subsystem remains in low-power monitoring mode.

When an event is detected:

Standby → Detect → Wake → Record → Upload → Return to Low Power

This is particularly valuable for:

• Solar security cameras
• 4G cameras
• Farms
• Construction sites
• Remote infrastructure
• Off-grid locations

For these applications, the engineering problem isn’t simply:

How many sensors can you install?

It is:

How much useful surveillance can you produce from every watt of available energy?

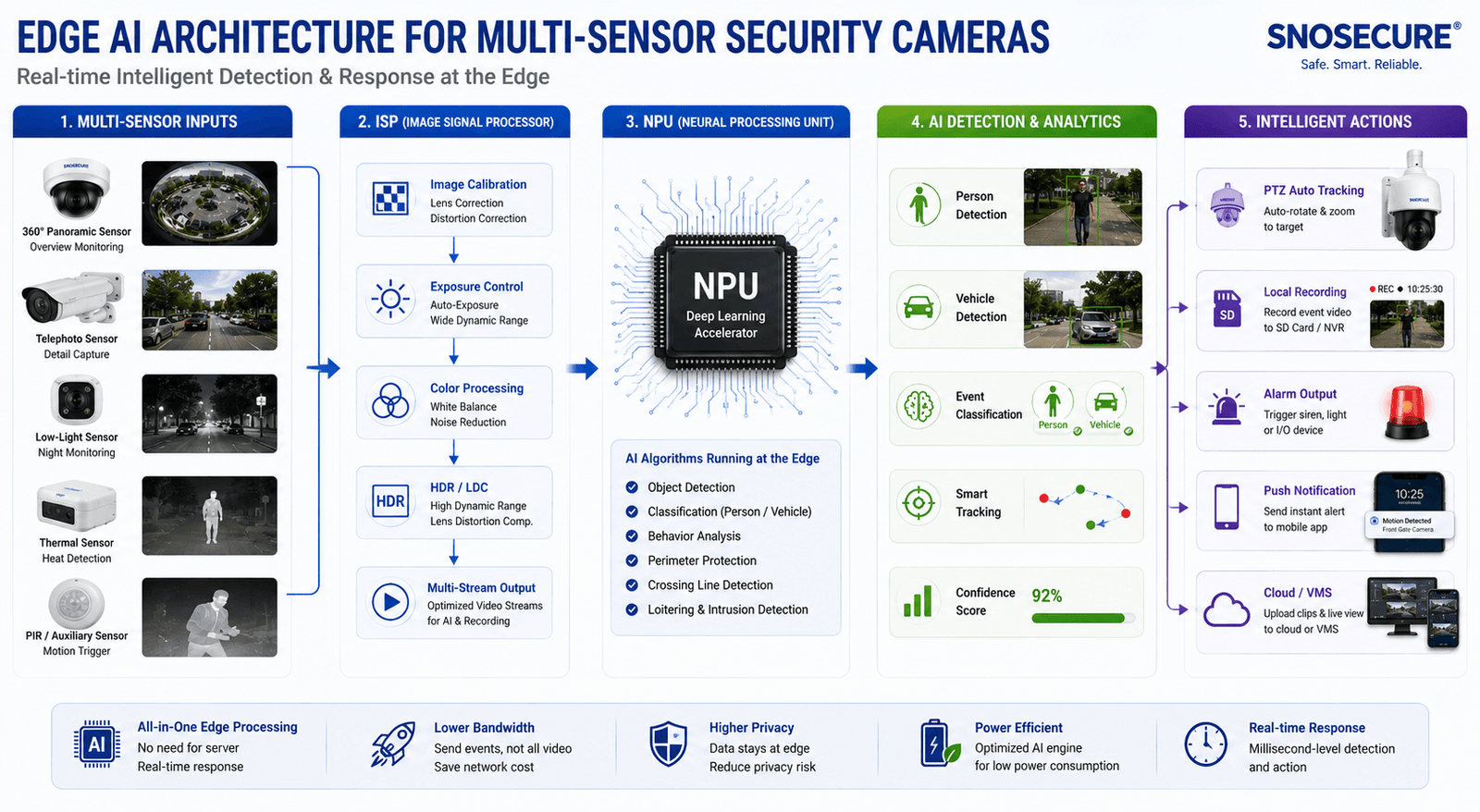

14. Edge AI Changes the Economics of Multi-Sensor Cameras

Multi-sensor systems once depended heavily on central servers for sophisticated analytics.

That is changing.

Modern camera SoCs increasingly integrate dedicated processing for AI workloads.

This allows analytics to run directly at the edge.

Current panoramic cameras already demonstrate this trend, with deep-learning processing supporting object classification and advanced analytics directly in the camera.

That matters because edge processing can reduce:

• Server workload
• Upstream bandwidth
• Cloud-processing requirements
• Response latency

Instead of uploading every frame for analysis, the camera can determine locally:

“This is a person.”

“This is a vehicle.”

“This object crossed the perimeter.”

Then it can trigger another imaging channel or PTZ response.

15. 8K Panoramic Surveillance Is Already Here

The next stage isn’t theoretical.

Modern commercial multi-sensor cameras can already deliver extremely high-resolution panoramic coverage.

For example, current products are available with approximately 29MP / 8K-class horizontal panoramic output, 180° horizontal coverage and edge-based AI processing.

This illustrates an important shift.

The original argument was:

Wide OR detailed.

Higher sensor resolution, better optics and more powerful edge processing are gradually moving the industry toward:

Wide AND increasingly detailed.

But physics hasn’t disappeared.

If you continue increasing monitored distance or scene width, pixel density still declines.

The engineering question remains the same:

How many pixels reach the target?

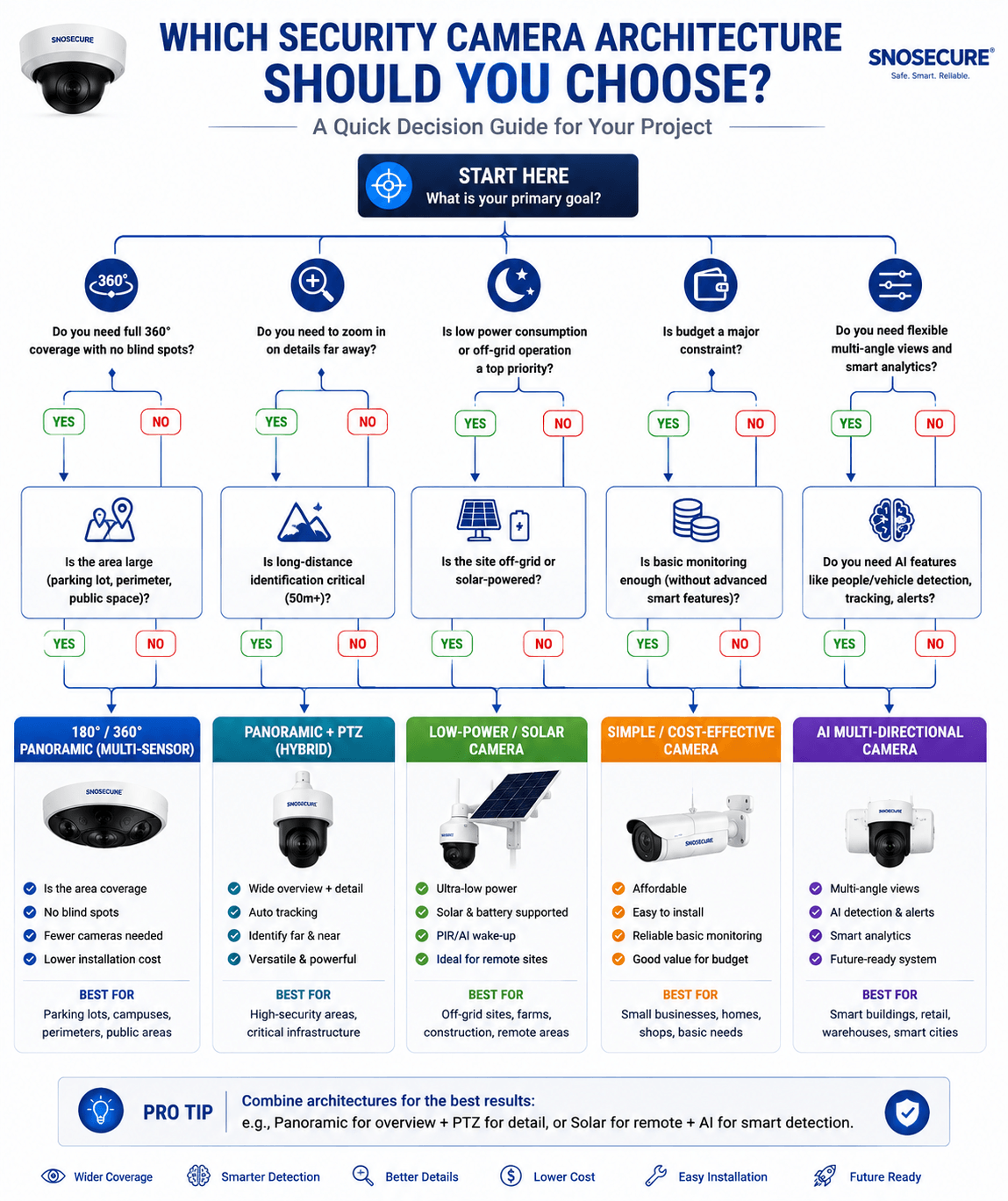

16. Multi-Sensor vs. Fisheye vs. PTZ: Which Should You Choose?

There is no universal winner.

Choose according to the surveillance objective.

17. What 20 Years of Multi-Sensor Development Actually Tells Us

The evolution can be summarized like this:

18. The Future: More Sensors—or Smarter Sensors?

The next generation may not simply add more physical sensors.

Software is becoming increasingly important.

A high-resolution image can already be divided into multiple digital regions of interest.

AI can process those regions differently.

One region may monitor people.

Another may detect vehicles.

Another may trigger recording only after an intrusion.

This creates something similar to virtual multi-camera operation inside one imaging system.

At the same time, physical heterogeneous sensors will remain valuable where optical requirements genuinely differ.

Software cannot completely turn an ultra-wide lens into a long telephoto lens.

Nor can ordinary visible-light imaging fully replace thermal sensing.

The likely future is therefore not:

Hardware vs. software.

It is:

Specialized optics + heterogeneous sensors + edge AI + software-defined imaging.

Three Lessons Every Security Buyer Should Remember

1. More Sensors Do Not Automatically Mean Better Security

Every additional sensor creates a cost.

That cost can appear in:

• Hardware
• Power
• Heat
• Processing
• Calibration
• Bandwidth
• Storage
• Software development

Buy the architecture that solves your application—not the camera with the longest specification sheet.

2. “See Everything” and “Identify Everything” Are Different Requirements

A panoramic camera may provide exceptional situational awareness.

A telephoto camera may provide exceptional identification detail.

Trying to make one optical channel perfect at both is difficult.

Combining specialized imaging channels is often more effective.

3. The Future Is Sensor Collaboration

The most interesting surveillance systems are no longer simply cameras.

They are sensing platforms.

A future security device may combine:

Wide-angle imaging + telephoto imaging + low-light sensing + thermal detection + radar/PIR + edge AI + 4G connectivity + solar power.

Each component contributes different information.

AI decides what matters.

FAQ: Multi-Sensor Security Cameras

What is a multi-sensor security camera?

A multi-sensor security camera contains two or more imaging sensors in one camera system. The sensors may create a stitched panoramic image, monitor different directions independently or perform different surveillance tasks.

What is the difference between a multi-sensor camera and a panoramic camera?

A multi-sensor camera describes the hardware architecture. A panoramic camera describes the coverage objective. Panoramic cameras can use either one ultra-wide sensor or multiple sensors.

Is a 360° security camera better than a normal camera?

Not automatically. A 360° camera provides broader situational awareness, but a narrower camera may provide greater pixel density on a specific distant target.

What is a multidirectional security camera?

A multidirectional camera contains multiple sensor heads that can point in different directions while sharing one physical housing and, depending on the design, common network infrastructure.

Why combine panoramic and PTZ cameras?

The panoramic channel maintains continuous overview while the PTZ channel zooms in for detail. This allows operators to maintain situational awareness while investigating a specific person, vehicle or event.

Are multi-sensor cameras good for solar surveillance?

They can be, but power consumption becomes critical. Low-power AOV architectures can use event-driven operation to reduce the energy required by imaging, AI processing and 4G transmission.

Conclusion: The Goal Was Never “More Sensors”

Twenty years of surveillance development teaches one important lesson:

Multi-sensor technology isn’t about adding more eyes.

It is about assigning the right eye to the right job.

A wide sensor answers:

“What’s happening?”

A telephoto sensor answers:

“Who or what is it?”

A low-light sensor answers:

“What happened at night?”

A thermal sensor answers:

“Is something there even when visible light is poor?”

A low-power sensor answers:

“Should the main system wake up?”

And edge AI increasingly decides:

“Which information matters right now?”

For security brands, distributors and system integrators, this changes the product-selection question.

Don’t start with:

“How many sensors does this camera have?”

Start with:

“What does YOU need this camera to see, identify, detect and respond to?”

Once that question is clear, the correct sensor architecture becomes much easier to define.

Develop Your Next Multi-Sensor Security Camera with SNOSECURE

If YOU are building a new surveillance product line, upgrading an existing camera platform or looking for an OEM/ODM manufacturing partner, SNOSECURE can support your project from product concept to mass production.

YOU Can Source

• Solar security cameras
• AOV solar cameras
• 4G security cameras
• Wi-Fi security cameras
• Multi-lens and multi-sensor cameras
• PTZ cameras
• NVR kits
• Solar panels
• Video doorbells
• Baby monitors
• Hunting cameras

YOU Can Customize

• Camera appearance and housing
• Sensor and lens configuration
• 4G/Wi-Fi connectivity
• Solar and battery configuration
• Firmware and application functions
• Logo and private labeling
• Color boxes
• Packaging
• Complete OEM/ODM product solutions

With 20 years of surveillance manufacturing experience, 6 production lines and an 9,000 m² factory, SNOSECURE supports security brands, electronics importers, distributors, retailers, IT hardware resellers, solar project contractors and system integrators serving international markets.

Brand: SNOSECURE
Website: www.camhiprocam.com
Email: simple@camhiprocam.com
WhatsApp: +86-185-6568-6066

If YOU are developing a new multi-sensor, AOV, solar, 4G/Wi-Fi or NVR surveillance product line, contact SNOSECURE for product recommendations, OEM/ODM options and a project quotation.
