Most buyers focus on megapixels and night vision—but real performance depends on deeper components like sensor, ISP, and encoding. This guide explains how a security camera works from light to video stream.
🧠 Introduction: Why Most Camera Buyers Get It Wrong
When selecting a security camera, many buyers focus on:
- Megapixels
- Infrared LEDs
- Minimum illumination
But in real-world installation, problems appear:
❌ Poor color during daytime
❌ Blurry night footage
❌ Overexposed entrances
❌ Narrow field of view
👉 The reason?
You’re evaluating specs — not system architecture.
To choose the right camera, you must understand what’s happening inside the device.

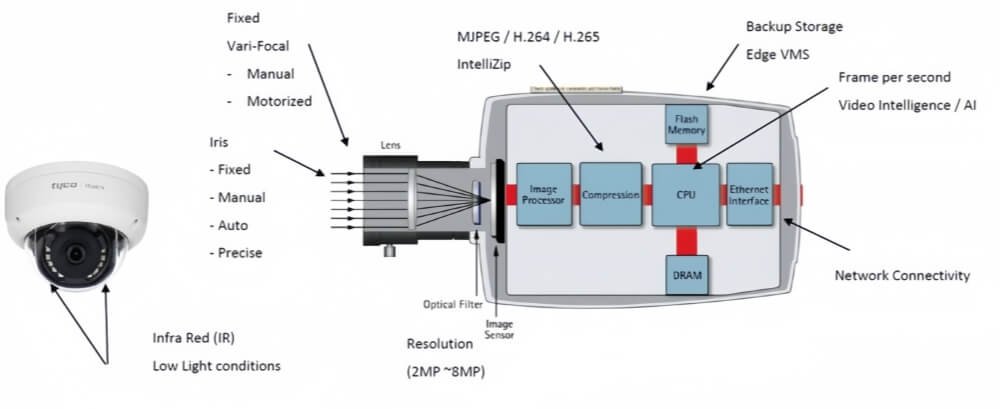

🔧 Part 1: Key Components Inside a Security Camera
A camera works like a pipeline:
👉 Light → Sensor → Processing → Encoding → Transmission
1️⃣ Lens (Optics)
The lens determines:
- Field of view (wide or narrow)
- Light intake
- Image sharpness
⚠️ High megapixels + poor lens = still blurry
2️⃣ Image Sensor (CMOS)
Converts light into electrical signals (RAW data).
Key factors:
- Sensor size (larger = better low light)
- Resolution
- Sensitivity
👉 This sets the upper limit of image quality

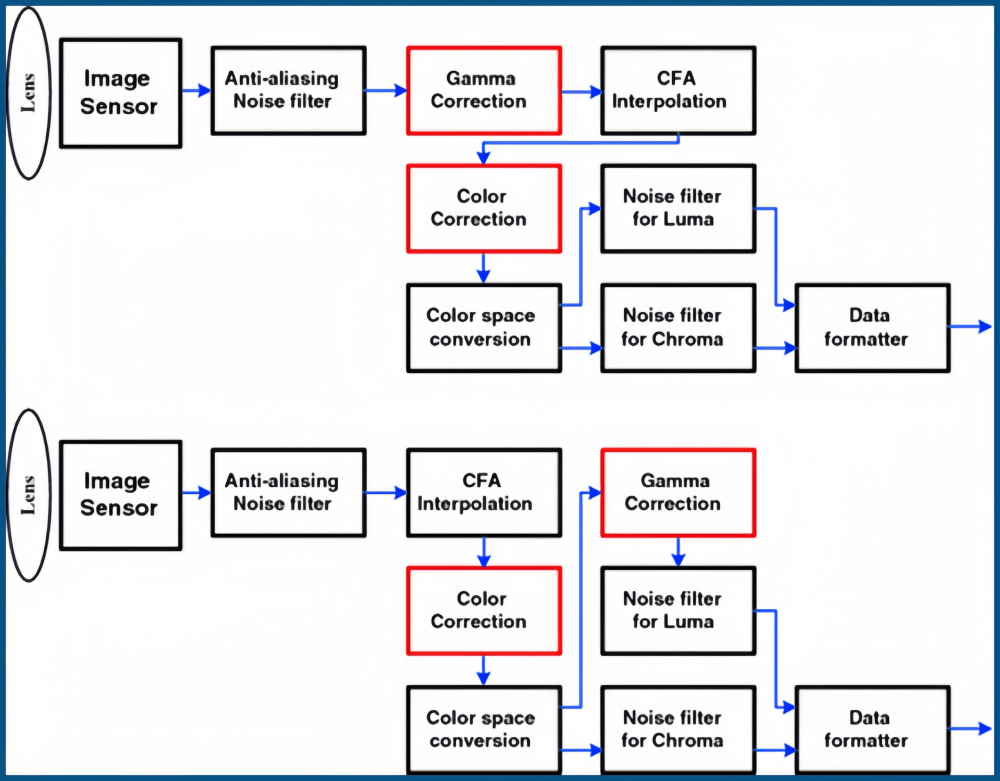

3️⃣ ISP (Image Signal Processor)
Transforms RAW data into usable video (YUV/RGB).
Handles:
- Noise reduction
- Color correction
- Image sharpening
👉 Poor ISP = washed-out colors or noisy night images
4️⃣ SoC (Main Processor)
The “brain” of the camera:
- Controls encoding (H.264 / H.265)
- Handles networking
- Manages AI detection
👉 Modern SoCs integrate ISP + encoder
5️⃣ IR-CUT Filter
Automatically switches between:
- Day mode (color, IR blocked)
- Night mode (black & white, IR enabled)
⚠️ Poor tuning → flickering switching (common issue)
6️⃣ Lighting System (IR / White Light)
Used for night vision:
- Infrared (850nm / 940nm)
- White light (full-color night vision)
⚠️ Mismatch with lens → glare, overexposure
7️⃣ Storage System
Includes:
- microSD / TF card
- eMMC / NAND
- NVR / cloud
8️⃣ Connectivity & Peripherals
- Ethernet / WiFi / 4G
- Microphone / speaker
- PTZ motor (for dome cameras)
9️⃣ Power System
- DC or PoE
- Must support peak load (IR + encoding + transmission)
🔄 Part 2: From Light to Your Phone — 7-Step Process
Here’s how video actually reaches your screen:
1️⃣ Light enters lens → hits sensor
2️⃣ Sensor outputs RAW data
3️⃣ ISP processes image
4️⃣ AI overlays (motion detection, human detection)
5️⃣ Encoder compresses (H.264 / H.265)
6️⃣ Data transmitted (RTSP / cloud / app)
7️⃣ Stored locally or remotely
👉 Your latency = capture + encoding + network + playback buffer
📊 Part 3: Key Parameters Explained (No More Confusion)
🔆 Lux (Illumination)
Lower ≠ always better
Depends on: aperture, shutter, IR usage
🎯 3A (AE / AWB / AF)
- AE → exposure
- AWB → color balance
- AF → focus
👉 Poor tuning = flickering brightness or wrong colors
🌗 WDR / HDR
Used in high-contrast scenes (doorways, sunlight)
⚠️ Trade-off:
- Motion blur
- Increased noise
🌙 Day/Night Switching
- Day: color mode
- Night: IR + black & white
- Full-color: white light + large aperture
🔭 Lens Focal Length
- Short (2.8mm) → wide view
- Long (6mm+) → narrow, long distance
⚠️ Must match sensor size → affects field of view
⚠️ Part 4: Common Mistakes Buyers Make
| Myth | Reality |
|---|---|
| Higher megapixels = better image | Lens + sensor match matters more |
| Lower lux = better night vision | Depends on conditions |
| More IR LEDs = better night | Can cause overexposure |
| WDR solves everything | May cause ghosting |
🌍 Part 5: How to Choose the Right Camera
👉 Focus on system combination, not single specs:
✔️ Lens + Sensor matching
✔️ ISP quality
✔️ Encoding efficiency
✔️ Application scenario
🚀 Industry Insight: Why System Understanding = Competitive Advantage
Most buyers compare specs.
Professional buyers understand architecture.
👉 That’s what separates successful distributors and brands.
🏁 Conclusion: Think Like an Engineer, Not Just a Buyer
A security camera is not just a product.
It’s a system:
👉 Optics + Sensor + Processing + Encoding + Network + Storage
Once you understand this,
you’ll avoid 80% of common mistakes in camera selection.
