Description
Specification
NVR | |
Video Input | 8 Channel |
NVR Effective Pixels | 3MP, 2304(H)×1296(V) |
Screen | 10.1 inch LCD monitor, 1280×800 |
Video Compression | H.265+ |
Recording Mode | Manual, Alarm, Dynamic detection, Timing |
Backup | Network, USB |
Audio Compression | G.711A |
Audio | Built-in Speaker |
Face Detection | Support(depend on camera) |
Human Detection | Support(depend on camera) |
HDD | 1 SATA Port for 2.5” HDD, up to 4TB, and support micro SD card up to 256GB |
Network Interface | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
Wi-Fi Interface | WiFi 802.11b/g/n |
USB | 2 ports, USB 2.0 |
Power Supply | DC12V/1A |
Power Consumption | <10W (without HDD) |
Dimension | 252*162*22.5mm |
Camera | |
Image Sensor | 1/3” 3.0 MP Progressive Scan CMOS |
Camera Effective Pixels | 3MP, 2560(H)×1440(V) |
Min. illumination | Color: 0.1 Lux, B/W: 0.01 Lux |
IR Range | Up to 20 m (65.6 ft) |
Focal Length | 3.6 mm |
Motion Detection | Support |
Human Detection | Support |
WiFi | WiFi 802.11b/g/n, 2.4G |
Power Supply | DC12V/1A, Max 6W |
Waterproof grade | IP66 |

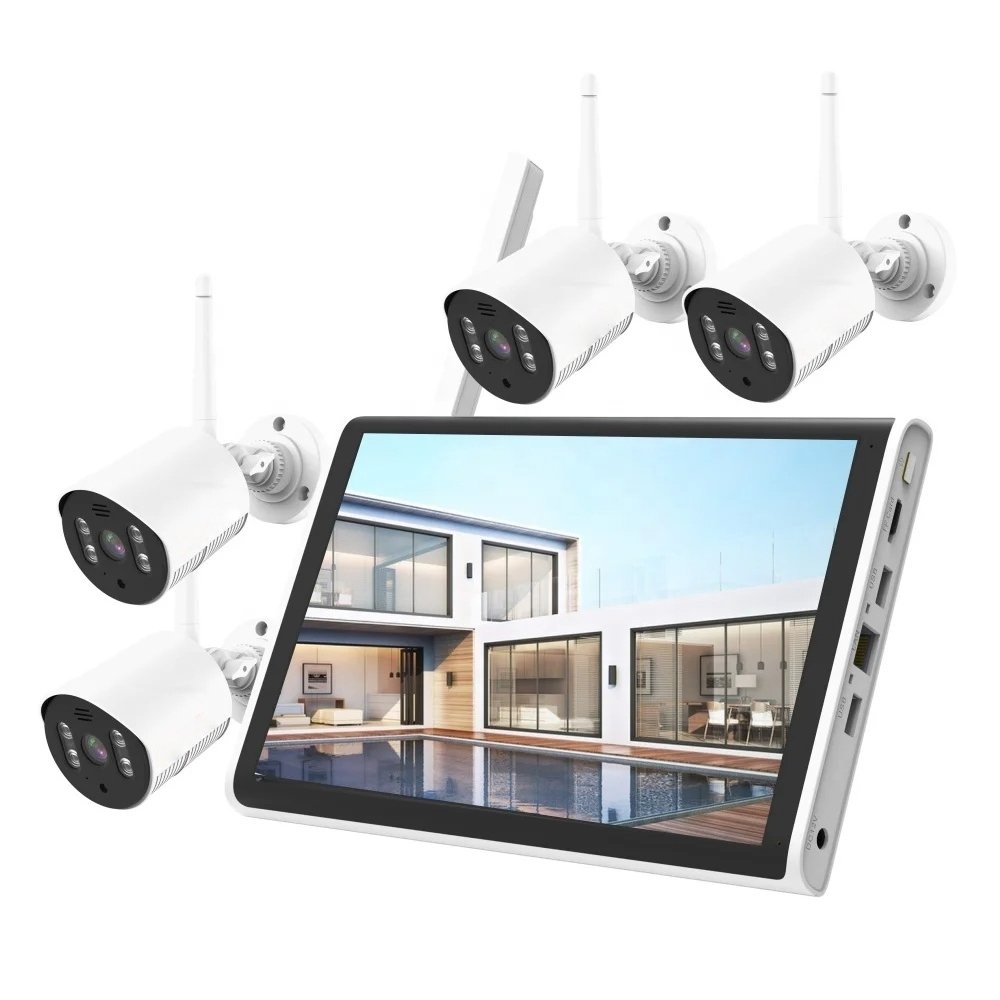

Wireless security camera system with 10 inch monitor and 4 WiFi cameras
1080P 3MP 4 channel WiFi NVR kit with ONVIF support and monitor
10.1inch NVR Screen 3MP HD Living Steam，nice usage experence.

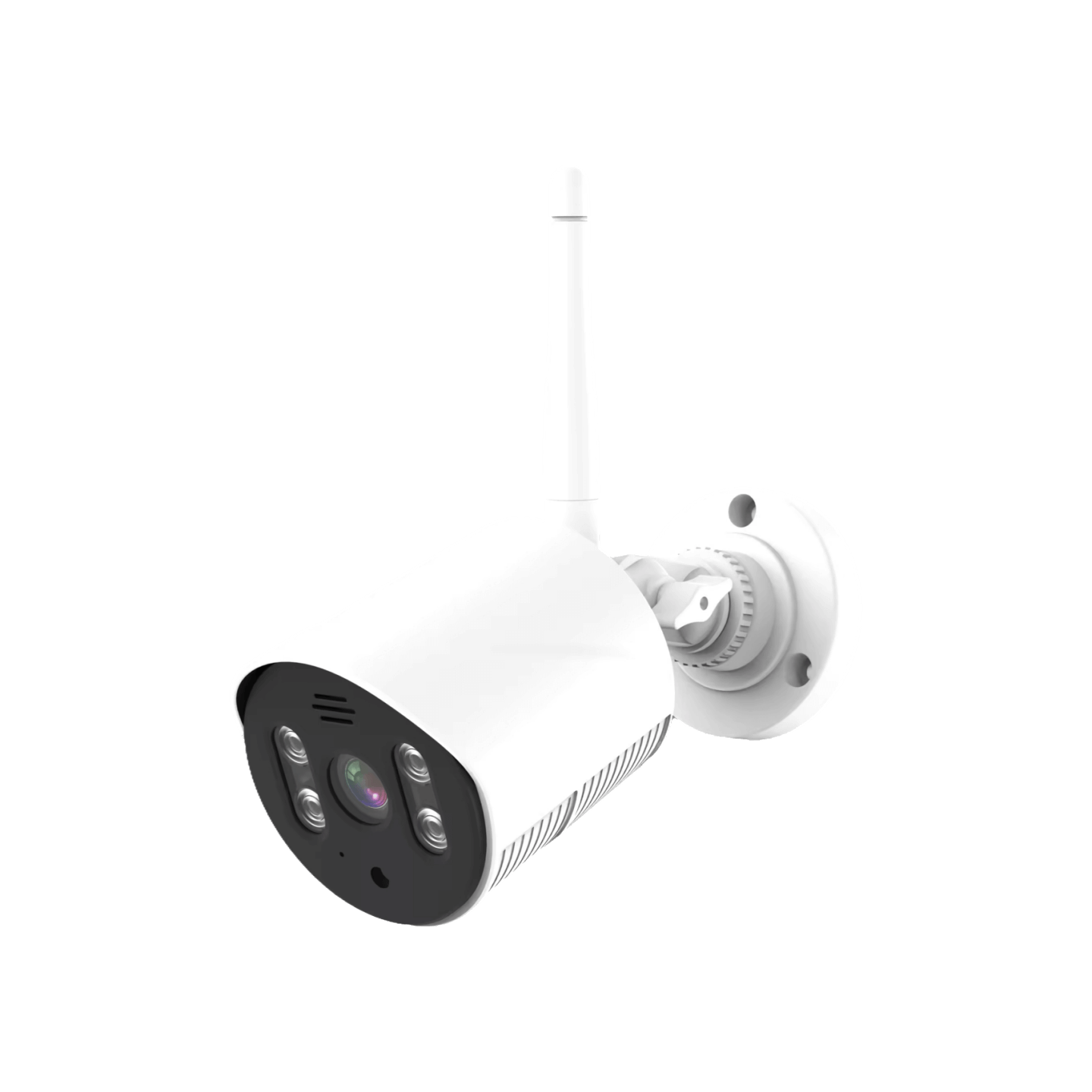

IP66 waterproof wireless security camera for outdoor use
Full color night vision and infrared night vision modes security camera
Wireless IP camera with two-way audio intercom for door security

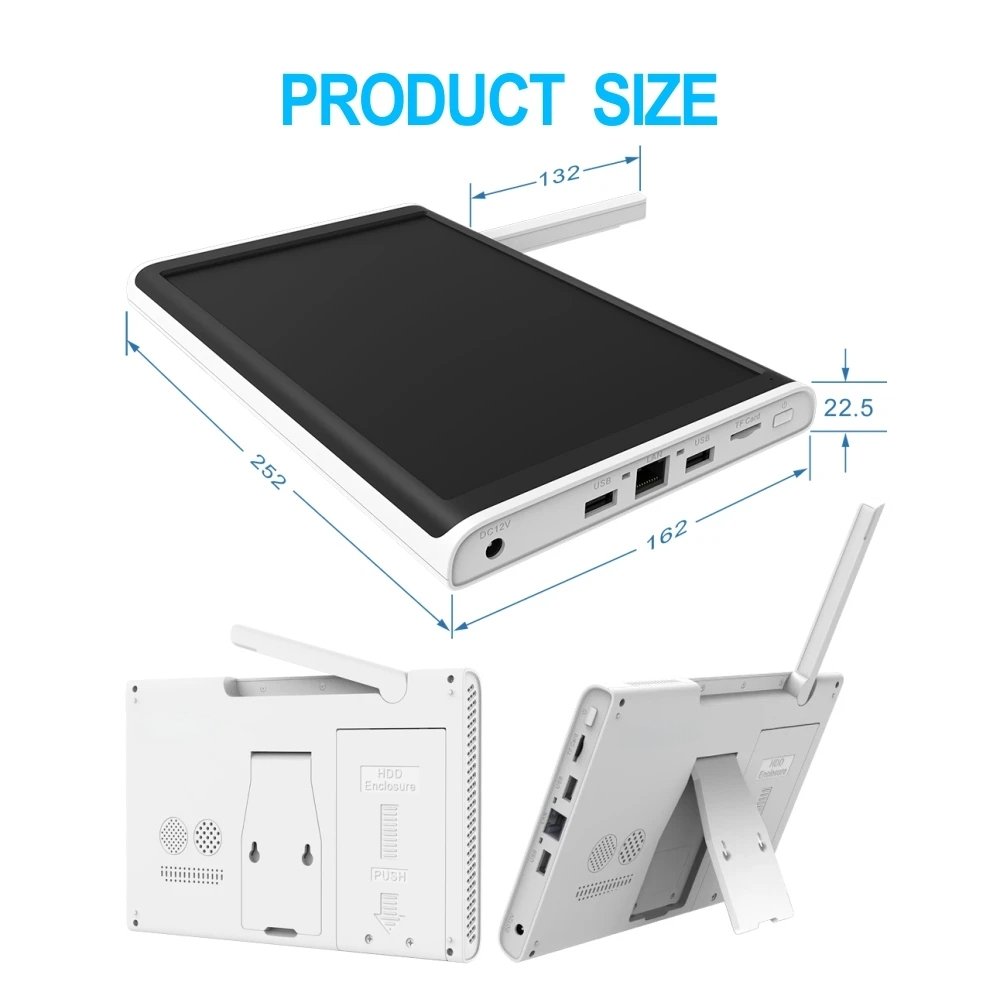

NVR monitor installation options desktop and wall mount
Wireless security camera system with P2P support on smartphone and PC

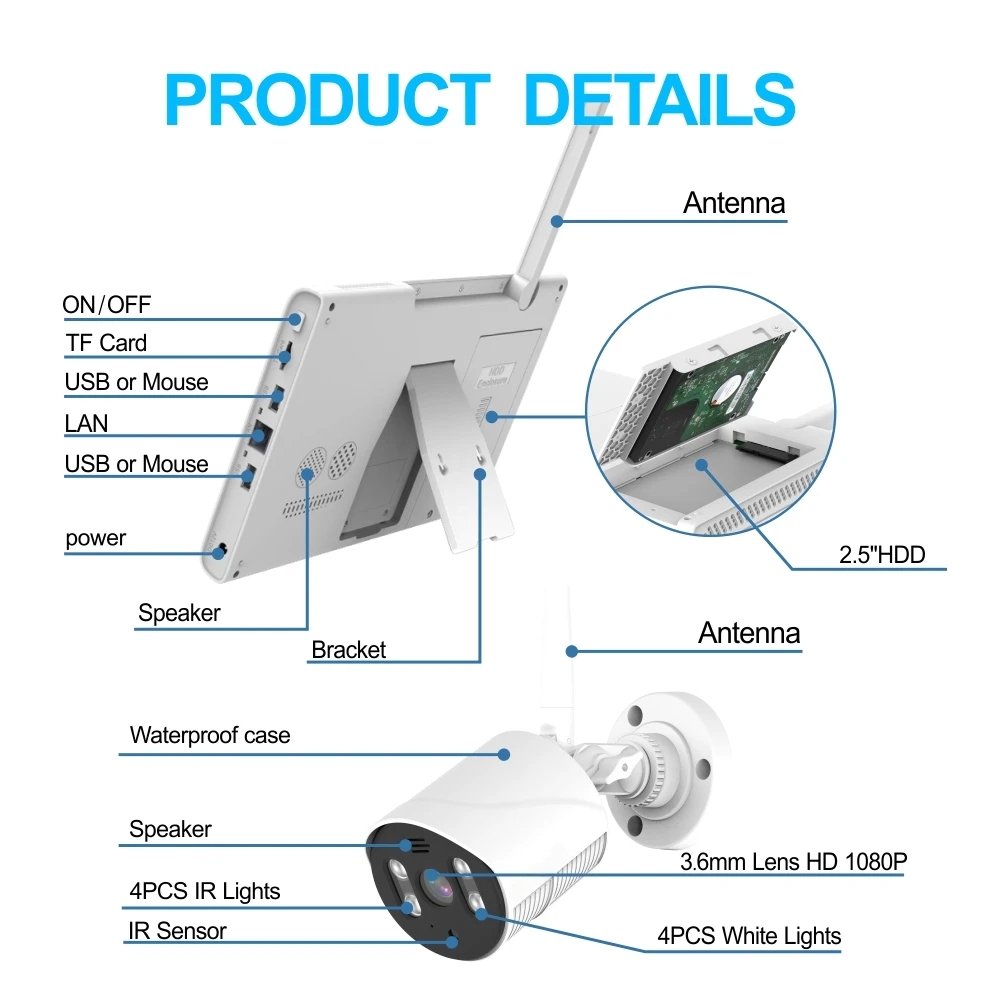

Wireless NVR camera system product details and ports
100m long distance wireless transmission security camera system
Easy connection diagram of 4 channel wireless NVR security kit
