Product Description

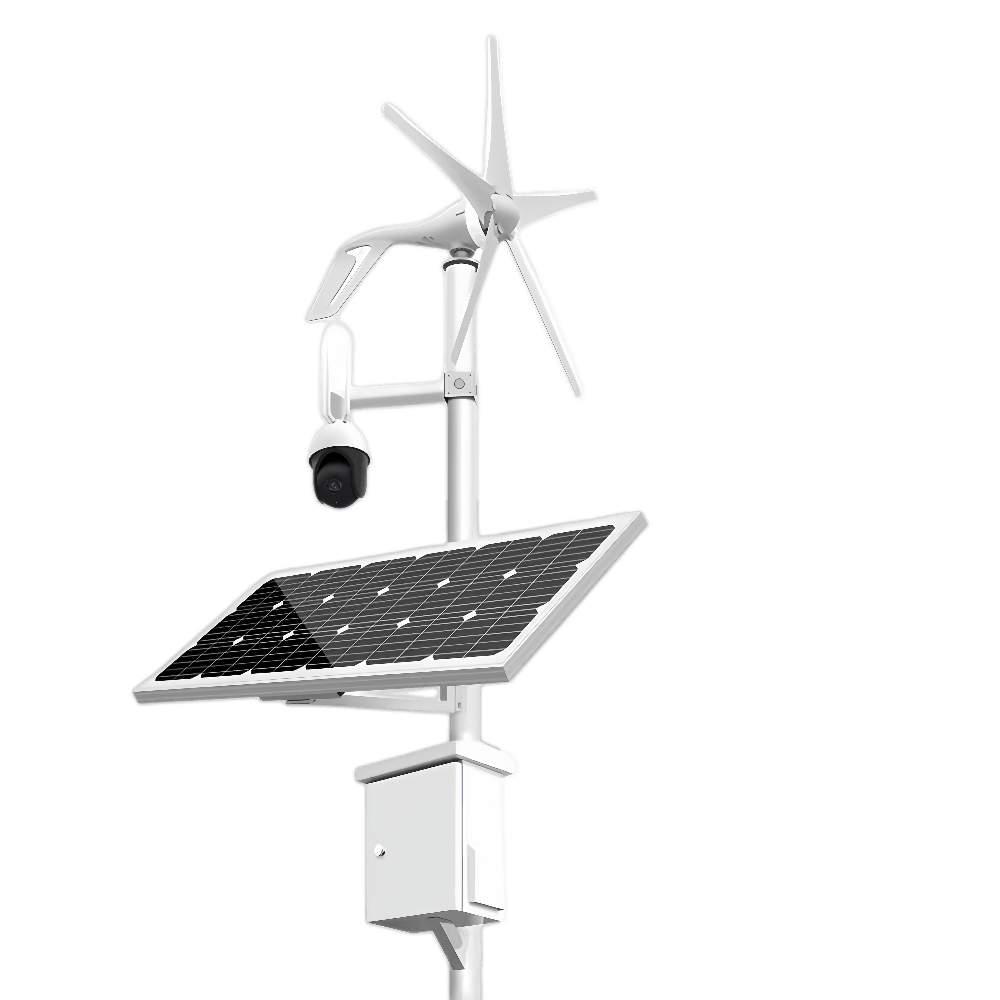

Solar Wind Hybrid power 4G camera can be widely used for related situations:
1. Places that wire network can not reach, wiring cost much. Such as power lines, highways, environmental monitoring, forest fire prevention,
street lamps, oil exploration, oil pipeline, flood control and rescue, construction monitoring, signal tower monitoring, remote warehouse monitoring,
geological hazard monitoring, water monitoring, mineral resources Monitoring, border line monitoring, farms, aquaculture
2. Scenic: such as the city scenery area, tourist attractions, nature reserves, wildlife protection zone.
3. Monitoring object is moving: bus, passenger, school bus, ship, logistics, ambulance
4. Places that regulators can not reach: Flammable, explosive and other dangerous places, infectious disease areas, other micro-organisms
5. Places that use time is short and not fixed, such as temporary surveillance by public security investigation, military field training, temporary construction sites, temporary venues, convention centers
6. Unified supervision places like: Intelligent substation, reservoir river monitoring, unattended room monitoring
Main Features:
Wind Solar Hybrid Power System can make the camera continuously work in rainy days, by effectively use of sunlight and wind.
Wind Power:
1. Low starting wind speed, small size, good looks, low vibration operation;
2. User-friendly flange installation design, easy installation, easy maintenance;
3.Use nylon fiber wind turbine blades, optimized aerodynamic shape design and mechanical design, make the starting wind speed lower, utilization factor of wind energy higher and which increases annual generating capacity larger;
4. Use patented permanent magnet rotor alternator with a special rotor design, effectively reduces the generator torque resistance, which is only 1/3 of a normal motor, and makes rotor and generator more favorable matching, unit operation more reliable.
5.Use maximum power intelligent tracking microprocessor control, effective regulation of current and voltage.
Solar Power:
1. 150W efficient thin-film solar panels
2. Polycrystalline solar panel, longer lifetime
3. 60A/H build-in Battery (The battery Capacity can be increased or decreased according to local situation)
4. Support different pixel camera
Main parameters:
1. Support wind&solar power system (300w wind + 200w solar)
2. Supporr 3G (WCDMA) wireless network, use a SIM card
3. Built-in 1000GB harddisk, storage time more than 20days
4. Support alarm motion detector
5. Full HD 1080P 2mp high speed dome ip camera
6. H.264 main profile compression
7. HD18x optical zoom lens, pan 0-360deg endless, tilt 0-90deg, speed 250deg/s
8. Support night vision, 9pcs IR array led, IR range 120m
9. Support mobile phone, free APP
10. Support PC, free 64ch CMS software
11. Support Cloud, easy to view throght Internet
Solar power system can be used for display / outdoor router and other outdoor power supply, support engineering customization, wind and light complementary, IOT remote control, if you want to know more about the product, please contact customer service, we will introduce and recommend the appropriate model for you.
Common monitoring equipment power consumption and configuration | |||||
Data basis: multimeter + monitoring equipment of different brands, the data has errors, for reference only! | |||||
Common monitoring equipment | day | Night | 24-hour average power (not exercise) | Recommended solar configuration | Remarks |
Dome camera default near light | (Calculated from 3 days) | ||||
4G camera | 2W | 5.5W | 3.75W | 60W30A | |
2.5 inch 4G mini ball | 2.1W | 3.7W | 2.9W | 60W30A | |
4.5 inch 4G mini ball | 4.2W | 6.8W | 5.5W | 100W40A | |
6 inch 4G ball | 5W | 9.8W | 7.4W | 100W60A | |
Dahua Wireless C5C | 2.2W | 7W | 4.6W | 100W40A | |
Hikvision AC24V ball machine | 9W | 15W | 12W | 300W120A | |
Wireless bridge | 6W | Long power supply | 6W | 80W40A | |
4G router | 6W | Long power supply | 6W | 80W40A | |
1, Monocrystalline 60W PV panel. Operating temperature range -40~+80 degrees. Working voltage 18-22V. Panel light conversion rate of 21% or more. Aluminum alloy frame. Monocrystalline s
ilicon service life of 20 years or more
2, ternary lithium battery. Charging and discharging times more than 1500 times. Working temperature range -40~+80 degrees
3, multi-functional waterproof case. Used to store the battery. Controller. 4G routing and other accessories
4, anti-wind volt panel mounting bracket (not including the monitoring pole)
5, 300W wind turbine (optional products, need more than three levels of wind to have a role, if necessary, please contact customer service)
Solar monitoring kit: solar panels + fixed bracket + lithium battery + controller + waterproof box + 12VDC line + USB5V to DC line + 100 megabit 12V POE power supply combiner + installation screws accessories set
