Description
Features :
Support WIFI / 4G Connection ,Support AP Mode
Support HD 5MP 8MP 4K High Quality Resolution
Support TF/Micro Memory Card, up to 128G (Not Include)
5X /10X Optical Zoom Auto Focus Lens(Optional)
Pan tilt rotation, horizontal:300° & vertical:60°Ø
4Pcs Array IR LEDs, 50m Night Vision
Support P2P, View & Anywhere & Anytime
Elegant Outline And Easy Installation
Wireless Protocols : 802.11b/g/n, 150Mbps, 10-50m
Provide Android & ios APP (CamHipro) and professional CMS PC client software
Outdoor Use,Waterproof IP66
Audio: Built-in Microphone
Support 8 Preset Points, Zoom lens status can be saved during the preset
Specifications:
Model | SNO-Q8D-4G-50 | SNO-Q8D-50 | SNO-Q4D-4G-80 | SNO-Q4D-80 |
Operating system | Embedded Linux OS | |||
Resolution | 5MP 4G Camera | 5MP WIFI Camera | 8MP 4K 4G Camera | 8MP 4K WIFI Camera |
Lens | 4.7-47mm | 4.7-47mm | 2.7-13.5mm | 2.7-13.5mm |
10X Optical Zoom | 10X Optical Zoom | 5X Optical Zoom | 5X Optical Zoom | |
Min.illumination | 0.05 Lux / 0 Lux(IR on) | |||
Day&Night mode | Auto IR-CUT | |||
Night vision distance | 4Pcs Array IR LEDS, 50M Night Vision | |||
Video Compression Standard | H.265/H.264 Main Profile/H.264 Baseline | |||
Video streaming | Dual streaming | |||
Video code rate | 32 to 8192Kbps. supports constant bitrate/variable bitrate | |||
Image settings | Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror | |||
Image enhancement | Backlight compensation,Automatic white balance, | |||
Digital WDR, 3D digital noise reduction | ||||
Audio Input | Built-in Microphone | |||
Audio Output | N/A | |||
Motion detecting | Can set 4 independent detection region (1-100 sensitivity can be set) | |||
Alarm linkage | Alarm send pictures to the specified mailbox, | |||
alarm upload pictures and videos to the FTP server, | ||||
alarm write pictures and videos to Micro SD card, alarm message push | ||||
Privacy mask | Maximum support 4 users to simultaneously browse | |||
OSD | Support camera name, date and time information superimposed | |||
User management | Supports user and rights management | |||
Simultaneous viewers | Maximum support 4 users to simultaneously browse | |||
Network protocol | TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP,FTP, | |||
DHCP,DNS,DDNS,NTP,UPNP,RTSP etc. | ||||
Connection protocol | ONVIF-compatible 2.0(backward compatible) | |||
Wireless standards | IEEE802.11b. 802.11g. 802.11n Draft | |||
Frequency range | 2.4 GHz to 2.4835 GHz | |||
Wireless Security | 64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS | |||
Transmission rate | 11b: 11Mbps,11g :54Mbps,11n :135Mbps | |||
Rotation angle | Horizon:0° to 300°. Vertical: 0° to 60° | |||
Horizontal speed | 12°/S | |||
Vertical speed | 12°/S | |||
Preset | Support 8 preset points, Zoom lens status can be saved during the preset | |||
Power interface | 1 5.5mm power interface | |||
Ethernet | 1 RJ45 & Antenna 10M/100M Adaptive Ethernet Interface | |||
TF card Slot | 1 TF card slot. up to 128G(Not Include) | |||
Reset button | Support | |||
Power supply | DC 12V 2A | |||
power | Day: 3W; Night: 8W | |||
Operating temperature | -20 to +60 degree | |||
Operating humidity | 10% to 95% | |||
Material | Metal Housing Material,Outdoor Use, IP66 | |||
Installation | Rack mounting | |||
Size(W*D*H)(mm) | 156*155*75mm | |||
Weight(kg) | 1.0kg | |||
Accessories | 1*1.5M Power supply. 1bag*Screws. 1*manual,1*antenna | |||
Package Size(W*D*H) | 204*184*133mm | |||
Package Weight | 1.2kg | |||

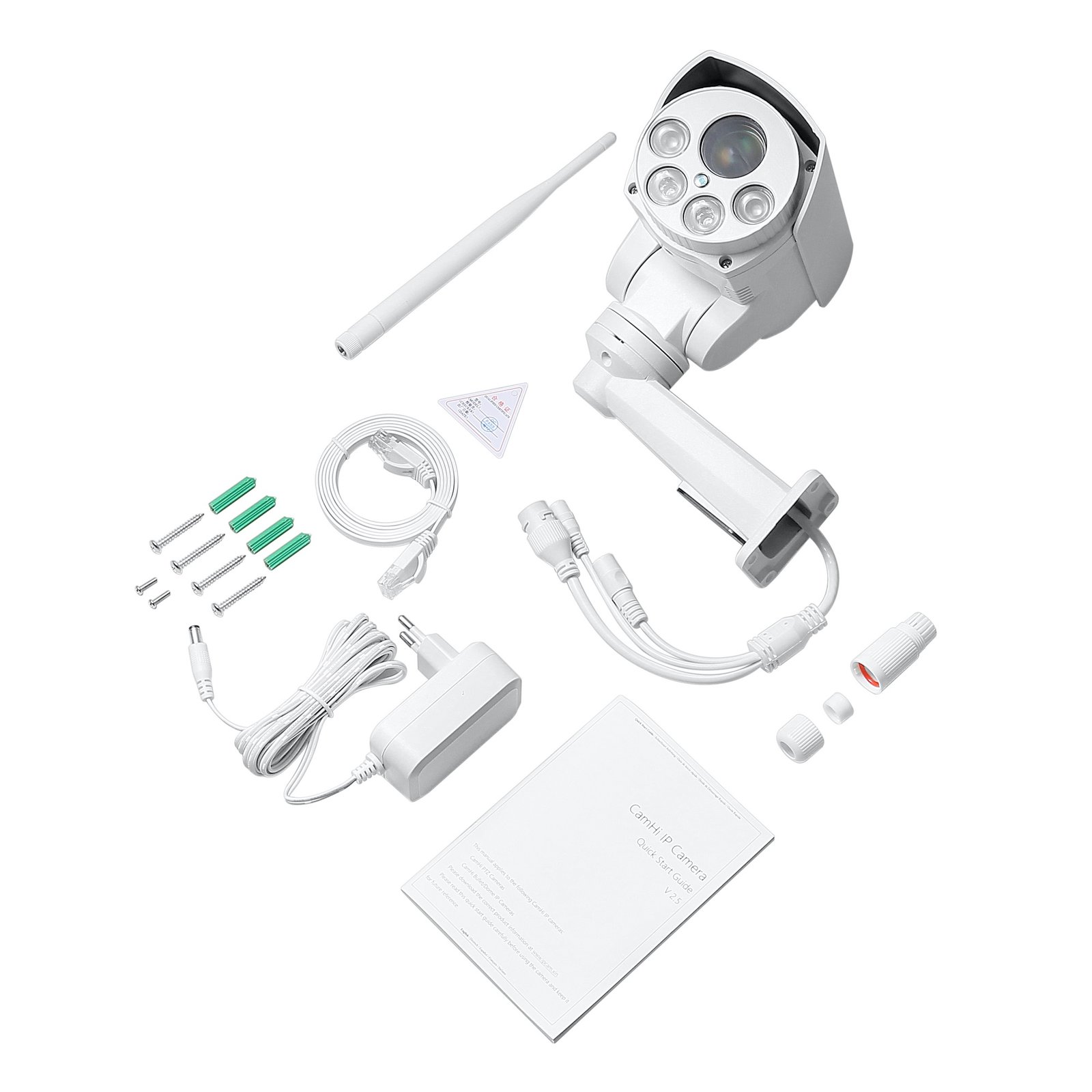

packing list :
1*IP Camera
1*Power Supply
1*Manual
1*Screws Bag
1*Antenna
1*Network Cable

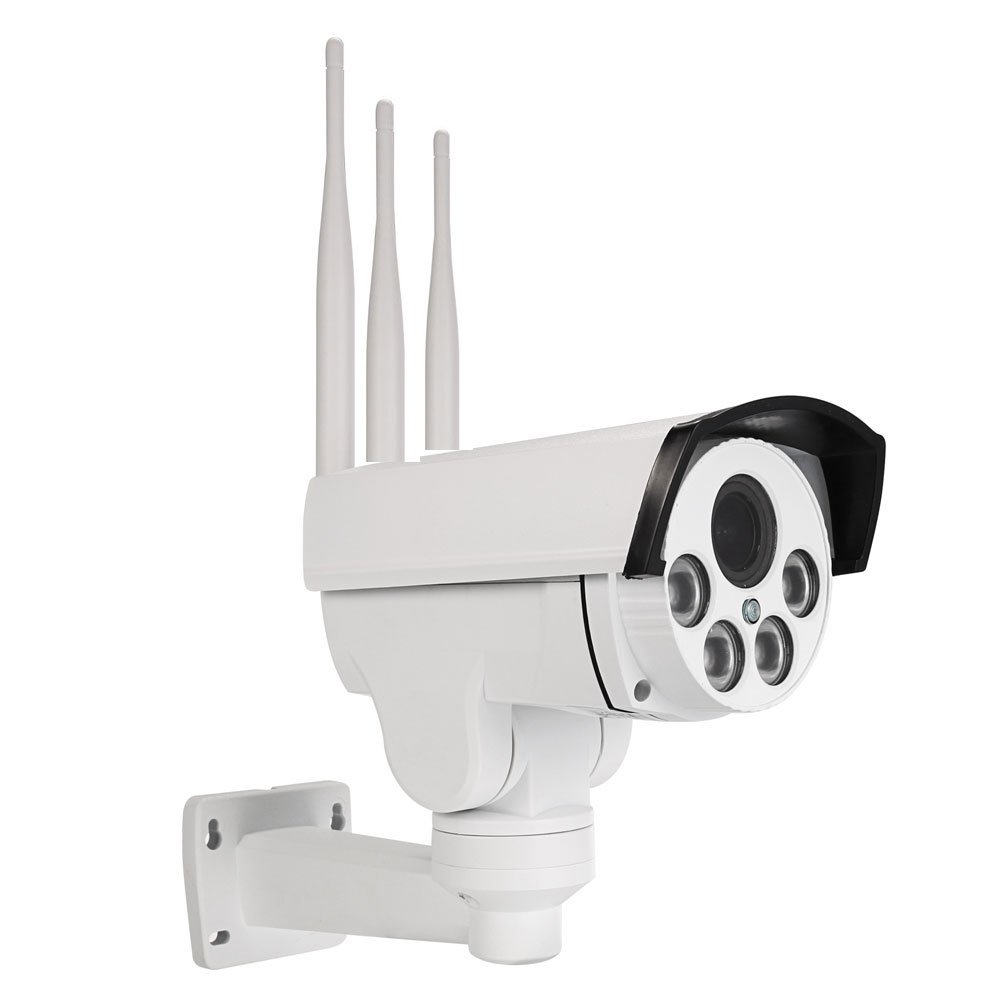

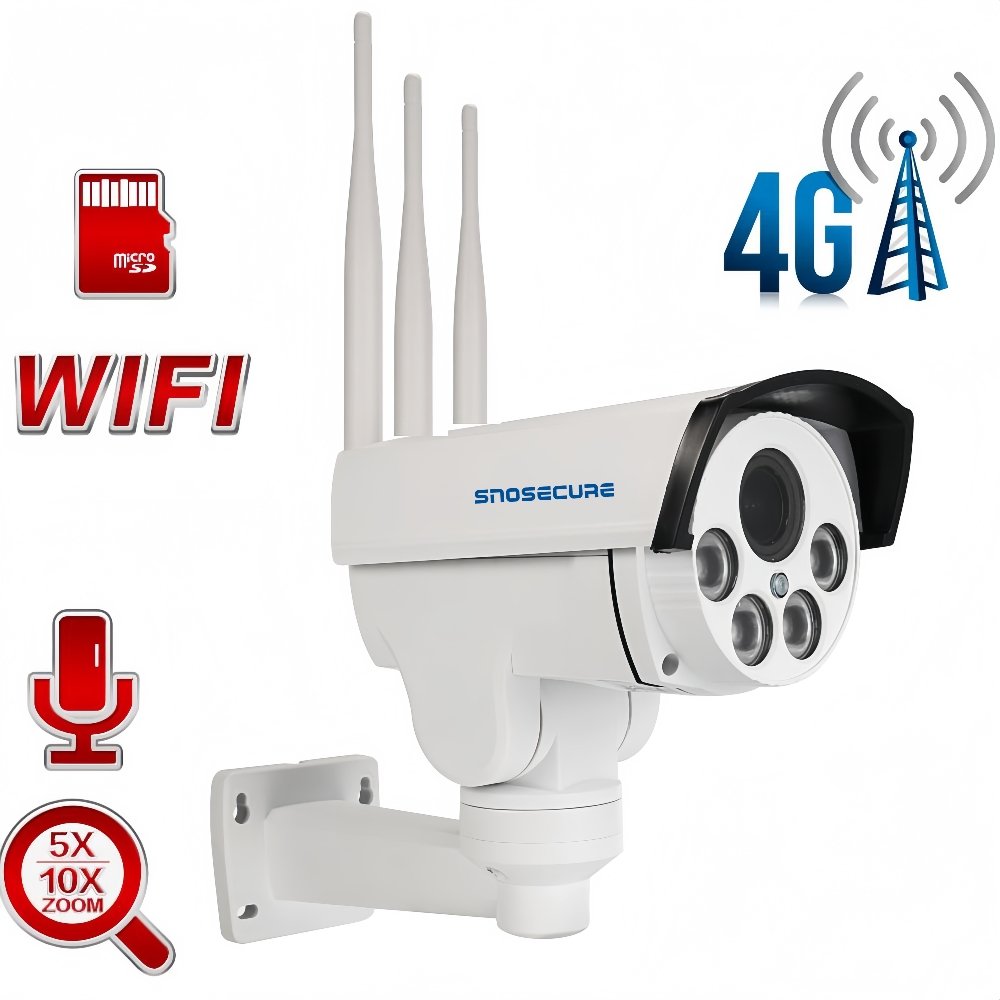

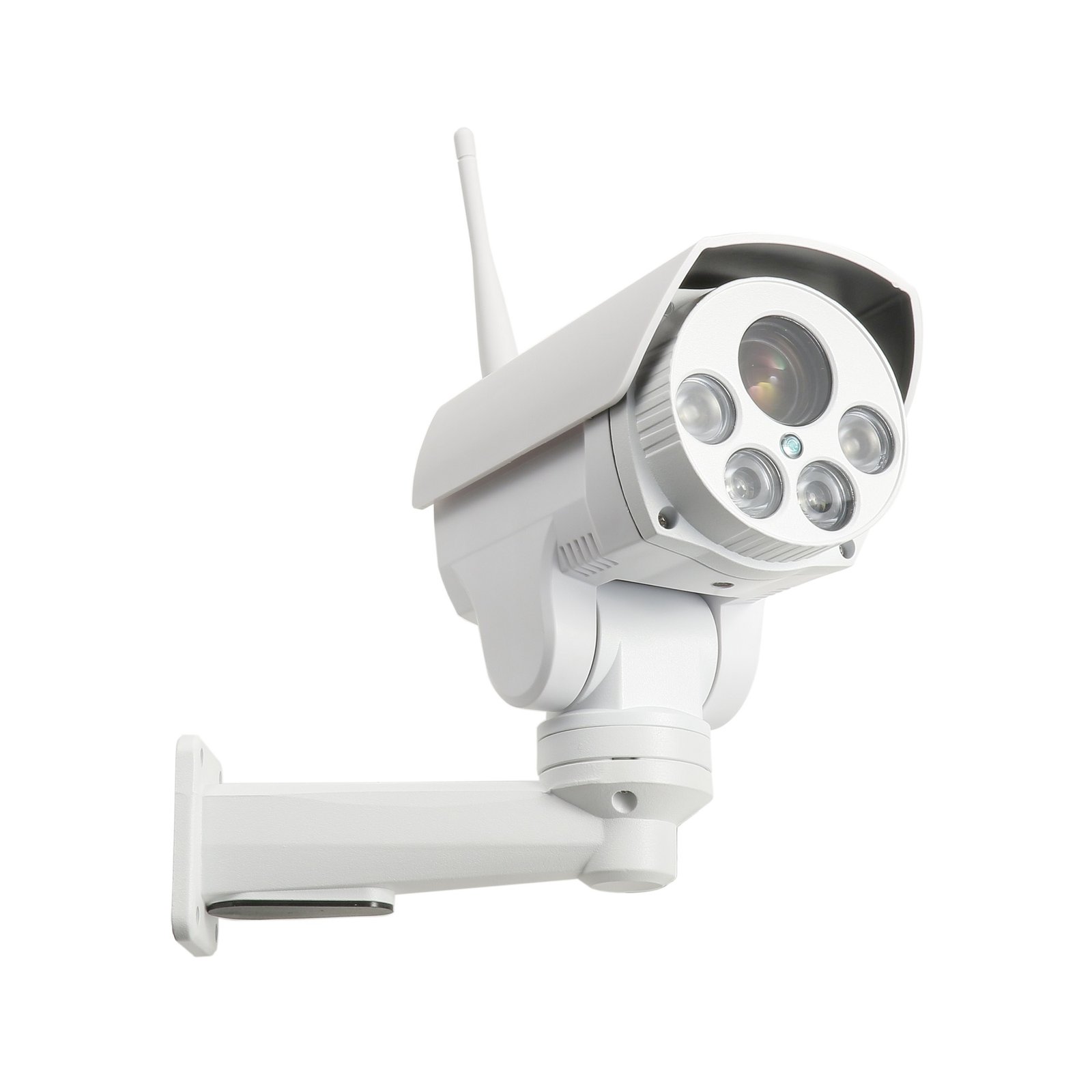

HD 5MP 8MP WIFI 4G PTZ IP Camera
Support 8 Preset Points, Zoom Lens Status Can Be Saved During The Preset
HD 5MP/8MP Resolution
5.0MP / 8.0MP High Definition Image, Clear And Fine Images
Optional Purchase
HD8MP 5X / 5MP 10X Optical Zoom Auto Focus Lens (Optional)
Application Scenarios
HD 5MP / 8MP High-Definition Camera Imaging More Clear
Support P2P
Support P2P, View & Anywhere & Anytime;
Provide Android & IOS APP (CamHipro) And Professional CMS PC Client Software
Built-In Microphone
Audio Input: Built-In Microphone
Support 8 Preset Points
Support 8 Preset Points, Zoom Lens Status Can Be Saved During The Preset
Waterproof IP66
Metal Housing Material, Outdoor Use, Waterproof IP66
Pan Tilt Rotation
Horizontal: 300 Degrees & Vertical: 60 Degrees
TF Card Slot
1 TF Card Slot, Up To 128G ( Not Included )
5X / 10X Optical Zoom (Optional)
5X Optical Zoom Auto Focus Lens (2.7-13.5mm);
10X Optical Zoom Auto Focus Lens (4.7-47mm)
Product Size
Elegant Outline And Easy Installation
Packing List
