SNOSECURE 4CH 4K POE NVR Kit | 8MP IP CCTV Home Security

Description

Main Features

Support access of multiple Camhipro smart front-end devices with human detection and face detection function.

Requires external POE expansion board power supply and network connection.

Support HDMI 4K, VGA 1080P HD Output.

Support ONVIF; Access third party;

Support web, hip2p, center platform management software camhipro, provide SDK development;

Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;

Support multiple network services (support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP searches, Alarm Center, etc.);

Support GB28181 protocol access to third-party platforms.

Product Specification

NVR System
Type	10 CH NVR with 4 POE Ports & Integrated Monitor
Compression Method	H.265 AI /H.265/ H.264
Operating System	Embedded LINUX
HDD	1SATA, MAX 14TB Each
Network Protocol	RTSP、ACP、ONVIF、P2P、UPnP、NTP、DHCP、PPPoE
Intelligent Function	Working with Same Series IPC: Human Detection,Face Detection,Vehicle Detection etc
Incoming bandwidth	72Mbps
Display & Recording
Video Preview	10CH*8MP@30fps and below
Preview Split	1/2/4/6/8/9/10 Screen
Recording Mode	Manual/fixed time/alarm recording
Playback	1 x 4K@30, 2 x 4MP@25, 4 x 2MP@25,8 x 720P@25,9 x D1@25
Video \| Alarm \| Audio
Video Input	10ch Max 8MP Cameras
Video Output	1x HDMI(3840×2160),1x VGA(1920×1080)
Audio IN/OUT	10 (IPC IN):1(RCA)
Alarm IN/OUT	N/A
Motion Detection	Yes
Trigger Events	Recording, Email, Screen Tips, Buzzer, App push

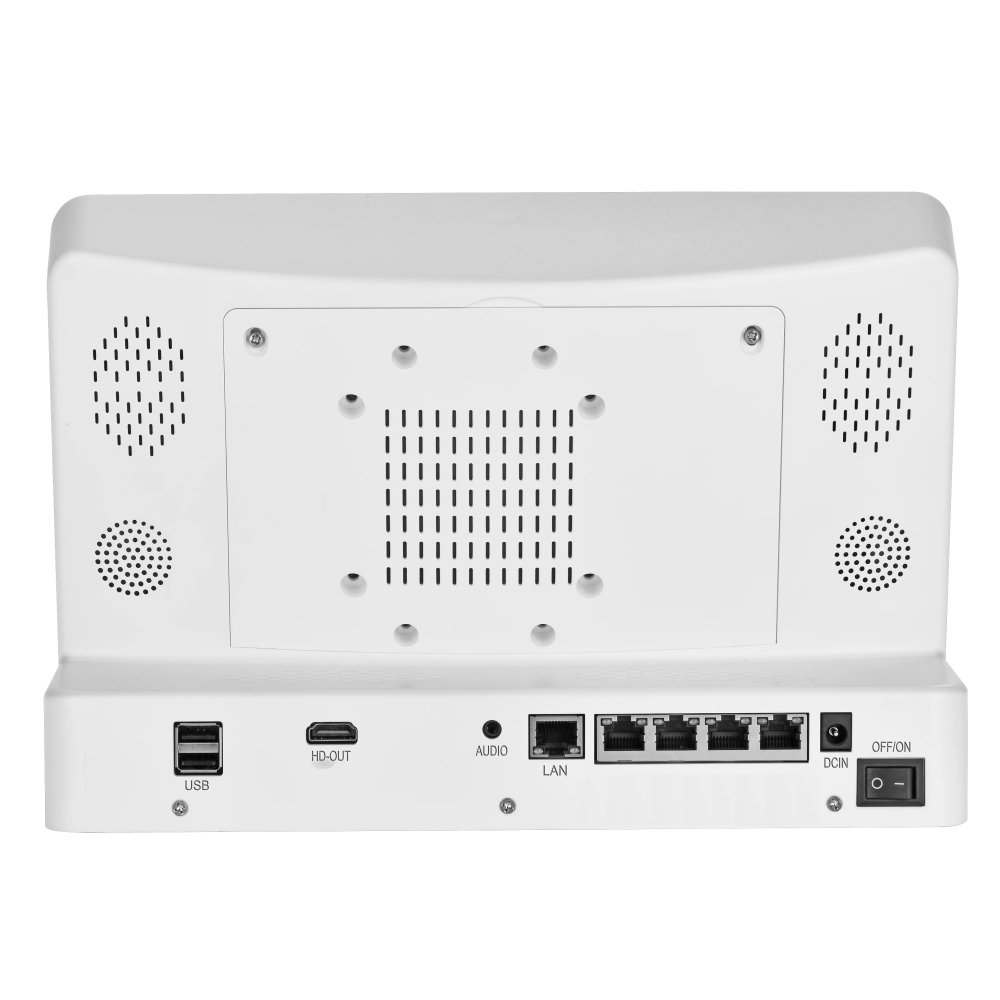

External Ports
Network Port	1 pcs RJ45 100M/1000M Ports
POE Port	4CH, 10/100Mbps, IEEE802.3at/at
Others	USB x2, HDMI, VGA, Audio Out
General
Integrated Monitor	11.6″ TFT HD Screen
Display Resolution	1336*768
Power	DC52V
Power Consumption	≤10W（without HDD）
Working Temperature	-10°C ~ 55°C/10﹪-90﹪
Inner Package Size	31.525.514.5CM / 1.85KG

All in one 4CH 8CH 8MP PoE NVR
Max 10CH 4K / 8MP PoE IP Camera input
Video Compression H.265+
10.1 inch LCD Display
Human Shape Detection & Face Detection
Support ONVIF protocol

Super HD 8MP High Resolution

With a high resolution of 8megapixels(3840×2160), capture videos in 3840P HD quality.

It is a huge advancement compared to 1080P Full HD or Super HD 5MP.

You never miss any important details. which enables you to see all objects very clearly.

Advanced H.265 Video Compression

H.265(HEVC) doubles the coding efficiency compared with its predecessor H.264.

Advanced H.265 compression technology lets you save on storage space which allows for longer recording times. H.265 technology compressing

your video without sacrificing any of the Ultra HD video quality.

POE(Power Over Ethernet), Plug and Play

This security system features Power Over Ethernet (PoE) technology, a single network cable run between this POE NVR and each PoE IP Camera provide both power, video and audio transmission, allowing you to position your cameras anywhere without a nearby power outlet.

POE NVR Easy installation and connection, Plug and play

With 4CH PoE Port

Reliable Remote Access

PoE NVR supports to connect to IOS, Android, Windows, and web browser. You can easily realize free connection with the camera in any of these four ways.
